Hobbywing Skywalker 15A 20A 30A 40A 50A 60A 80A ESC Speed Controller With UBEC For RC Airplanes Helicopter

Hobbywing

Sale price $11.62 Regular price $13.55

Shipping calculated at checkout.

Hobbywing Skywalker 15A 20A 30A 40A 50A 60A 80A ESC Speed Controller With UBEC For RC Airplanes Helicopter



Product description

Special core program for multi-rotor controllers meets various functional requirements against multi-rotors.
Specially optimized software for excellent compatibility with disc-type motors.
The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.

Specifications:
Constant current: 15A
Peak current (10s): 20A
BEC: 5V 2A
Lipo: 2-3S
Net Weight: 14g

20A:

Model: Skywalker-20A
Continuous Current: 20A
Burst Current (>10s): 25A
BEC Mode: Linear
BEC Output: 5V2A
BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)
Net Weight: 19g
Dimension (L x W x H): 42 x 25 x 8mm
Cable length: 25cm
Package size: 12.5 * 11 * 2.5cm

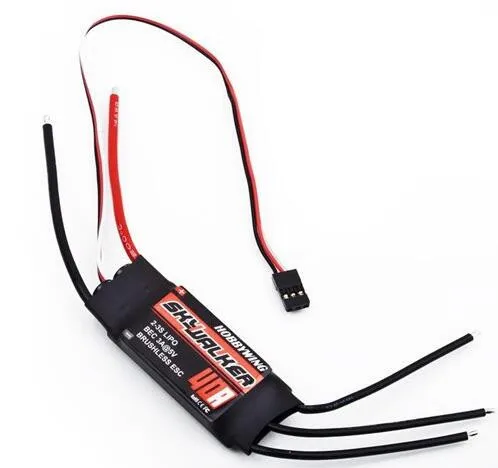

40A:

Model: Skywalker-40A

Continuous Current: 40A

Burst Current (>10s): 55A

BEC Mode: Linear

BEC Output: 5V2A

BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)

Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)

Net Weight: 35g

Dimension (L x W x H): 68 x 25 x 8mm

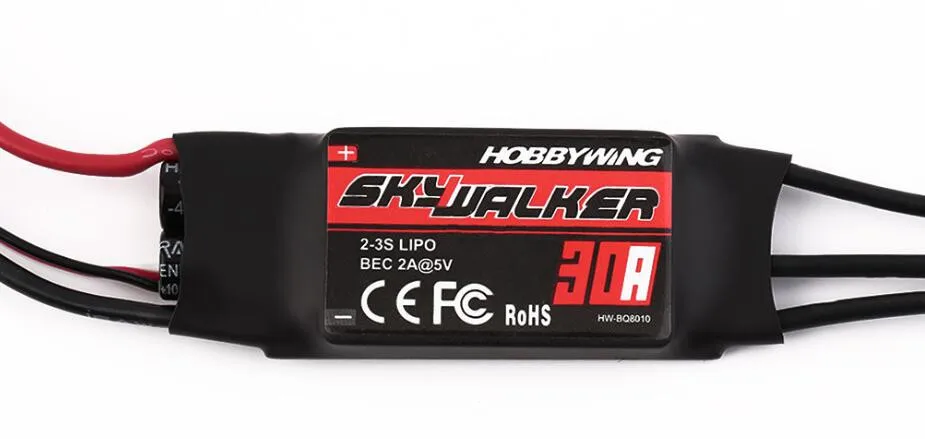

Constant Current: 30A
Peak Current:40A(10s)
Voltage: 2-3S lixx
BEC: Yes
BEC Output: 5V/2A
Color: black
Programmable:Yes
Size: 70*25*8mm (not including cable length)
Net Weight:38g

- COntinuous output: 50A
- Burst current: 60A@10S
- Power input: 2-4S Lixx/5-12S Nixx
- 5V/3A BEC output, switch mode
- Refresh rate: 50Hz-432Hz
- Max.rotation speed: 2-Pole 210000rpm/min; 6-Pole 70000rpm/min; 12-Pole 35000rpm/min
- Dimension: 68*25*12mm
- Weight: 43g

Packet content:

  • 100% Brand New

  • 1*Hobbywing  ESC
