2.4G Micro Flysky Compatible Receiver FS82 AFHDS 2A IBUS PPM For Flysky Transmitter RC Drone Quadcopter Spare Parts

FlySky

Regular price $6.62

Shipping calculated at checkout.

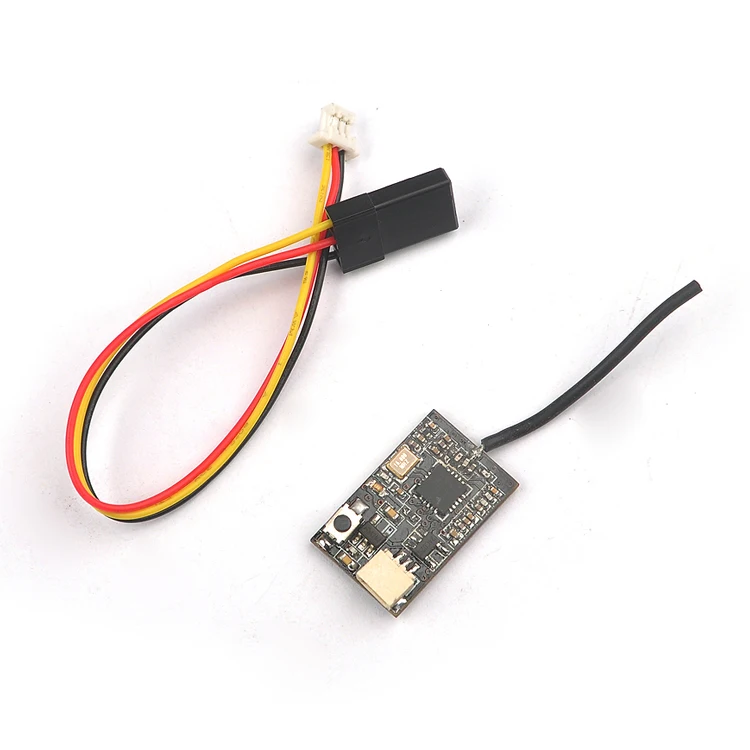

2.4G Micro Flysky Compatible Receiver FS82 AFHDS 2A IBUS PPM For Flysky Transmitter RC Drone Quadcopter

Specification:

Item Name: FS82 Micro 2.4G receiver

Channels: PPM 8CH/IBUS 10CH

Frequency range: 2.408-2.475GHZ

2.4GHZ system: AFHDS 2A

work mode: IBUS or PPM

IBUS connector: 1.0 SH 3Pin Plug

PPM connector: solder pad

Failsafe function: Support (Only IBUS Mode)

Transfer method: FHSS

Antenna lenhth: 30mm

No ground interference (Transmitting and receiving 1 m from the ground): >200m

Working current: 40mA

Size: 20*13*4.5mm

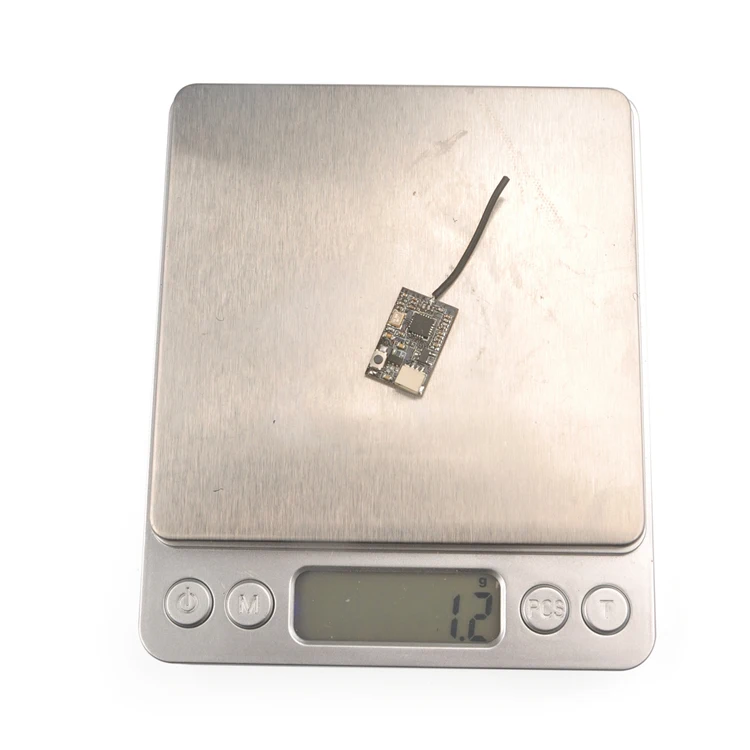

Weight: 1.2g

Compatible Transmitter: Compatible with FS‐i4, FS‐i6, FS‐i6S, FS‐i6X, FS‐i10, FS‐GT2E, FS‐GT2G, FS‐GT2F,Turnigy Evolution

Pin-out Diagram:

aeProduct.getSubject()

aeProduct.getSubject()

            Bottom view                                           Top view

Binding Procedure:
‐Connect the battery to the receiver while holding the binding button on the board ,the Blue LED will blinking fast, this indicates the Receiver is in binding mode. Then release the binding button.
‐Turn on your radio and Set receiver mode to AFHDS 2A, then get your radio into binding mode. The blue LED on the Receiver will turning off for a second and then starting to blinking slowly, this indicates binding successfully.
