Clearance Happymodel Crazybee F3 Pro Flight Controller Mobula7 5A 1-2S Compatible DSM-X DSM-2 Receiver for 2S Brushless Tiny Bwhoop

Happymodel

  • $25.99
  • Save $14
Shipping calculated at checkout.


Happymodel Crazybee F3 Pro Flight Controller Mobula7 5A 1-2S Compatible DSM-X DSM-2 Receiver for 2S Brushless Tiny Bwhoop

CRAZYBEE F3 PRO FS Compatible flysky receiver

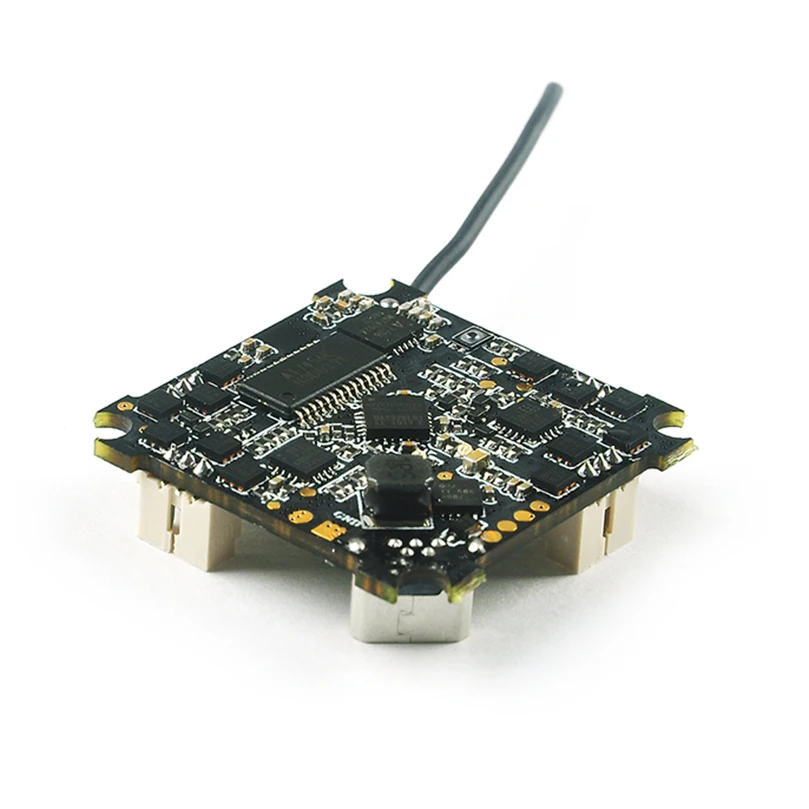

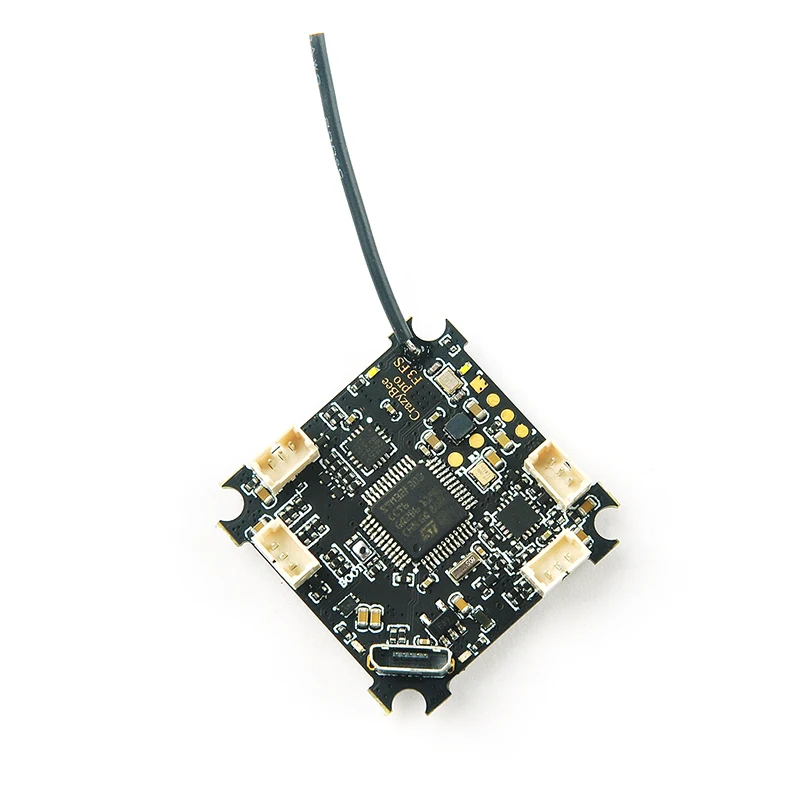

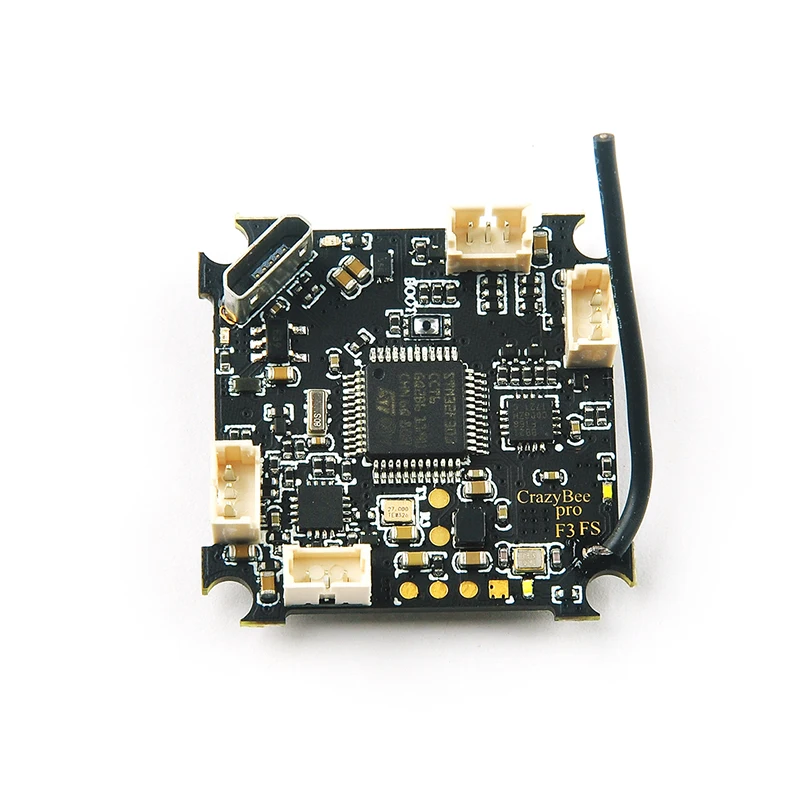

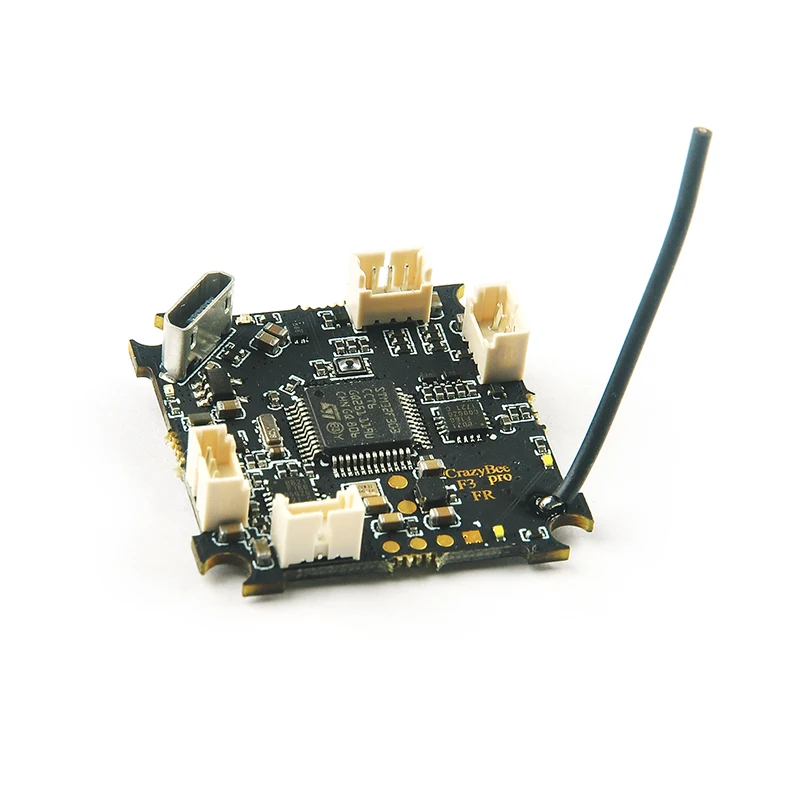

Flight controller

CRAZYBEEF3 PRO FS Firmware target: CrazybeeF3FS

MCU: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000(SPI connection)

Board size: 28.5 * 28.5MM

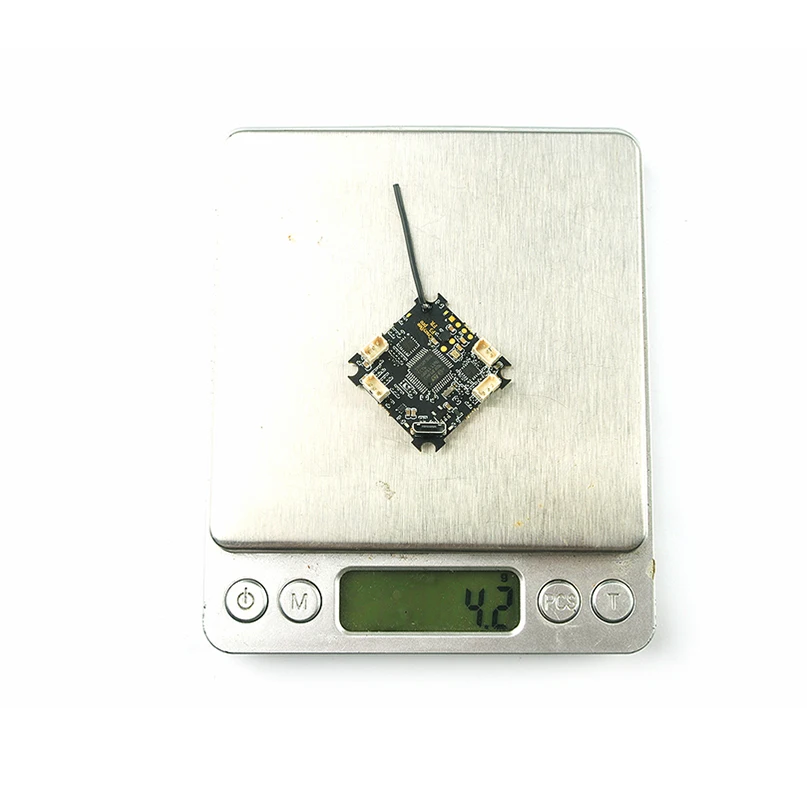

Weight:4.2g
Power supply: 1-2S battery input (DC 3.5-8.7V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in SPI Flysky receiver with telemetry(D8/D16 switchable)

Built-in Betaflight OSD(SPI Control)

Built-in Current meter Max 28A

Current meter scale set to 1175

Built-in 5V 1A Buck / Boost with LC filter

Built-in voltage detection
BLHELI_S pass-through Ready

Heading LED Ready

Onboard 4in1 ESC

MCU upgraded to EFM8BB21

Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v)
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.Hex
Default protocol: DSHOT600



The world first 1-2S Brushless F3 flight controller with internal 4in1 ESC、OSD、2.4G receiver、Current sensor、Buck / Booster is coming. You only need to add a VTX and Camera . It’s a best choice for 2S Brushless tiny whoop.

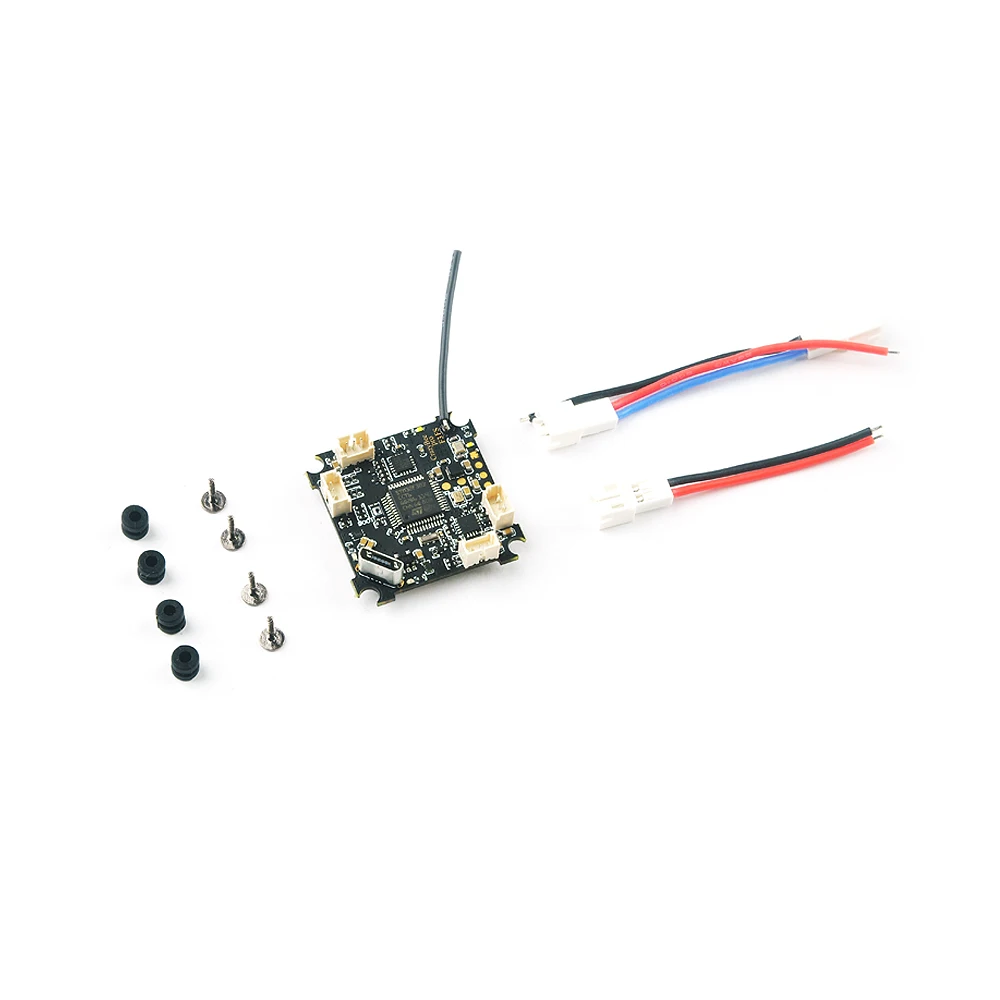

Package include:

1 x CrazybeeF3 PRO  FS flight controller

2 x Power cables

1 set Shock absorbing rubber and screws
