BETAFPV exclusive designed BT2.0 connector has broken through the bottle-neck of PH2.0 connector. BT2.0 connector has decreased internal resistance of connector effectively allowing more current to be transferred, which means it supports 9A continuous current (15A burst). This means stronger power and longer flight time on 1S brushless drones while PH2.0 just supports 4.5A. You can enjoy more flight time without disturb of low voltage warning due to reducing voltage sag.
We know some of pilots might have a question about how to deal with the old PH2.0 1S battery. So we provide some accessories like BT2.0 connectors for those people who want to convert the PH2.0 connector to BT2.0 connector.
BT2.0 Connectors (10pcs)
BT2.0 1S Whoop Cable Pigtail
BT2.0-PH2.0 Adapter Cable
BT2.0 Battery Charger and Voltage Tester
BT2.0 Connector 1S Lipo Charger Board
BT2.0 450mAh 1S Battery

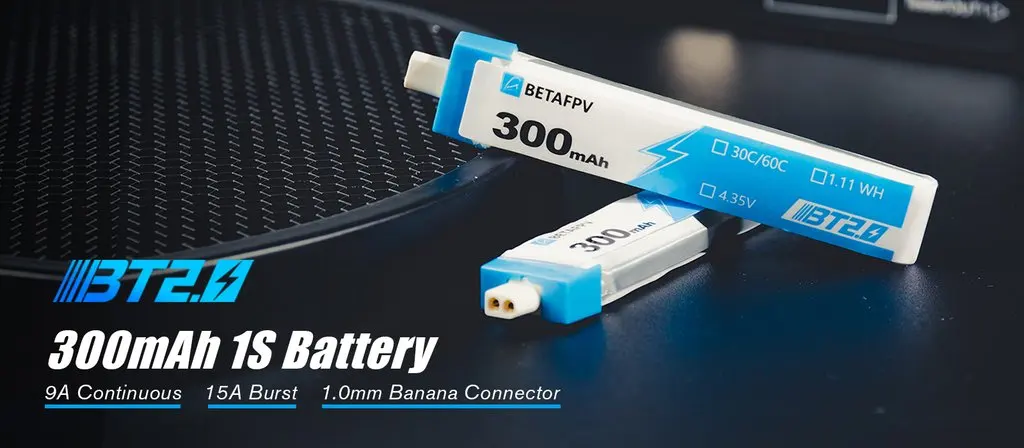

BT2.0 300mAh 1S Battery
BT2.0 260mAh 1S Battery
ThisF4 AIO 2S FC is suitable for a lighter 1-2S whoop drone perfectly, like Beta65X，Beta65 Pro 2 or Beta75 Pro 2 etc. It integrated with a Betaflight F411 processor FC, Betaflight OSD, SPI Frsky receiver and 1-2S 5A ESC. So the 1-2S drone could save much weight for a faster fly experience.
Camera & VTX
The C01 Pro Micro Camera is a rare FPV camera currently on the market, which adapted a 1/3'' CMOS sensor and a 2.1mm lens for 1200TVL resolution and excellent latency while minimizing the weight to 1.96g. Designed specifically for those weight-sensitive drones, such as Brushed & Brushless Whoop Quad.
The stock VTX on the 65X 2S drone is the M series 25mW VTX.
Note: the 25mW VTX is marked as M02 on the first batch. It will be changed to M01 V2 since the second batch). Compared with the original M01 VTX, the 5V pad change its position.
0802 14000KV motorsusing ball bearing instead of brass bushings, and PCB connector. More durable and easier to repair once disconnection.
Meteor65 frame is the most popular and colorful 65mm frame in this winter.
We only need to add 0.3g 3D printed adapter and change it to a 2S 65mm frame. Still light enough and you could experience the aggressive power of 2S now.
BETAFPV LiteRadio 2 Radio Transmitter 2.4G 12CH Remote Controller Bayang / Frsky Protocol for FPV Racing Drone Simulator
Frequency Range: 2.4G (2403MHz-2447MHz)
2.4G System: NRF24L01 and CC2500
System: Bayang Protocol / Frsky Protocol
Model Type: Multi-rotor
Support USB Charging
Support FPV Simulator Connected
Output: PPM, support Student Radio Mode
LED Light: Green-Power On / Red-Warning / Blue-Normal
Battery: 1 * 350mAh 2S Battery（Removable）
Weight: 227.4g (with battery)
How to switch the protocol (D16/D8 Version)
Press and hold the bind button, then press the power button until the purple light is flashing. The flashing LED indicates different protocol the LiteRadio works on.
LED StatusProtocol Version
Flash OnceFrsky D16 FCC
Flash Twice Frsky D16 LBT
Flash Three Times Frsky D8
