BETAFPV Beta85X V2 Whoop Quadcopter F4 AIO 12A V2 5000KV Motors M02 25-350mW 5.8G VTX W/ LiteRadio 2.4G 8CH Radio Transmitter

BETAFPV

Regular price $203.99

Shipping calculated at checkout.

BETAFPV Beta85X V2 BWhoop Quadcopter F4 AIO 12A FC V2 1105 5000KV Motors M02 25-350mW 5.8G VTX Helicopter Mini Drone

Package

  • 1 * Beta85X V2 Whoop Quadcopter
  • 1 * Insta360 GO Camera Mount
  • 1 * Cutomsized Naked Camera Mount
  • 1 * Case for Naked Camera V2
  • 1 * BEC Board
  • 1 * EMAX Avan 2" 4-Blades Props(2CW+2CCW)
  • 1 * Screw Pack

Batteries, Insta360 GO and Naked Camera are not included in the package. You can get it here 450mAh 4S batteryInsta360 GO and Customized Naked Camera.








Beta85X V2 - a new Bwhoop style quadcopter. We converted Beta85X V2 to the popular pusher configuration. Comes with two HD camera mount options - Insta360 GO and Customized Naked Camera, pilots can choose the HD camera for FPV filming. With 2035 4-blades propellers, 1105 motors and F4 AIO 12A FC, it could provide cinematic footage in smooth flight. If you have the DJI FPV goggles, you can also choose the Beta95X HD Digital VTX version. Expect that, we provide the Beta95X V2 too.



Bullet Point

  • New whoop style, better fly operability. With the quite popular pusher configuration, cameras and batteries are placed on the top of the drone. The drone can be controlled better in flight while the center of gravity is concentrated.
  • Beta85X V2 supports to install two HD cameras, more choices for your FPV shooting. It especially comes with 2 camera mounts, pilots can equip Insta360 GO or Naked camera case on the drone to get a fairly clear video.
  • Stable camera, clear video. Beta85x uses a rubber damper to further eliminate the shake of the HD camera on the flight. Pilots can capture all the beautiful moments of flight with a stabilized and clear video.
  • With the 15° degree camera mount, Beta85X V2 is perfectly suitable for recording HD video on a smooth flight.

Specification

  • Item: Beta85X V2
  • Power system: 4s
  • Weight: 78g (without battery)
  • FC: F4 AIO 12A FC V2
  • Frame: Beta85X Frame
  • Motors: 1105 5000KV with connector
  • Props: EMAX Avan 2" 4-Blades Props
  • Receiver Option: Frsky XM+ / DSMX / Futaba S-FHSS / TBS Crossfire
  • Battery: 4S 450mAh Battery (Not including)
  • Camera: EOS Camera  25-45° angle adjustable
  • Angle of recording camera mount: 15°
  • VTX: M02 25-350mW 5.8G VTX
  • Flight time: 4min - 5min with 450mAh 4s 75C battery

Insta360 GO

Beta85X V2 comes with 2 customized HD camera mounts, supports for Insta360 GO and Naked Camera, offering more choices for different FPV film shootings needed. Both professional HD cameras are built for capturing your every highlight on the flight. Providing cinematic footage, at high speeds, and with zero limits.

Insta360 GO camera is awarded "Best of new products" IFA 2019 by Business Insider. It shoots 30- or 60-second clips at the press of the button - anytime, anywhere, and it can use AI to help you find and edit your best shots. It also can use proprietary FlowState stabilization to keep your footage impossibly smooth. No gear. No hassle. To know more details about Insta360 GO, please click the link.

Customized Naked Camera

The camera mount for Customized Naked Camera is also provided, perfect to fix the Naked camera on the drone. What's more, we upgraded the case for Naked Camera, with the injection molding process, the new Case V2 is better looking and easier to install. If you have a GoPro HERO6/7, you can choose the BEC board and case to build one as our Naked camera. Meanwhile, we also released a new ND16 filter for Naked Camera, which not only protects the camera but also provides a better image.

Pusher Whoop Style

The Inverted drone frame is the most popular pusher installation in the current market. It puts all the cameras and batteries on the top of the platform, perfectly concentrated the whole gravity of the plane on the center, brings the best fly operability.

FC & ESC

F4 AIO 12A brushless Whoop FC is light only 5.07g and suitable for brushless whoop like 2S Pro 2 Series/ X Series. Integrated with a Betaflight MATEKF411 processor FC, Betaflight OSD and 2-4S 12A ESC which can support 4S battery for the fast-flying experience. Find more details about this  F4 AIO 12A FC V2 on another page.

FC Specifications:

  • CPU: STM32F411CEU6 (100MHZ )
  • Six-Axis: MPU6000 (SPI connection)
  • Size: 26mm x 26mm, whoop mounting pattern
  • Firmware version: BETAFPVF411 (BEFH)
  • OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)

ESC Specifications:

  • Support BLheli/BLHELI_S suite Pass-through ready
  • Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
  • Input voltage: 2S-4S Lipo
  • Continue current: 12A
  • Peak current: 13A
  • Firmware: BLHELI_S
  • Processor: SILABS EFM8BB21F16G
  • Factory firmware: G-H-30-16.7

Camera & VTX

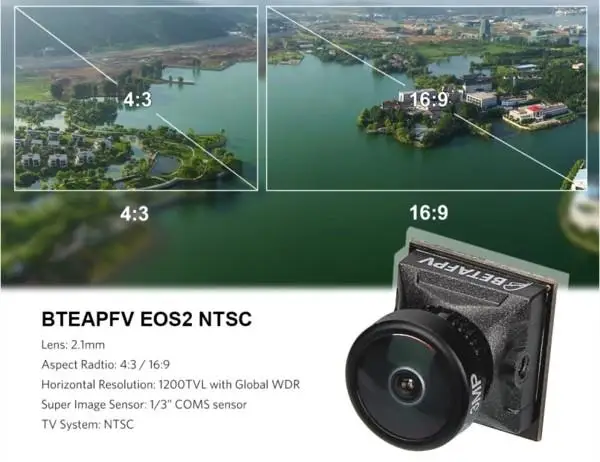

Customized EOSV2 micro FPV camera is perfectly suitable for Beta95X V2 Whoop Quadcopter and Beta85X, it has high-quality video and low RF interference. In addition, M02 25-350mW VTX is a high-quality 5.8GHz VTX. With 350mW output power, pilots can fly drones up to 600 meters away to explore more possibilities and fun. With this image transmission combination, Beta95X V2 is perfect for FPV flying, brings an excellent flight experience.

1105 5000KV Motors & Props

Lower 5000KV for Beta85X 4S, which could support 4S power and won't cause the issue of overheat. Providing stronger thrust in 4S whoop drone. Powerful, fast, and durable.

We DO NOT recommend the 1105 6000KV motors for 4S power because the motor may overheat or burn which will cause permanent damage on the motor or ESC. And don't use 1105 5000KV motors for 3S power, the performance will not be as good as the 1105 6000KV motors since lack of power.

Motors Recommend Battery Voltage
1105 6000KV 3S 450mAh Battery 11.1V
1105 5000KV 4S 450mah Battery 14.8V

The Beta85X drone also comes with "props out" by default. Why we need "Props out" direction?

Default Betaflight props direction, quadcopter dips, and "washes out" in hard corners. With reversed props or "props out", no more dipping even in the hardest cornering.

Know more about "Props Out".

Q&A

How to modify your Beta85X & Beta95X to Beta85X V2, Beta95X V2 or Beta95X V2(HD Digital VTX).

  • Beta85X V2 Pusher Kit
  • Beta95X V2 Pusher Kit

We also provide the STL files for Pusher Whoop Drones. If you wanna know more about cinewhoop, click the link below to join us on Facebook.

>>NAKED Cinewhoop Community

Much more choices for Naked Camera series accessories.

  • Beta95X V2 HD Digital VTX
  • Beta95X V2 Whoop Drone
  • BEC Board for Naked Camera
  • Case V2 for Naked Camera
  • ND16 Filter for Naked Camera
  • Insta360 GO

After the latest round of beta test, LiteRadio is back to the market with the huge improvements based on the original version.

-Supports Frsky protocol, easily change Frsky D8, Frsky D16 FCC and Frsky D16 LBT mode (The default version is Frsky D16 FCC)

-Built-in charging module, support USB charging

-Adopted the rubber coat and add weight, makes it more ergonomic

-Add vibration motor, provide a vibrating prompt

-Redesign the power button, make it crystal clear and better for the LED indication

Specification:

Brand: FEICHAO

Item: LiteRadio

Frequency Range: 2.4G (2403MHz-2447MHz)

2.4G System: NRF24L01 or CC2500

Channel: 8

System: Frsky Protocol

Power: 80mw

Model Type: Multi-rotor

Support USB Charging

Support FPV Simulator Connected

Output: PPM, support Student Radio Mode

LED Light: Green-Power On / Red-Warning / Blue-Normal

Battery: 350mAh 2S Battery

Weight: 227.4g (with battery)

How to change the protocol (D16/D8 Version):

To change FrSky protocols (FCC D16, EU D16, or D8), you first have to power it off, then press and hold the bind button while you power it back on. Then it will flash the code to indicate which protocol it is on.

LED Status - Protocol Version:

Flash Once - Frsky D16 FCC;

Flash Twice - Frsky D16 LBT;

Flash Three Times - Frsky D8

LiteRadio Guide

Manual for LiteRadio Radio Transmitter

LiteRadio Configuration - OpenTX Companion

Setup E.G. #1 - Trim the Gimbal Central Value
