BETAFPV HX115 SE 115mm 3-inch 1S Quadcopter w F4 1S 12A AIO Flight Controller 3-5 Minutes Flight Time RC Toothpick Racing Drone

BETAFPV

Regular price $149.99

Shipping calculated at checkout.

BETAFPV HX115 SE 115mm 3-inch 1S Toothpick Racing Drone w F4 1S 12A AIO Flight Controller 3-5 Minutes Flight Time RC Quadcopter

HX115 SE Toothpick Drone is an ultralight 3-inch 1S Toothpick Quadcopter. Equipped with specially designed F4 1S 12A AIO Flight controller that integrates 1S 12A ESC, the drone is powerful enough to achieve all flight actions. With 1102 motor and 3020 blade, the weight of whole drone is lighter, the structure is simpler, the flight is smoother and poweful.

Bullet Point

  • Equipped with F4 1S 12A AIO Flight controller, which is specially designed for 1S 3-inch toothpick drone. This FC can provide more power to meet the demanding flight requirements.
  • Ultralight 39.15g, pilots can enjoy 3-5 minutes flight time with BT2.0 450mAh 1S battery.
  • Equipped with BETAFPV BT2.0 connector, it can support 9A continuous current and 15A burst while the PH2.0 connector uses 4.5A continuous current. It provide a stable power and outstanding performance for HX115 SE Toothpick Drone.
  • 1102 18000KV motor and durable HQ 3020 2- blade props formed a highly efficient power system, which lays a foundation for the excellent flight performance.

Specification

  • Item: HX115 SE Toothpick Drone
  • Wheelbase:115mm
  • Weight:39.15 ±1g
  • Motor:1102-18000KV
  • Charge connector:BT2.0 connector
  • Propeller:HQ 3020 2-Blade Propellers 1.5mm Shaft
  • Flight controller:F4 1S 12A AIO FC
  • Battery:BT2.0 450mAh 1S Battery
  • VTX: A01 25-200mW VTX
  • Camera:Caddx ANT camera
  • Camera Tilt Degree:0-60°
  • Receiver:SPI Frsky FCC D16 in default
  • Flight time:3-5min with BT2.0 450mAh 1S Battery

F4 1S 12A AIO Flight Controller

Most of 1S flight controllers on the market come with 5A ESC by now, F4 1S 12A AIO FC specially integrate 1S 12A ESC for 3-inch toothpick drone. with this FC, pilots can fly HX115 SE all smooth and powerful flying actions without any worries.

F4 1S 12A AIO FC

SPI Frsky RX

Come with the build-in SPI Frsky Receiver (CC2500 chip), F4 1S 12A AIO FC can be compatible with Futaba S-FHSS, Frsky D8 and D16 protocol. The default protocol is configured to Frsky D16 FCC out of factory. Pilots could setup the protocol according to your own need in Betaflight Configurator.

Configuration

Protocol

FRSKY_D

Frsky D8

FRSKY_X

Frsky D16 FCC (ACCST 1.X version)

FRSKY_X_LBT

Frsky D16 LBT (ACCST 1.X version)

SFHSS

Futaba S-FHSS

How to Bind with Betaflight FC with SPI Frsky Receiver.

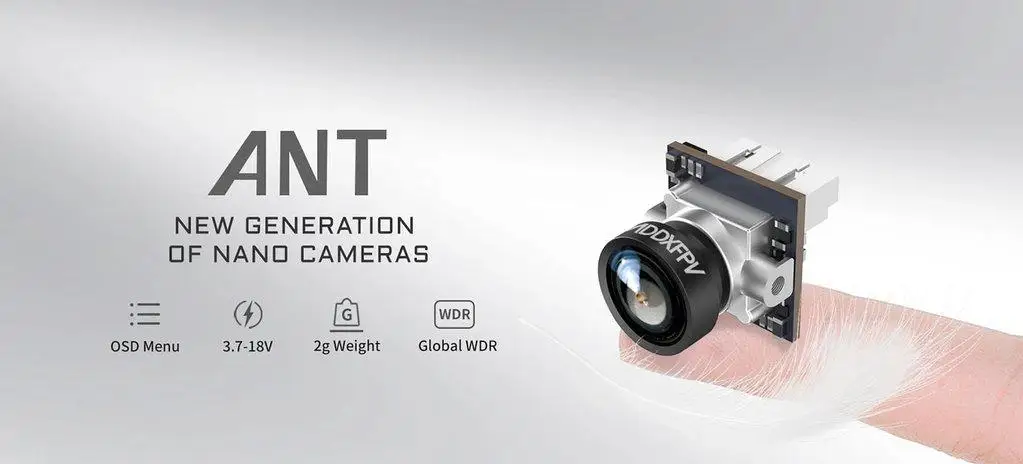

Caddx ANT Camera

Caddx ant camera is a FPV micro camera with 1200TVL Global WDR, only weight 2g.  Combined with A01 25-200mW VTX is a high-quality 5.8GHz VTX including 25mW, 100mW, 200mW. With 200mW output power, pilots can fly drones up to 400 meters away to explore more possibilities and fun.

Motor & Props

HX115 SE Toothpick Drone equipped with lightweight 1102 18000KV motor, it provides powerful thrust to HX115 SE and makes the drone fly super fast and smooth!  Combined with durable HQ 3020 2- blade props, this high-efficient power system lays a foundation for the excellent flight performance.

FAQ

Cli Dump of HX115 SE Toothpick Drone (Click here to find the details).

PACKAGE

  • 1 * HX115 SE Toothpick Drone
  • 1 * BT2.0 450mAh 1S Battery
  • 1 * set of HQ 3020 2-Blade Props
