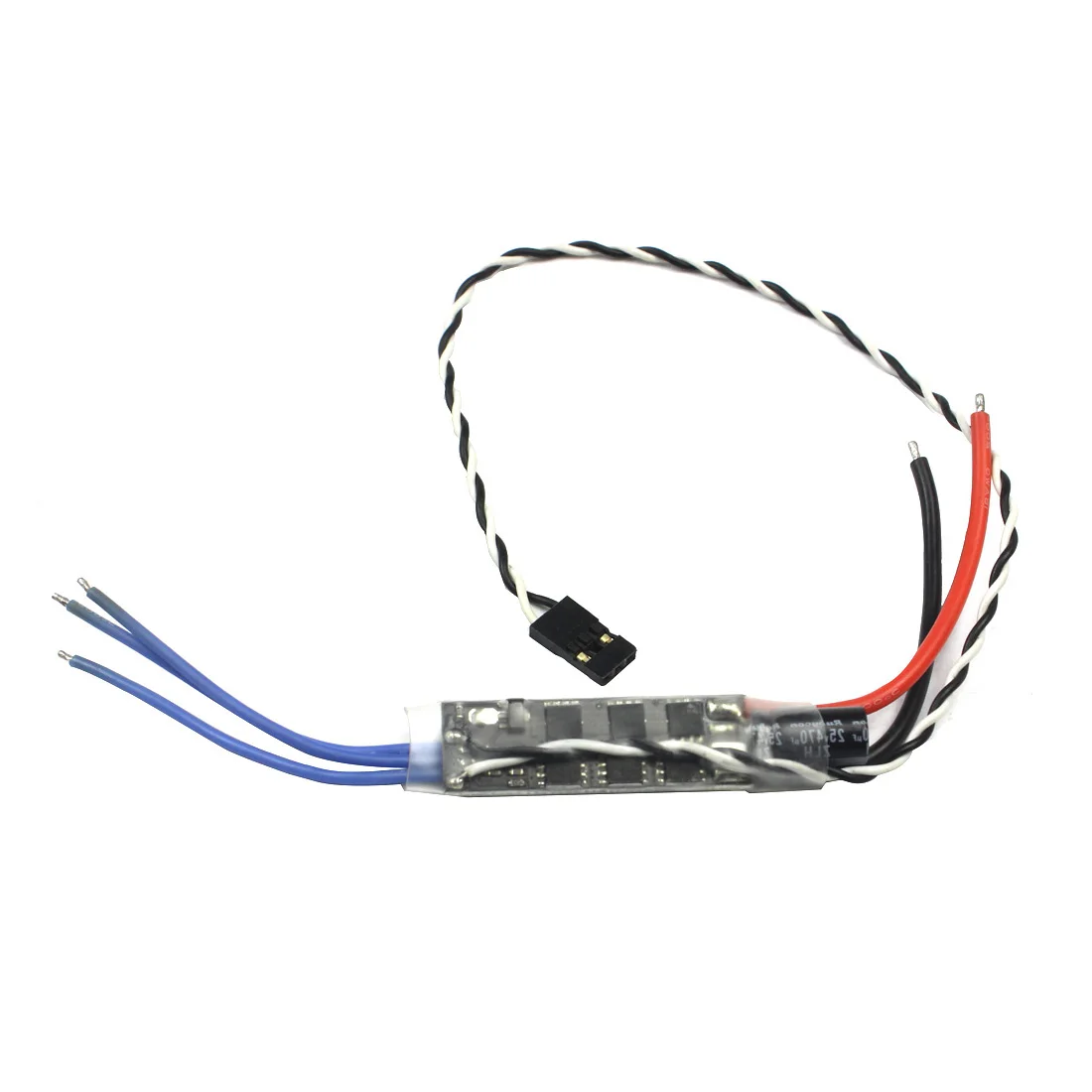

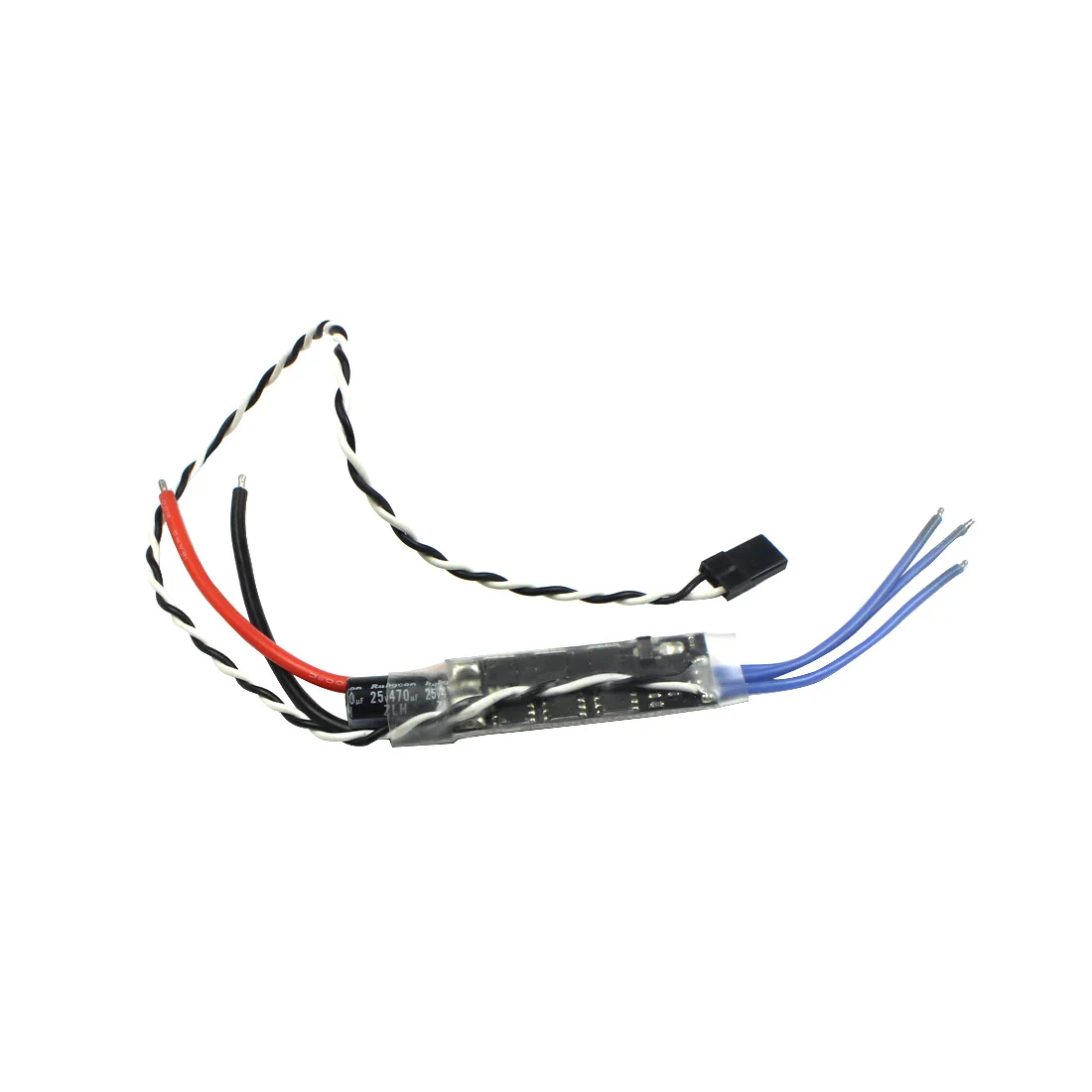

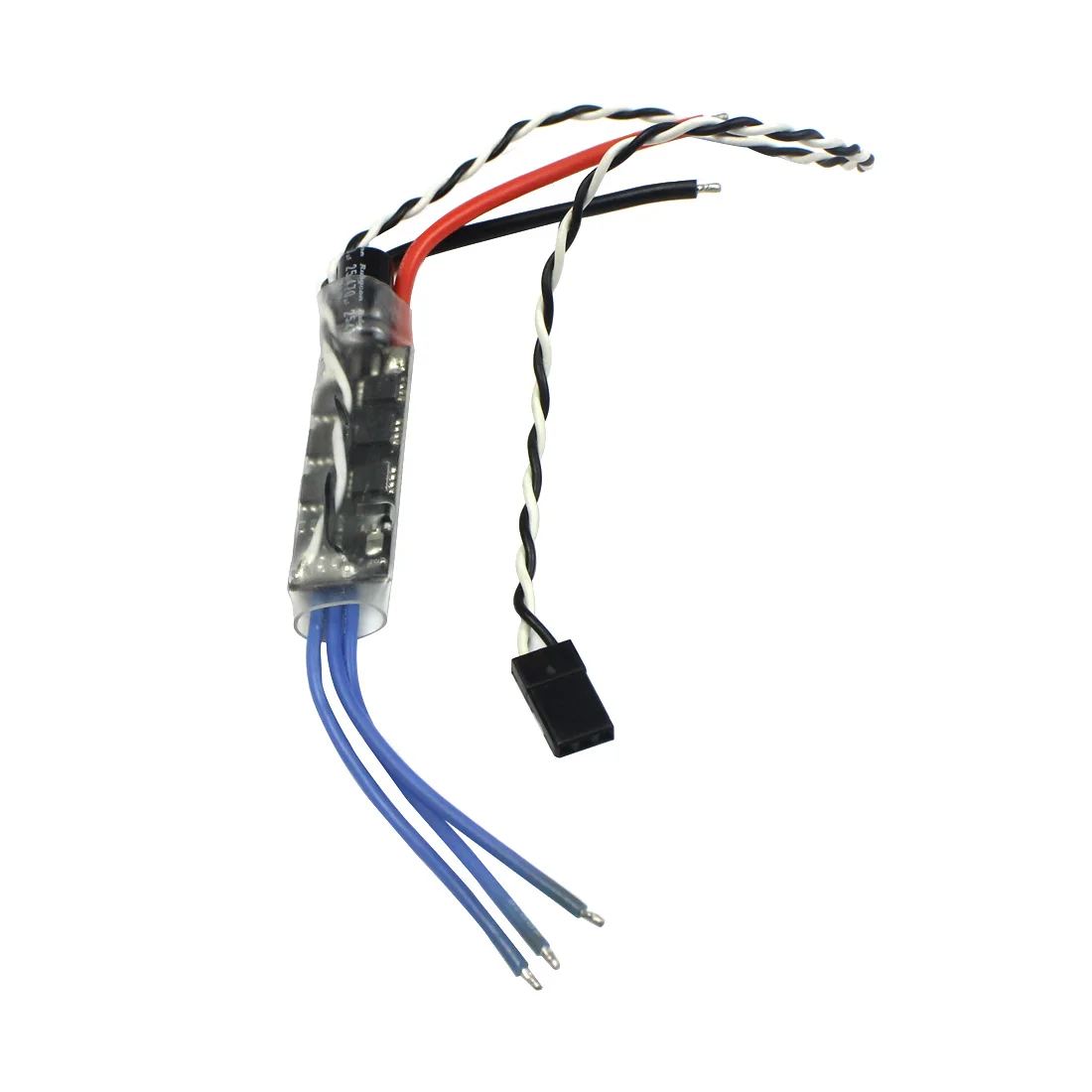

QWinOut BLHeli 30A Brushless ESC SimonK 30A 2-4S Brushless ESC Speed Controller For RC Quadcopter F450 F550 Drone Model

QWinOut

Regular price $7.66

Shipping calculated at checkout.

Suitable for PWM, PPM signal input has faster response and better linearity. Make your multi-axis flight more stable, can be among the ranks of high response, the effect is obvious, stable as a rock,

It can be easily put into the multi-axis pipe. The PCB copper thickness has been specially thickened, and the heat generation is small, so there is no need to worry about heat dissipation.


Feature:

1). This hardware and SimonK or blheli firmware provide you with a perfect solution for multiple rotors;

2). Highest efficiency 100% N-FET design

3). The crystal oscillator has the highest accuracy (temperature will not affect the PWM operating range like other cheap ESCs);

4). Ultra-high refresh rate, the input signal is unbuffered, and the response speed exceeds 490Hz;

5). 16KHz motor frequency, which makes the motor respond the fastest and run quietly

6). Super simple, no programming is required except for the throttle range;

7). Suitable for remote control helicopters and four-axis aircraft.

PCB size: 50MM*13MM (60MM*13MM including main capacitor)

Weight: 23g

Operating voltage: 2-4S Lipoly

Response: 20-500Hz

Firmware: simonk / blheli The system is locked in the best state. The parameters cannot be set through the computer connection

Working current: 30A

Maximum current: 40A

BEC: NO
