Diamond VTX 5.8G 40CH 25~200mw Switch Transmitter DVR Record Audio + Caddx Turbo EOS2 FPV Camera for Cinewhoop RC Drone Upgraded


Regular price $45.85

Shipping calculated at checkout.

 Happymodel Diamond VTX 5.8G 40CH 25/100/200mW Switchable FPV Transmitter DVR Record Audio + Caddx Turbo EOS2 Mini Camera for DIY Cinewhoop Tinywhoop RC Racing Drone Upgraded

- This combo can upgrade tinywhoop to cinewhoop, The Camera and Storage card are optional, Please choose the version as your request.

- For the Caddx Turbo EOS2 Mini Camera, There are several formats optional,(2.1mm 16:9 PAL/2.1mm 4:3 PAL/2.1mm 16:9 NTSC/2.1mm 4:3 NTSC), Default is 2.1mm 4:3 NTSC, If you have other request or recommend, Please feel free to contact us.

Package included:

1x Happymodel Diamond VTX DVR Recording

1x Caddx Turbo EOS2 2.1mm 4:3 NTSC Mini Camera (Optional)

1x 32GB / 16GB / 8GB Storage Card (Optional)

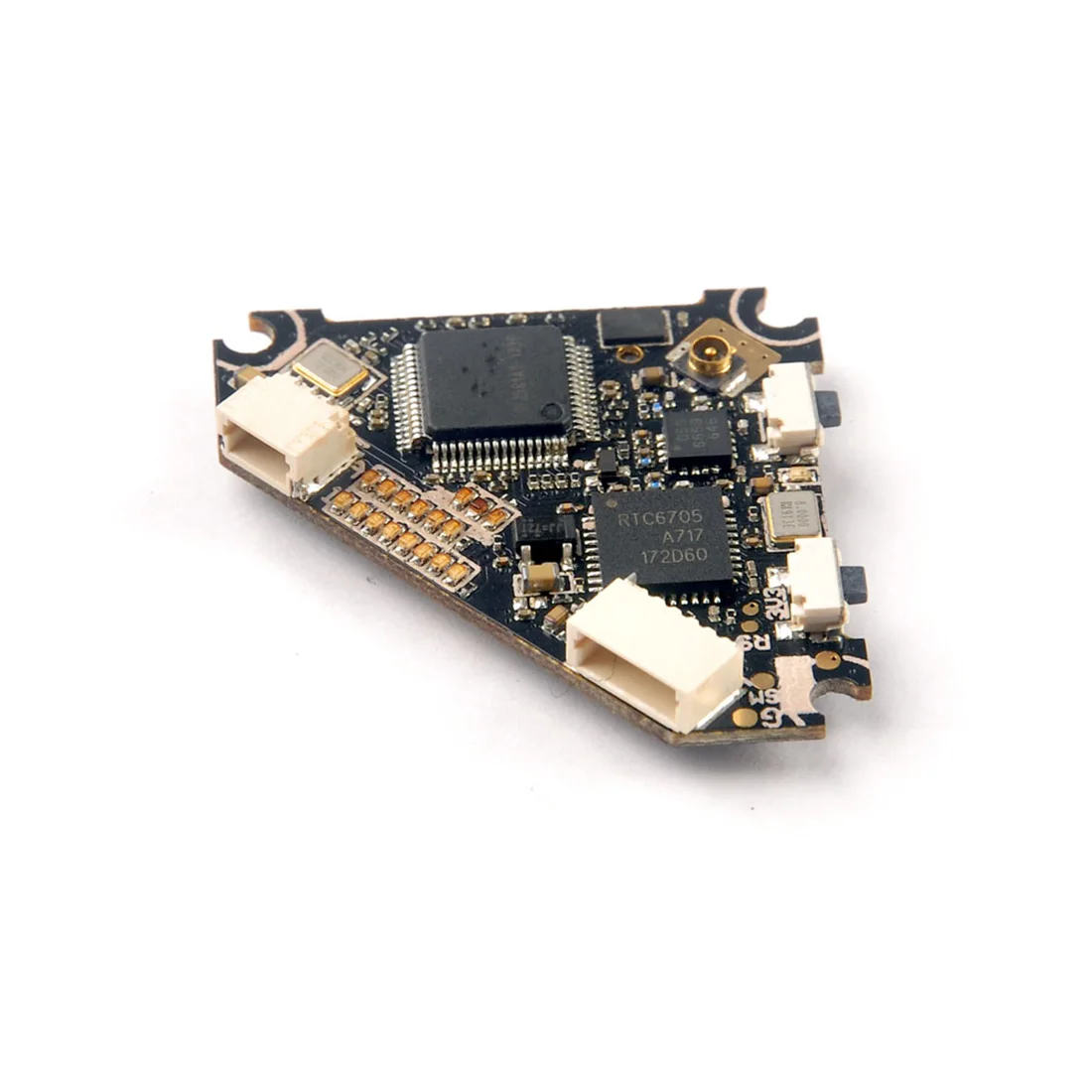

Happymodel Diamond VTX DVR Recording Specifications:
Brand Name: Happymodel
Output power: 25~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 250mA~510mA(type)
Antenna: RG178 antenna
U.FL interface
Frequency: 5.8GHz 5bands 40 channels
With Raceband
Smartaudio ready

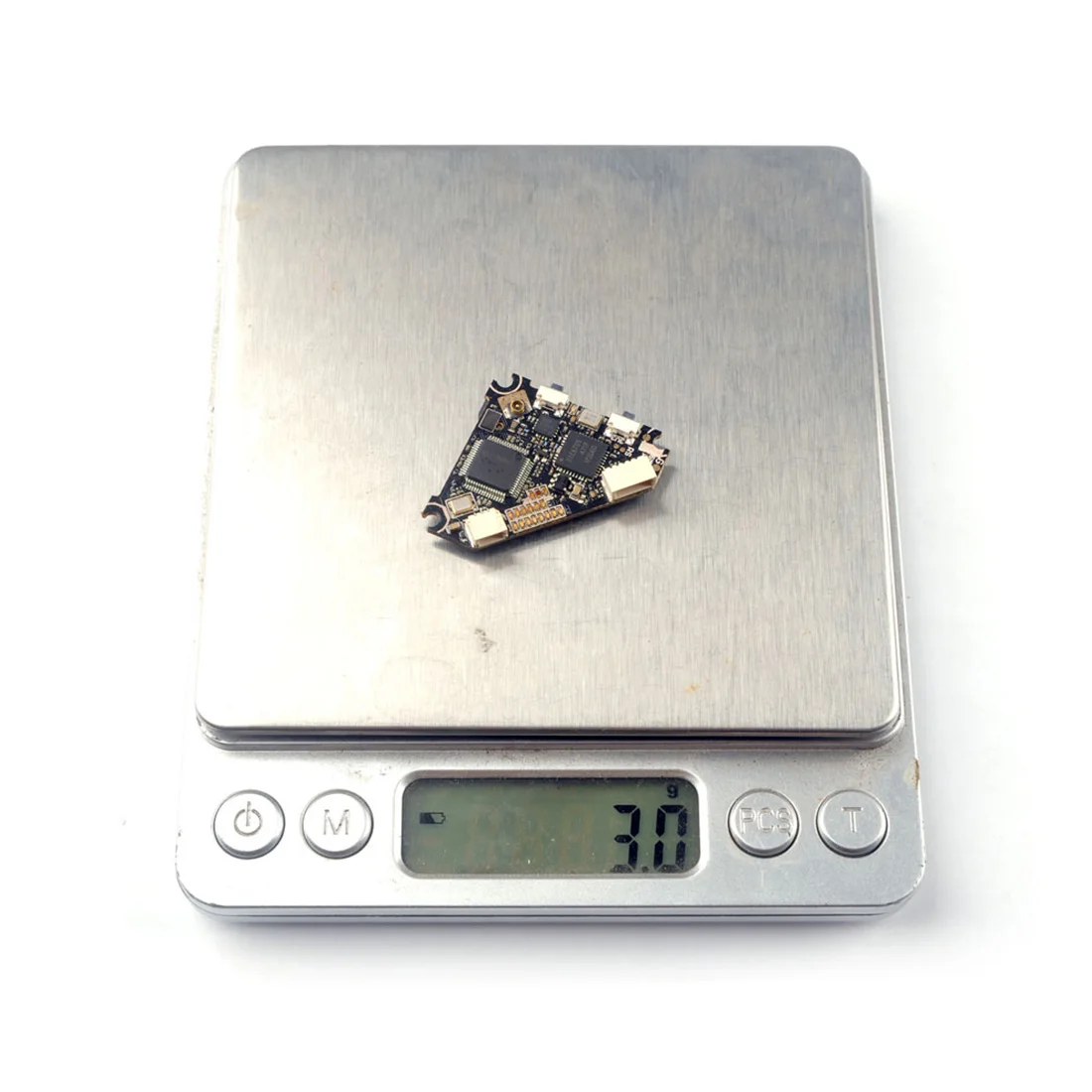

Weight: 3g without antenna
Video Output Size: VGA (640×480)
Video Output format: NTSC
Record video size : 1280×720 @25FPS

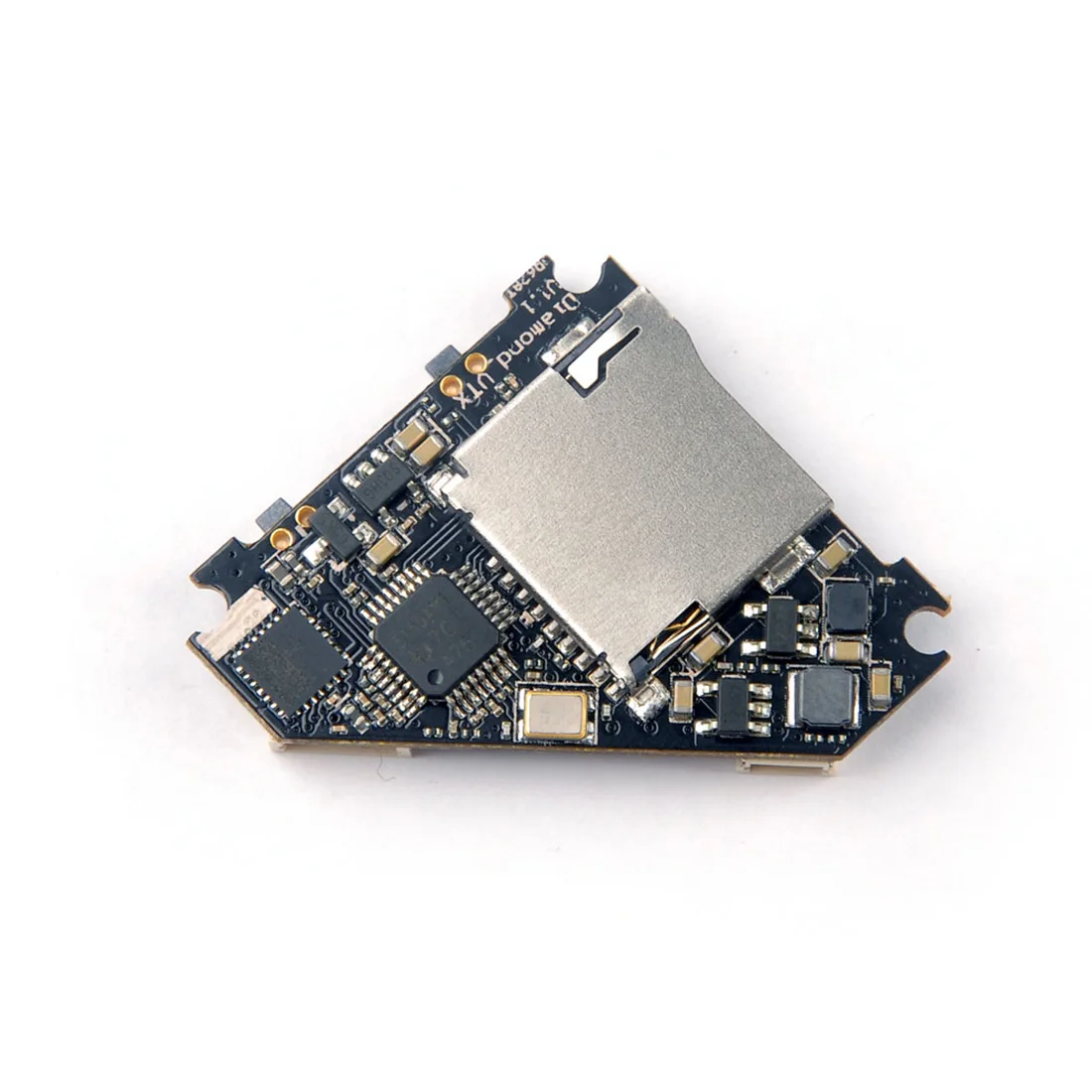

TF Card support: Max.32G
Interface: JST SH1.0 3pin for Camera
JST SH1.0 5pin for Connect with F3/F4 Flight controller
Compress Format: AVI

Short touch the button to Start/Stop Video recorder
The video will split to 2 minutes automatically
Best for upgrade Mobula7 / Eachine Trashcan
Small size , lighter only 3gram and easy to mount in a regular whoop
Built-in DVR(Video size 1280×720)
Auto start when power on
Note: Auto-save when Power off is not support, please remember to press the stop button after landing

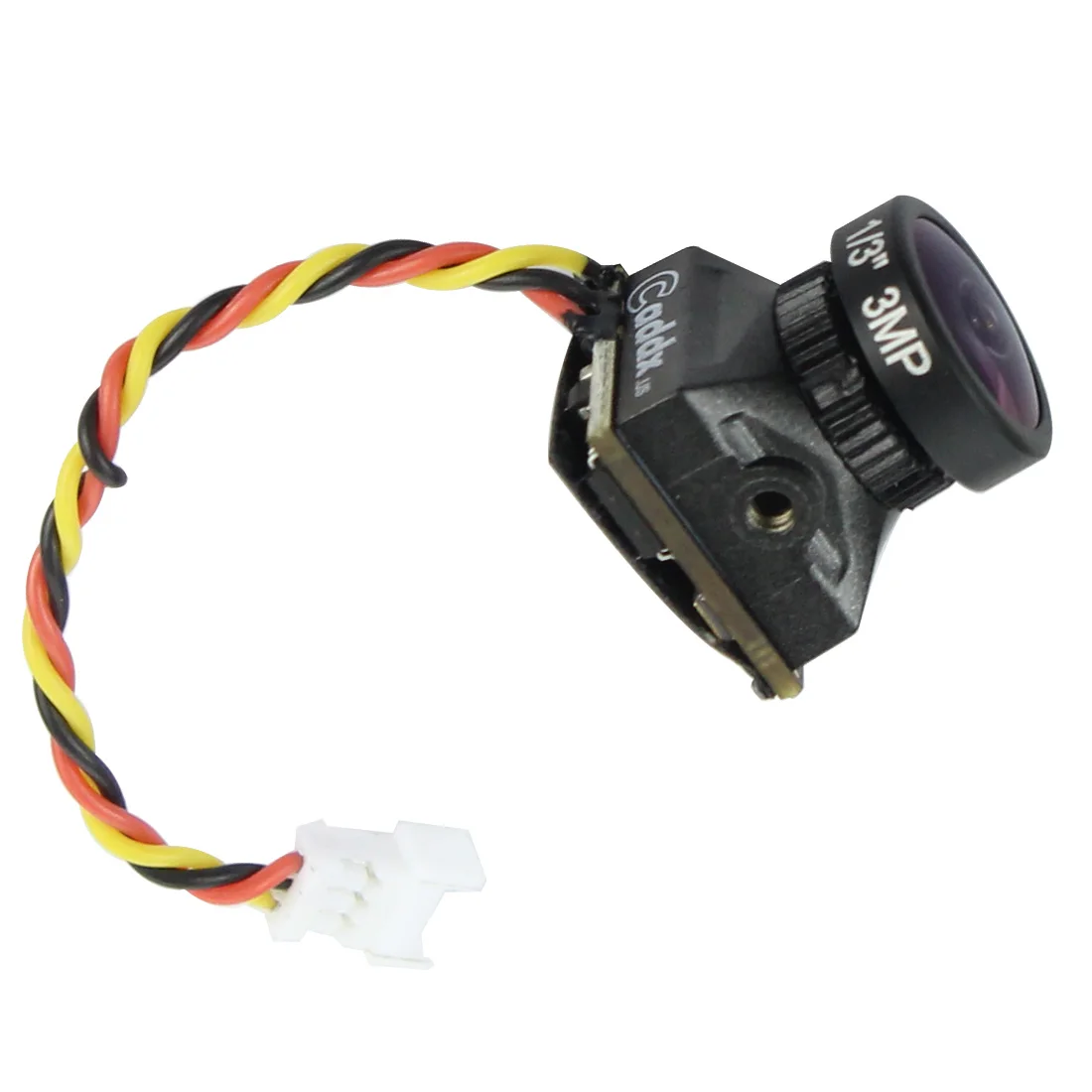

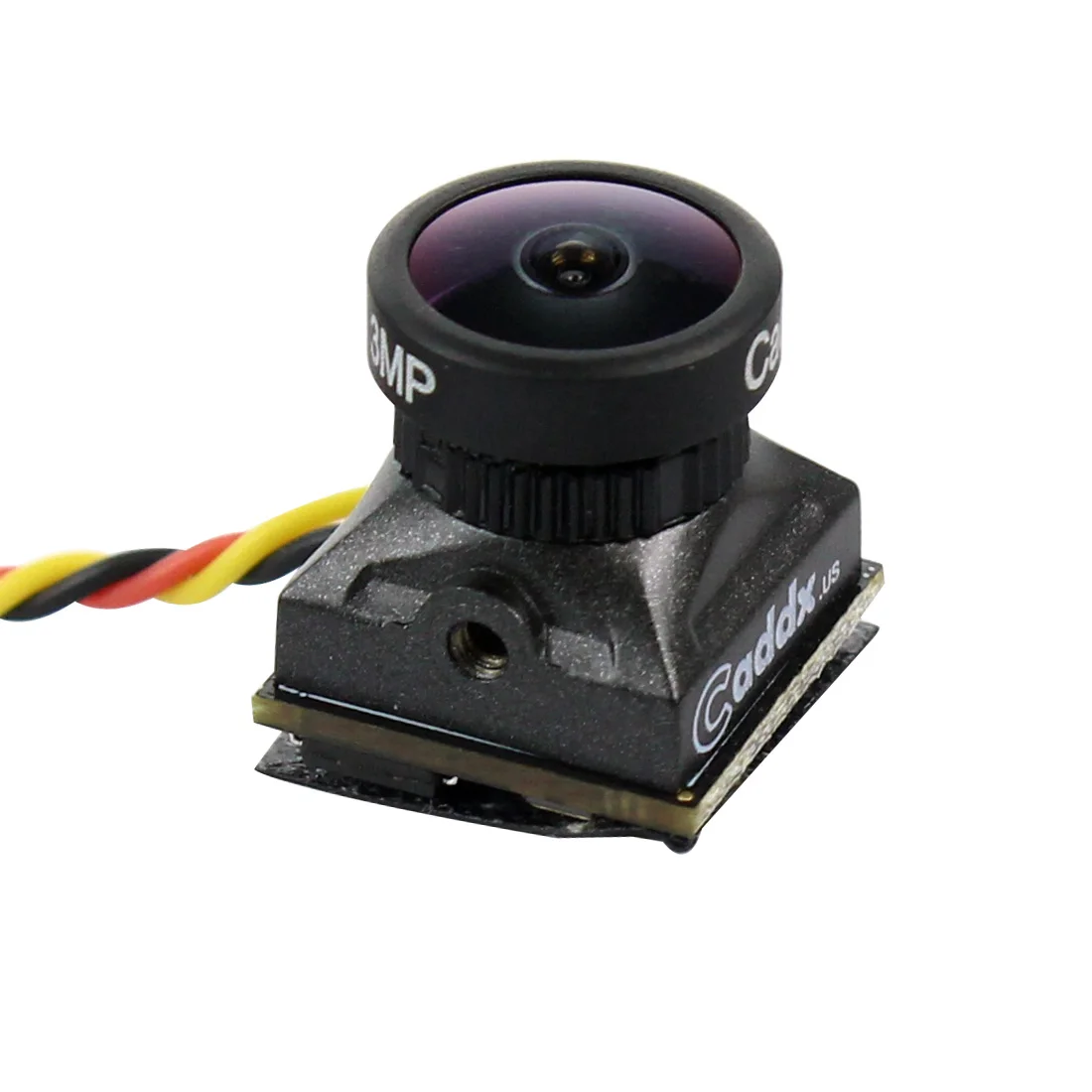

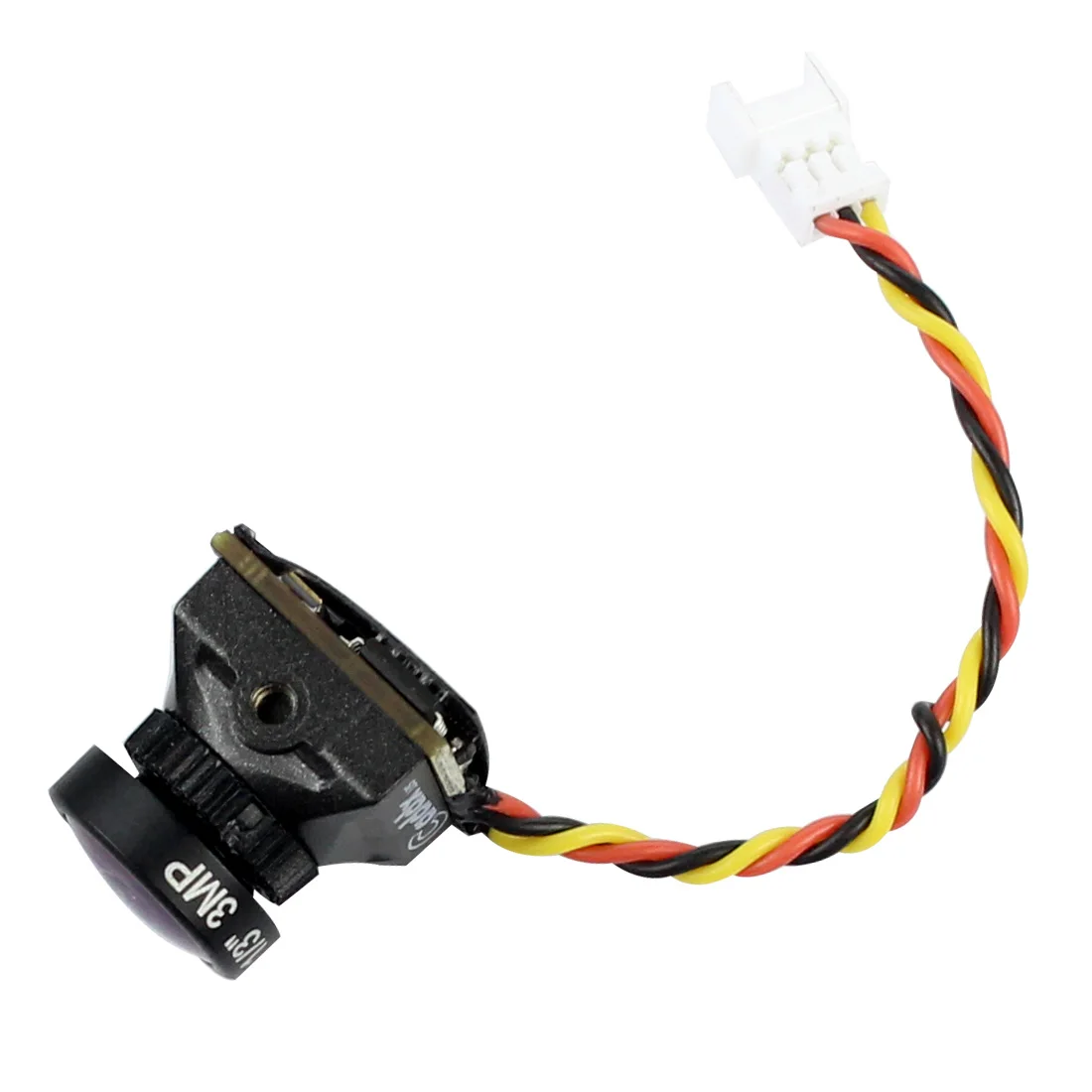

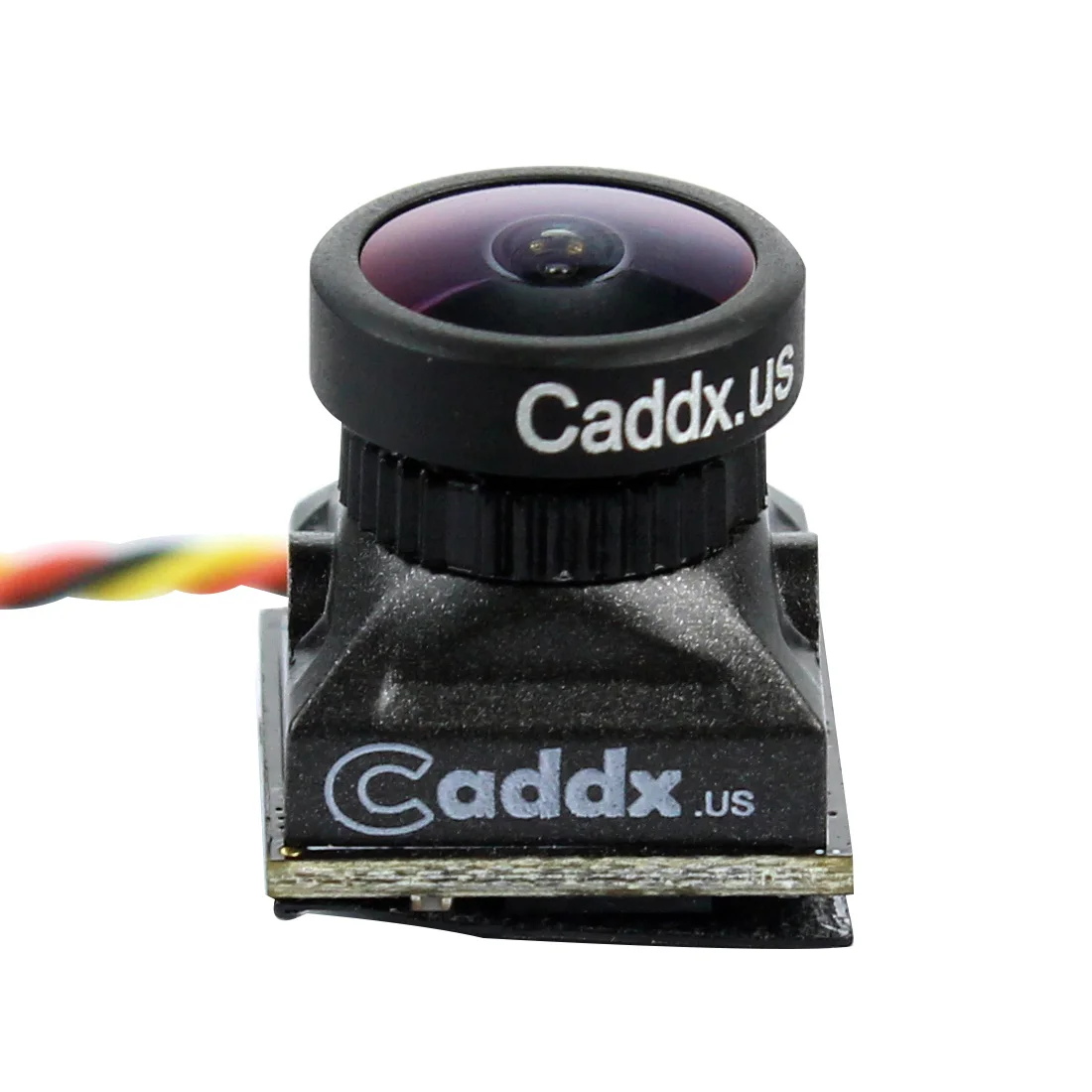

Caddx Turbo EOS2 2.1mm 4:3 NTSC Mini Camera:
