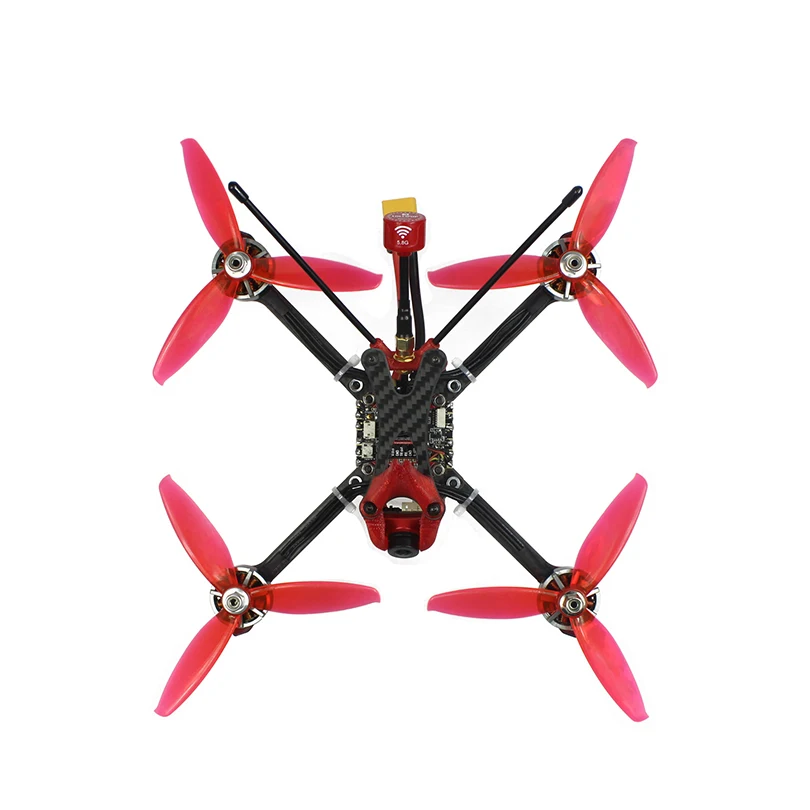

DIY Ti210 210mm 5inch FPV Drone 3-4S With 1200TVL Camera 2306 2400KV Motor With Remote Control RC Quadcopter T-Lite TX Airplane

QWinOut

Regular price $203.99

Shipping calculated at checkout.

DIY Ti210 210mm PNP BNF RTF FPV Racing Drone RC Quadcopter 3-4S with Ratel 2 Camera 2306-2400KV Motor 3inch Mini FPV Goggles


Functions and features:

Wheelbase 210mm

Built-in OSD Betaflight

Support BLHeliSuit configuration

Support voltage 3-4S

7-10 minutes of battery life

The remote control distance is about 400 meters (FLYSKY remote control), about 2000 meters (T-PRO remote control)


Propeller:

Model: 5043

Material: PC

Weight/G: 4.63G

Inner diameter of center hole: 5mm

Paddle diameter: 13.5mm

Center thickness: 7mm

Maximum blade width: 15.58mm


ESC

Working voltage: 2-6S

Maximum continuous working current: 45A

Maximum instantaneous working current: 50A

Support communication modes: DShot150/300/600, PWM, Oneshot125, Oneshot42 and Multshot

Firmware version: BL16.7

Installation hole distance: 20 * 20mm / 30.5 * 30.5mm

Product size: 44 * 44 * 5.5

Packing size in mm: 62 * 58 * 18 mm

Product net weight: 13.6 grams

Package weight: 27 grams


VTX:

Weight: 12g

Input voltage range: 7-24V

Frequency: 48CH

Output power: 0mW / 25mW / 100mW / 200mW / 400mW / 600mW switchable

Transmission distance: ≥0.5km25mW, ≥1km200mW, ≥2km600mW

Installation size: 30.5*30.5mm


Motor:

2306 motor

Stator diameter: 23 mm

Stator thickness: 6 mm

Number of stator arms: 12 pieces

Number of stator poles: 14

Motor KV: 2400

Maximum continuous power: 750 watts

Weight: 32 grams

Outer diameter: 28 mm

Support voltage: 3~4S


Flight control:

Name: F4

Size: 36x36mm

Mounting hole: 30.5x30.5mm

STM32 F405 MCU can shorten the cycle time.

Support SBUS / PPM / IBUS receiver mode


Camera:

Sensor: CMOS 1/1.8

Lens: 2.1mm

Video format: PAL/NTSC switchable

Resolution: 1200TVL

Input voltage: 5V-40V

Weight: 5.9g

Size: 19*19*20mm

White balance: automatic


Receiver version:

FRSKY version, FLYSKY version, without receiving version



Package include:

Four-axis drone

FRSKY reception (Optional)

FLYSKY reception (Optional)

FLYSKY remote control (Optional)

Battery and charger (Optional)

Goggles (Optional)

T-PRO remote control (Optional)








Precautions:

1 Do not charge the battery when you are away from home, do not charge the battery immediately after flying, do not over-discharge the battery (over-discharge may cause the

battery to fail to charge and become useless).

2.Do not modify any parameters and wiring without knowing the flight control and remote control.

3.Turn on the remote control before powering on the aircraft, unplug the power switch after the flight, and then turn off the remote control to prevent accidents.

4.The product is unassembled/welded in loose parts. If you have any technical and assembly questions, please feel free to contact us. We have a dedicated technical team to reply

to related questions. If the customer needs to assemble, please feel free to contact us, we will give a reasonable quotation for the additional logistics freight and technical

assembly fee.

5.This product is not a toy and is not suitable for children under 14 years of age.

6.If you are a beginner, it is recommended to be assisted by an experienced adult

7.Novices should pay attention not to take the airplane by hand when the airplane is turning or let children take it to prevent it from being scratched.

8.Please turn off the start switch in time when the aircraft falls from a wall or hits other objects during flight, otherwise it may cause damage to the flight control motor,

etc. Check whether the aircraft is damaged or the screws are loose.
