Regular price $21.99 Sale price $22.59 Unit price per
Shipping calculated at checkout.

HobbyEagle A3-L (V2) Aeroplane RC Flight Controller Stabilizer System Stabilizer Gyro for RC Airplane
HobbyEagle A3-L (V2) Aeroplane RC Flight Controller Stabilizer System Stabilizer Gyro for RC Airplane Fixed-wing Copter Fixed-wing Copter

HobbyEagle A3-L (V2) Aeroplane RC Flight Controller Stabilizer System Stabilizer Gyro for RC Airplane Fixed-wing Copter

Features:

Standard wing type, Delta-wing and V-tail.
Remote Master Gain.
Servo Frequencies: 50Hz/125Hz/250Hz;
Separated gain adjustment for each flight mode.
Automatic stick centering.
HV (7.4) operating voltage supported.
Futaba S.Bus / S.Bus 2 supported.
Easy to use, extremely well-suited to beginners

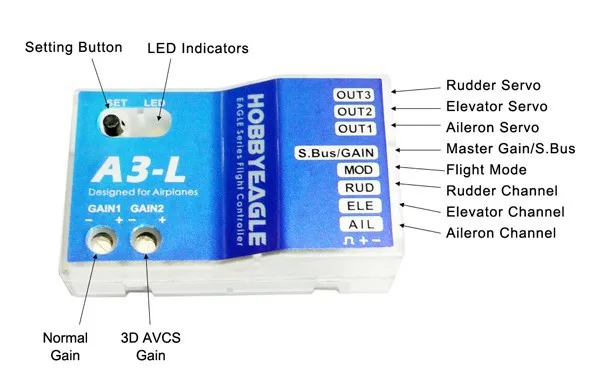

Wiring:
The new A3 series provides 5-channel inputs and 3-channel outputs. You only need to connect the receiver and servos to the corresponding pins on the side of the controller. The knobs are used to adjust the gain for each flight mode, clockwise for increase, anticlockwise for decrease. Futaba\'s S.Bus and S.Bus 2 are supported by the new A3 series now.
20150723_185013_028

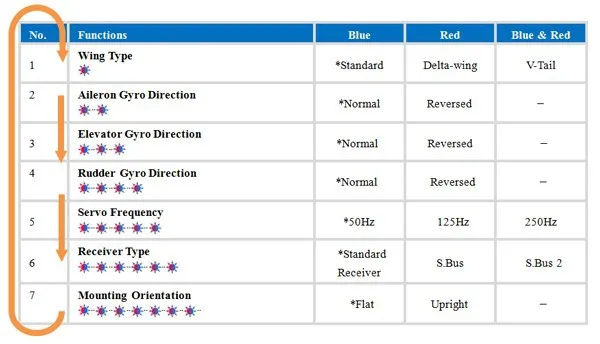

A3-L Setting Menu:
When the controller is working, press and hold down the button for more than 2 seconds can enter the setting menu, all settings are completed by the button. Please consult the manual for more details.
20150723_185013_031

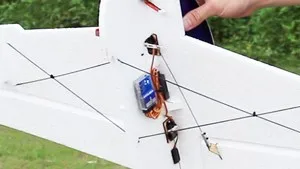

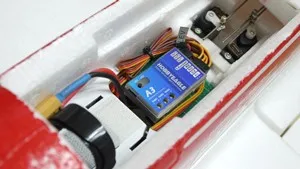

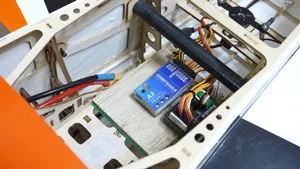

Installation Cases
The new A3 series can be attached flat or upright, to maximize the use of space for your plane.
12
34
Package Contents
The box already contains 4 10cm receiver wires and 2 pieces of double-sided tapes.
Caution Notes:
Please confirm the 13-bit unique product series number (S/N) on the bar code label when purchasing. This number can be verified at our website and it is also required in the after-sale service, please keep it securely!
Before power on, put the aileron, elevator and rudder sticks in the middle position. The controller needs to perform self-calibration and stick centering after you plugging the battery, the LED will keep blinking Blue rapidly for about 3 seconds while calibrating, just don\'t move the plane and the sticks until the initialization is done.
It\'s extremely important to verify that the gyro reacts in the correct direction before flight, or it could lead to losing control or even crash during flight!
You need to restart the controller after changing the receiver type to make new setting take effect.
Never use the delta-wing or V-tail mixing functions of your transmitter.
The new A3 series supports a wide working voltage from 5 to 7.4V, you can use HV receiver or servo directly.
The radio control models are not toys. The propellers rotate at high speed and pose potential risk, please carry out debugging and flying in open space far away from the crowd. The beginner should be directed by someone experienced.
Specifications
Input Voltage: 5 to 7.4V
Servo Travel: 1520 ± 500μs
Gyroscope: ± 2000dps
Operating Temp: -40 ° ~ 85 °
Size: 43 × 27mm
Weight: 11 g
