FEICAHO AIO 35A 3-6S Flight Controller with Barometer OSD 20x20mm for FPV Racing Drone RC Quadcopter Multicopter RC Parts

Feichao

Regular price $77.91

Shipping calculated at checkout.

FEICAHO 20x20mm F4120 AIO 35A 3-6S Flight Controller with Barometer OSD for FPV Racing Drone RC Quadcopter Multicopter RC Parts



Features:

1. The PCB adopts high-end 6-layer 2oZ thick copper skin, which has stronger overcurrent capability and good heat dissipation.

2. MOS adopts imported 30V high current resistance mos, long life and strong load capacity.

3. Using industrial grade LDO, high temperature resistance.

4. Using high-quality capacitors, strong filtering performance

Size: 39.5.* 31.5mm (20*20mm mounting hole)

Packing size: ø63*32mm

Net weight: 10g

Package weight: 27g

Flight control parameters:

CPU: STM32F411CEU6

IMU: MPU6000

OSD: AT7456E

Barometer: BMP280

Black box: 16M

Barometer: BMP280

BEC: 5V/3A; 9V/2.5A

LED: Support WS2812 and other programmable

Sensor: Built-in current sensor

Firmware version: betaflight_4.1.1_MATEKF411

Receiver: Frsky/ Futaba/ Flysky/ TBS Crossfire/ DSMX: DSM2 receiver

ESC parameters:

Firmware support: BLHELI_ S

Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Input voltage: 3S-5S Lipo OR 3S-6S Lipo

Continuous current: 35A

Peak current: 40A

Firmware version: BLHELI _S (C- H-30)

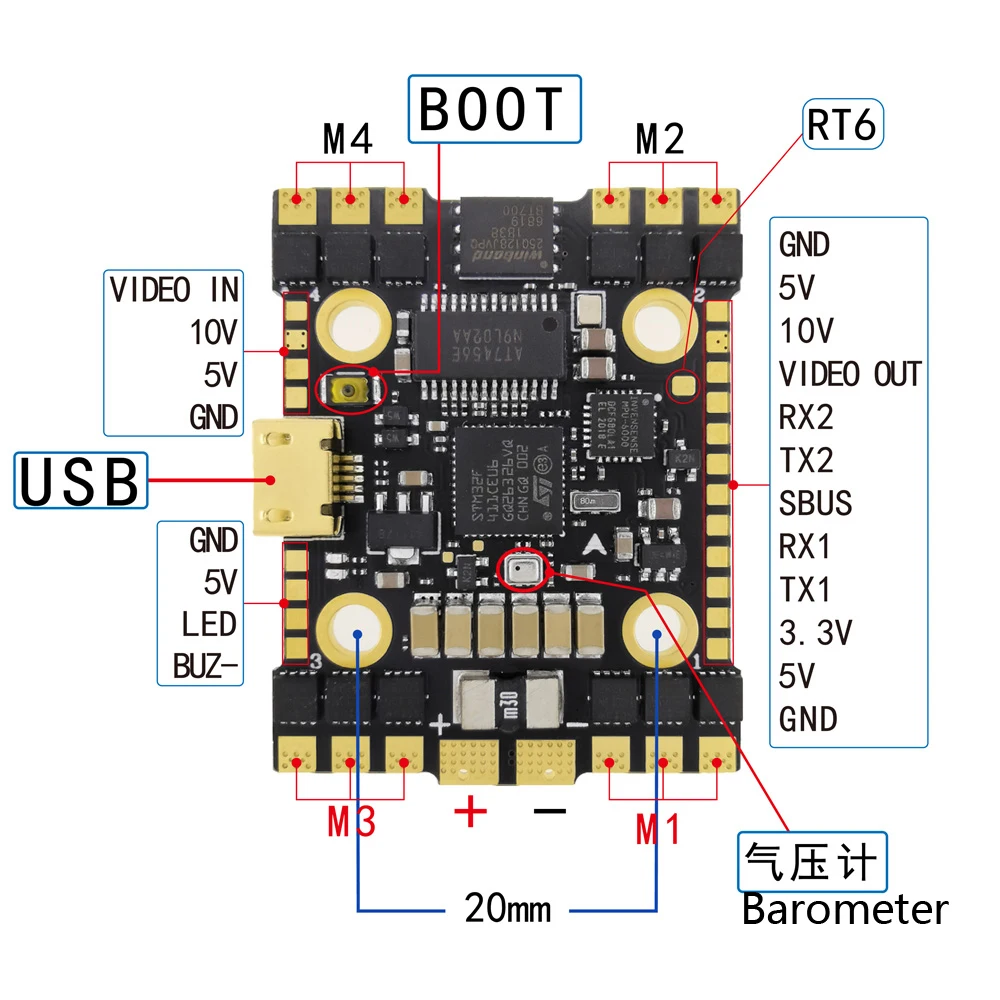

Interface definition diagram:

HAKRC  F4120   AIO接线图.jpg
