FEICHAO F4 X2 225mm Indoor FPV Racing Drone with Betaflight Pro (V2) Flight Controller LiteRadio Transmitter for Gopro hero 8

Feichao

Regular price $198.03

Shipping calculated at checkout.

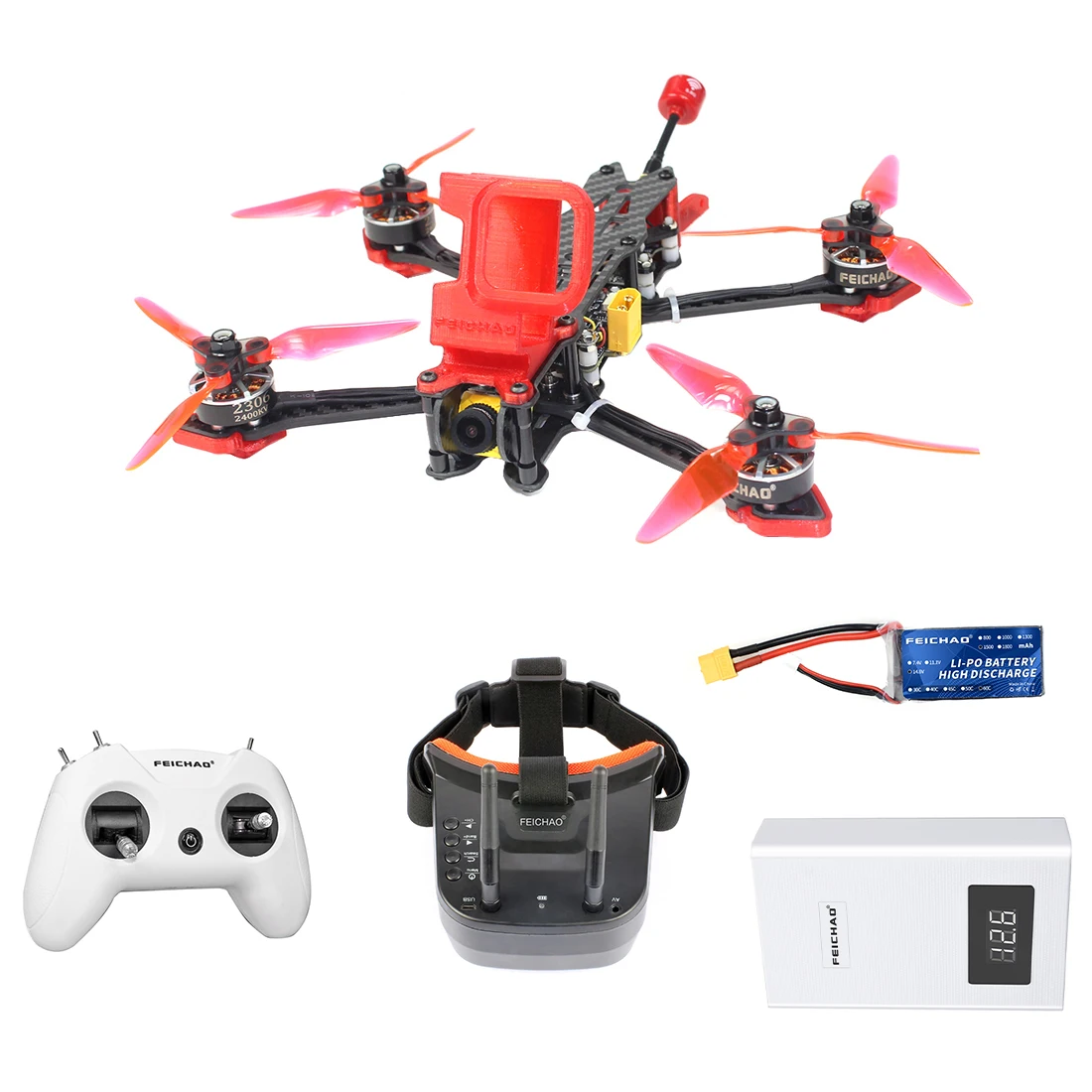

FEICHAO F4 X2 225mm Wheelbase FPV Racing Drone with Betaflight Pro (V2) Flight Controller LiteRadio Transmitter for Gopro hero 8

packing list:

1 X F4 X2 225 wheelbase four-axis aircraft FPV carbon fiber frame kit

4 X 3D printed TPU red motor mount

1 X 3D printed TPU red FPV T antenna mount

1 X 3D printed TPU red for Gopro hero 8 camera mount, four-hole screw fixation, 25 degree elevation angle

1 X 3D printed PLA 30.5x30.5mm isolation board

4 X Fold 5.1 inch folding propeller

1 X VTX5840 image transmission 1W ultra high power 5.8G image transmission transmission

1 X FPV antenna 60mm RP-SMA inner hole

1 X 35A Tower ESC 2-6S 4 in 1 BLHeli-S Dshot600 firmware

1 X Caddx.us Ratel 1/1.8" inch Starlight HDR OSD 1200TVL 2.1mm camera+ND filter

4 X 2306-2400kv 3-4S motor

1 X 5.8G FPV LST-009 Dual Antenna Video Transmission Video Glasses 3 inch 40CH

1 X betaflight F4 Pro(V2) flight control built-in OSD/BEC

1 X NAZE32 F3 F3_EVO ultra small buzzer

2 X XT60 non-slip plug

1 X 20CM cable tie

1 X 14.8V/60C 1500MAH battery XT60(optional)

1 X 4S charger 3S simple balance fast charger(optional)

1 X Frsky-D16 16CH mini long-range receiver or Flysky 14ch 2.4G Fli14+ receiver (optional)

1 X LiteRadio remote control 8CH left hand mode or FS I6 6 channel 2.4G remote control (optional)

Precautions:

1 Do not charge the battery when you are away from home, do not charge the battery immediately after it is used up, and do not over-discharge the battery (over-discharge may cause the battery to fail to charge and become invalid). After the battery is fully charged, please cut off the power in time, do not charge for a long time.

2. Do not modify any parameters and wiring without knowing the flight control and remote control.

3. Turn on the remote control before powering on the aircraft, unplug the power switch after the flight, and then close the remote control to prevent accidents.

4. It is recommended to fly indoors. When there is no wind, you can fly outdoors in an open place. Avoid flying in crowds and places with interferences around.

5. This product is unassembled/welded in loose parts. If you have any technical and assembly questions, please feel free to contact us. We have a dedicated technical team to answer related questions. If you need to assemble it, please feel free to contact us. We will give a reasonable quotation for the additional logistics freight and technical assembly fee.

6. This product is not a toy and is not suitable for children under 14 years of age.

7. Please read the instructions carefully before any use. If you are a beginner, it is recommended to be assisted by an experienced adult

8. Do not fly too high or far because the plane is relatively small, please fly within your own line of sight.

9. Novices should pay attention not to take the airplane by hand or let children to prevent it from being scratched.

10. Please turn off the start switch in time when the aircraft falls from a high altitude or hits other objects during flight, otherwise it may cause damage to the flight control motor, etc. Check whether the aircraft is damaged or the screws are loosened, etc. before taking off again.

Functions and features:

Night mode and day mode can be switched, and can be used during day and night

Built-in OSD Betaflight

Support BLHeliSuit configuration

Folding paddle

Support voltage 3-4S

Paddle:

Propeller diameter: 5.1 inches

Pitch: 4.75

Number of blades: 3

Material: PC

Weight: 4.2 grams

Wheel diameter: 28mm

Wheel thickness: 7mm

Shaft: 5mm

ESC:

Project name: 35A BLheli_S 2-6S 4 in 1 ESC

Model: REV35

LBEC: No

SBEC: No

Lipo: 2-6S

Programming: Yes

Weight: 13g

Size (PCB): 36x36mm

Hole size: 30.5x30.5mm

Support PWM / ONESHOT / MULTISHOT / DSHOT

Image transmission:

1. Input voltage: DC 7V-27V (2-6S)

2. Output voltage: DC 5V 2A

3. Power switching: five gears 25MW, 200MW, 400MW, 800MW, 1000MW

4. Signal channels: 40

5. Frequency switching: manual button /IRC OSD (support at the same time)

6. Antenna interface: MMCX (distribution to SMA extension cable)

7. Dimensions: 36MM*36MM Hole distance: 30.5*30.5MM, M3

Motor:

Model: 2306

Stator diameter: 23 mm

Stator thickness: 6 mm

Number of stator arms: 12 pieces

Number of stator poles: 14

Motor KV: 2400

Maximum continuous current: 50A

Weight: 32 grams

Outer diameter: 28 mm

Support voltage: 3-4S

Flight control:

Model: F4 (V2)

Support receiver functions: PPM, IBUS, SBUS, DSM

Built-in OSD

Installation hole distance: 30.5x30.5mm

Comes with BEC

camera:

Lens: 2.1mm

Horizontal resolution: 1200TVL

FOV: 180 degrees

Minimum delay: 8 milliseconds

TV system: NTSC and PAL (can be changed)

Image: 16:9 and 4:3 (can be changed)

Language: ENG / FRANCE / RUS / SPA / PU / KOREA / China / Japan

Day/Night: Auto/Color/B&W/External

Size: 19mm * 19mm * 19mm

Wide power input: DC 5-40V

Receiver version:

FRSKY version, FLYSKY version, without receiving version (please choose according to your needs)

Q&A:

Please refer to our pictures to select the desired combination, all parts are sold separately in our shop, and you can add them as spares. If you have any questions, please feel free to contact us.
