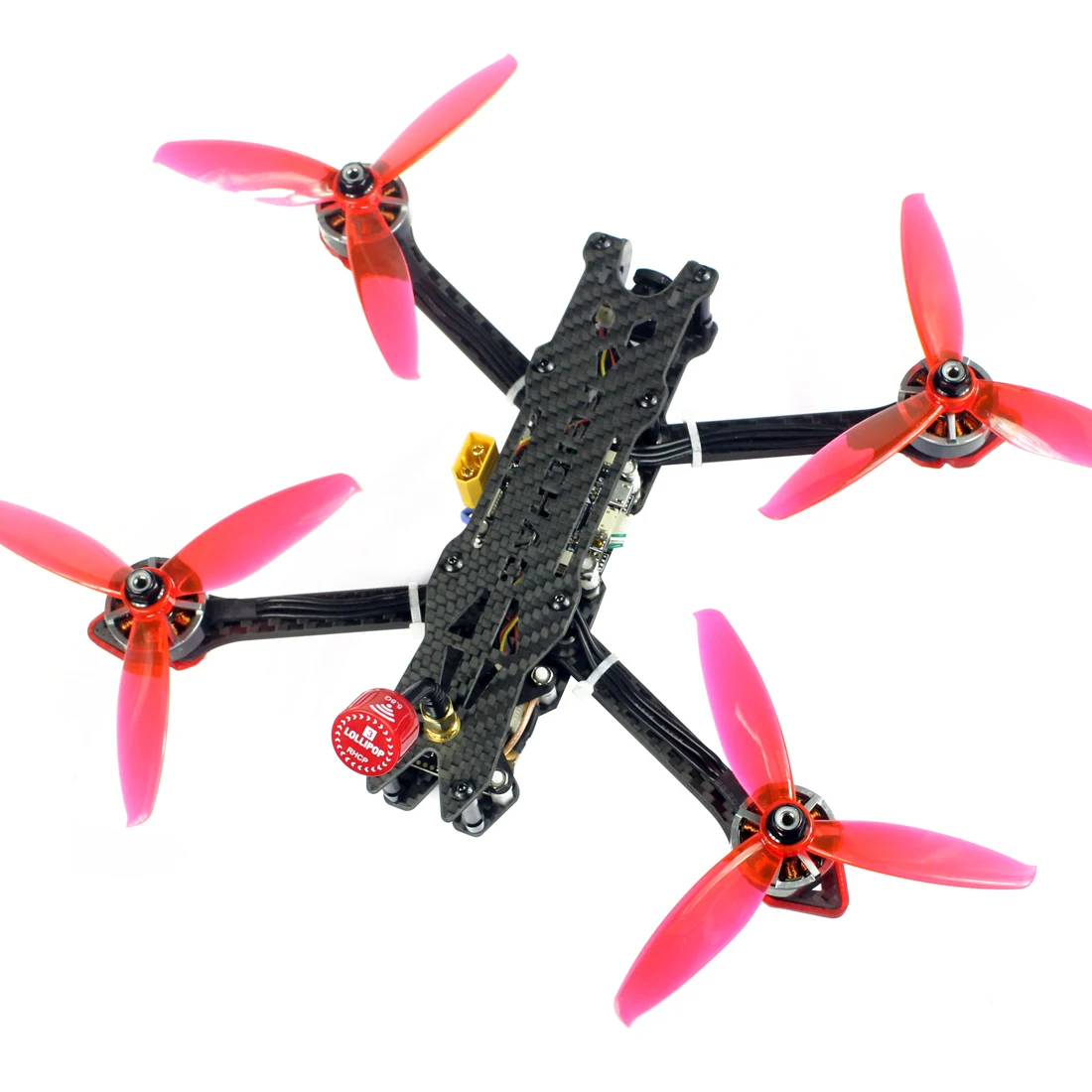

FEICHAO F4 X2 DIY Version FPV Racing RC Drone 225mm 3-4S RC Quadcopter Built-in OSD Betaflight Support BLHeliSuit Configuration

Feichao

Sale price $157.55 Regular price $175.99

Shipping calculated at checkout.

FEICHAO F4 X2 DIY Version FPV Racing RC Drone 225mm 3-4S RC Quadcopter Built-in OSD Betaflight Support BLHeliSuit Configuration

packing list:

4 X 2306-2400kv 3-4S steel shaft motor

1 X F4 X2 225 wheelbase carbon fiber rack

4 X 3D printed TPU motor mount

1 X VTX5840 image transmission 1W ultra-high power 5.8G image transmission transmission OSD tuning

1 X 60mm RP-SMA inner hole FPV antenna

1 X 35A 2-6S Tower 4 in 1 ESC

4 X 5043 5-inch three-blade PC propeller

1 X 1200TVL black 2.1mm PAL format mini camera

1 X FS-RX2A Pro receiver or FRSKY D8 receiver (optional)

1 X betaflight OmniF4 Pro(V2) flight control

1 X XT60 10CM plug

1 X super small buzzer

1 X 20CM hook & loop fastener





Precautions:

1 Please do not charge the battery when you are away from home, do not charge the battery immediately after flying, do not over-discharge the battery (over-discharge may cause the battery to fail to charge and become useless).

2. Do not modify any parameters and wiring without knowing the flight control and remote control.

3. Turn on the remote control before powering on the aircraft, unplug the power switch after the flight, and then close the remote control to prevent accidents.

4. This aircraft is recommended to fly indoors. It can fly outdoors in open places when there is no wind, and avoid flying in crowds and places with interferences around.

5. The product is an assembled and welded kit. If you have any technical and assembly questions, please feel free to contact us. We have a dedicated technical team to answer related questions. If customers need to assemble, please feel free to contact us, we will give a reasonable quotation for additional logistics freight and technical assembly fees.

6. This product is not a toy and is not suitable for children under 14 years of age.

7. Please read the instructions carefully before any use. If you are a beginner, it is recommended to be assisted by an experienced adult

8. Because the airplane is relatively small, don’t fly high and far away. 9. Novices should pay attention not to take the airplane by hand or let children take it to prevent it from being scratched.

10. Please turn off the start switch in time when the aircraft falls from a high altitude or hits other objects during flight, otherwise it may cause damage to the flight control motor, etc. Check whether the aircraft is damaged and the screws are loose.





Functions and features:

Built-in OSD Betaflight

Support BLHeliSuit configuration

Support voltage 3-4S

Paddle:

Model: 5043

Number of blades: 3 blades

Pitch: 4.3 inches

Material: PC

Weight/G: 4.63G

Inner diameter of center hole: 5mm

Paddle diameter: 13.5mm

Center thickness: 7mm

Maximum blade width: 15.58mm

Image transmission:

1. Input voltage: DC 7V-27V (2-6S)

2. Output voltage: DC 5V 2A

3. Power switching: five gears 25MW, 200MW, 400MW, 800MW, 1000MW

4. Signal channels: 40

5. Frequency point switching: manual button /IRC OSD (support at the same time)

6. Antenna interface: MMCX (distribution to SMA extension cable)

7. Dimensions: 36MM*36MM Pitch: 30.5*30.5MM, M3

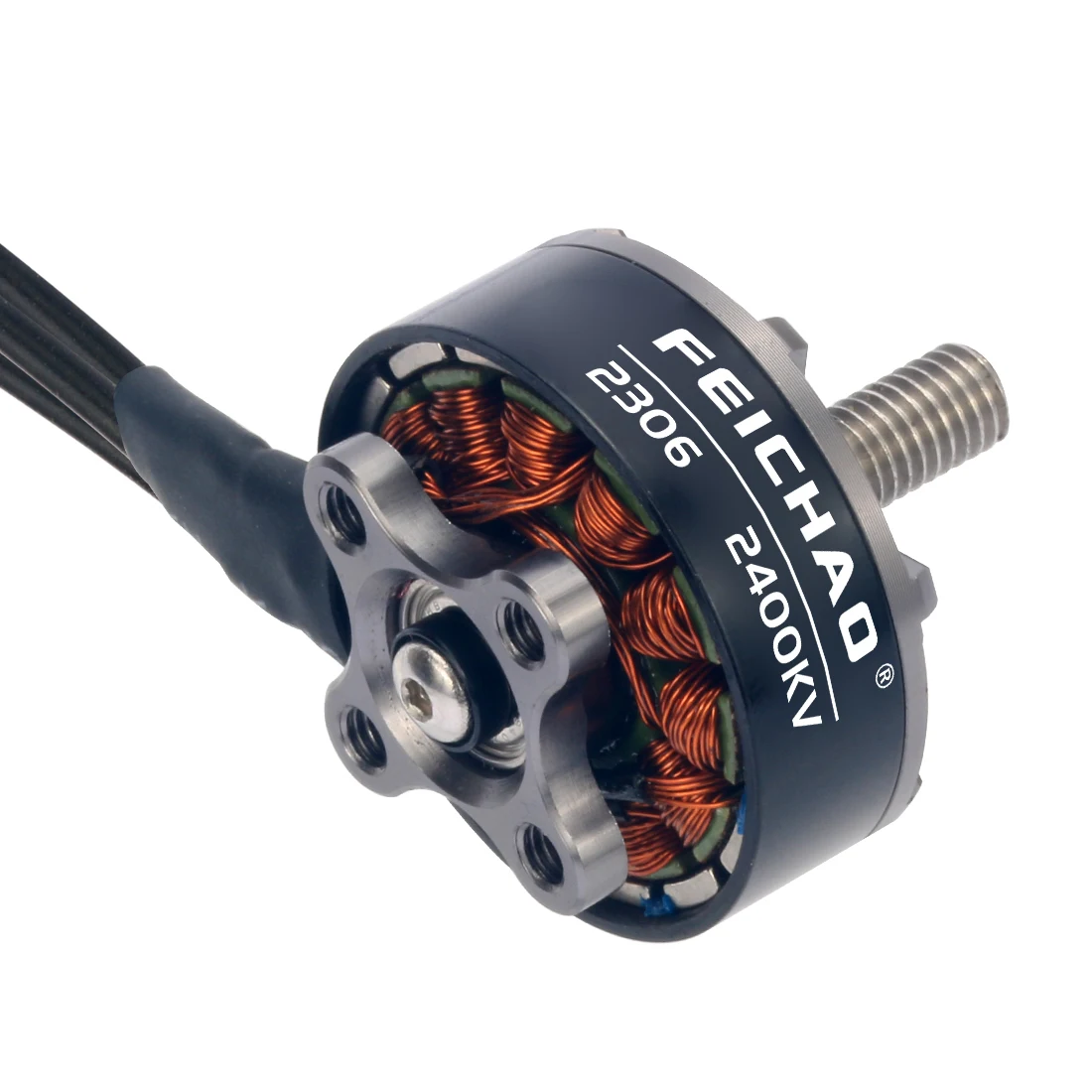

Motor:

Model: 2306

Stator diameter: 23 mm

Stator thickness: 6 mm

Number of stator arms: 12 pieces

Number of stator poles: 14

Motor KV: 2400

Maximum continuous current: 50A

Weight: 32 grams

Outer diameter: 28 mm

Support voltage: 3-4S

Flight control:

Model: F4 (V2)

Support receiver functions: PPM, IBUS, SBUS, DSM

Built-in OSD

Installation hole distance: 30.5x30.5mm

Comes with BEC

ESC:

Name: 35A BLheli_S 2-6S 4 in 1 ESC

Current: 35A peak

Current (10s): 40A

LBEC: No

SBEC: No

Lipo: 3-6S

Weight: 13g

Size (PCB): 36x36mm

Hole size: 30.5x30.5mm

Support PWM / ONESHOT / MULTISHOT / DSHOT

camera:

COMS image sensor: 1/3”

Horizontal resolution: 1200 tvl

Lens: 2.1 mm

Signal system: PAL / NTSC

Power supply: DC 5 to 12V

Net weight: 5.0 g

Size: 19mm * 19mm * 19mm

Receiver version:

FRSKY version, FLYSKY version

Q&A:

Please refer to our pictures to choose the desired combination, all parts are sold separately in our shop, and you can add them as spares. If you have any questions, please feel free to contact us.
