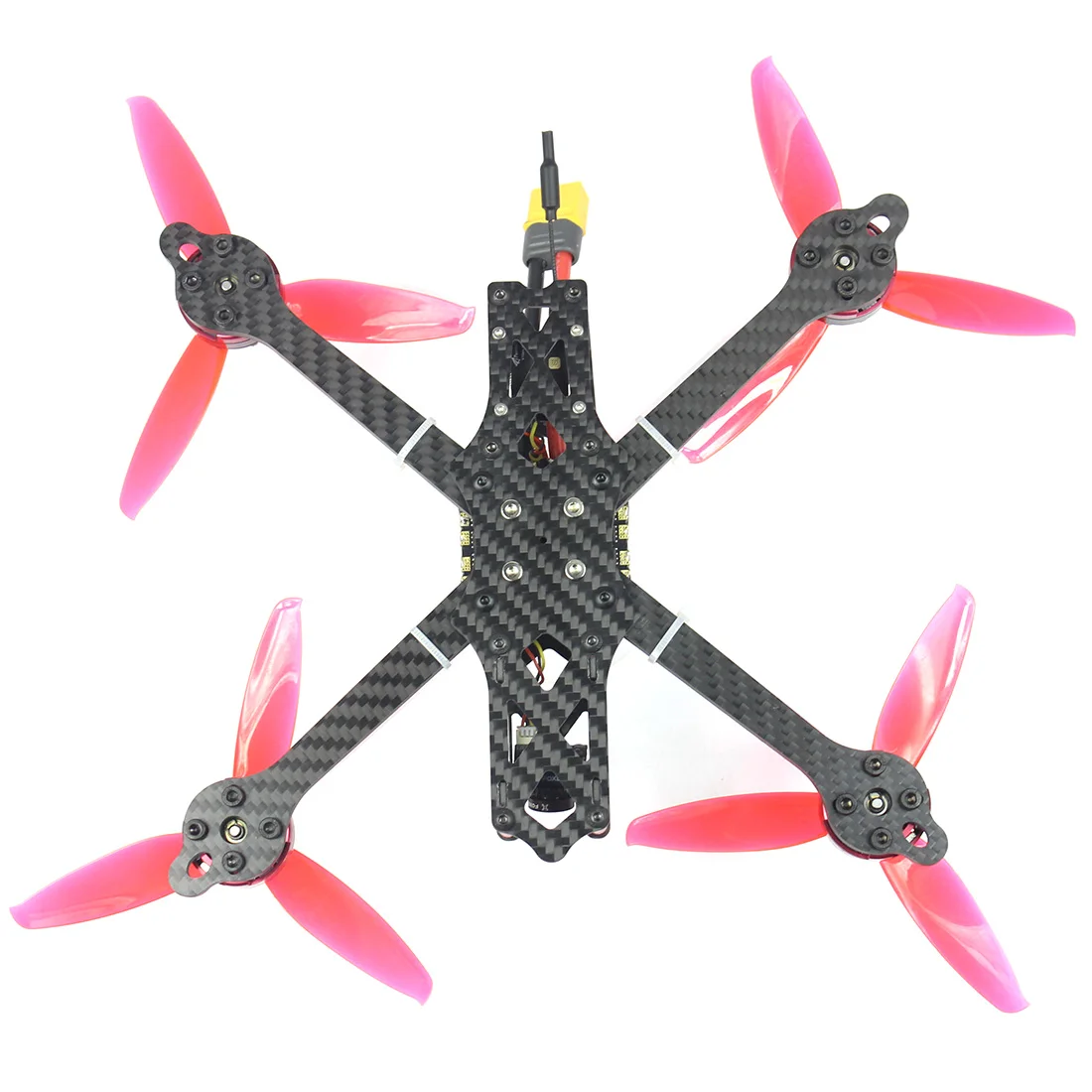

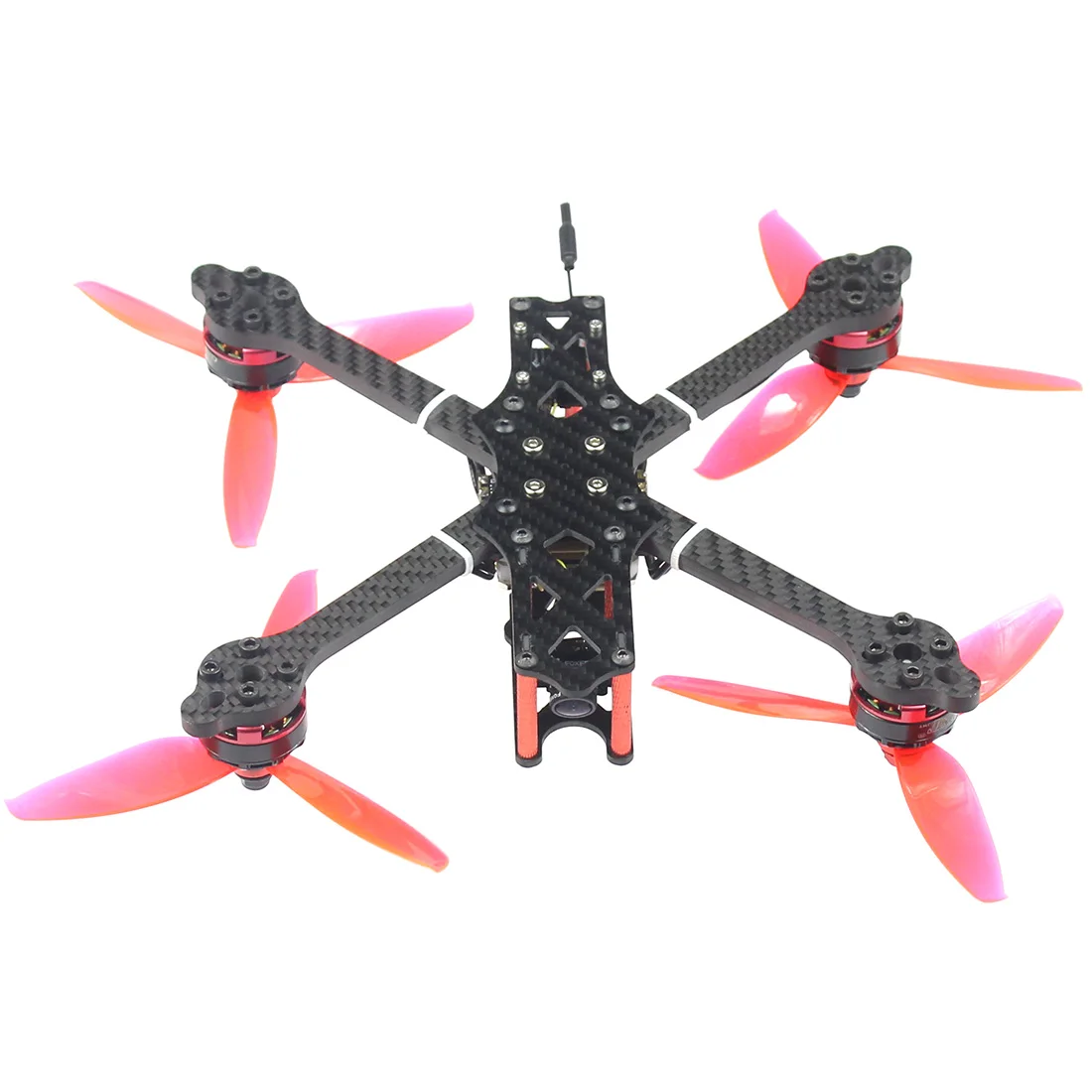

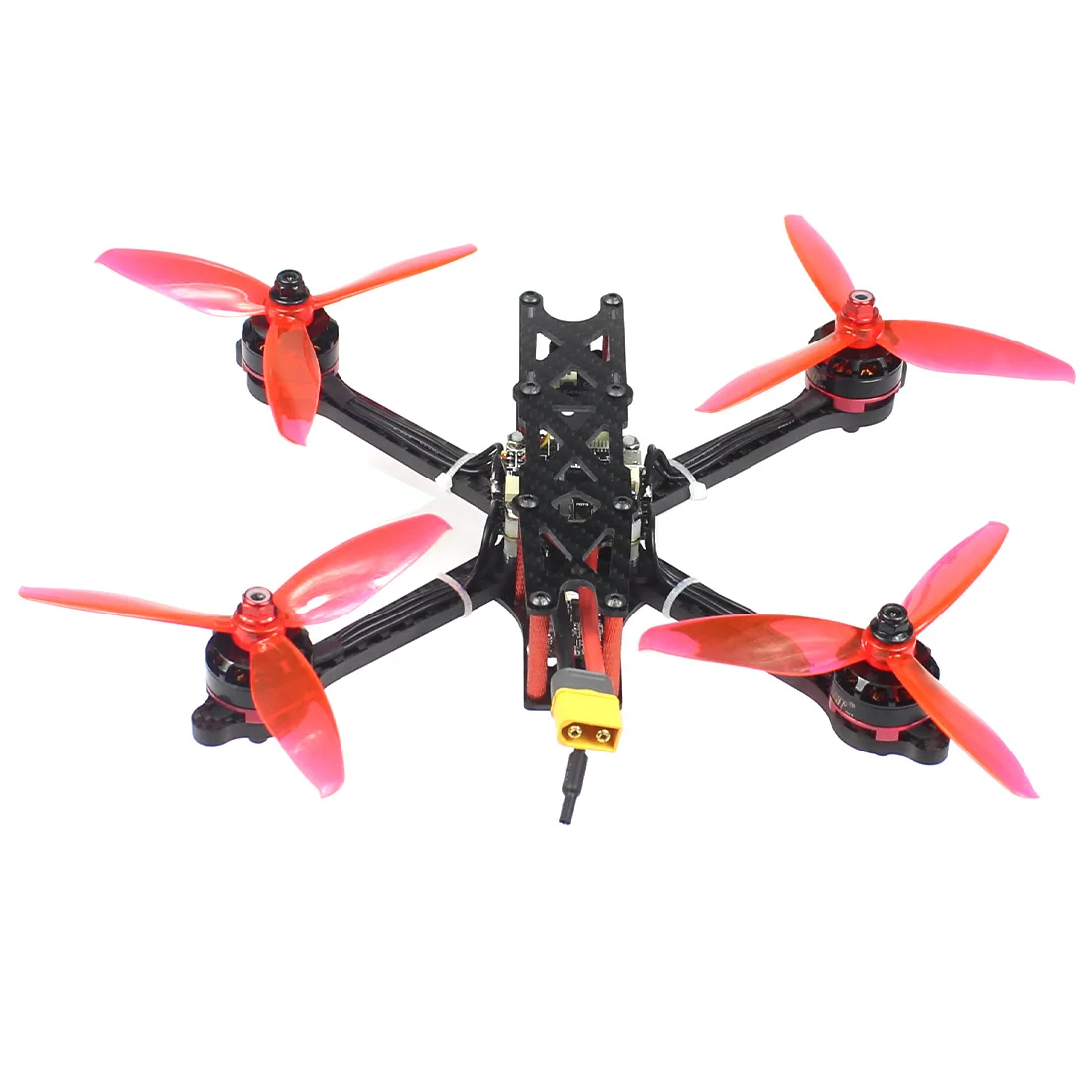

J215 5inch RC FPV Racing Drone with Betaflight F4 Pro (V2) Flight Controller Razer Micro 1200TVL Camera BLHeli-S 45A ESC

QWinOut

Regular price $158.14

Shipping calculated at checkout.

 J215 5inch RC FPV Racing Drone with Betaflight F4 Pro (V2) Flight Controller Razer Micro 1200TVL Camera BLHeli-S 45A ESC



Precautions:

1. Do not charge the battery when you are away from home, do not charge the battery immediately after flying, do not over-discharge the battery (over-discharge may cause the battery to be uncharged and become useless). After the battery is fully charged, cut off the power in time and cannot charge for a long time. .

2. Do not modify any parameters and wiring without knowing the flight control and remote control. (It’s very important, we won’t compensate if it’s man-made damage!)

3. Turn on the remote control before powering on the aircraft, unplug the power switch after the flight, and then turn off the remote control to prevent accidents.

4. This product is not a toy and is not suitable for children under 14 years of age.

5. If you are a beginner, it is recommended to be assisted by an experienced adult.

6. Novices should pay attention: Do not use your hands to hold the plane when it is turning, or let children touch it. Prevent being scratched.

7. When the plane falls or hits other objects at high altitude during flight, please turn off the start switch in time, otherwise it may cause damage to the flight control and motor. Check if the aircraft is not damaged and the screws are not loosened, and everything is normal, you can take off again.

Functions and features:

215mm wheelbase

Built-in OSD Betaflight

Support BLHeliSuit configuration

Support voltage 3-4S

7-10 minutes of battery life

The remote control distance (with FLYSKY remote control) is about 400 meters, (with T-lite remote control) is about 2000 meters.

Paddle:

Model: 5043

Pitch: 4.3 inches

Material: PC

Weight/G: 4.63G

Inner diameter of center hole: 5mm

Paddle diameter: 13.5mm

Center thickness: 7mm

ESC:

Working voltage: 2-6S

Maximum continuous working current: 45A

Maximum instantaneous working current: 50A

Support communication modes: DShot150/300/600, PWM, Oneshot125, Oneshot42 and Multshot

Firmware version: BL16.7

Installation hole distance: 20 * 20mm / 30.5 * 30.5mm

Product size: 44 * 44 * 5.5

Packing size in mm: 62 * 58 * 18 mm

Product net weight: 13.6 grams

Package weight: 27 grams

Image transmission:

Input voltage: 6-26V

Output voltage: 5V

Frequency: 5.8G

Frequency point: 16 points

Output power: 6-speed adjustable (0mW / 25mW / 50mW / 100mW / 200mW / 400mW)

Size: 24 * 24 * 3mm

Installation hole distance: 20 * 20mm

Weight: 2.2g

Motor:

Size: 2205

Stator diameter: 22 mm

Stator height: 5 mm

Motor KV: 2300

Weight: 29g

Support voltage: 3~4S

Flight control:

Name: F4 V2

Size: 36x36mm

Mounting hole: 30.5x30.5mm

STM32 F405 MCU can shorten the cycle time.

Support SBUS / PPM / IBUS receiver mode

Built-in power module BEC

camera:

Sensor: CMOS 1/3

Lens: 1.8mm

Video format: PAL/NTSC switchable

Resolution: 1200TVL

Input voltage: DC4.5V-25V

Weight: 4.5g

Size: 19x18.7mm(W*L)

White balance: automatic

WDR: 90db

Receiver version:

FRSKY version, FLYSKY version, without receiving version (optional)

Q&A:

Please refer to our pictures to select the required kit, all parts are sold separately in our shop, you can add as a spare. If you have any questions, please feel free to contact us.
