QWinOut JHEMCU GHF405AIO pro 25A 45A Brushless Flight Controller for Toothpick Racing Drone F4 3-6S AIO BEC

QWinOut

Regular price $70.35

Shipping calculated at checkout.

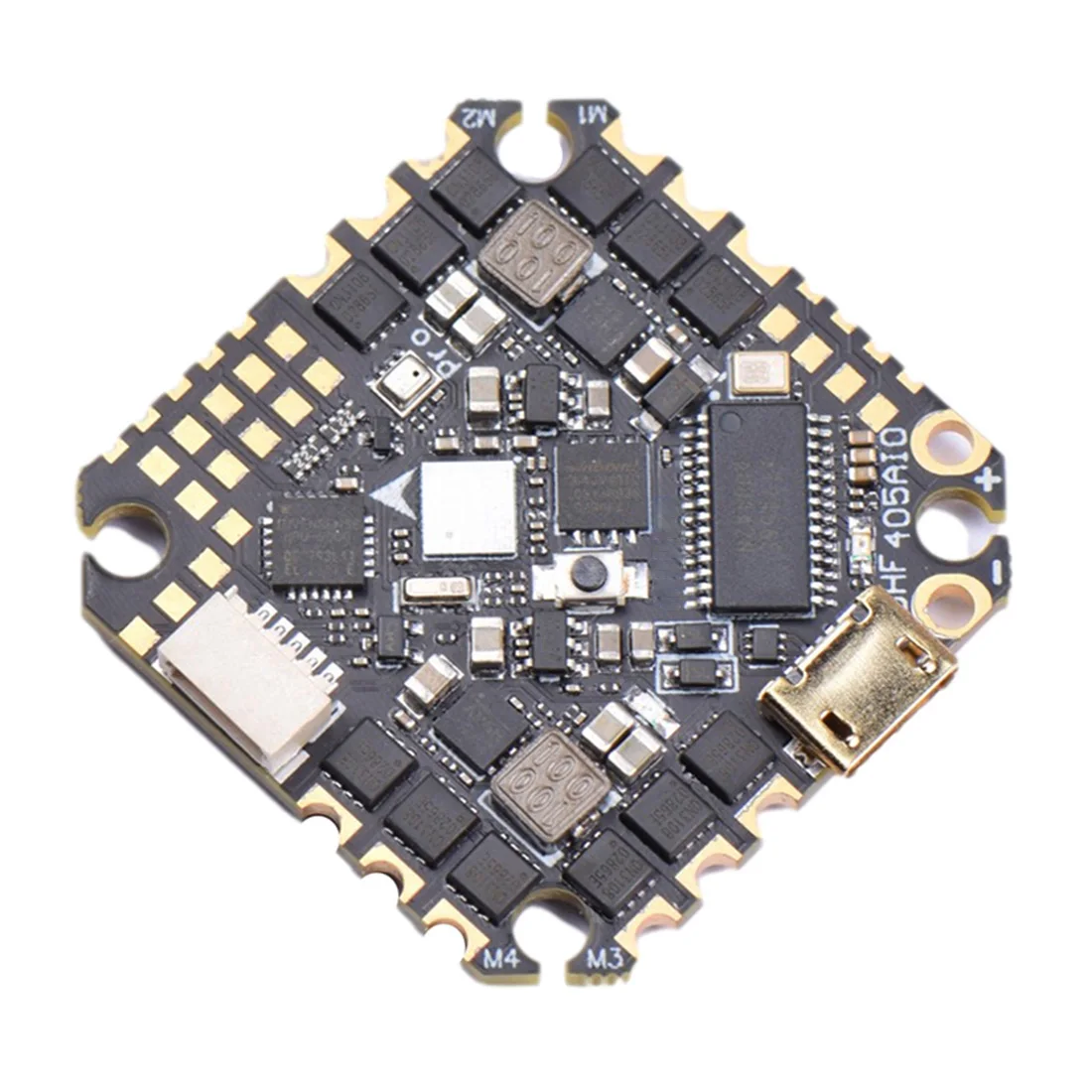

 GHF405AIO Pro 25A 45A Brushless FC Flight Controller for Toothpick Racing Drone F4 3-6S AIO BEC

Product Introduction

ESC output current 25A/45A continuous current, 4 independent current outputs

USB port is installed on the side, built-in USB ESD chip

All signal ports add protection buffer elements

Imported originals, stable quality

Reserving common functional interface pads, there are 5 UART ports (UART1, UART2, UART3, UART4, UART6).

Half-hole motor pad, supporting high current output

Integrated with Betaflight F405 processor flight controller, OSD BEC 5V/2.5A and 10V/2A, support 3-6S battery

Flight control parameters

CPU: STM32F405

Sensor: MPU6000 (SPI connection)

Size: 33*33mm (25.5mm mounting hole)

Firmware version: Betaflight JHE405

Black box: support

Barometer: Support

OSD: Support

IIC: Support

UART: support, UART1: receiver, UART6: DJIVTX/IRC/Smart Audio

BEC: BEC 5V/2.5A and 10V/2A

DJIVTX: Support, reserved special socket, equipped with plug wire.

Receiver: SBUS, IBUS, DSM2, DSMX, TBS, etc.

Support WS2812 programmable LED

Support buzzer

Built-in voltage and current sensors

Weight: 7.1 grams

ESC parameters

BLHELI_S

Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Input voltage: 3S-6S Lipo

Continuous current: 25A/45A (two models are optional)

Firmware: BLHELI_S G_H_30_REV16_7.HEX

Shipping packaging

Toothpick GHF405AIO pro brushless flight controller *1

Power cord *2

DJIVTX adapter cable *1

Electrolytic capacitor *1

Shockproof rubber shock absorber *4

XT30/XT60 (one of them) *1
