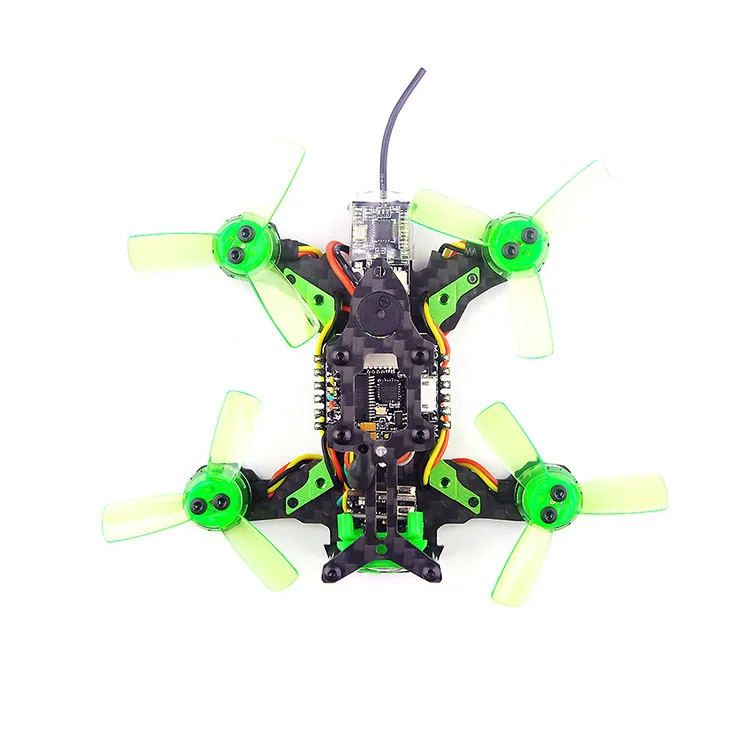

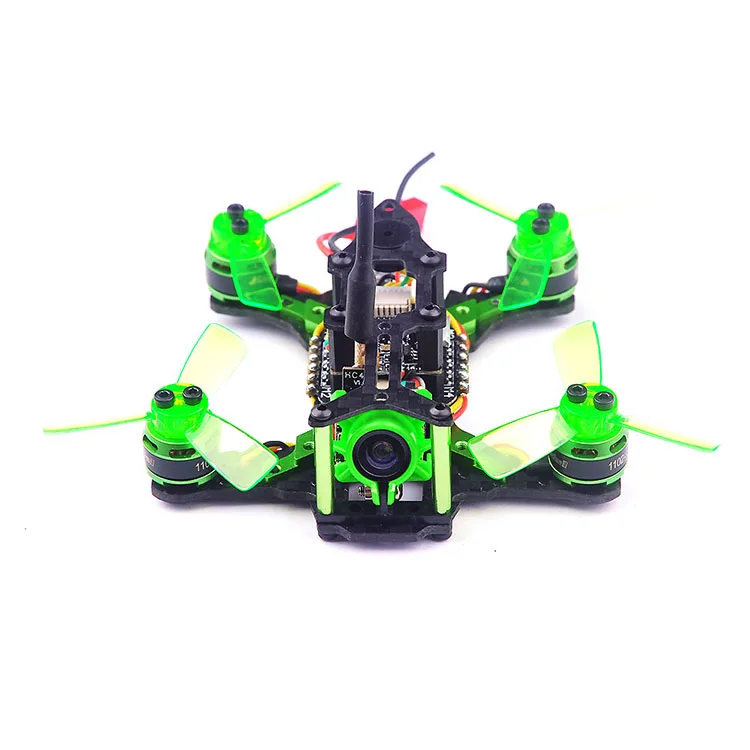

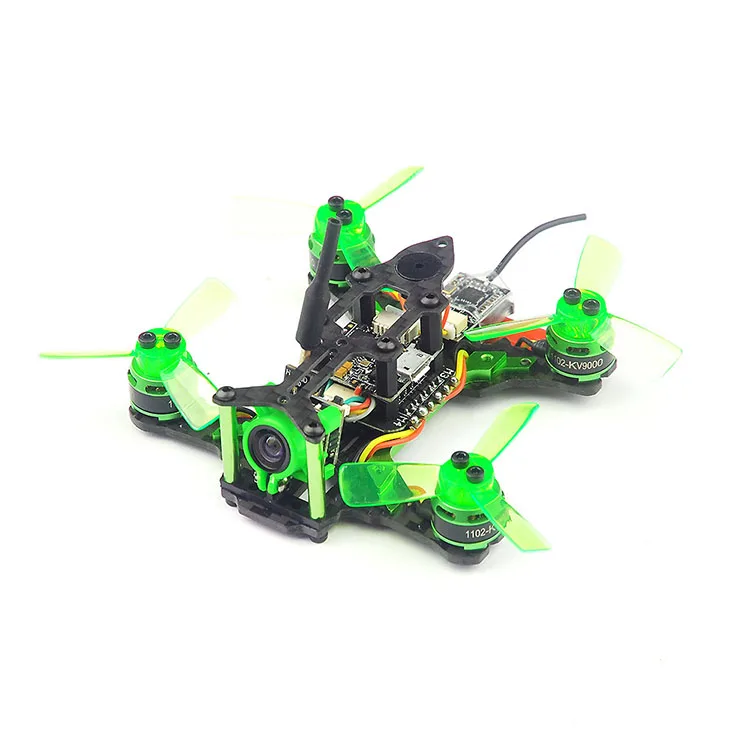

Happymode Mantis 85 Micro FPV Racing Drone BNF with Frsky D8 / Flysky 8ch / Support Specktrum DSM/X Receiver Accessory

Happymodel

Regular price $106.80

Shipping calculated at checkout.

Happymode Mantis 85 Micro FPV Racing Drone BNF  with Frsky D8 / Flysky 8ch / Support  Specktrum DSM -X DSM-2 Receiver Accessories

Detail

Specifications:
Item Name:Mantis 85 Micro FPV RACING DRONES BNF
Size:100mm*100mm*25mm
Weight: 52g( battery not include)
Flight controller: Super_S F4 Flight controller built-in Betaflight OSD
Motor: Happymodel SE1102 KV9000 brushless motor
Propeller: 1935 3-blades propeller
Camera: 600TVL HD CMOS 1/4inch
VTX: 5.8g 25MW 48CH NTSC/PAL Video transmitter
Battery: 7.4V 400mah 30C lipo battery
OSD: Betaflight OSD
Firmware of Flight controller :Betaflight 3.2.0
Flight time : 4minutes
Buzzer Ready


BNF version Receiver Option:
-Frsky D8 modee SBUS receiver (RSSI ready)
-Flysky 8ch AFHDS 2A receiver
-Specktrum DSM2/DSMX Compatible receiver


Flight controller Specification:
-Size:20mm*20mm*5mm
-Mount hole: 16mm*16mm
-Processor: STM32F405RGT6 MCU
-Sensor: SPI Sensor MPU6000
-Built-in Betaflight OSD ( Batt voltage, RSSI , Artificial Horizon , Fly mode , -Flytime, Craft name etz.)
-Firmware version: Betaflight 3.2.0 Dshot
-Target: OmnibusF4SD


ESC specification:
-Size:25mm*29mm*5mm
-Mount hole: 16mm*16mm
-Firmware version: BLHELI_S 16.5
- BB2, 48MHZ Chip
-Lipo Battery: 1-2S
-Con. Current: 6A
-Peak Current: 10A (5S)
-BEC: No
-Programming: YES
-Betaflight passtrough ready
-Dshot600 ready(Default)
-Support oneshot42 oneshot125 Multishot Dshot

Features:
- 3K full carbon fiber bottom plate set up with  CNC aluminum alloy Stiffeners
- Extremely light and more powerful
- STM32F405RGT6 MCU+ BLHELI_S ESC make your Operating feel more stabile and silky
- Adjustable Angle of Camera
- Jaw-dropping flight performance
- Betaflight support
- Acro mode / Air mode /Angle mode support
- Built-in OSD(Using F4 MCU controls OSD over SPI bus in DMA mode)
- OSD Configuration has been include in BETAFLIGHT GUI
- Radio Stick to control PID Tunes
- BLEHELI_S pass-through ready
- Telemetry RSSI Output ready

Package include:
1 x Happymodel Mantis 85 Frame kit
1 x Super_s F4 Flight controller build-in Betaflight OSD
1 x Frsky/DSMX/Flysky AFHDS2A Receiver(optional)
4 x Happymodel SE 1102 KV9000 brushless motor
1 x Super_S BS06D 4 in 1 ESC Dshot600
4 x 1935 3-blades propeller CW
4 x 1935 3-blades propeller CCW
1 x 600TVL HD CMOS 1/4 inch  camera
1 x 5.8g 25MW 48CH NTSC/PAL VTX with Raceband
1 x 7.4V 400mah 30C lipo battery
1 x Buzzer

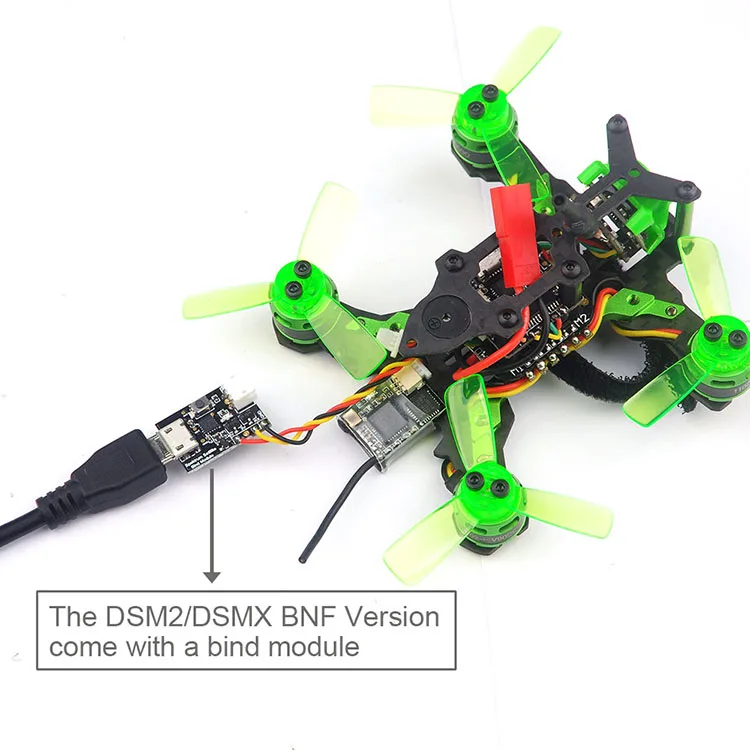

1 x DSM2/DSMX Bind module(Only DSMX Version included)
