Note:The product is shown in the picture, there are many choices, please choose the kit you need!
Topsky 2 Inch 5.8Ghz 48CH FPV Watch Monitor Display Mmcx Antenna:
Product parameters:
Resolution: 320*240
Screen size: 4:3 2.0inch
Receive sensitivity: -96db
Antenna: MMCX 5.8G inner needle (product with antenna)
Interface: MMCX standard interface / Micro-USB interface
Video standard: NTSC/PAL adaptive
Battery: Built-in battery, 5V, 300mAh
Life time: 45 minutes or so
?
?
Key Function:
Long press the Band button: power on/off function
Long press CH button: automatically search and lock the strongest signal (travel 48 channels)
Short press the Band/CH button: Manually adjust the frequency band and frequency point
?

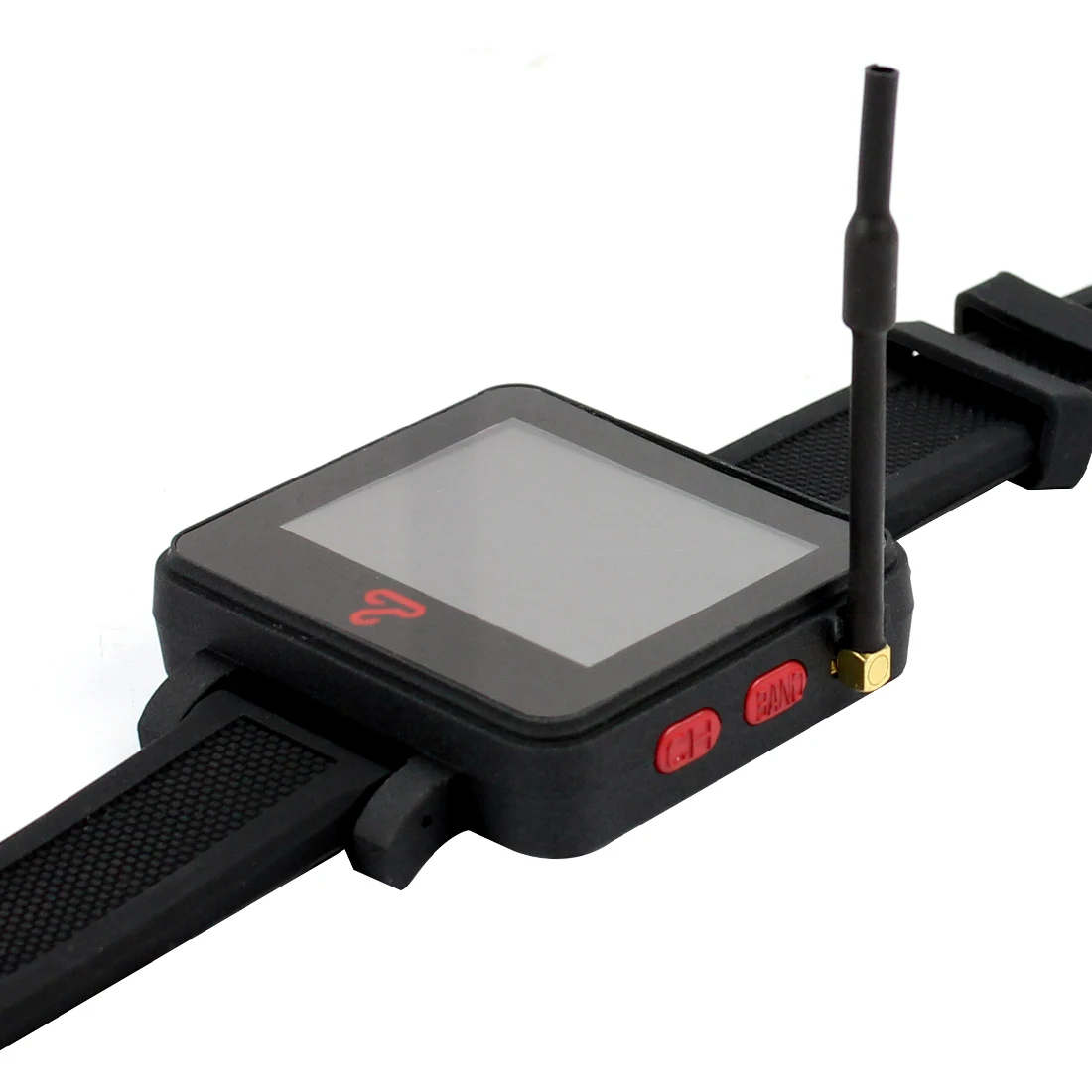

200RC FPV Wearable Watch 2" LCD 5.8G 48Ch FPV Monitor Wireless Receiver Watch LCD Display for FPV RC Drone Quadcopter
Description:
Model: 200RC
Item name: FPV Wearable Watch
Screen: 2" TFT LCD display.
Resolution: 480*240
Brightness: 450 cd/m2
Contrast: 500:1
Antenna: included
Channel: single way 5.8G input, 4 frenquency ranges 32 channel optional.
Battery: 500mA lithium battery, charging time 90m usage time about 100m.
Power loss: 320 mA 3.7V (Max)
Working enviroment: -10~+65 C Degree
Antenna: Built-in 3dbi brass 5.8G antenna
Power button: boot or shutdown
CH button: Long Press to adjust frequency ABEF ; Short Press to adjust frequency 12345678
Battery: Built-in 500mA lithium battery
Charge indicator: red light when charging, red light off when the battery is fully charged?
Channel indicator: indicates the current receiving frequency, such as: E1, corresponding to the red lights of E and 1 will on.
Charging port: micro USB + 5V (use only rechargeable)
Charging current: 500mA
Charging time about 90 minutes
Time about 100 minutes

LST-009 5.8G 40CH 3inch Dual Antennas FPV Goggles Monitor
?
Highlight:
Double Antennas
Built-in 3.7V 1200mAh Battery
Support a key search frequency
RaceBand 40 channel Auto-Searching
Real-time video return 5.8G FPV Receiver
?
Feature:
¡ß Small size and light weight;
¡ß Low power consumption, Working current 300~330mA;
¡ß Double antenna reception to make the signal more stable;
¡ß RaceBand 40 channel, Auto-Searching;
¡ß 3.0 Inch 480*320 dot high brightness LCD screen;
¡ß Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
¡ß Built-in 3.7V/1200mAh high-capacity Li-ion polymer Battery;
¡ß Universal USB charging interface;
¡ß Real-time video return, Very low time-delay;
¡ß Bilingual menu in support of Chinese and English;
¡ß Support external video signal input;
¡ß Support AV signal output (Connect external DVR);

LS-008D 5.8G FPV Googles VR Glasses 40CH 4.3 inch
product features
# Separable design ,4.3 inch screen canbe used as small monitor on radio controller or with tripod
# High brightness 4.3 inch LCD specially tuned for FPV racing or Model airplane
# Buit-in super sensitiveness 5.8GHz 40ch receiver,especially with RaceBand.
# Come with advanced auto-searching function ad show yout the working frequency on screen
# Buit-in 3.7V/2000mA battery ,each full charge revive around 2 hours woking time
# Ergonomic design fit your faces
# 92%transparent lens adopted ,no distort,no blur on the adage of screen;
# Light weight 375g with 2hr 2000mAh battery,RTF for any scale,racing ,Model airplane game
# 4.3 inch 480*272px HD high brightness LCD

?
Mobula7 HD FPV Racing Drone?Specifications:
Item Name: Mobula7 HD 2-3S 75mm Brushless Bwhoop drone
Wheelbase: 75mm
Size: 98mm*98mm*45mm
Weight: 48g(without battery)
Weight:72g(with Original 3s 300mah Lipo battery )
?
Features:
New Crazybee F4 PRO V3.0 AIO Flight controller 1-3s Lipo Compatible
2S for indoor Cine whoop mode
3S for outdoor Freestyle whoop mode
Betaflight support , multi flight mode: ACRO/AIR/ANGLE
The lightest 1102 brushless motor only 2.7g with double ball bearings
Powerful and smoothly
Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles(DSM-X version no RSSI output)
Caddx turtle v2 + 1080p 60fps DVR ready
Camera Angle adjustable
VTX power switchable 25mw~200mw
Smartaudio ready , change VTX bands, powers, channels via OSD
Frsky Non-EU version support NON-EU Frsky transmitter D8/D16 compatible
Flysky version support both AFHDS and AFHDS-2A protocol transmitter
DSM-2/DSM-X version support DSM-2 and DSM-X compatible Spektrum transmitter
No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc..
Full telemetry function ready (Frsky Non-EU and Flysky version support)
Special Breath light ready
Real Bind and Fly version
Compatible both for 2s-3s Lipo/LIHV
?
Package includes:
?
1xMobula7 V3 Frame
1xCrazybee F4 V3.0 PRO FC
4xEX1102 KV90000 Motor
1x40mm propeller(4cw+4ccw)
Extra gift 1x40mm red propeller(4cw+4ccw)
1xCaddx Turtle v2+1080p 60fps DVR
1x5.8G 40ch 25mw-200mw VTX
1x3S 11.4v 300mah 30C/60C battery
1xPropeller disassemble tool
1xScrewdriver
Spare parts specifications:
Motor
|
Mode: EX1102 KV9000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:2mm
Shaft Diameter:©ß1mm
Motor Dimension(Dia.*Len):©ß13.5mm*16mm
Weight(g):2.8g
No.of Cells(Lipo):1S-3S
|
Flight controller
|
(Frsky version) CRAZYBEE F4FR PRO V3.0 Firmware target: CrazybeeF4FR
(Flysky version) CRAZYBEE F4FS PRO V3.0 Firmware target: CrazybeeF4FS
(DSM2/DSM-X version) CRAZYBEE F4DX PRO V3.0 Firmware target: CrazybeeF4DX
(No RX version) CRAZYBEE F4 PRO V3.0 Firmware target: CrazybeeF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1-3S battery input (DC 3.5-13V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)
Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable)
DSM-2/X Version built-in Serial-based DSM-2/DSM-X compatible satellite receiver
No RX version need to add external Receiver
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 28A
Current meter scale set to 1175
Built-in 5V 1A Buck / Boost with LC filter
Built-in voltage detection
|
Onboard 4in1 ESC
|
MCU upgraded to EFM8BB21
Power supply: 1-3S LiPo/LiPo HV (3.5v/13v)
Current: 5A continuous peak 6A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.Hex
Default protocol: DSHOT600
|
Frsky NON-EU receiver Version
|
SPI BUS receiver
Frsky D8/D16 switchable
Compatible Non EU transmitter both D8 and D16 mode
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
|
Flysky receiver Version
|
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Failsafe support
|
DSM-2/DSM-X receiver version
|
Serial bus receiver
Protocol: DSM-2/DSM-X compatible
Channels:6-9 (Depend on your radio)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
|
PNP No RX version
|
No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc.
|
VTX
|
Output power: 25~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Antenna: RG178 antenna
Frequency: 5.8GHz 5bands 40 channels
With Raceband
Smartaudio ready
Weight: 3g
|
CADDX Turtle V2
|
Image sensor: 1/2.7" CMOS sensor
Horizontal: 800TVL
TV system: NTSC/PAL changeable
Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps
Power Input: DC 4.5-20V
FPV FOV: 155¡ø
Recording FOV: 170¡ø
Mini Illumination: 0.01lux
Image Resolution: 2 Megapixels
Lens: 1.8mm Turbo Eye Lens
Working Current: 380mA@5V/160mA@12V (low consumption)
OSD Menu: Yes (Support Voltage Display)
Video Files: MP4
Audio: Support
Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100
S/N Ratio: >60dB (AGC OFF)
Video Output: CVBS
Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II)
|
