iFlight Beast F7 55A 2-6S BLHeli-S AIO Board (MPU6000) flight controller with Micro USB Connector

Top Features:

Vista digital system Plug-and-Play (VBAT passthrough)

MCU: BGA-STM32F745, 216MHz

OSD: AT7456E

Gyro: MPU6000

Blackbox: 8Mb Onboard Flash

BEC output: 5V 2.5A



FC // Beast F7 AIO

Specification:

MCU: BGA-STM32F745

Gyro: MPU6000

Blackbox: 8Mb Onboard Flash

BEC output: 5V 2.5A

Connector: Micro-USB

OSD: AT7456E

FC Firmware：IFLIGHT_F745_AIO

Mounting pattern: 25.5*25.5mm φ3mm

Dimensions: 32.5*32.5mm

Weight: 8.5g

ESC // 45A 2-6S

Specification:

Uarts: 5

Current Sensor: Yes

Input: 2-6S LIPO

Current scale: 200

Constant: 45A / Burst: 50A

BLHeli: BLHeli-S

Telemetry: no

ESC Firmware: BlheliS G-H-30

Mounting pattern: 25.5*25.5mm/Φ3mm

Dimensions: 32.5*32.5mm

Package Includes:

Beast F7 AIO x 1

Capacitor 470uF/16V x 1

Capacitor 220uF/50V x 1

XT60 12AWG cable 100mm x 1

XT30U 18AWG cable 70mm x 1

1.0-7P cable 50mm-28mm x 1

1.0-7P cable 50mm x 1

M2 silicon grommets x 4

M2*12mm screws x 8

M2 Transparent Nylon Nut x 8

0.8mm black Heat shrink tube 10mm x 8

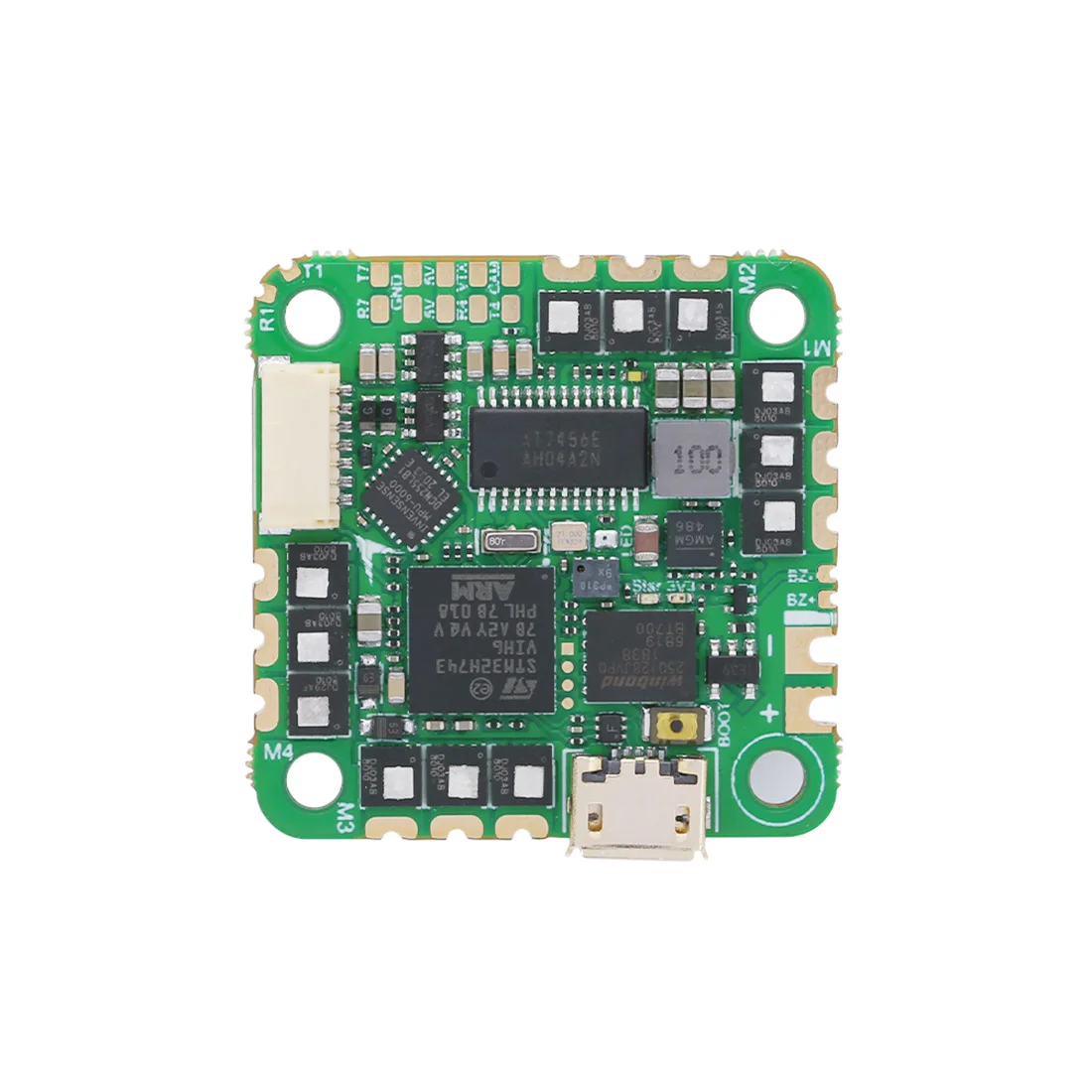

iFlight Beast H7 55A 2-6S BLHeli-S AIO Board (MPU6000) flight controller with 5V 2.5A BEC/Barometer



Top Features:

Vista digital system Plug-and-Play (VBat passthrough)

MCU: BGA-STM32H743 , 480MHz

OSD: AT7456E

Gyro: MPU6000

Blackbox: 16Mb Onboard Flash

BEC output: 5V 2.5A

FC // Beast H7 AIO

Specification:

MCU: BGA-STM32H743

Gyro: MPU6000

Blackbox: 16Mb Onboard Flash

BEC output: 5V 2.5A

Micro-USB

OSD: AT7456E

Uart:5 (UART1、UART2、UART3、UART4、UART7)

FC Firmware：IFLIGHT_H743_AIO

Mounting pattern: 25.5*25.5mm φ3mm

Dimensions: 32.5*32.5mmmm

Weight: 8.8g

ESC // 55A 2-6S

Specification:

Uarts: 5

Current Sensor: Yes

Input: 2-6S LIPO

Current scale: 200

Constant: 55A / Burst: 60A

BLHeli: BLHeli-S

Telemetry: no

ESC Firmware: BlheliS G-H-30

Mounting pattern: 25.5*25.5mm/Φ3mm

Dimensions: 32.5*32.5mm

Package Includes:

Beast H7 AIO × 1

Capacitor 470uF/16V x 1

Capacitor 220uF/50V x 1

XT60 12AWG cable 100mm x 1

XT30U 18AWG cable 70mm x 1

1.0-7P cable 50mm-28mm x 1

1.0-7P cable 50mm x 1

M2 silicon grommets x 4

M2*12mm screws x 8

M2 Transparent Nylon Nut x 8

0.8mm black Heat shrink tube 10mm x 8
