JMT GHF411AIO F4 Flight Controller AIO Betaflight OSD 2-4S BLHELI_S 20A / 30A ESC Brushless for 3-5'' Mini RC Drone Quadcopter

JMT

Sale price $32.89 Regular price $45.29

Shipping calculated at checkout.

JMT GHF411AIO F4 Flight Controller AIO Betaflight OSD 2-4S BLHELI_S 20A / 30A ESC Brushless for 3-5'' Mini RC Drone Quadcopter Models

Description:

The new generation toothpick drone, new AIO brushless flight controller can handle 20A / 30A continuous current. The board has strong performance while still maintaining an ultra-light weight of only 6.3g. Break through the limits of the function of toothpicks and explore more possibilities of 3''-5'' drones. This board is your choice to customize the toothpick drone to suit your needs.

Features:
  • Can handle 20A / 30A4 continuous current
  • With 4 motor pluggable pins, not pre-welded by default, best suited for your self-assembly needs
  • Compatible with 120X, 130X and 140X motors
  • The USB port is mounted on the side, you have more installation possibilities while still accessing the USB port
  • All welded ports are on the edge of the flight controller, which makes it easy to solder
  • Double-sided motor pads. Pin pads and wire pads are built-in for motor connection
  • Integrated Betaflight MATEKF411 processor flight control, Betaflight OSD, F4 MCU and 20A / 30A ESC, support 2-4S battery

Specification:

Flight control parameters
• CPU: STM32F411CEU6 (100MHZ)
• Six axes: MPU6000 (SPI connection)
• Size: 32.5 * 32.5mm (25.5mm mounting hole)
• Firmware version: Betaflight MATEKF411 (MK41)
• OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
• Receiver: Support Frsky XM / XM + receiver / Futaba receiver / Flysky receiver / TBS Crossfire receiver / DSMX receiver
• Supports WS2812 and other programmable LEDs
• Built-in current sensor
• Weight: 6.3g

ESC parameters
• Support BLheli / BLHELI_S
• Supports PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Input voltage: 2S-4S Lipo
• Continuous current: 20A / 30A (two models are optional)
• Firmware: BLHELI_S
• Motor connector: 1.25mm pin header

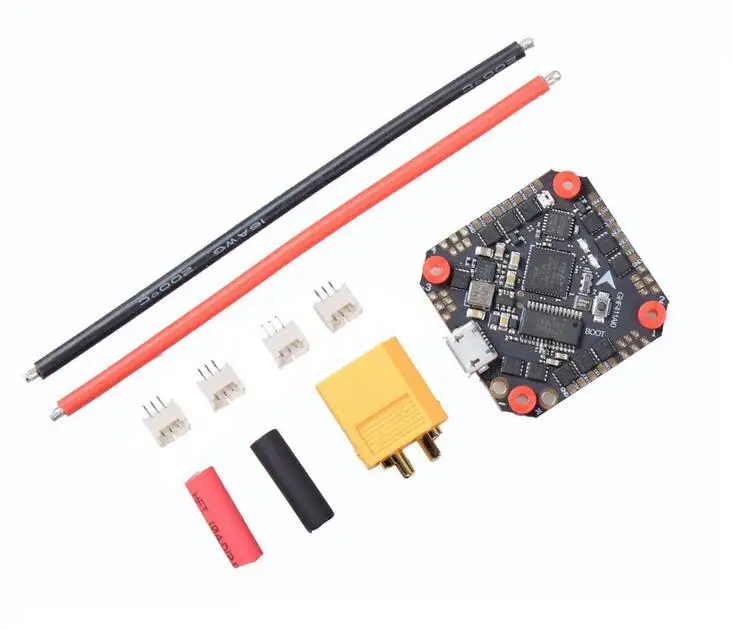

Package included:

1x toothpick GHF411AIO 2-4S brushless flight controller
2x power cable + (30A with XT60, 20A with XT30)
4x shock-absorbing rubber shock absorbers
4x motor pluggable pin base
