QwinOut IRON MAN 1000 DIY GPS Drone Carbon Fiber 8-axle Aircraft PX4 2.4.8 Flight Controller APM2.6 GPS 350KV Motor 40A ESC AT9S TX RX

QWinOut

Regular price $657.90

Shipping calculated at checkout.
QwinOut IRON MAN 1000 DIY GPS Drone Carbon Fiber 8-axle Aircraft PX4 2.4.8 Flight Controller APM2.6 GPS 350KV Motor 40A ESC AT9S TX RX

Frame:
Product Descriptions:
· Carbon content 100% TORAY 3K carbon fiber applied, CNC processed
· The quality of 2.0mm thick matte carbon fiber is higher than products available on market.
· Motor mount is 6061T6 aluminum alloy CNC processed
· Lightweight design, and dual-color, which can be recognized easily in the air
· The whole set is only 1.6 kg weight (lading skid included)
· Payload is up to 8 kg, which is specific for 5DII, RED EPIC, C300, FS100, FS700 and large-sized photographic equipments
Specifications:
· Boom diameter: 25MM
· Diameter (motor to motor): 1020MM
· Frame diameter: 1070MM
· Height: 380MM
· Central plate: 250x240 MM
· Motor installation space: 16MM/19MM/25MM/27MM equilateral triangle installation

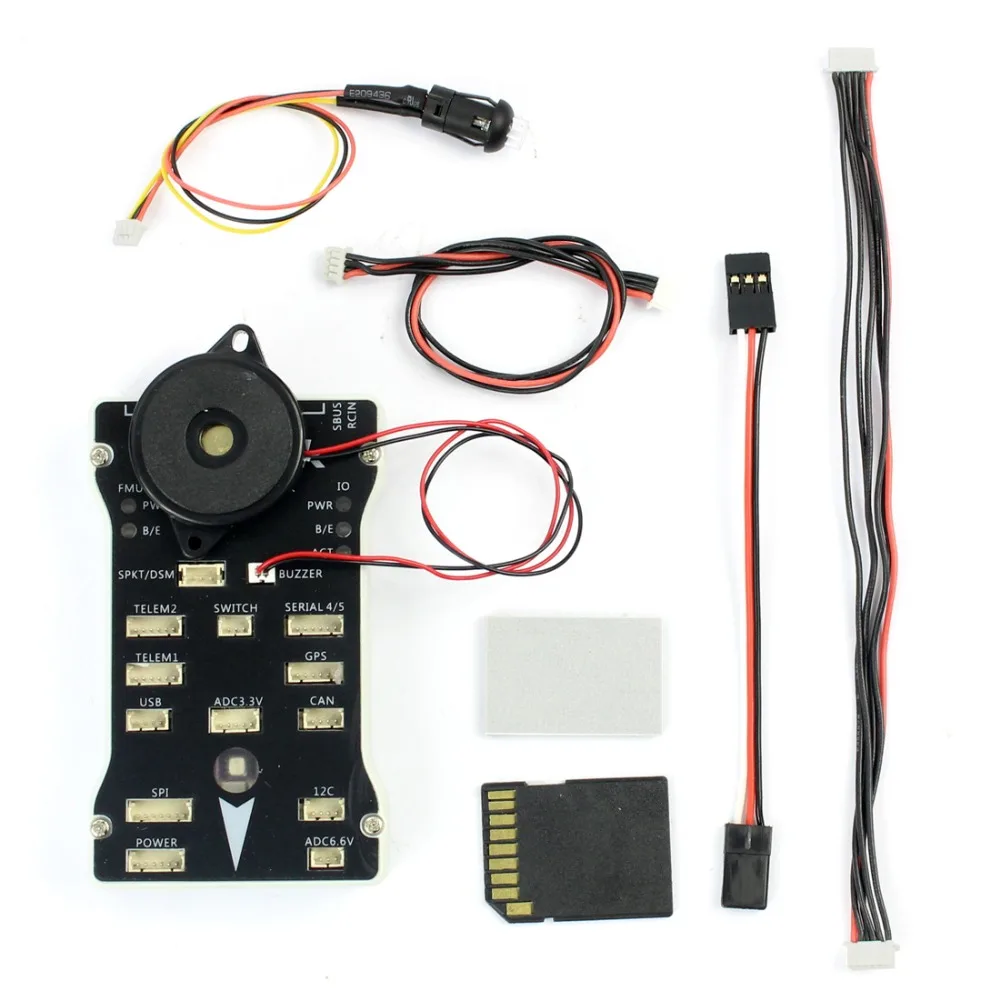

Flight Controller:
- The board integrates with PX4FMU+PX4IO
- Pixhawk is with new 32 bit chip and sensor technology
Features:
- Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;
- 14* PWM/ actuator output;
- Bus interface (UART, I2C, SPI, CAN);
- Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
- Provide automatic and manual mode;
- Provide redundant power input and fault transfer function;
- Color LED lamp;
- Multi tone buzzer interface;
- Micro SD to record flight data;
Processor:
- 32 bit 2M flash memory STM32F427  Cortex M4, with hardware floating point processing unit
- Main frequency: 256K, 168MHZ RAM
- 32 bit STM32F103 backup co processor
Sensor:
- L3GD20 3 axis digital 16 bit gyroscope
- LSM303D 3 axis  14 bit accelerometer /magnetometer
- MPU6000 6 axis accelerometer / magnetometer
- MS5611 high precision barometer
Interface:
- 5* UART, 1*compatible high voltage, 2*hardware flow control
- 2* CAN
- DSM/DSM2/DSM-X satellite receiver compatible input
- Futaba SBUS compatible input and output
- PPM signal input
- RSSI (PWM or voltage) input
- I2C
- SPI
- 3.3 and 6.6VADC input
- External USB MICRO interface

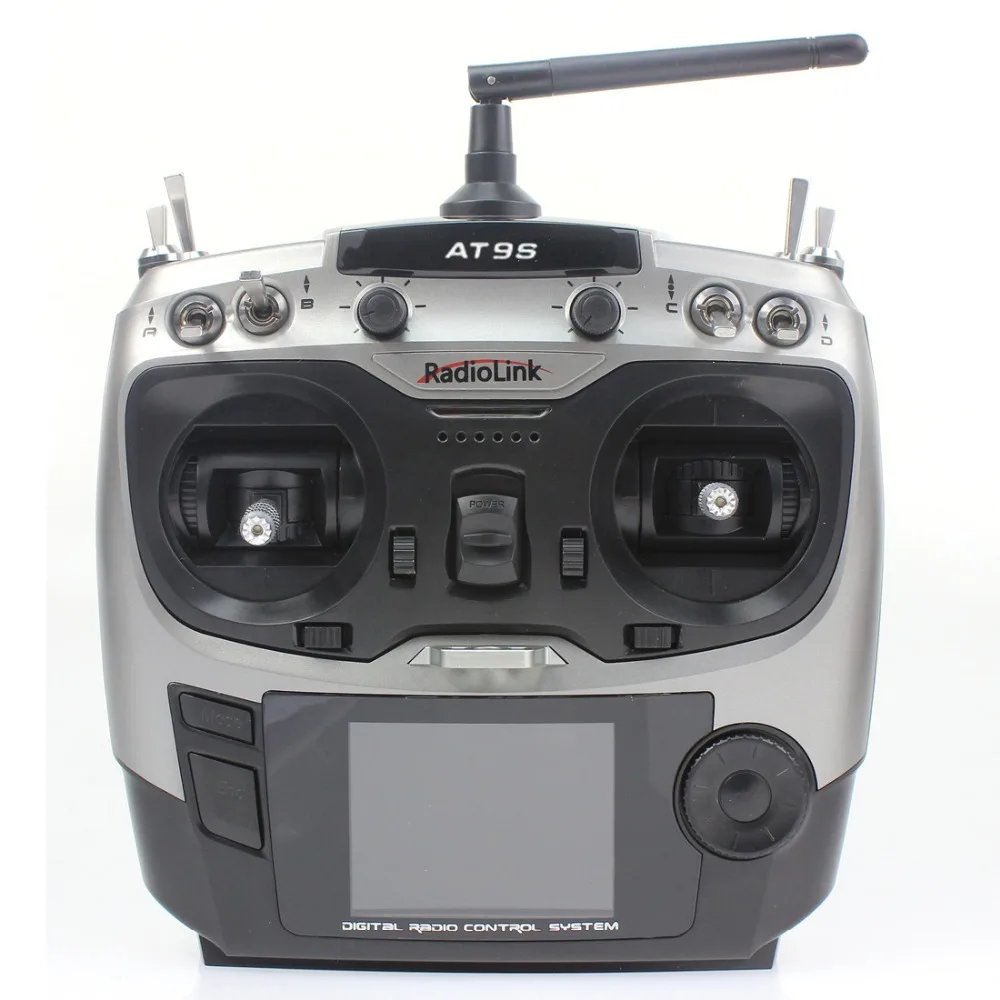

AT9S transmitter:
1. Size: AT9S- 183*100*193mm, R9DS- 41*23*14mm
2. Weight: 0.88kg
3. Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz)
4. Modulation mode: QPSK
5. Channel bandwidth: 5.0 MHz & 250Kbps
6. Spread spectrum: DSSS ;FHSS
7. Adjacent channel rejection: >38dbm
8. Transmitter power: <100mW (20dbm )
9. Operating current: <90mA 12V
10. Operating voltage: 7.4 ~ 18.0V
11. Control distance: more than 900 meters ground, 1500 meters air, the actual control distance depends on the flying environment
12. Channel: 10 channels, 5-10 channels are customized
13. Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor
14. Simulator mode: under the simulator mode the transmitter action turn off, change to power saving mode
15. Screen: 2.8 inches 16 colorful screen, 240*320 pixels
16. Support receivers: sells with R9DS (SBUS;PWM) ;Also support R10DS(SBUS PWM) and R6DS(SBUS;PPM;PWM)

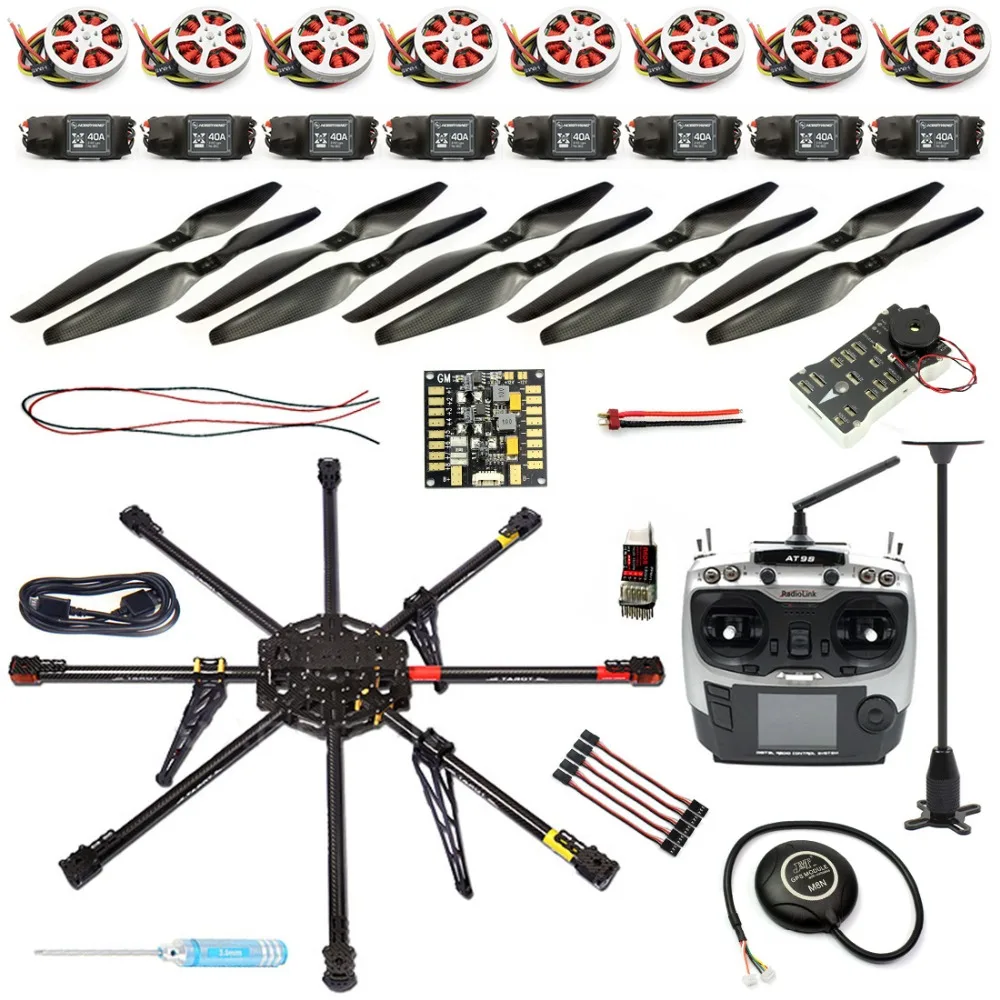

Package listing:
1* 1000 carbon firber 8-axis frame
8* 350KV Brushless Disk Motor high Thrust With Mount

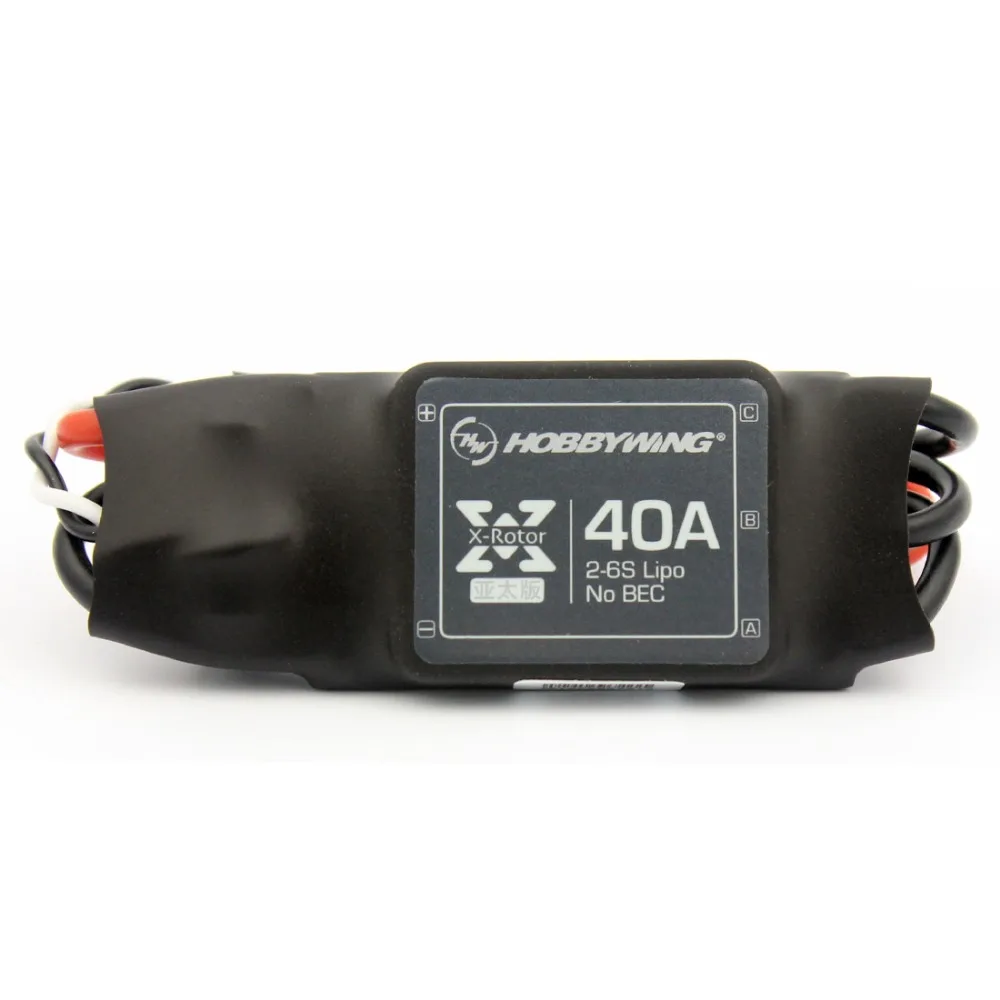

8* 40A Brushless ESC Speed Controller
5* Three-hole High Quality Carbon Fiber 15x5.5 1555 Propeller (pair)
1* Multifunction Power Distribution Board
1* 5pcs 10cm Servo Receiver Extension Lead Wire Cable
1* GPS Folding Antenna Mount Holder
1* Mini M8N GPS Module NEO-M8N GPS
1* PX4 PIX 2.4.8 32 Bit Flight Controller
1* USB data cable
24* 3.5MM banana connector
1* Radiolink AT9S 2.4GHz 9 Channel Transmitter with Radio R9D Receiver
1* 2.0MM screwdriver
1* 2.5MM screwdriver

1* tool kit(tie and T plug)
