JMT J194 194mm Mini F4 Pro OSD RC FPV Racing Drone Quadcopter with 4 in 1 30A ESC RunCam 600TVL / 700TVL BNF RTF

JMT

Regular price $262.31

Shipping calculated at checkout.

194mm Mini F4 Pro OSD RC FPV Racing Drone Quadcopter with 4in1 30A ESC RunCam 600TVL / 700TVL FPV Goggles BNF RTF Combo Set Compatible with Flysky Frsky

(Please Check carefully the pictures when you make order the combo set you want, Difference combo set with different Electronic Configuration. If you have any questions about it, Please feel free to contact us. And we can support technical support if you have any idea about the diy drone, This is our personalized assembly customization. We are waiting to hear from you.)

Package included:

  • JMT 194mm Carbon Fiber Frame Kit *1

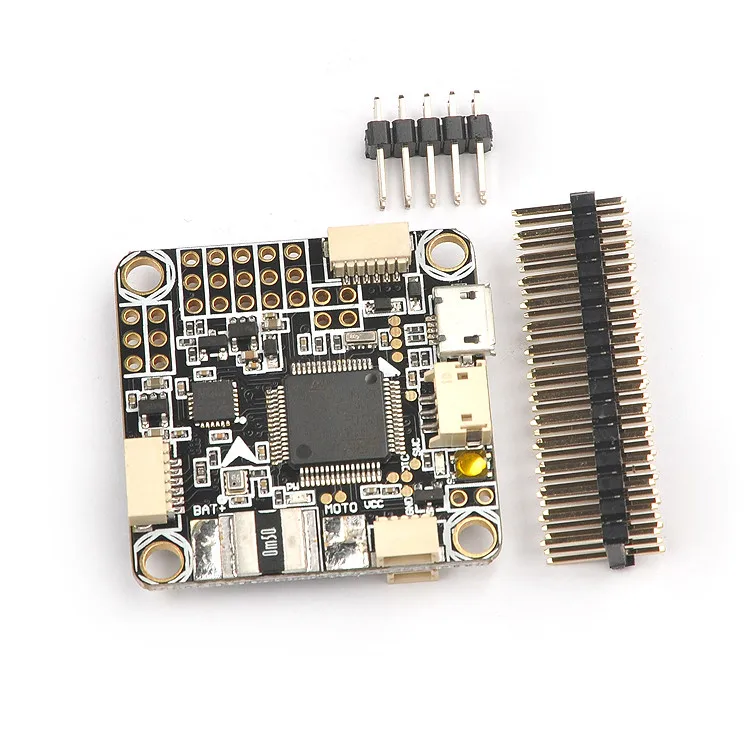

  • Betaflight F4 Pro (V2) Flight Control Built-in OSD / BEC *1

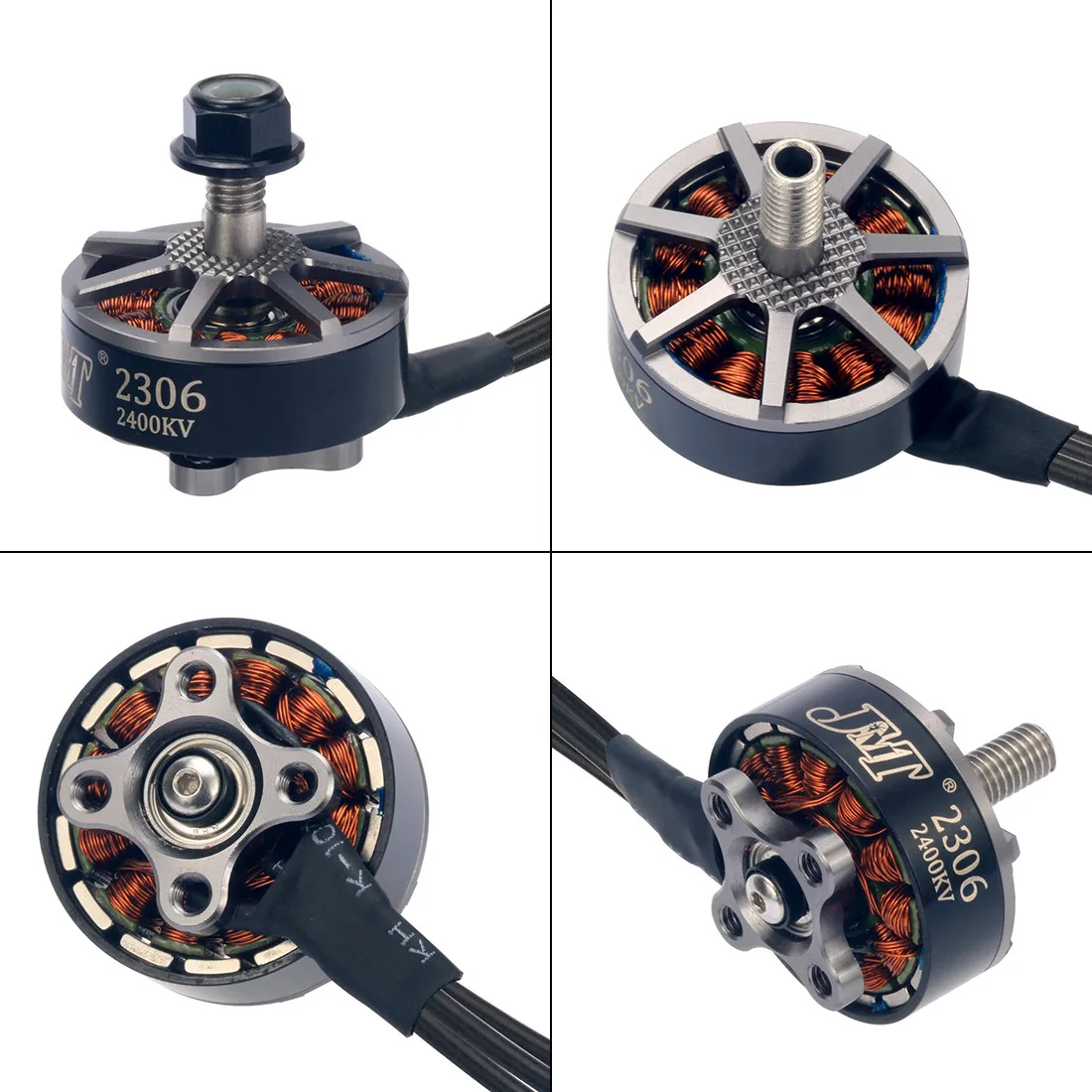

  • 2306 2400KV Brushless Motor 3~4S *4

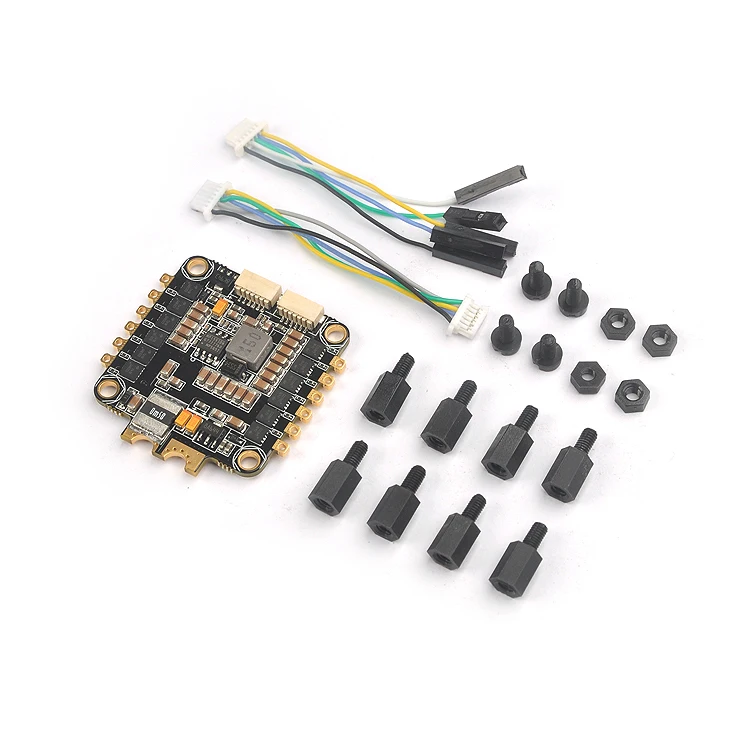

  • BS430 ESC 30A 3-6S 4 in 1 BLHeli-S Firmware Dshot 4x30A Speed Controller *1
  • 4045 CW + CCW 3-Blade Propellers *2
  • Flysky FS-i6 2.4G Transmitter + FS-A8S 8CH Receiver * 1  (Some combo set not include the Remote Controller system, Please confirm the combo as your request)

  • JMT FX400R Mini Micro Receiver Compatible Frsky D16 *1  (Some combo set not include the Receiver , Please confirm the combo as your request)

  • 11.1V 1500MAH 40C Lipo Battery XT60 Plug * 1  (Some Combo Set not include the Battery)
  • IMAX RC B3 Pro Balance Charger * 1 (Some Combo Set not include the Charger)
  • RunCam Micro Swift 600TVL 2.1mm 1/3 CCD FPV Camera PAL *1 /  Mini Video Camera COMS 700TVL 2.8mm Lens NTST*1 (Optional)
  • 5.8G 25/200/600MW 7086 48CH Image Wireless Video Transmission A/V TX TL300N6 *1

  • Mini FPV Goggles 3 inch 480 x 320 Display Double Antenna 5.8G 40CH *1 (Some Combo Set not include the FPV Receiver)

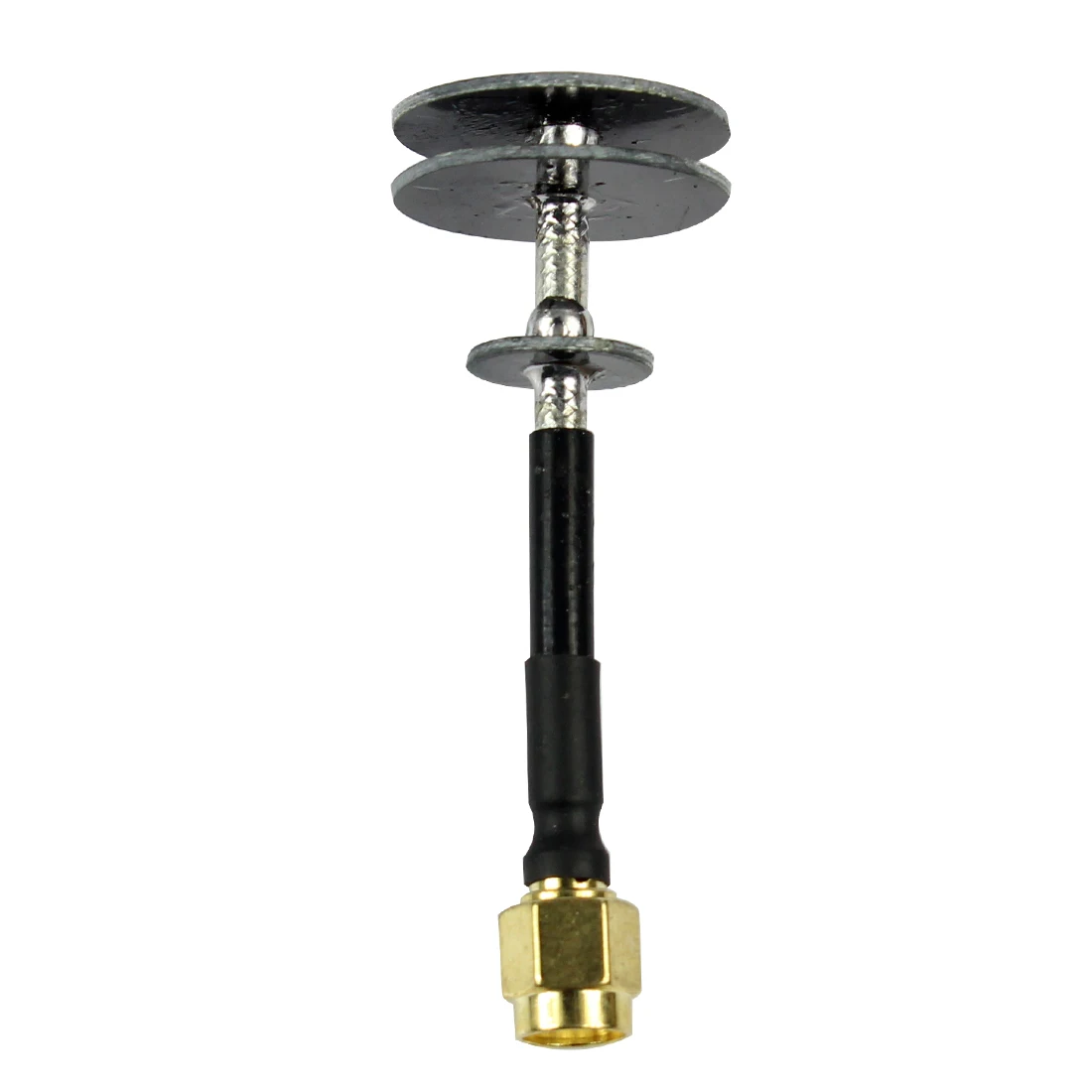

  • Pagoda3 Antenna Omnidirectional Antenna *1

  • EVA Sponge Landing Gear Skids Mat Set *1

  • 5V Buzzer Alarm Beeper *1

  • Accessories bag * 1


Function:
1. Forward/backward,Sideward flight,Turn left/right,Up/down,Hover,Self-stability,Fixed point, Buzzer, (The above functions have been set before shipment), This following functions need to be set by buyer: Ratio control Acro (caution to beginner), Automatic mode (AUTO) and so on.

2. Compatible with Flysky / Frsky Remote Controller.
3. The aircraft frame is using high-strength drop-resistant carbonfirber/PCB material which provides better resistance to damage on hard landing, durable.
4. We provide the Mini Camera and FPV Equipment together, so that you can enjoy the Aerial photography experience.
5. Simple operation with manuals, do not need to make tedious setup and debugging to the Flight controller, simply assembled to fly.
6. Betaflight F4 Pro (V2) Flight Control Built-in OSD / BEC, Easy to use, best choice for flight experience.


Specification:
Brand: JMT
State of Assembly: Unassembly/RTF/ARF/BNP/BNF Versions
Frame Wheelbase: 194mm

Frame  Arm thickness: 3mm
Frame Upper and lower plate thickness: 1.5mm
Frame Kit Weight: 86g

Flight Time: about 10min (the specific flight time depends on your flight action)

Pay Attention:
When using the charger, please do not simultaneously charge the 2S and 3S batteries on the charger.
Do not understand the flight control and remote control, please do not modify any parameters and wiring.
Turn on the remote control before powering the aircraft. After the flight is over, unplug the power battery and then turn off the remote control to prevent accidents.
This aircraft is not recommended to fly indoors. It is recommended to fly in an open space to avoid flying in places where people and disturbances are present.
This RC model is not a toy and is not suitable for children under 14 years old.
Carefully read the instruction before any use, if you are a beginner, it's advisable to be assisted by an experienced adult


Q & A:
1. How to connect the Flight control, GPS, receiver? How to calibrate GPS and flight control?
A: They are connected when you open the package. The Flight Control, and Remote Control (transmitter) are calibrated and tested. You only need to follow the instructions to assemble them.
2. Can we use other kinds of Motor and ESC? If yes, What kinds of Motor and ESC recommend? Can we change the Propellers?
A: Of course, we recommend the motor 2200KV-2400KV, ESC 28A-40A, 4-inch Propellers.
3. Can I add PTZ and other FPV equipment?
A: Our products can be modified to upgrade, sports camera with gimbal is a good choice.
4. Is the product welded? Can RTF (Ready To Fly)?
A: Our products default motor, ESC are welding the banana head and ESC and sub-board welding together, do not need your hands-on welding. And Of course you can do RTF. But For RTF version, The shipping fee is more expensive, if you can pay the extra shipping cost and Pay a small service fee, we can give you RTF. Please message us if you need this service.
5. Can be used with larger capacity battery?
A: ESC support voltage in 3-6s, the maximum recommended capacity 2200mah.
6. I do not like your remote control, can you change the remote control?
A: Yes, replace the remote control, the same set for you all the auxiliary flight mode, but will be little different with the instructions, After setting,we will inform you about the setting information in time.We will mostly brand of remote control and this flight control settings.
7. What kinds of flight environment is applicable to this quadcopter? Can I fly indoors?
A: This quadcopter is not suitable for indoor flight, it is recommended to fly outdoors and open areas, but please avoid interference with the crowd and the surrounding areas.


Flight Controller Parameter adjustment software:
Software:Betaflight
Official website address :https://github.com/betaflight/betaflight-configurator

More Pictures Description:

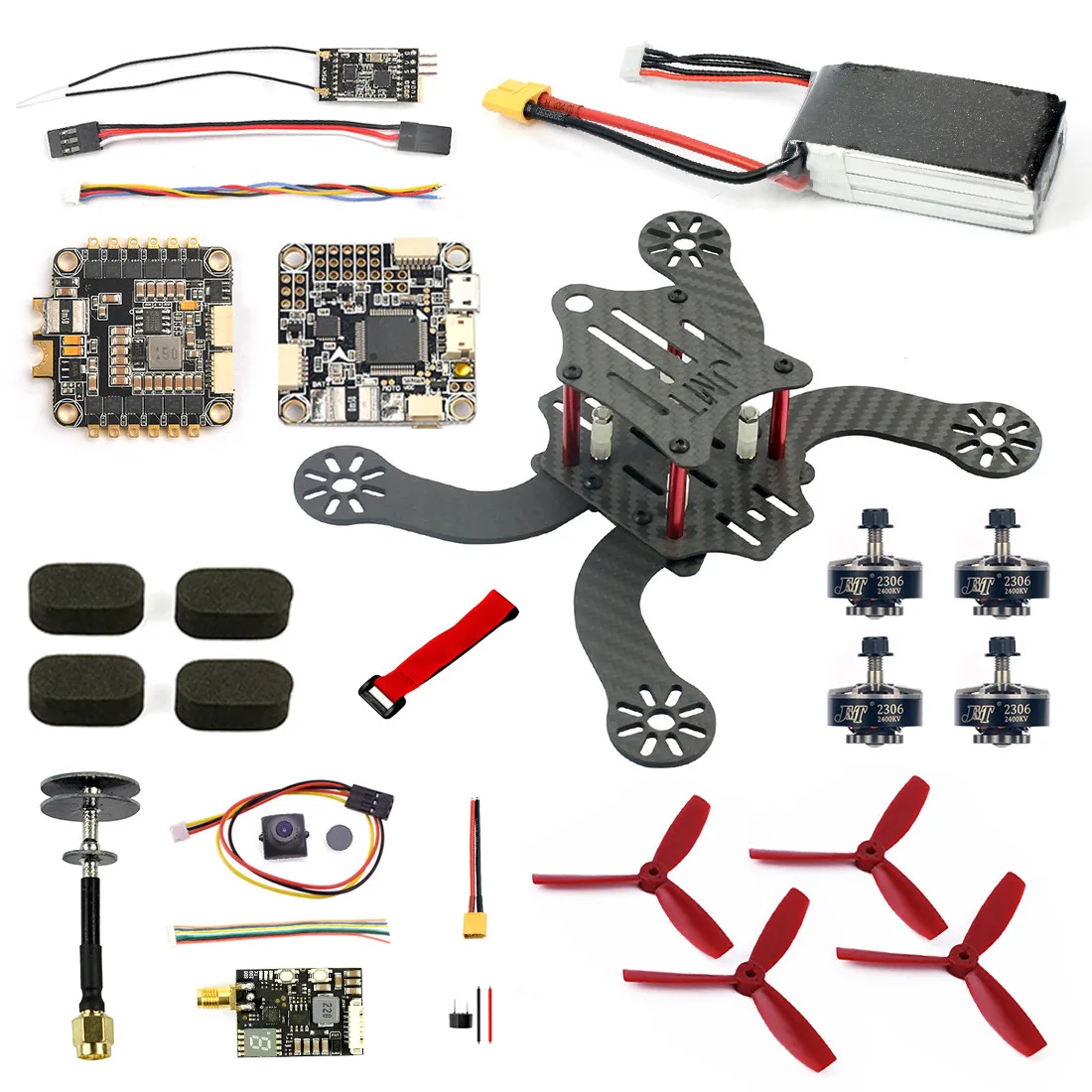

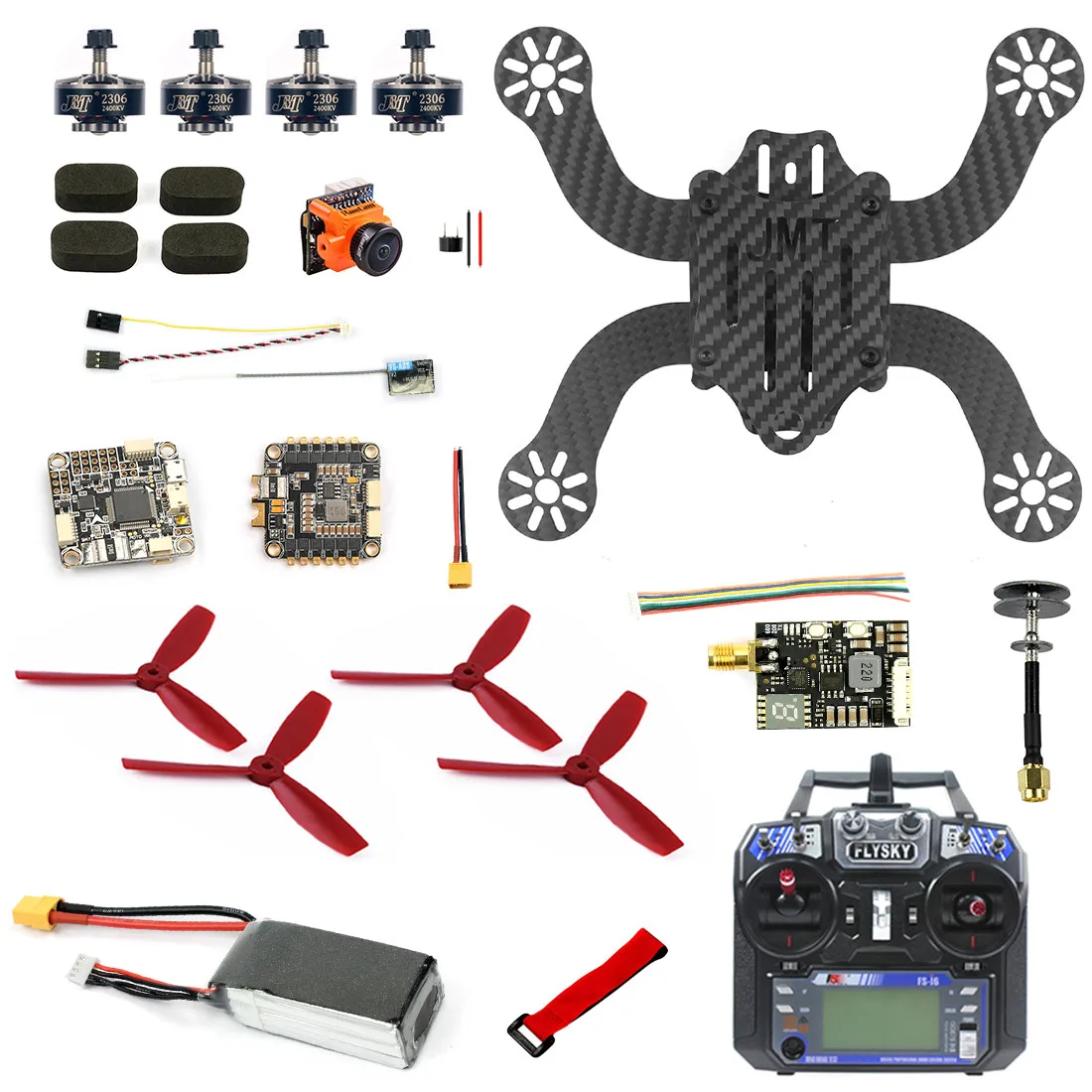

RTF (Unassembly) with Camera and FPV Transmitter and Goggles Receiver:



ARF with Camera and FPV Transmitter, But without Charger (Unassembly) :

BNP with Camera and FPV Transmitter , But without Battery and Charger (Unassembly) :

BNF with Camera and FPV Transmitter and Battery ,Compatible wiht Frsky D16 Receiver, But without Charger and Remote Transmitter(Unassembly) :

DIY Drone Combo Kit, With Camera and FPV Transmitter, NO Battery and Charger, No Remote Controller System:



Electronic Configuration:
