Happymodel Mantis85 85mm 5.8G FPV Micro Racer Drone Quadcopter BNF 600TVL Camera VTX & Double Antenna 3 Inch Mini Video Goggles for Flysky

Happymodel

  • $123.49
  • Save $21.58
Shipping calculated at checkout.


Mantis85 85mm 5.8G FPV Micro Racing Drone Quadcopter BNF 600TVL HD Camera VTX with Double Antenna 3 Inch 40CH Mini Video Goggles

Note:The color of the lining of the glasses will vary depending on the production lot and we will ship them at random.

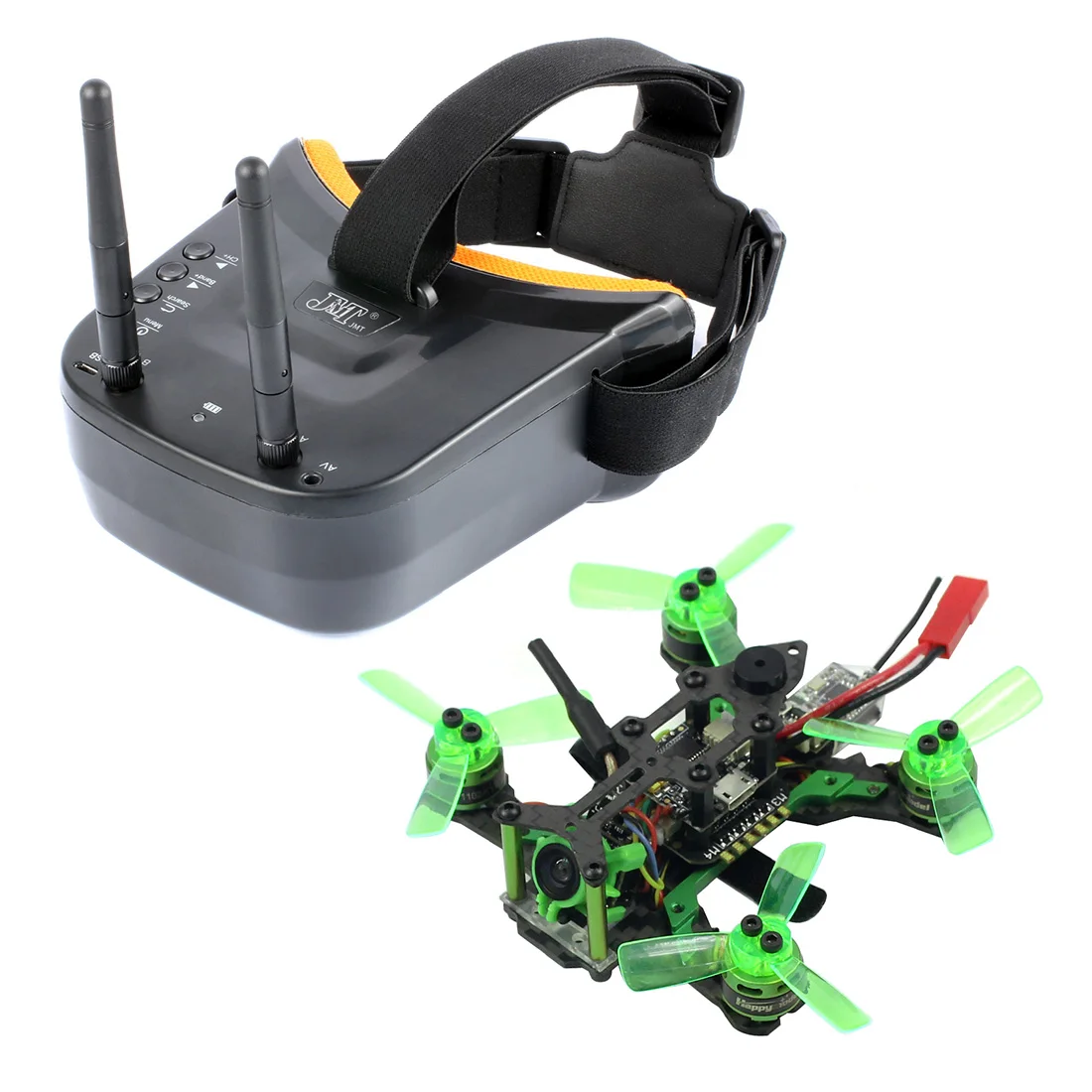

Package include:
1 x Happymodel Mantis 85 FPV Racing Drone BNF
1 x JMT LST-009 Double Antenna 5.8G FPV Goggles

This is BNF Version, Not include Transmitter, it Compatible with Flysky Receiver, Please take it into account before ordering according to your Transmitter.

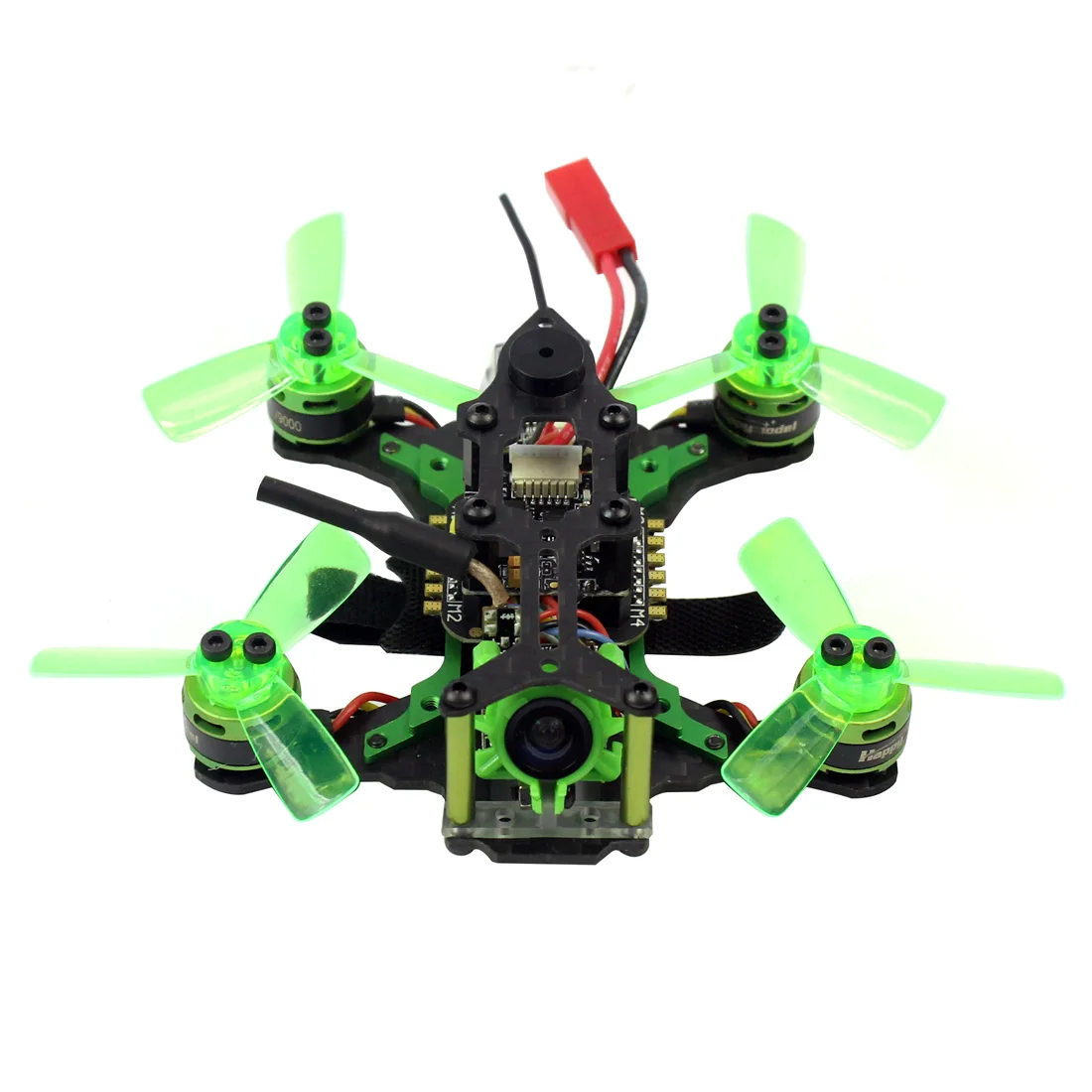

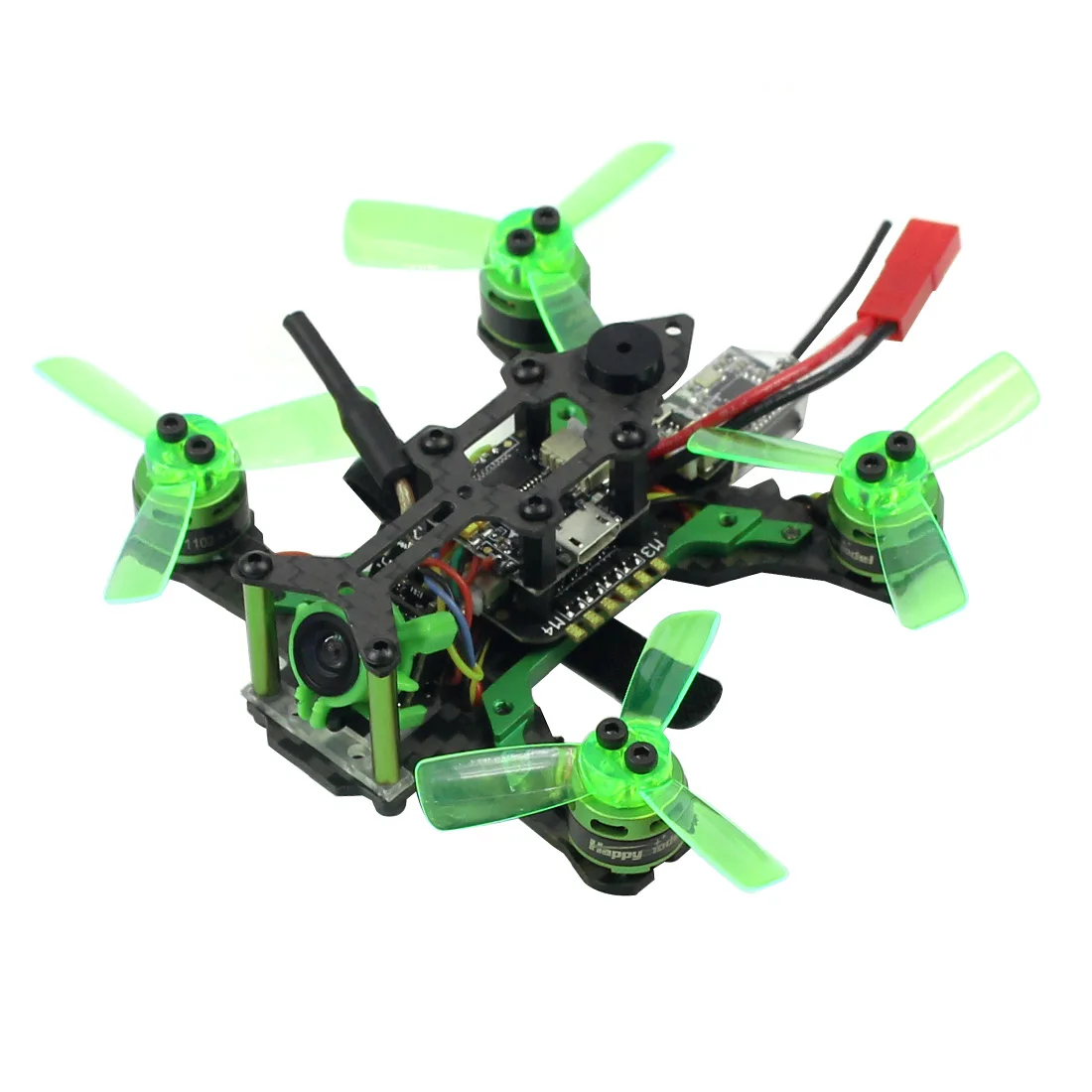

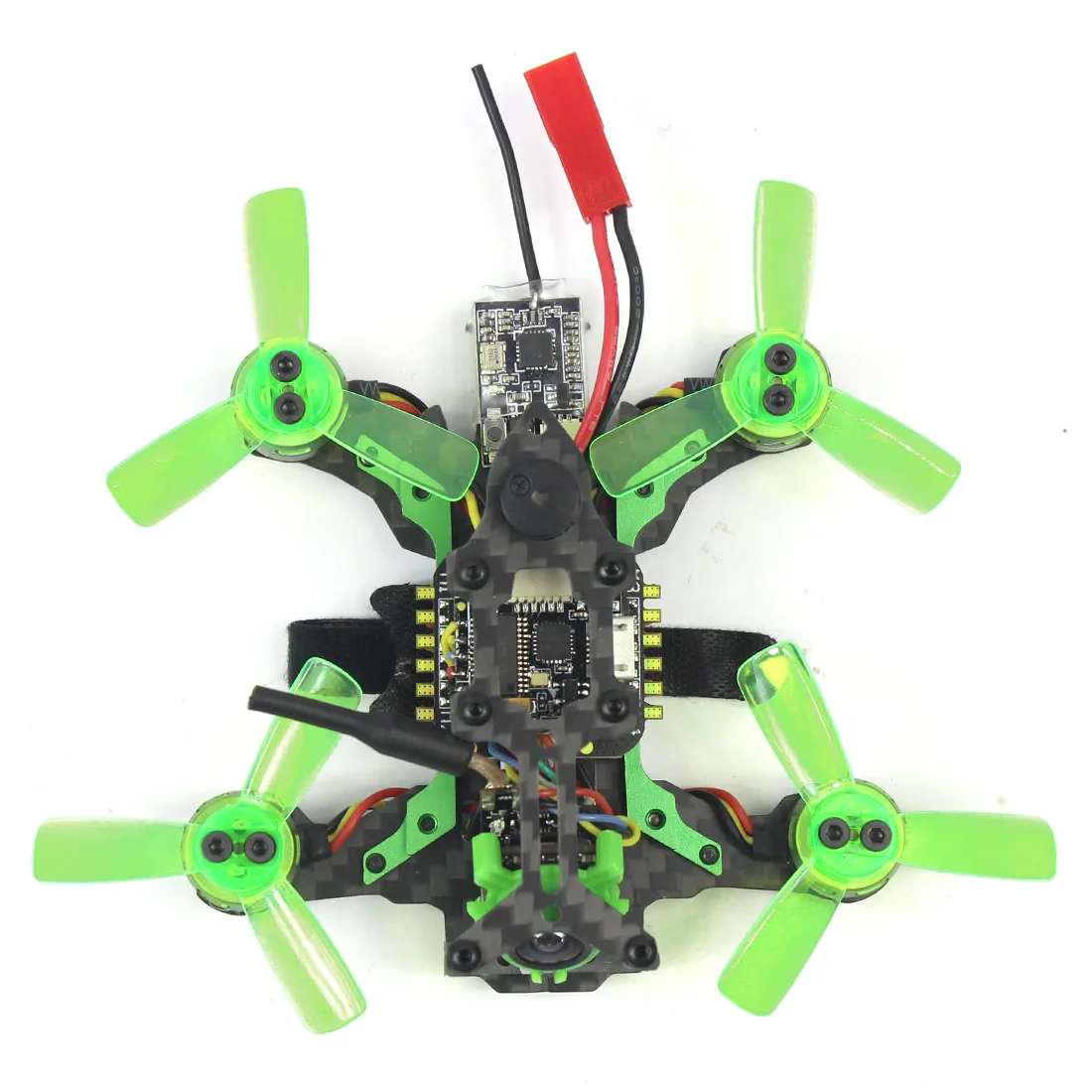

Drone Detail:

Item Name:Mantis 85 Micro FPV RACING DRONES BNF No Remote Controller
Size:100mm*100mm*25mm
Weight: 52g( battery not include)
Flight controller: Super_S F4 Flight controller built-in Betaflight OSD
Motor: Happymodel SE1102 KV9000 brushless motor
Propeller: 1935 3-blades propeller
Camera: 600TVL HD CMOS 1/4inch
VTX: 5.8g 25MW 48CH NTSC/PAL Video transmitter
Battery: 7.4V 400mah 30C lipo battery
OSD: Betaflight OSD
Firmware of Flight controller :Betaflight 3.2.0
Flight time : 4minutes
Buzzer Ready


Features:
- 3K full carbon fiber bottom plate set up with  CNC aluminum alloy Stiffeners
- Extremely light and more powerful
- STM32F405RGT6 MCU+ BLHELI_S ESC make your Operating feel more stabile and silky
- Adjustable Angle of Camera
- Jaw-dropping flight performance
- Betaflight support
- Acro mode / Air mode /Angle mode support
- Built-in OSD(Using F4 MCU controls OSD over SPI bus in DMA mode)
- OSD Configuration has been include in BETAFLIGHT GUI
- Radio Stick to control PID Tunes
- BLEHELI_S pass-through ready
- Telemetry RSSI Output ready

Drone incuded:
1 x Happymodel Mantis 85 Frame kit
1 x Super_s F4 Flight controller build-in Betaflight OSD
1 x Compatible with Frsky/DSM-X/Flysky AFHDS2A Receiver(optional)
4 x Happymodel SE 1102 KV9000 brushless motor
1 x Super_S BS06D 4 in 1 ESC Dshot600
4 x 1935 3-blades propeller CW
4 x 1935 3-blades propeller CCW
1 x 600TVL HD CMOS 1/4 inch  camera
1 x 5.8g 25MW 48CH NTSC/PAL VTX with Raceband
1 x 7.4V 400mah 30C lipo battery
1 x Buzzer


FPV Goggles Detail:



Highlight:
Double Antennas

Built-in 3.7V 1200mAh Battery

Support a key search frequency
RaceBand 40 channel Auto-Searching

Real-time video return 5.8G FPV Receiver



Feature:

● Small size and light weight;
● Low power consumption, Working current 300~330mA;
● Double antenna reception to make the signal more stable;
● RaceBand 40 channel, Auto-Searching;
● 3.0 Inch 480*320 dot high brightness LCD screen;
● Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
● Built-in 3.7V/1200mAh high-capacity Li-ion polymer Battery;
● Universal USB charging interface;
● Real-time video return, Very low time-delay;
● Bilingual menu in support of Chinese and English;
● Support external video signal input;
● Support AV signal output (Connect external DVR);

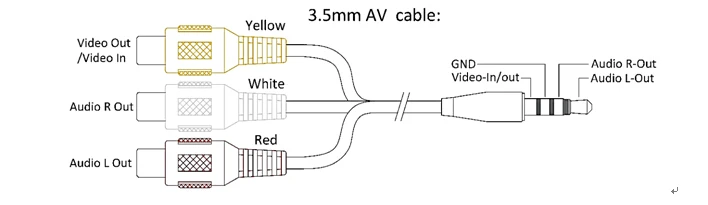

AV port Instructions:

Dimension Diagram:

Not included antennas and headband.
