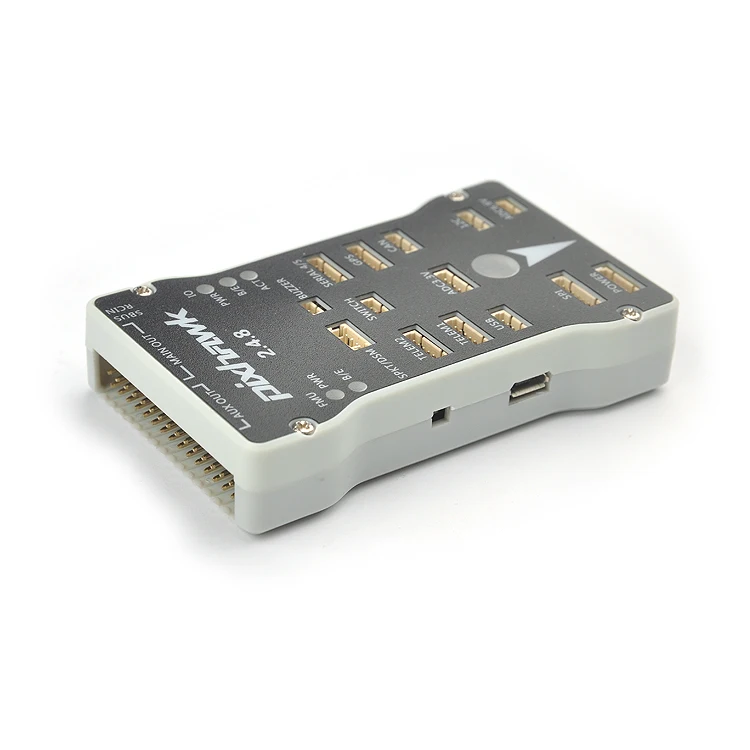

PIXHAWK2.4.8 PX4 High-end Unmanned Aerial Vehicle By Driving Set Of Flight Control M8N GPS digital OSD for FPV Drone Quadcopter

QWinOut

Sale price $144.76 Regular price $199.99

Shipping calculated at checkout.

RM164184573863425

PIXHAWK2.4.8 PX4 High-end Unmanned Aerial Vehicle By Driving Set Of Flight Control M8N GPS digital OSD for FPV Drone Quadcopter

Features:

1. Advanced 32-bit ARM CortexM4 high-performance processor, can run NuttX RTOS real-time operating system;

2.14 PWM / servo output;

3. Bus interface (UART, I2C, SPI, CAN);

4. Integrated backup power and failed backup controller, the main controller fails to switch to the backup control;

5. Provide automatic and manual mode;

6. Provide redundant power input and failover function;

7. Multi-color LED lights;

8. Provide multi-tone buzzer interface;

9.Micro SD records flight data;


Hardware parameters:


processor

1.32 bit 2M flash memory STM32F427 Cortex M4 with hardware floating point processing unit

2. Frequency: 168MHZ, 256K RAM

3.32 bit STM32F103 backup coprocessor


sensor

1.L3GD20 3-axis digital 16-bit gyroscope

2. LSM303D 3-axis 14-bit acceleration / magnetometer

3.MPU6000 6-axis accelerometer / magnetometer

4.MS5611 high-precision barometer


interface

1.5 UART 1 compatible high voltage, 2 with hardware flow control

2.2 CAN

3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

4.Futaba SBUS compatible input and output

5.PPM signal input

6.RSSI (PWM or voltage) input

7.I2C

8.SPI

9.3.3 and 6.6VADC inputs

10. External MICRO USB interface

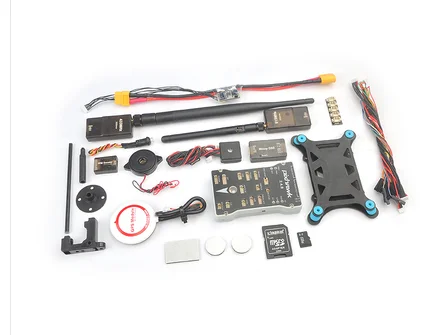

Pixhawk flight control package list: (all the accessories on the map all have)

1) fly control with buzzer, unlock switch, I2C distribution board, PWM / PPM converter board, TF card + card reader

2) with power supply module has been welded (original Amass XT60 connector)

3) 3DR 433MHZ 500mw digital transmission or 3DR 915MHZ 250mw digital transmission

4) UBLOX new generation of flagship GPS M8N with folding GPS antenna seat, support the world's five major satellite navigation system

5) Micro OSD

6) All cables

7) shock absorber artifacts



8) PX4 LED & USB expansion module
