2.4G 6ch RC Quadcopter Drone 500mm S500-PCB APM2.8 M8N GPS RTF Full Kit DIY Unassembly Brushless Motor ESC Battery
Product is DIY Version, Unassembled Kit and NO Manual, Please take it into account before ordering.
Our technicist will help client to weld the some wiring for ESC and we will test all electronic parts before shipment.
If any Technical questions, Please message us but do not open dispute or leave negative feedback.

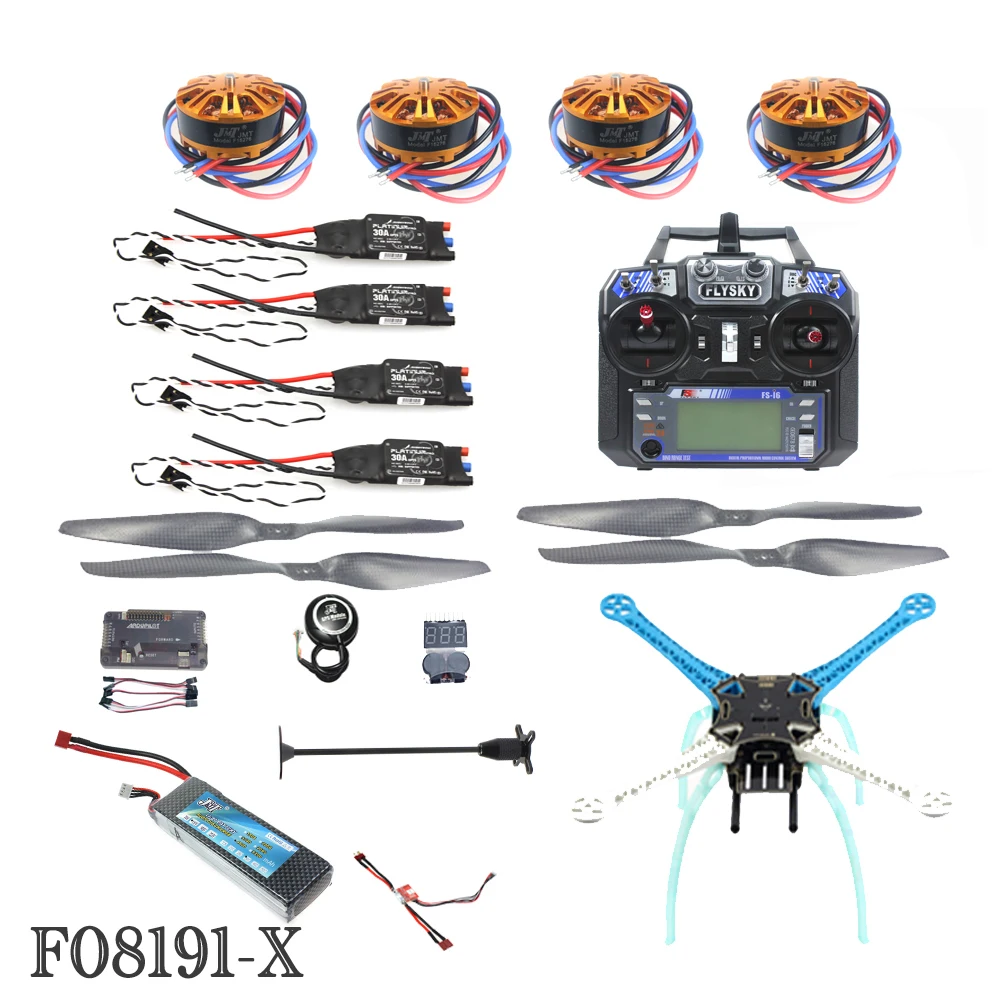

Package listing: 1x 500mm Multi-Rotor Air Frame Kit S500-PCB With Circuit Board 4x HYD 3508 700KV 198W Disc Motor 4x 30A-Pro 2-6S 30A Speed Controller ESC OPTO 1x APM2.8 APM 2.8 No Compass Flight Controller Board Bent Pin with Case
1x Low Voltage Buzzer Alarm Volt Meter Indicator Checker Dual Speaker
1x Tool Set (Bag)
- Wheelbase: 500mm
- F450 upgrade quadcopter
- Learned arm design from DJI S800 EVO
- High strength plastic material, stable and reliable
- Color: Black and Blue
- Frame only with Circuit Board, no electronic parts.
- Suit for Gopro brushless gimbal FPV
Output: Continuous 30A, burst 45A up to 10 seconds.
Input Voltage: 2-6 cells lithium battery or 5-18 cells NiMH battery.
Throttle signal frequency range (Refresh rate): 50Hz-432Hz;
Maximum speed: 2-pole motor 210000 rev / min, 6-pole motors 70000 rev / min, 12 pole motors 35000 rev / min
Parameter programming function: Yes
Parameter Programming mode: use the throttle stick for setting; digital display program card , 3-in-1 professional LCD program box;computer programs
Size: 55mm (L) * 25mm (W) * 12mm (H).
Weight: 31g (With heat sink)
Motor KV: 700KV
No-load Currency (A): 0.4A
Maximum Currency (A): 18.0A
Weight: about 90g
Input Voltage: 2-4S LOPO
Suitable Propeller: 12"-15" Props
Remote Control System:
Model type: fixed-wing/glider/helicopter
RF range: 2.405-2.475GHz
RF power: less than 20dBm
2.4G system: AFHDS 2A and AFHDS
Code type: GFSK
Low voltage warning: less than 4.2V
DSC port: PS2; output: PPM
Charger port: no
ANT length: 26mm * 2(dual antenna)
Power: 6V 1.5AA * 4 (Not included)
Display mode: Transflective STN positive type,
128 * 64 dot matrix VA72 * 39mm, white backlight.
Size:174 * 89 * 190mm
Online update: yes
- Arduino Compatible! - Can be ordered with top entry pins for attaching connectors vertically, or as side entry pins to slide your connectors in to either end horizontally - Includes 3-axis gyro, accelerometer and magnetometer, along with a high-performance barometer - Onboard 4 MegaByte Dataflash chip for automatic datalogging - Optional off-board GPS, uBlox LEA-6H module with Compass. - One of the first open source autopilot systems to use Invensense's 6 DoF Accelerometer/Gyro MPU-6000. - Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties. - Atmel's ATMEGA2560 and ATMEGA32U-2 chips for processing and usb functions respectively.
Caution for the battery: Don't over-charge, or over-discharge batteries. Don't put it beside the high temperature condition. Don't throw it into fire. Don't throw it into water.
