QWinOut Combo Set for 250 210 RC Drone : 4x 1806 2400KV Brushless Motor + Mini BLHeli OPTO 16A ESC + 5045 Propellers CW CCW with PDB

QWinOut

Sale price $53.41 Regular price $55.57

Shipping calculated at checkout.

RM1641845738392187

QWinOut Combo Set for 250 210 RC Drone : 4x 1806 2400KV Brushless Motor + Mini BLHeli OPTO 16A ESC + 5045 Propellers CW CCW with PDB

Package included:

4x 1806 2400KV Brushless Motor CW/CCW

4x Mini BLHeli OPTO 16A ESC

2x Pair of 5045 Flat Head Paddles 5*4.5 Propellers

1x Power Hub PDB XT60 Power Distribution Board PDB-XT60 with BEC 5V/12V



Motor:

Clockwise Motor CW in Silver Motor Cap;
Counterclockwise Motor CCW in Black Motor Cap.
KV: 2400
Stator diameter : Φ18
Motor Weight : 16g without cable
Supply voltage : 2-3s
Maximum current : 6.5A
Maximum power : 70W







ESC:

Item Name: 16A ESC
Voltage: 6-16.8V(2-4s lipo)
Output Current: 16A
BEC: No
Signal Frquency: 20-499Hz
PMW Frequency Output: 18KHz
Firmware: BLHeli V14.2
Size: 24 x 13 x 5 mm(PCB board)
Weight: 3G(without cable)
Weight: 6G(with cable)

Features:
Support connecting with PC for upgrading firmware or adjust parameter
Specialize for mini multirotor QAV-250, high throttle response speed
Energy saving design, compatible with multi motors
The throttle signal use twisted-pair cable, reduce the interference, make the signal more stable during flying
The latest and highest throttle refresh rate,compatible with all flight controller system
Use the latest technology of ultra-low resistance micro MOSFET tube, has conductive properties of high speed and high load



Propellers:

For multi-axis RC Racing Drone
5045 paddle
1cw + 1ccw
3 color Random Shipped.

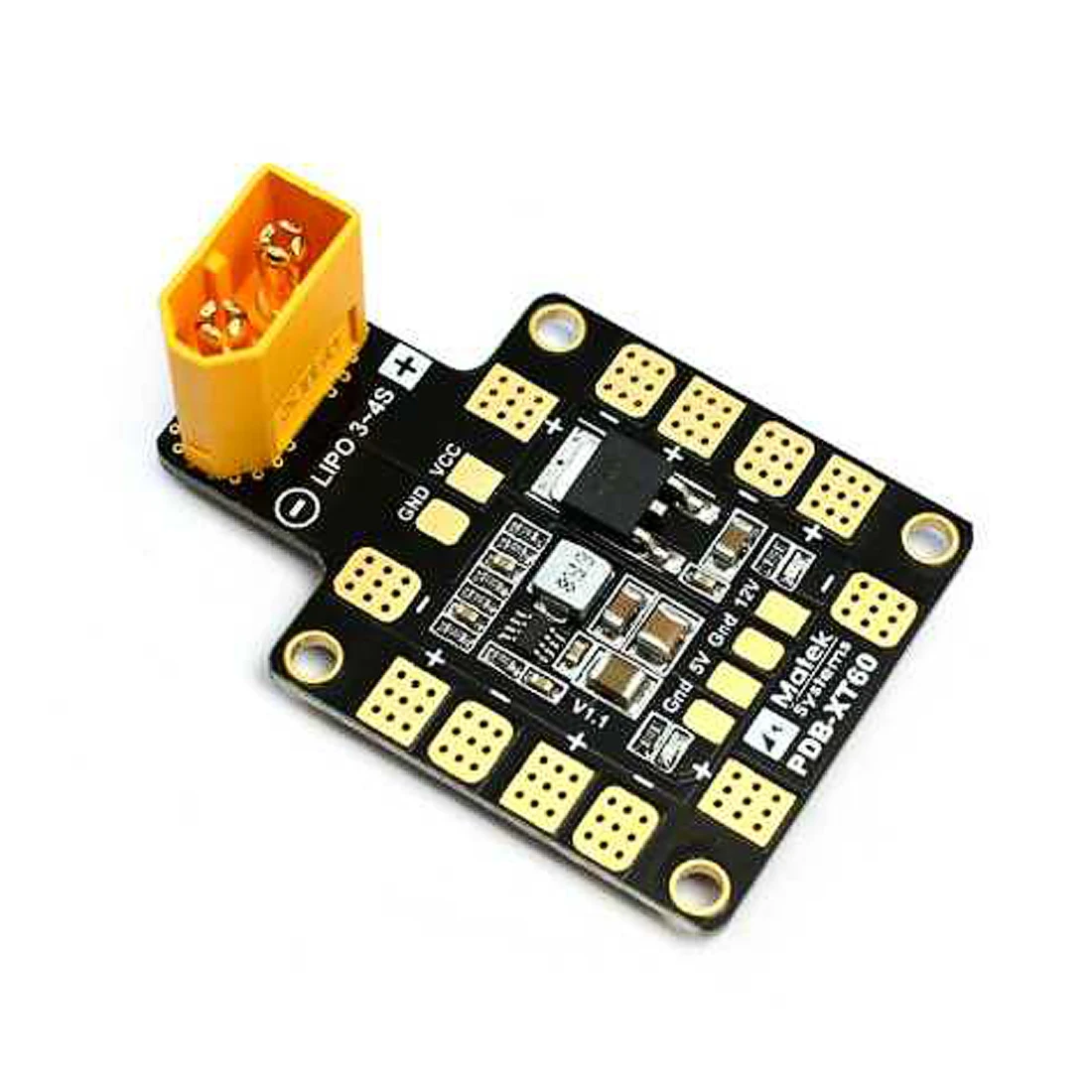

PDB:

Features:
• 2oz copper, 4-layers &1.6mm PCB.
• Built-in XT60 Socket
• Total 6 pairs ESC solder tabs are fit for H or X type frame
• 5V & 12V Output LED indicators & Short circuit tolerant

Description:
General:
- Input voltage range (3S-4S LiPo operation): 9 - 18V DC
- Regulated 5V and 12V outputs
- LED power indicators ( 5V & 12V outputs )
- 6 ESC outputs & 1 pair VCC/GND pads

ESC outputs:
- Continuous current: 25A*4 or 15A*6
- Peak current (10 seconds/minute): 30A*4 or 20A*6

BEC 5V output:
- Designed for RC Receivers, Flight controllers, OSD, and Servos.
- DC/DC synchronous buck regulator.
- Voltage: 5.0 +/- 0.1VDC
- Continuous current: 2 Amps (Max.2.5A 10s/minute)
- Output Ripple: 40mV (VIn=16V, VOut=5V2A load)
- Short-circuit tolerant (5 seconds/minute)

BEC 12V output:
- Designed for Video TX or FPV camera with linear regulator.
- The battery should be 4S LiPo (13~18V DC)
- Voltage: 12.0 +/- 0.3VDC
- Continuous current: 500mA (Max.0.8A 5s/minute)
- Short-circuit tolerant (2 seconds/minute)

BEC 12V 3S LiPo
- Output voltage= 3S LiPo voltage -1V

Physical:
- Dimensions: 36 x 50 x 4 mm (without XT60)
- Mounting: 30.5 x 30.5mm, 3mm
- Weight: 7.5g(w/o XT60), 11g(w/ XT60)
