QWinOut DIY Drone Foldable GPS RC Racer Tarot X8 TL8X000 8-Axle Frame 350KV 40A PX4 32 Bits Flight Controller Radiolink AT9S TX&RX
Outstanding points for the frame:
8 Rotors Provide Sufficient Power, Even If One axle Unexpectedly Stop Working, But Also to Ensure That The Aircraft is In a Stable Condition. Whole Has Lightweight, Portable and Convenient. Maximum Take-off Weight of About 10kg, Easily Carrying 5d Level Aerial Equipment, with 15 Minutes of Battery Life, as Well as 12 Minutes of Effective Working Time.
1. Black and Red Color Main Frame Design Has Strong Visual Effect. The Battery Hang Under The Frame Design Make The Gravity Center Lower, and It Provide More Installation Space.
2. The Tarot x8 Comes with High Strength PCB Board; The Power Plug Adopts The as150 Anti-Spark Connector. The User Could Get More Flight Time From The Light Frame.
3. The Electronic Retractable Landing Skid Has Reverse Power Protection and Failsafe Function. The Retractable Landing Skid Could Provide Broader Views for Aerial Photography.
4. The Tarot x8 Comes with Metal GPS Mount. It is Plug Type, Easy to Folding.
5. There is Air Deflector Groove On top; It Could Bring Good Heat Dissipation Effect.
Specification for the AT9S transmitter:
Programmable mix control ,The most full types and functions
Humanized switch positioning, Navigation Menu,PROGRAMMABLE MIX CONTROL,
Green and low consumption:90mA operating current, MULTIPLE ALARM PROMPT
AT9S First transmitter with DSSS and FHSS Spread Specturm
Support SBUS,PPM,and PWM,3ms quick response
Multilanguage, Data telemetry, Low RSSI alarm setting
Control distance: 900 Meters ground 1500 Meters air

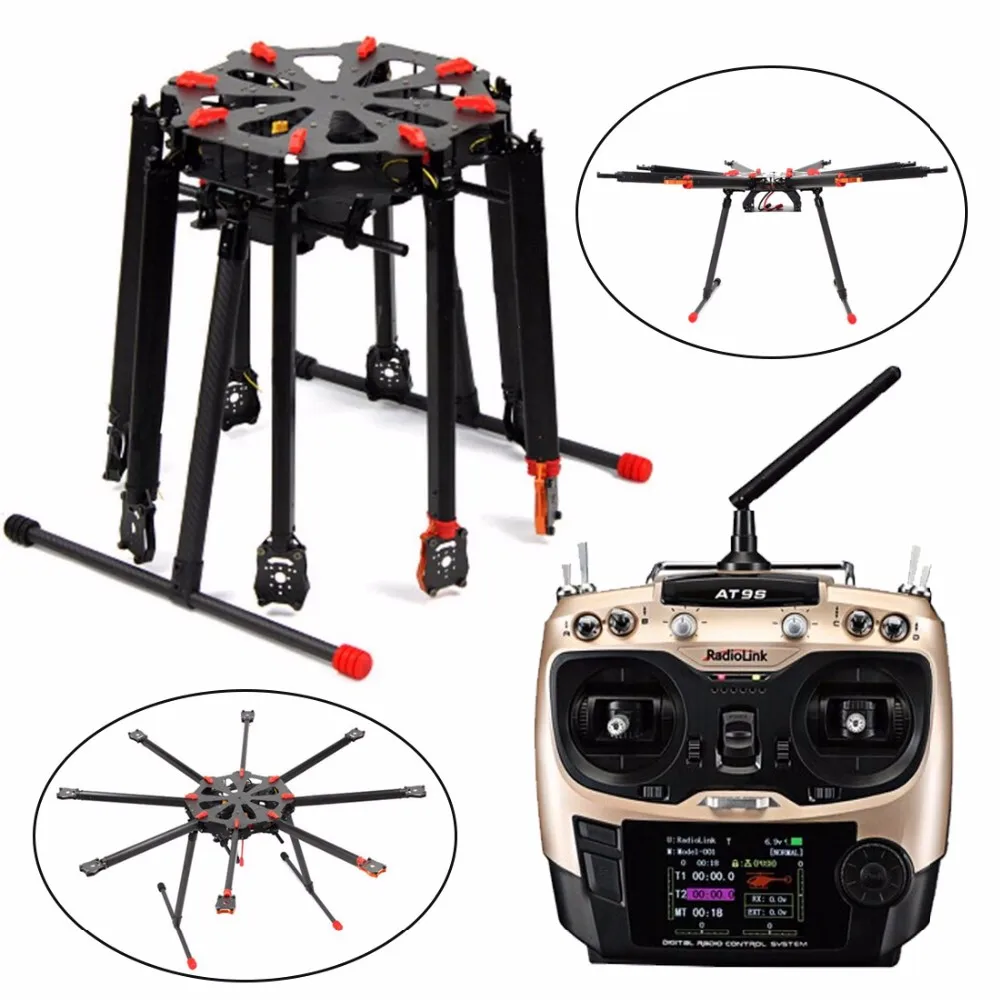

1* Tarot X8 TL8X000 8 axle Octocopter Umbrella Type Folding Frame with Electronic Retractable Landing Skid

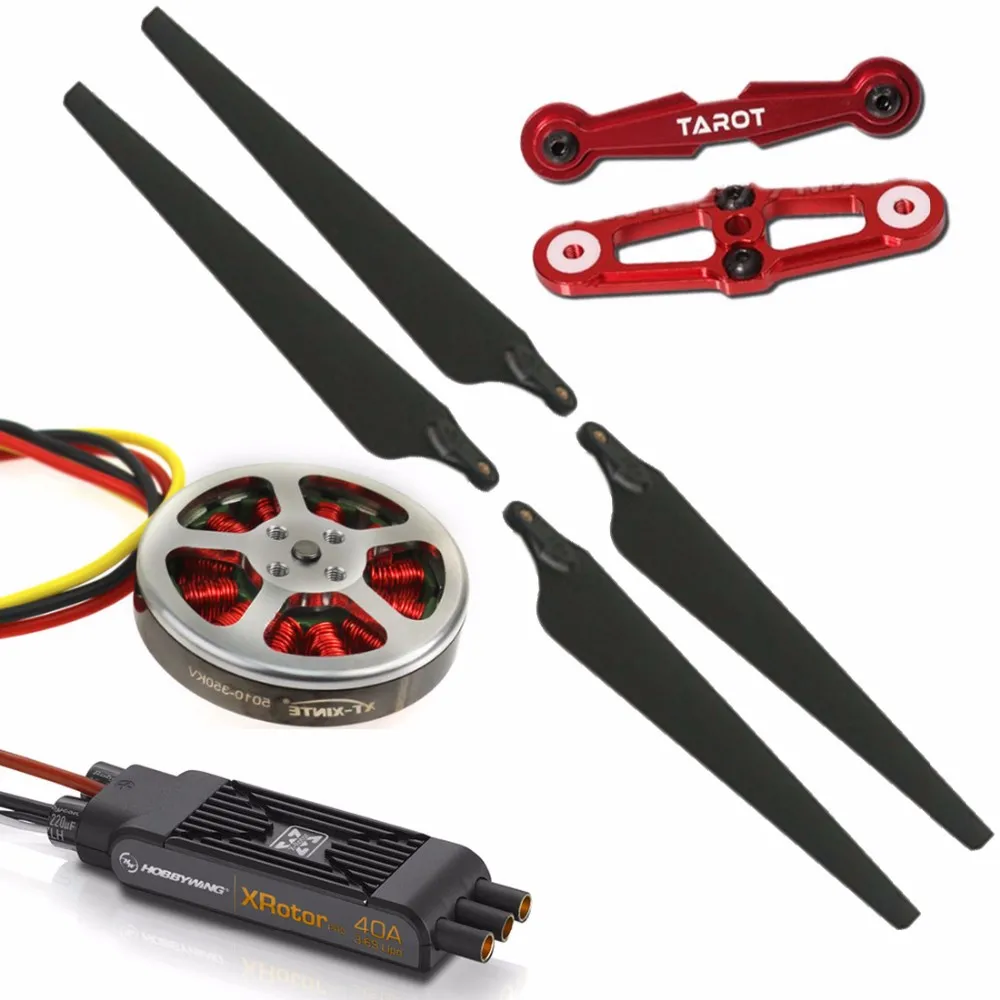

8* XT-XINTE 350KV Brushless Disk Motor
8* Tarot TL100B15 Aluminum Alloy Folding Propeller Holder Clamp
4* Tarot TL100D03 Folding Forward CW CCW Props
4* 2pcs Hobbywing XRotor Pro 40A ESC No BEC

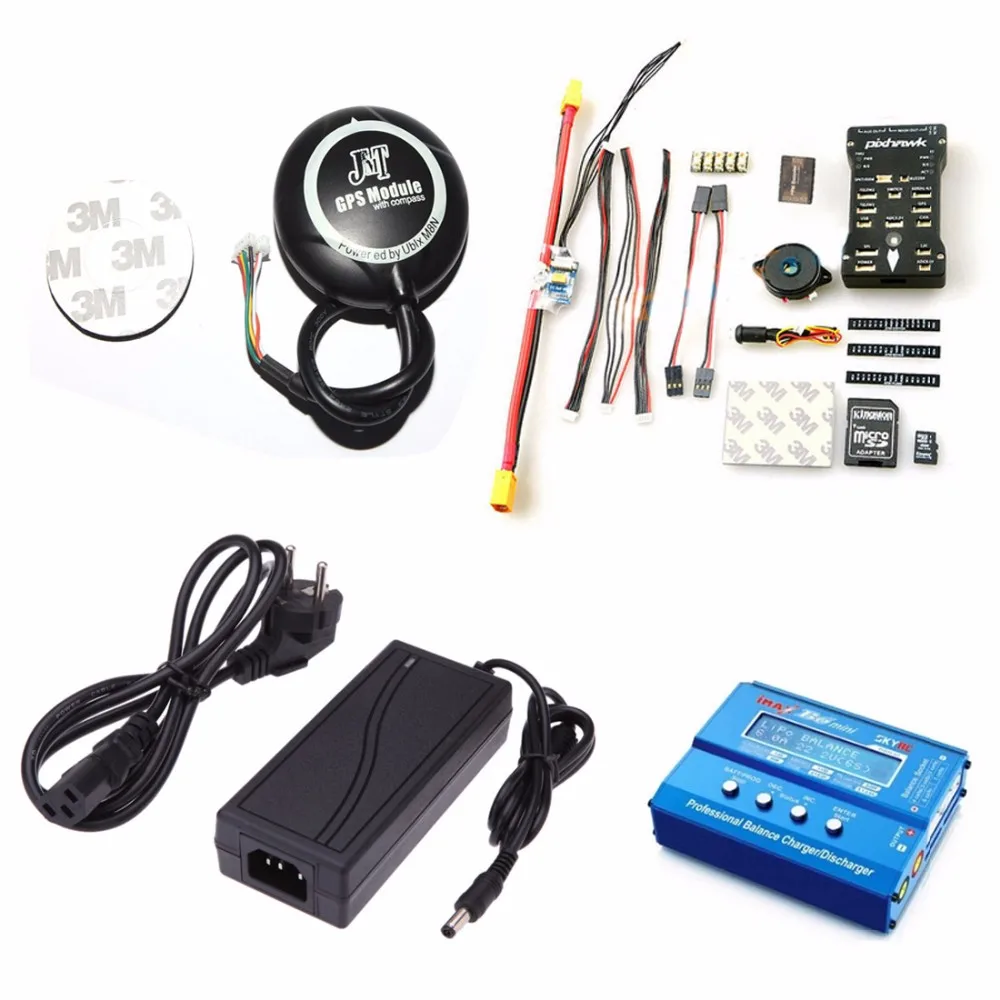

1* PX4 32 bits 2.45 version flight controller board
1* Mini M8N GPS Module NEO-M8N GPS
1* Radiolink AT9S 2.4G 10CH DSSS FHSS Transmitter R9DS 9CH Receiver
1* SKYRC Imax B6 60W Mini Professional Balance Charger
1* 12V5A AC 100-240V Converter Adapter
This kit do not including the battery because the strict customs,we suggest you use 14.8-22.2V,4-6S,8000-12000Mah battery.
