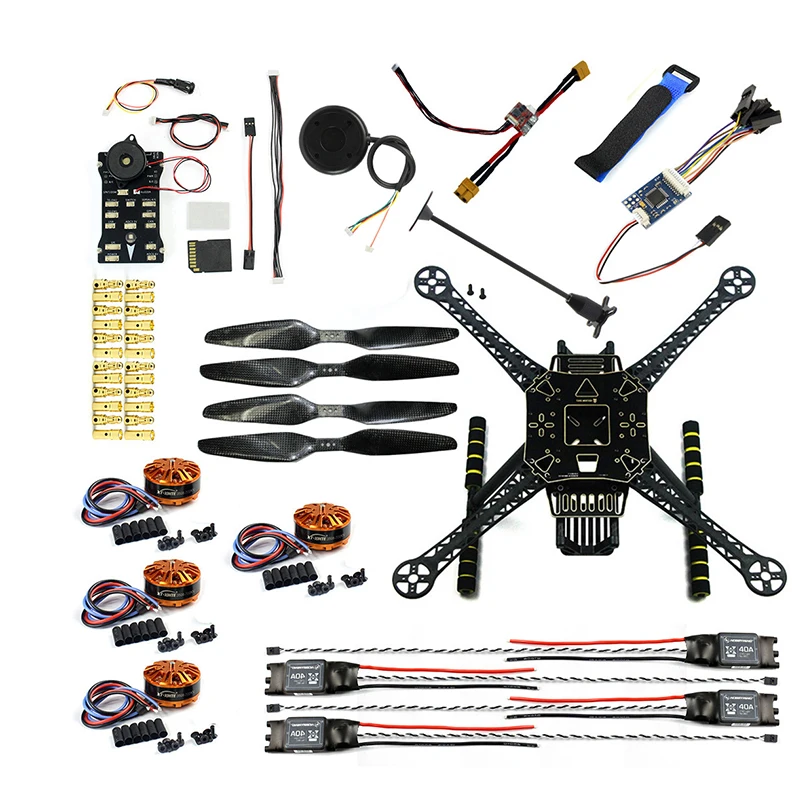

QWinOut DIY FPV S600 4-axis Aerial Drone Quadcopter Welded Kit Unassembled w/ Pix2.4.8 Flight Control GPS 7M 40A ESC 700kv Motor

QWinOut

Regular price $337.60

Shipping calculated at checkout.
QWinOut DIY FPV S600 4-axis Aerial Drone Quadcopter Welded Kit Unassembled w/ Pix2.4.8 Flight Control GPS 7M 40A ESC 700kv Motor


F19457-K

Use Pixhawk PX4 PIX 2.4.8 32 Bit Flight Controller Integrate PX4FMU PX4IO Safety Switch Buzzer 4G SD and 7M GPS

- The board integrates with PX4FMU+PX4IO
- Pixhawk is with new 32 bit chip and sensor technology
Features:
- Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;
- 14* PWM/ actuator output;
- Bus interface (UART, I2C, SPI, CAN);
- Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
- Provide automatic and manual mode;
- Provide redundant power input and fault transfer function;
- Color LED lamp;
- Multi tone buzzer interface;
- Micro SD to record flight data;
Processor:
- 32 bit 2M flash memory STM32F427  Cortex M4, with hardware floating point processing unit
- Main frequency: 256K, 168MHZ RAM
- 32 bit STM32F103 backup co processor
Sensor:
- L3GD20 3 axis digital 16 bit gyroscope
- LSM303D 3 axis  14 bit accelerometer /magnetometer
- MPU6000 6 axis accelerometer / magnetometer
- MS5611 high precision barometer
Interface:
- 5* UART, 1*compatible high voltage, 2*hardware flow control
- 2* CAN
- DSM/DSM2/DSM-X satellite receiver compatible input
- Futaba SBUS compatible input and output
- PPM signal input
- RSSI (PWM or voltage) input
- I2C
- SPI
- 3.3 and 6.6VADC input
- External USB MICRO interface
IMG_9362
All motors and ESC has been Welded before shipping,what you need to do is assemble it and fly
IMG_4408

111

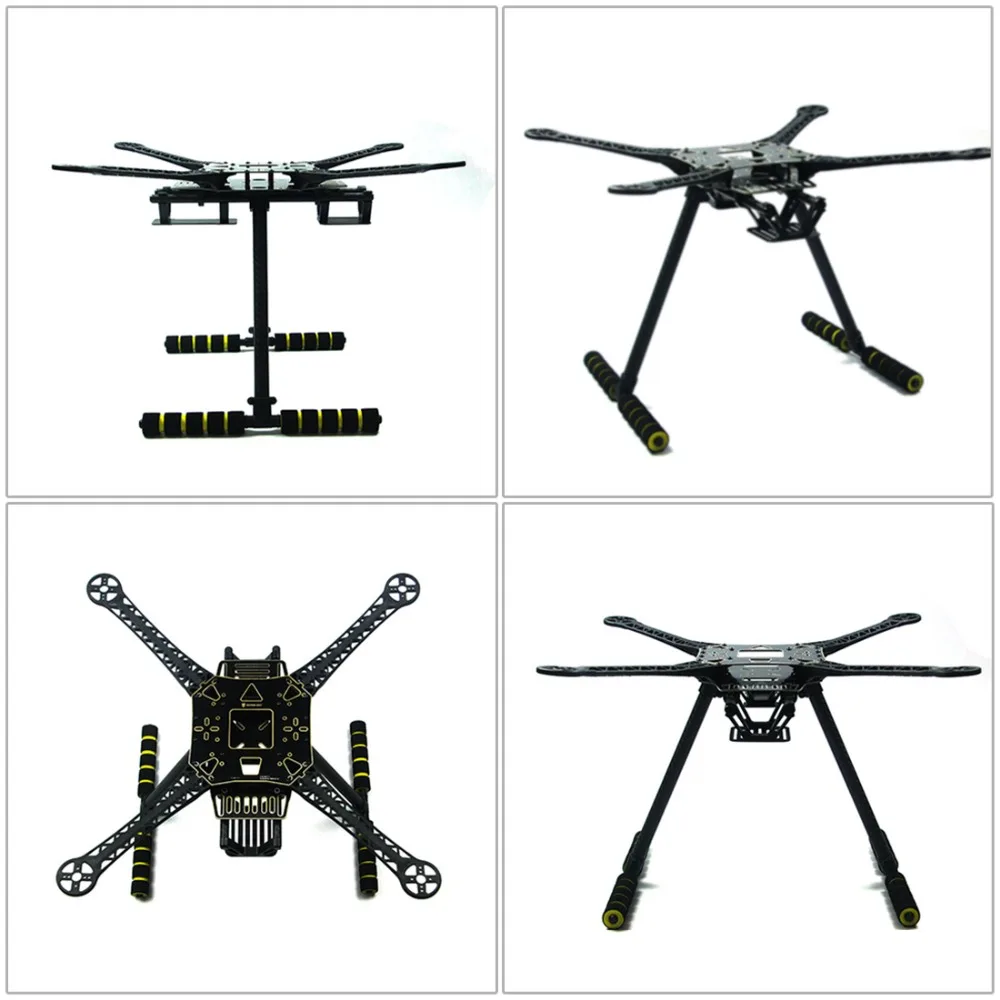

S600 Super Hard Arm 4-Axis Rack Quadcopter Frame Kit with Landing

Gear Skid makes your DIY Drone looks cool and strong

Wheelbase:  600mm

Tripod height: 250mm

Maximum available paddle:15 inch

Weight: 860g

Upper and lower center plate middle height: 36mm

F19457

111F07502(2)F19457
