DIY Unassembly 2.4G 10ch RC Quadcopter Drone 500mm S500-PCB APM2.8 M8N GPS 2-Axle Gimbal RTF Full Kit Motor ESC

Product is DIY Version, Unassembled Kit and NO Manual, Please take it into account before ordering.

Our technicist will help client to weld the some wiring for ESC and we will test all electronic parts before shipment.

If any Technical questions, Please message us but do not open dispute or leave negative feedback.

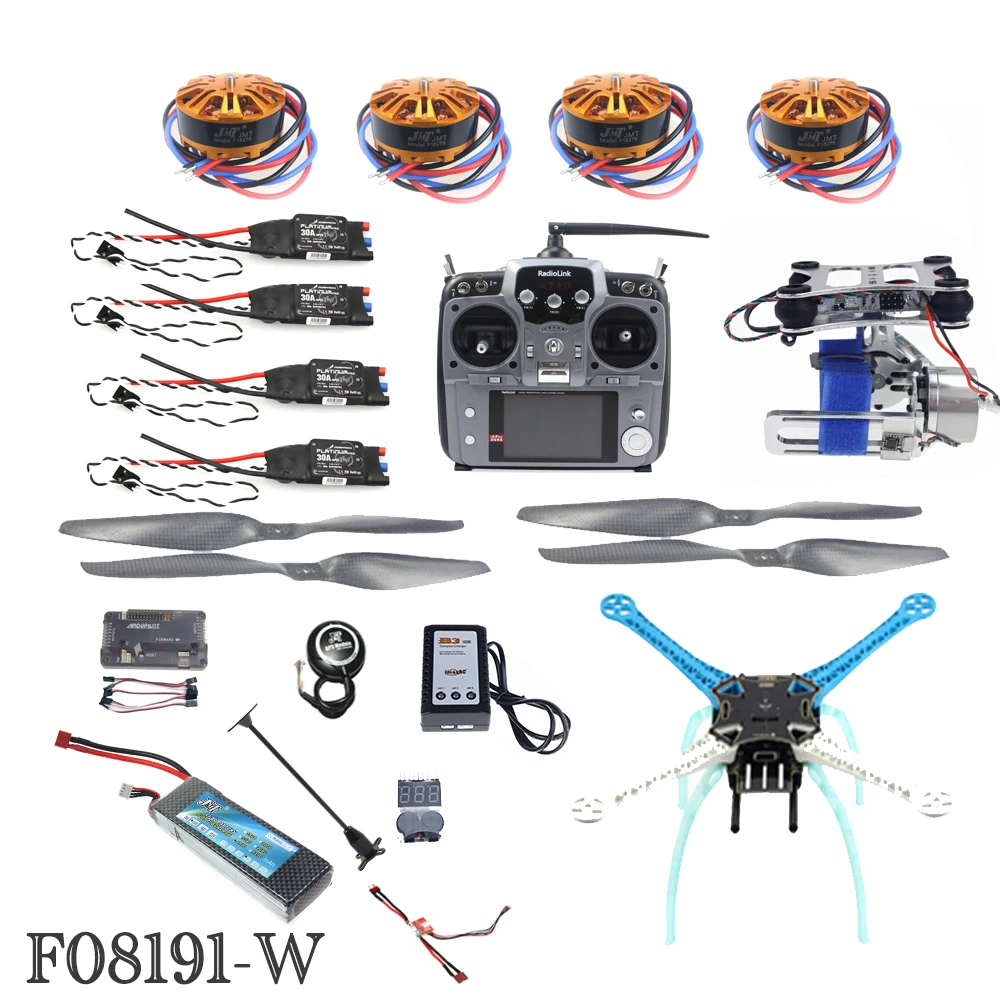

Package listing:
1x 500mm Multi-Rotor Air Frame Kit S500-PCB With Circuit Board
4x HYD 3508 700KV 198W Disc Motor
4x 30A 2-6S 30A Speed Controller ESC OPTO
1x APM2.8 APM 2.8 No Compass Flight Controller Board Bent Pin with Case

2x 12x5.5 3K Carbon Fiber Propeller CW CCW 1255 (Pair)
1x Mini M8N GPS Module NEO-M8N GPS

 1x CNC GPS Anti-interference Antenna Mount Holder Stent Case

1x APM 2.6 2.5 2.52 Power Module Current Module T plug with 5.3V DC BEC

1x RadioLink AT10 2.4Ghz 10CH RC Transmitter with R10D Receiver PRM-01 Voltage Return Module

1x IMAX RC B3 Pro Compact Balance Charger

1x 3S Lipo Battery 11.1V 4400mAh 30C T Plug

1x 2-Axle Gimbal Camera Mount PTZ Steady with Brushless Motor Controller

1x Low Voltage Buzzer Alarm Volt Meter Indicator Checker Dual Speaker

1x Tool Set (Bag)


Frame:

- Wheelbase: 500mm
- F450 upgrade quadcopter
- Learned arm design from DJI S800 EVO
- High strength plastic material, stable and reliable
- Color: Black and Blue
- Frame only with Circuit Board, no electronic parts.
- Suit for Gopro brushless gimbal FPV


ESC:

Output: Continuous 30A, burst 45A up to 10 seconds.
Input Voltage: 2-6 cells lithium battery or 5-18 cells NiMH battery.
BEC: NO
Throttle signal frequency range (Refresh rate): 50Hz-432Hz;
Maximum speed: 2-pole motor 210000 rev / min, 6-pole motors 70000 rev / min, 12 pole motors 35000 rev / min
Parameter programming function: Yes
Parameter Programming mode: use the throttle stick for setting; digital display program card , 3-in-1 professional LCD program box;computer programs
Size: 55mm (L) * 25mm (W) * 12mm (H).
Weight: 31g (With heat sink)


Motor:

Motor KV: 700KV
Shaft: 4.0mm
No-load Currency (A): 0.4A
Maximum Currency (A): 18.0A
Power: 198W
Weight: about 90g
Input Voltage: 2-4S LOPO
Suitable Propeller: 12"-15" Props

Remote Control System:
1.Frequency: 2.4GHz ISM band (2400MHz~2485MHz);
2.Modulation mode: QSPK;
3.Channel bandwidth: 5.0MHz;
4.Spread spectrum: DSSS;
5.Adjacent channel rejection: >38dBM;
6.Transmitter power: <100mW(PCB testing);<20dBm(3 meter air testing);
7.Operating Voltage: 8.6~15V;
8.Operating Current: <95mA;
9.Control distance: 800 meters ground;
10.Channel: 10 Channel,8~10 channel are customizable;
11.Compatible model: Include all 120 degree and 90 degree swashplate helicopter,all fix wing and glider,five flying model;
12.Simulator model: under the simulator


Gimbal:

- Simple structure and light weight,CNC aluminum alloy structure
- Brushless motor direct drive
- With anti-vibration rubber balls,easy to adjust
- Compatible with Gopro3+, 3,2,1
- with 2pcs 2208 motors and V3 gimbal controller,sensor
- with motor protector which can help heat dissipation
- gimbal weight: 400g


Flight Controller:

- Arduino Compatible!
- Can be ordered with top entry pins for attaching connectors vertically, or as side entry pins to slide your connectors in to either end horizontally
- Includes 3-axis gyro, accelerometer and magnetometer, along with a high-performance barometer
- Onboard 4 MegaByte Dataflash chip for automatic datalogging
- Optional off-board GPS, uBlox LEA-6H module with Compass.
- One of the first open source autopilot systems to use Invensense's 6 DoF Accelerometer/Gyro MPU-6000.
- Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
- Atmel's ATMEGA2560 and ATMEGA32U-2 chips for processing and usb functions respectively.


Caution for the battery:
Don't over-charge, or over-discharge batteries.
Don't put it beside the high temperature condition.
Don't throw it into fire.
Don't throw it into water.
