QWinOut DIY ZD850 Frame Kit with Landing Gear 620KV Motor 40A Brushless ESC Propellers XT60 Plug +Hub for RC 6-axle Hexacopter


Regular price $589.55

Shipping calculated at checkout.
DIY ZD850 Frame Kit with Landing Gear 620KV Motor 40A Brushless ESC Propellers XT60 Plug +Hub for RC 6-axle Hexacopter

Package Listing :

ZD850 Full Carbon Fiber Frame Kit with Unflodable Landing Gear Foldable Arm *1

Tarot 4006 620KV Multiaxial Brushless Motor TL68P02 *6

40A Brushless ESC Speed Controller *6

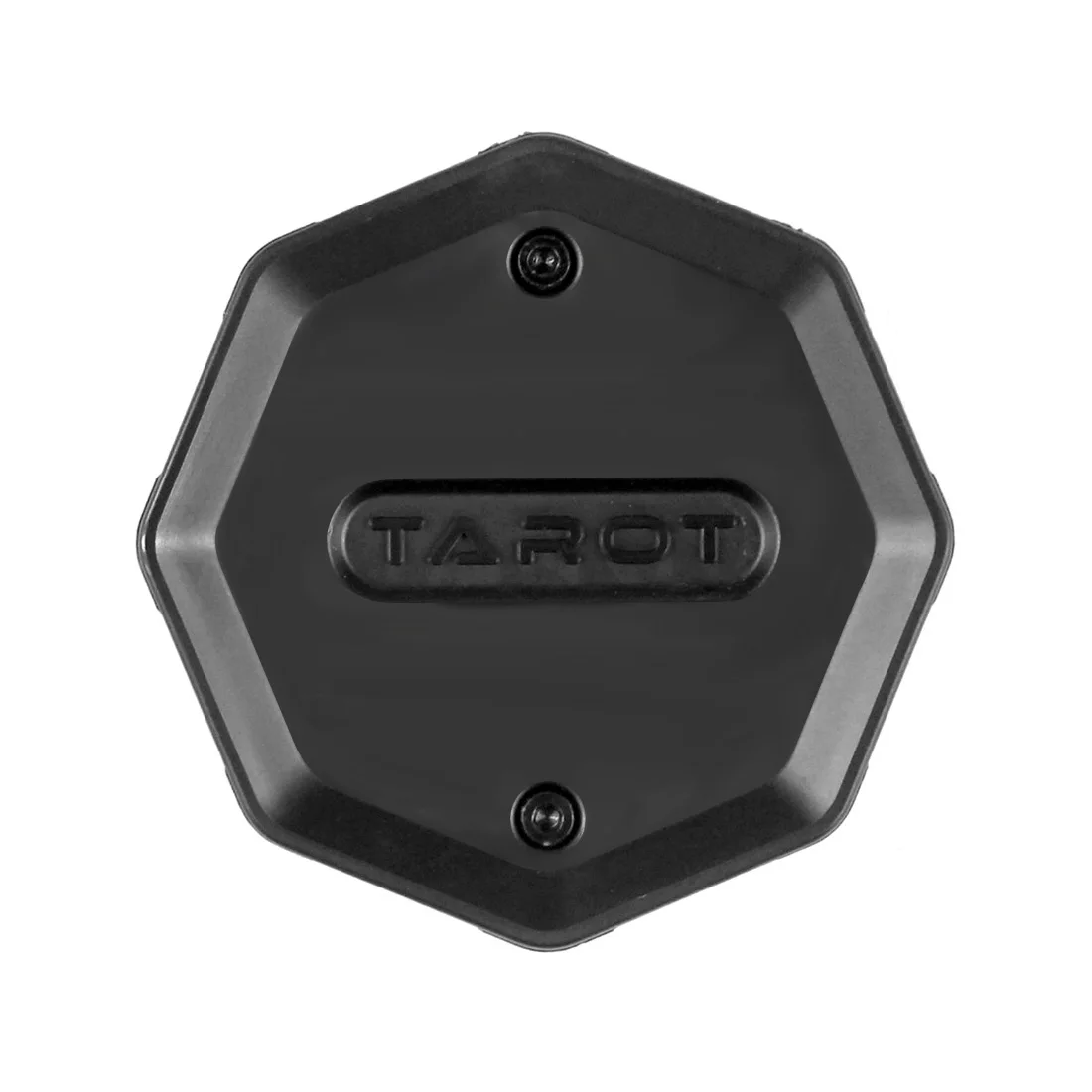

Tarot TL2909 6-axle Hub *1

Carbon Fiber 15x5.5 CW CCW Propellers *3 Pairs

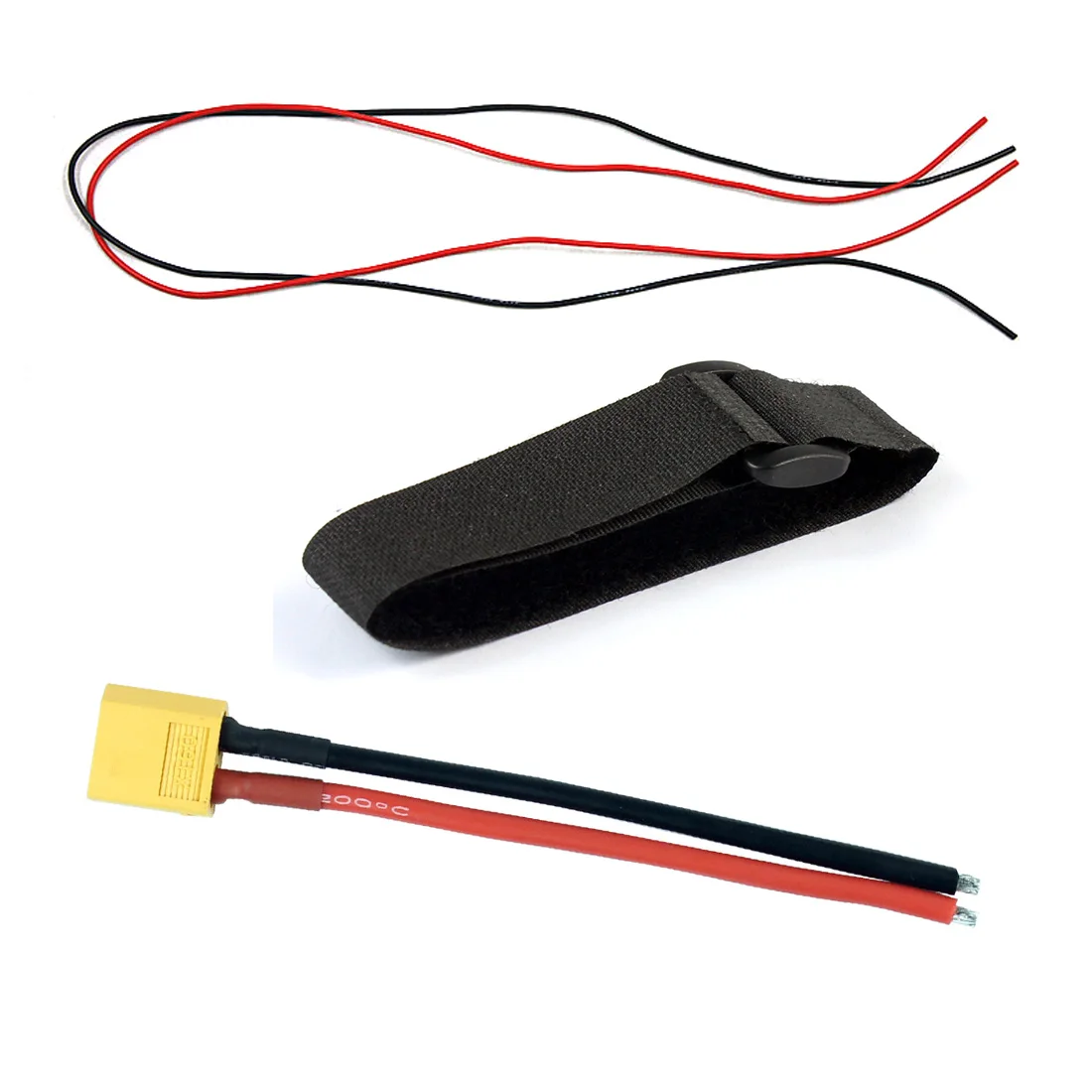

1m Black and Red 16AWG Silicon Wire Connecting Wire *3

XT60 Male with 14AWG Wire *1

4X Hook & Loop Fastening Tape *1


Frame Kit Description:

Note: This frame kit is not include any assembly tools.

Need you to buy 2.5mm, 2.0mm hex wrench or screwdriver, and also a 5.5mm sleeve.
Recommend the buyers purchase a complete set of screwdriver tool.

Arm with upturned 5 ° force to play to the extreme, larger diameter 20mm carbon tube.

Aluminum Folding, Nylon Clamp (Tightened Clamp) 8 hole motor mount, compatible with more motors.

Motor Block Diagonal wheelbase of about 850mm, maximum support 16-inch paddle.

Center plate size 245mm * 180mm more space, the middle plate height of about 35mm.

Hook head with 10 * 330mm long carbon tube, can be free to stretch the length you want, with the porous bit PTZ board.

Tripod with a diameter of 16mm carbon tube, height 350mm, tripod crossbar 500mm, more stable grounding area.

Tripod with double-tube carbon fiber as support, bear the force of more than 50kg.

Motor parameters :

Peripheral motor diameter : 46MM
Stator diameter : 40.6M
Stator Thickness : 6MM
Stator : 24 slots
Motor Poles : 22P
Diameter : 0.23MM
Gear shaft mounting diameter : 4MM
Motor height : 22.0MM
Motor shaft Full length : 30.50MM
Per volt Speed: 620 RPM / Volt
Motor Weight : 82G
Motor resistance : 126 mΩ
14.8V No Load Current : 0.8A
14.8 Load Current : 14A
4006 brushless motor installation specifications : 27.7MM equilateral triangle
Propeller installation specifications : the main hole diameter 4mm, 3mm diameter side hole center distance 12mm

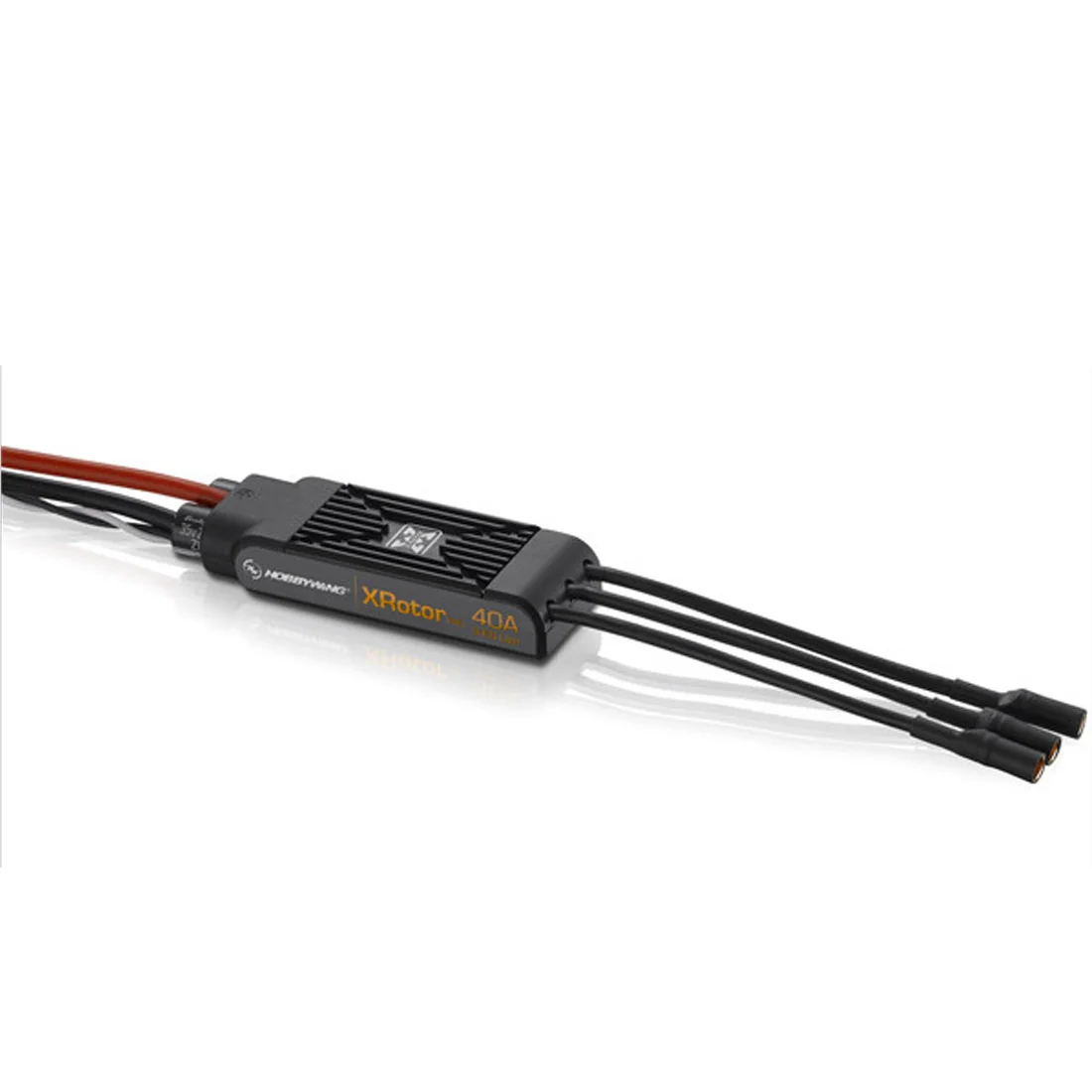

ESC  Description :
1. Output: Continuous 40A, Burst 60A up to 10 Secs.
2. Input Voltage:Pentium-40A:2-6 cells lithium battery or 5-18 cells NiCd/NIMh battery.
3. BEC:Pentium-40A: 3A / 5V (Switch mode).
4. Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.(BLM: BrushLess Motor)
5. Size: 55mm (L) * 28mm (W) * 12mm (H).
6. Weight: Pentium-40A: 35g.
Note: The old version Pentium-40Auses built-in linear mode BEC, but the new version uses switch mode BEC to enhance the output ability.
1. Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2. Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
3. Programmable Items:Brake Setting: brake enabled / brake disabled.
Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).
Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
Start Mode: normal / soft / very soft.
Timing: low / medium / high.
Reset: resetall the programmable items totheir default settings.
4. Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.
1. Military standard capacitorof extreme low resistance increases the ability of prevention of unwanted RF noise during flying.
2. Extreme low resistancePCB is usedatthe power output section, the whole ESC hassuper current endurance capability.
3. Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.
4. Compatible with Hobbywing's.
