QWinOut Full Set DIY FPV Drone S600 4 axle Aerial Quadcopter w/ Pix2.4.8 Flight Control GPS 7M 40A ESC 700kv Motor AT9S TX RX Battery

QWinOut

Regular price $449.08

Shipping calculated at checkout.
QWinOut Full Set DIY FPV Drone S600 4 axle Aerial Quadcopter w/ Pix2.4.8 Flight Control GPS 7M 40A ESC 700kv Motor AT9S TX RX Battery


Make a DIY drone by yourself becomes easy and interesting

Join us to start building a Quadcopter.

Full Set,including all the parts need for a drone.



Use Pixhawk PX4 PIX 2.4.8 32 Bit Flight Controller Integrate PX4FMU PX4IO Safety Switch Buzzer 4G SD and 7M GPS

- The board integrates with PX4FMU+PX4IO
- Pixhawk is with new 32 bit chip and sensor technology
Features:
- Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;
- 14* PWM/ actuator output;
- Bus interface (UART, I2C, SPI, CAN);
- Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
- Provide automatic and manual mode;
- Provide redundant power input and fault transfer function;
- Color LED lamp;
- Multi tone buzzer interface;
- Micro SD to record flight data;
Processor:
- 32 bit 2M flash memory STM32F427  Cortex M4, with hardware floating point processing unit
- Main frequency: 256K, 168MHZ RAM
- 32 bit STM32F103 backup co processor
Sensor:
- L3GD20 3 axis digital 16 bit gyroscope
- LSM303D 3 axis  14 bit accelerometer /magnetometer
- MPU6000 6 axis accelerometer / magnetometer
- MS5611 high precision barometer
Interface:
- 5* UART, 1*compatible high voltage, 2*hardware flow control
- 2* CAN
- DSM/DSM2/DSM-X satellite receiver compatible input
- Futaba SBUS compatible input and output
- PPM signal input
- RSSI (PWM or voltage) input
- I2C
- SPI
- 3.3 and 6.6VADC input
- External USB MICRO interface
All motors and ESC has been Welded before shipping,what you need to do is assemble it and fly
IMG_4408

111

S600 Super Hard Arm 4-Axis Rack Quadcopter Frame Kit with Landing

Gear Skid makes your DIY Drone looks cool and strong

Wheelbase:  600mm

Tripod height: 250mm

Maximum available paddle:15 inch

Weight: 860g

Upper and lower center plate middle height: 36mm

F19457

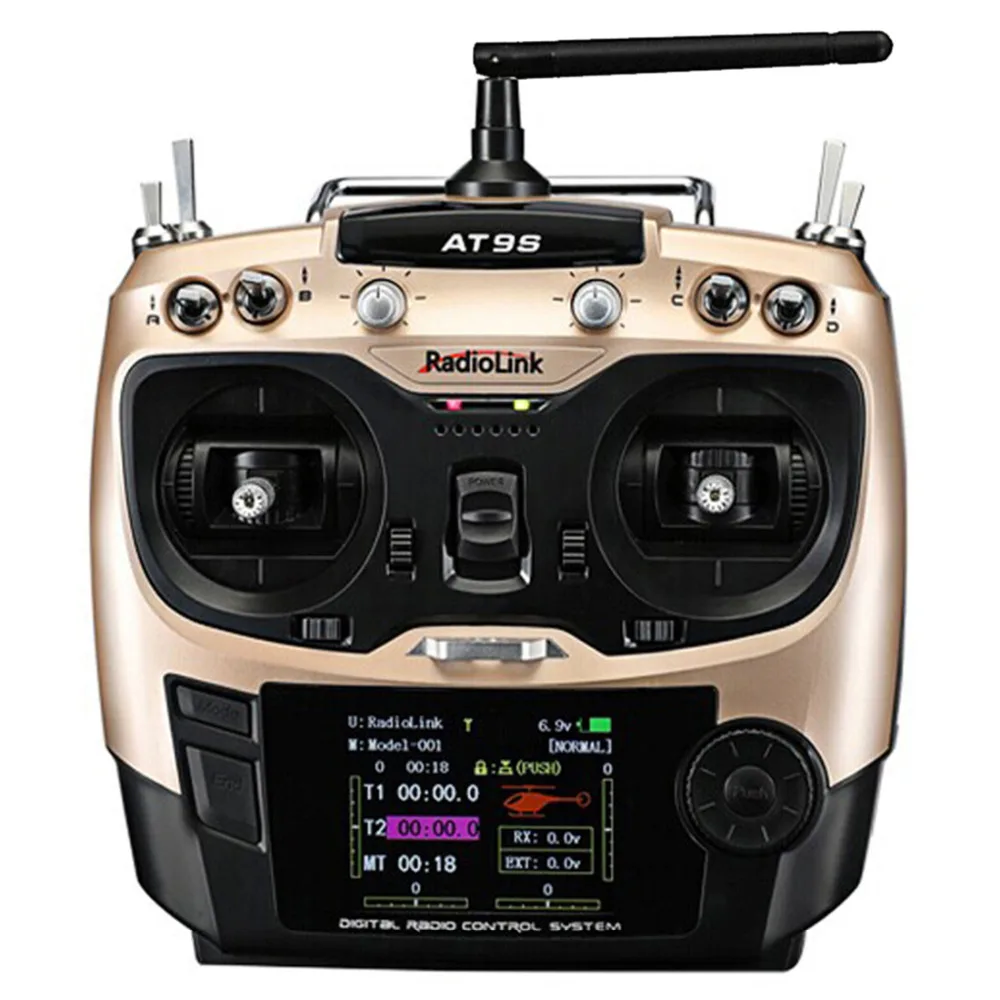

Radiolink AT9S 2.4G 10CH DSSS FHSS Transmitter R9DS 9CH Receiver Radio Controller S-BUS PWM

AT9S Specification
1. Size: AT9S- 183*100*193mm, R9DS- 41*23*14mm
2. Weight: 0.88kg
3. Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz)
4. Modulation mode: QPSK
5. Channel bandwidth: 5.0 MHz & 250Kbps
6. Spread spectrum: DSSS ;FHSS
7. Adjacent channel rejection: >38dbm
8. Transmitter power: <100mW (20dbm )
9. Operating current: <90mA 12V
10. Operating voltage: 7.4 ~ 18.0V
11. Control distance: more than 900 meters ground, 1500 meters air, the actual control distance depends on the flying environment
12. Channel: 10 channels, 5-10 channels are customized
13. Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor
14. Simulator mode: under the simulator mode the transmitter action turn off, change to power saving mode
15. Screen: 2.8 inches 16 colorful screen, 240*320 pixels
16. Support receivers: sells with R9DS (SBUS;PWM) ;Also support R10DS(SBUS PWM) and R6DS(SBUS;PPM;PWM)



R9DS 2.4G 9CH DSSS Receiver

1111

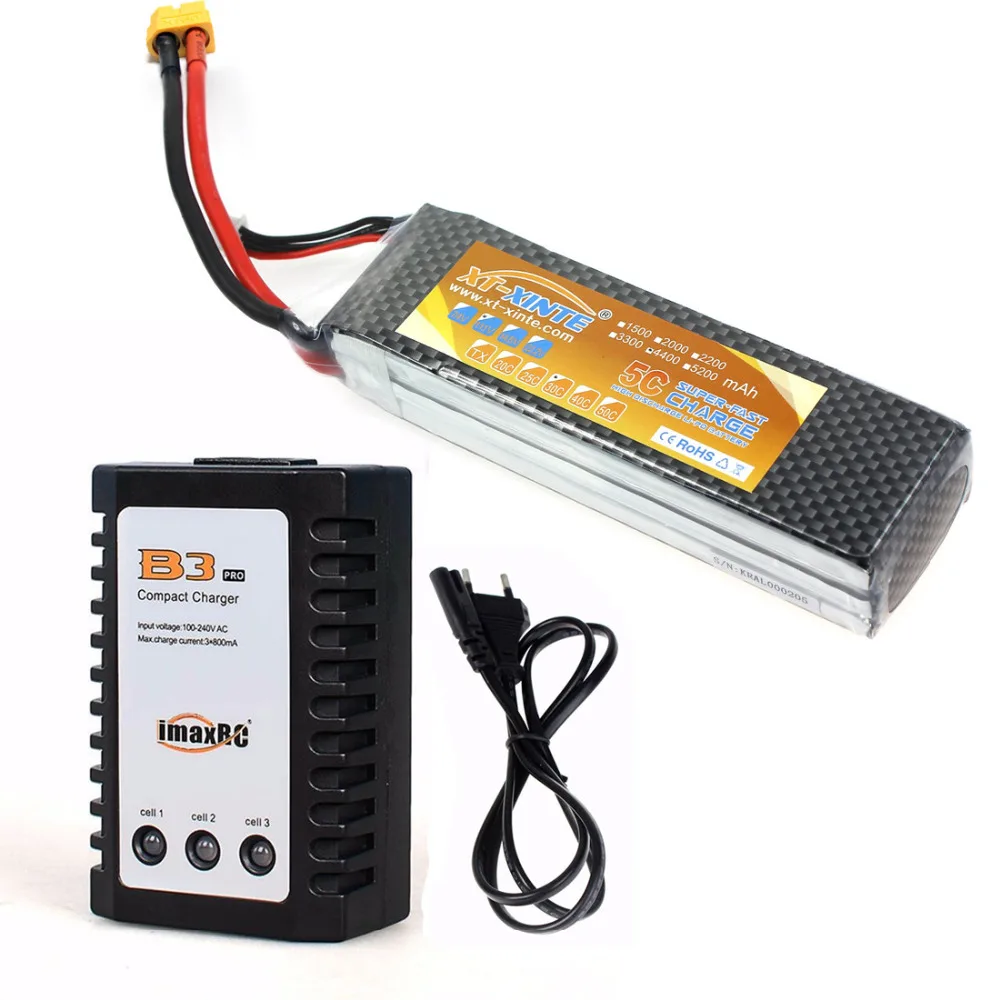

11.1V 4400MAH 30C 3S1P Lipo Battery  xt60 Plug and Charger

-2
