QWinOut Glass Fiber Mini Alien Across 250mm 250 RC Quadcopter Frame Kit Unassembled for DIY FPV Drone

QWinOut

Sale price $8.94 Regular price $12.86

Shipping calculated at checkout.

Glass Fiber Mini Alien Across 250mm 250 RC Quadcopter Frame Kit Unassembled for DIY FPV Drone As ZMR250 Q250

(Just frame kit,unassembly,Do not include the electronic parts)

Description
The Mini Quad is a low weight Mini Sport FPV Quadcopter frame.
 It was designed to make use of standard sized electronic equipment commonly used in RC.
This allows the quadcopter to compete with larger quadcopters, while being smaller and agile !

Working on Mini Quadcopters requires a lot of soldering, wire shortening and creation of power distribution systems.
This product requires a good knowledge of RC systems and is not recommended for beginners.

Specifications
   Materials: Glass Fiber

    Fasteners: Stainless Steel & Red Metal 8/8
   Size: 220mm diagonally, 175mm wide, 130mm long motor-to-motor; about 1/2 the size of a regular quadcopter
   Maximum Propeller: 5"
   Motor Mount: M2 12mm - 16mm (Tiger MN1806 2300kv, RCX 1804 2400kv), M3 19mm (Tiger MT2206 2000kv, Sunnysky X2204 2300kv)
   Flight Controller Mount: 30.5mm x 30.5mm
   Board Camera Mount: 32mm x 32mm

Suggested Components (No included,please ready separately)
Motors: 1806 "Blackout 3S" 2300kv Motor
Propeller: 5x3
ESC: 12amp SimonK ESC
Battery: 3S 1300mah
Flight Controller: MW,KK, Naze32, Flip Pro



Package:
100% Brand NEW

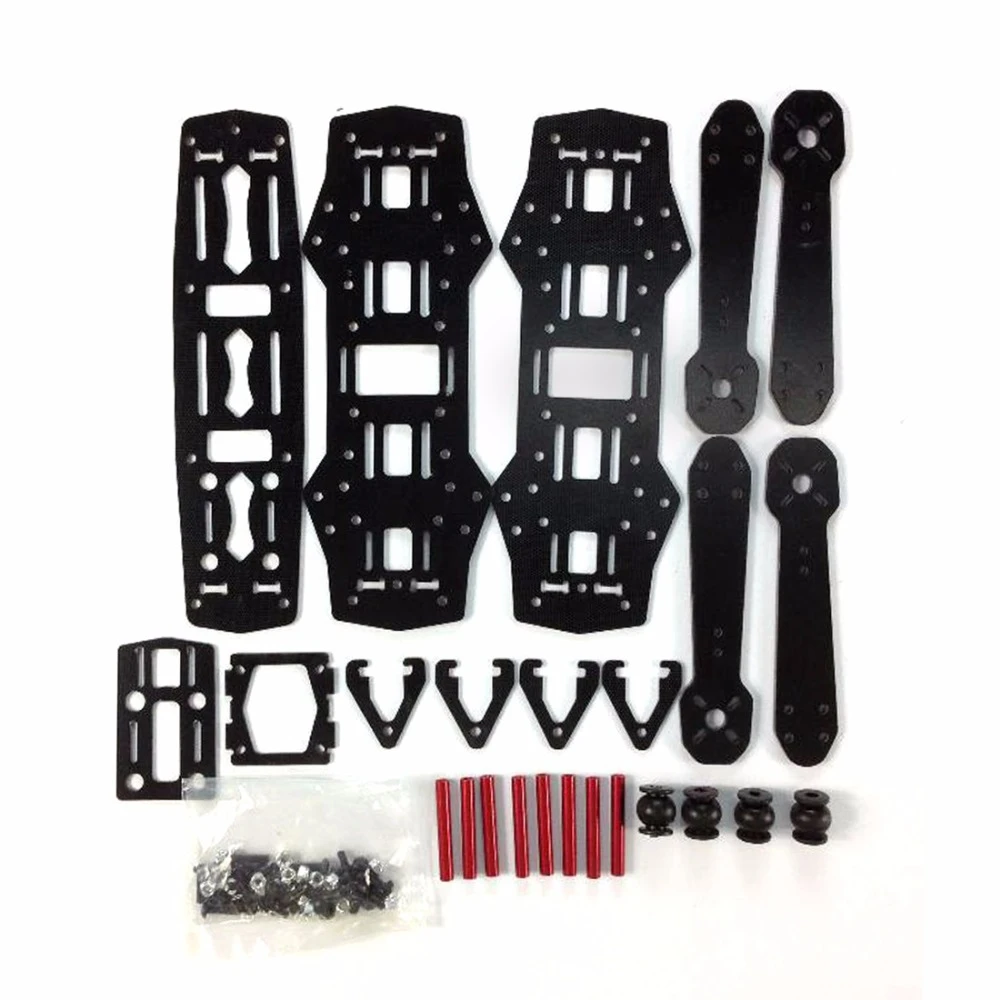

1set * 250 Glass Fiber Mini FPV Quadcopter Frame
