Professional RC Hobby Drone Store, Keep on Updating……



QWinOut S500 PCB DIY GPS Drone Multi-Rotor Frame Full Kit APM2.8 Radiolonk 2.4G AT10 TX&RX Motor ESC

QWinOut

Regular price $265.78

Shipping calculated at checkout.

QWinOut S500 PCB DIY GPS Drone Multi-Rotor Frame Full Kit APM2.8 Radiolonk 2.4G AT10 TX&RX Motor ESC

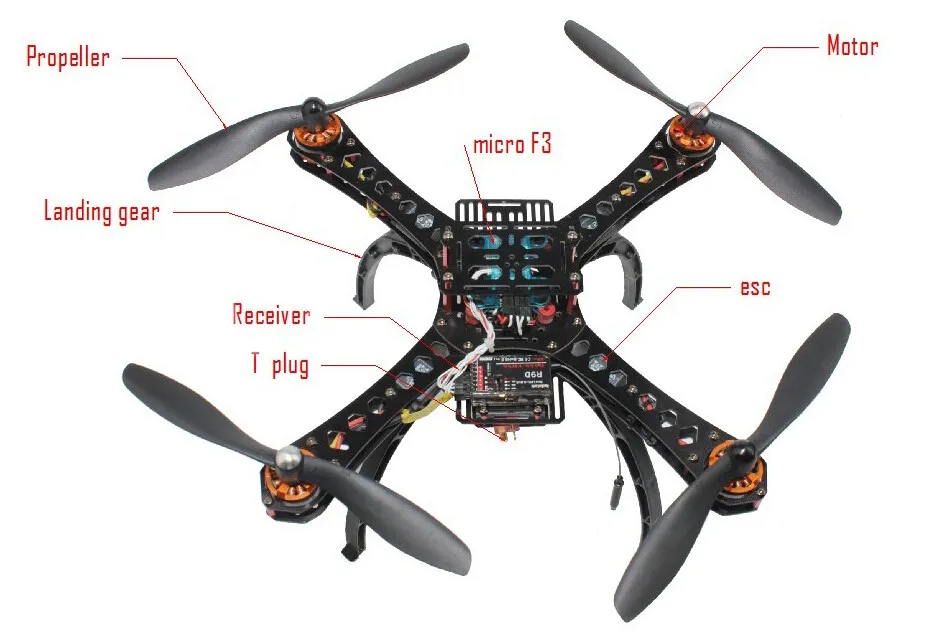

500mm Multi-Rotor Air Frame Kit S500-PCB:

Features:

- Wheelbase: 500mm
- F450 upgrade quadcopter
- Learned arm design from DJI S800 EVO
- High strength plastic material, stable and reliable
- Color: Black and Blue

Features:

- Arduino Compatible!
- Can be ordered with top entry pins for attaching connectors vertically, or as side entry pins to slide your connectors in to either end horizontally
- Includes 3-axis gyro, accelerometer and magnetometer, along with a high-performance barometer
- Onboard 4 MegaByte Dataflash chip for automatic datalogging
- Optional off-board GPS, uBlox LEA-6H module with Compass.
- One of the first open source autopilot systems to use Invensense's 6 DoF Accelerometer/Gyro MPU-6000.
- Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
- Atmel's ATMEGA2560 and ATMEGA32U-2 chips for processing and usb functions respectively.
6M GPS with Compass L5883 25cm Cable:
GPS Features:
- Built-in compass GPS module
- Main chip: 6M
- With fast satellite searching speed and high precision
- Compatible with APM serial port and I2C port
- Includes round plastic shell
- Pre-configured, Flashed with the correct settings, and tested
- Super Bright LED,BlackPlane with Standard Mk style mounting holes 45mm X 45mm
- Cable included
- With L5883 compass Cable length in 25CM
- Dimensions: 53.5*53.5*15.5
- Weight: 30g
- Quantity:1 Piece
Description:
C/A code,1.023MHz
Receiver Frequency:L1 [1575.42MHz]
Locate performance
2D :3m(Average)
2D:2m(average),with WAAS
drifting<0.02m>
accuracy:1us
coordinate system:WGS84
max attitude height:18000
Max speed:515m/s
Specification:
tracking sensitivity:161dBm
Capture sensitivity:148dBm
cold start time:38s average
Warm start time:35s average
hot start time:1s average
Capture time:0.1s Average
Temperature:40 centi grade to +80 centi grade
wide power supply voltage:+3.5V~+5.5V

RadioLink  AT10 CH TX&RX:

Two kinds of color random delivery,if you have specific requirements ,please leave a message


Package listing:

500mm Multi-Rotor Air Frame Kit S500-PCB*  1

D2212-920KV  High Quality Brushless Outrunner Motor*4 (CW*2&CCW*2)

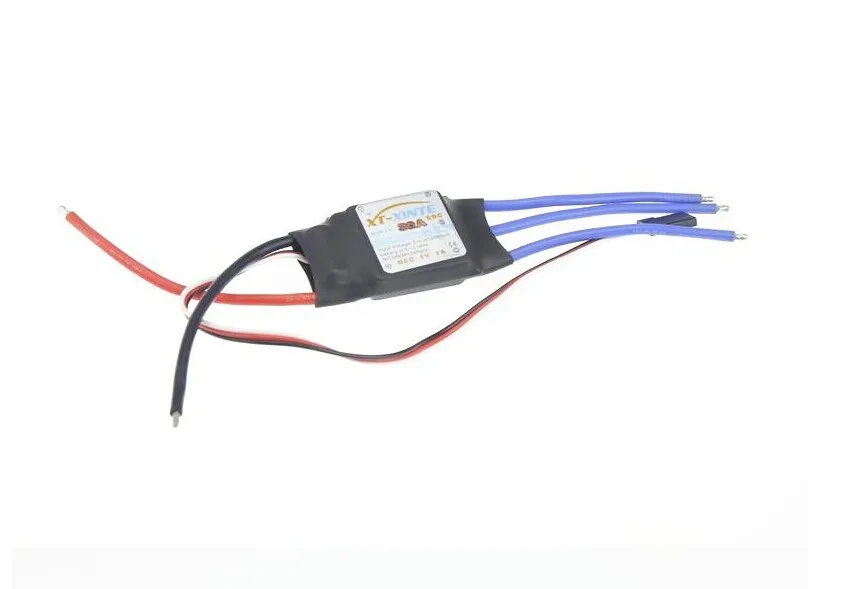

30A Brushless ESC Speed Controller*4
9443 CW CCW propeller *2
Universal GPS Folding Antenna Mount Holder Metal  *
6M GPS with Compass L5883 25cm Cable  *
APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded Built-in  Compass *
RadioLink  AT10 CH TX&RX

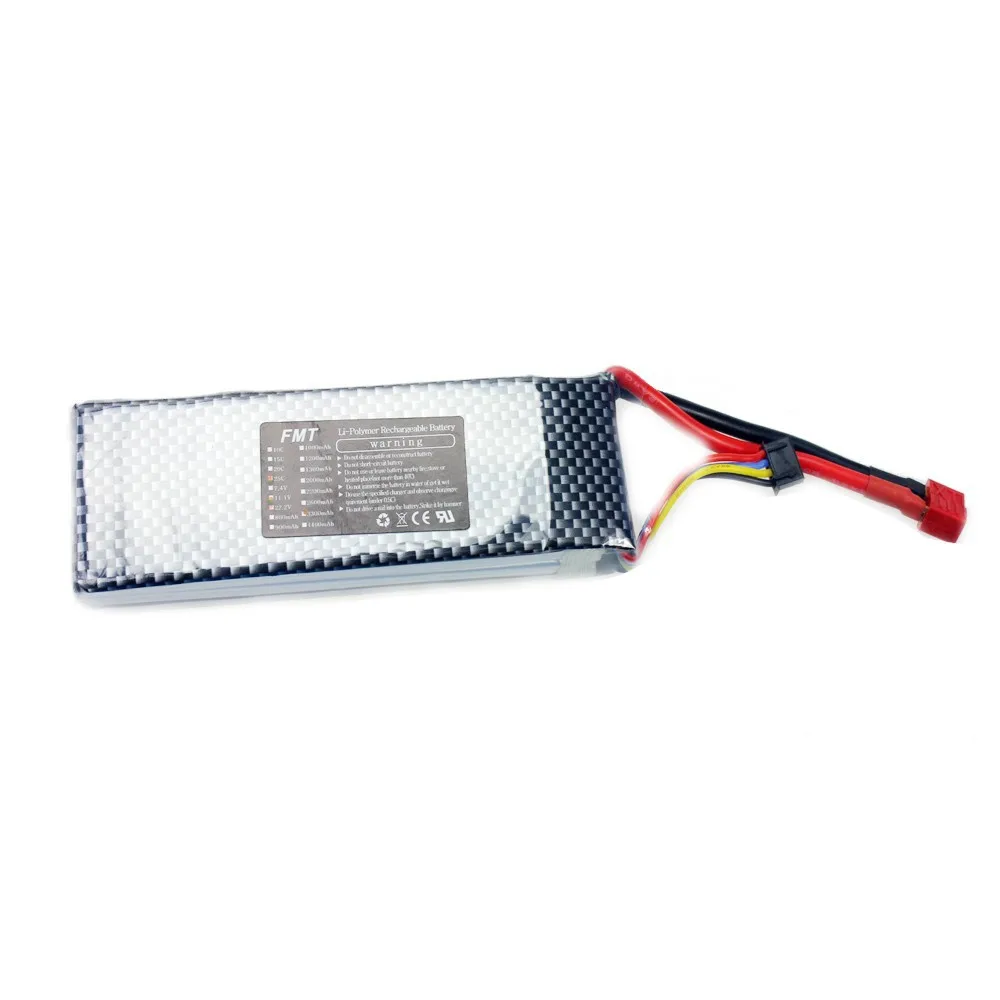

11.1V 3300Mah 25C lipo battery *
RC B3 Pro Compact Balance Charger *  1
5 pcs 10cm Servo Extension Lead Wire Cable *
tool set*   1
