QWinOut Saker675 675mm Hexacopter Kit 3-4S with GPS7M APM2.8/PIX 2.4.8 Flight Control XRotor 40A Brushless ESC 5010-750KV Motor

QWinOut

Regular price $413.26

Shipping calculated at checkout.

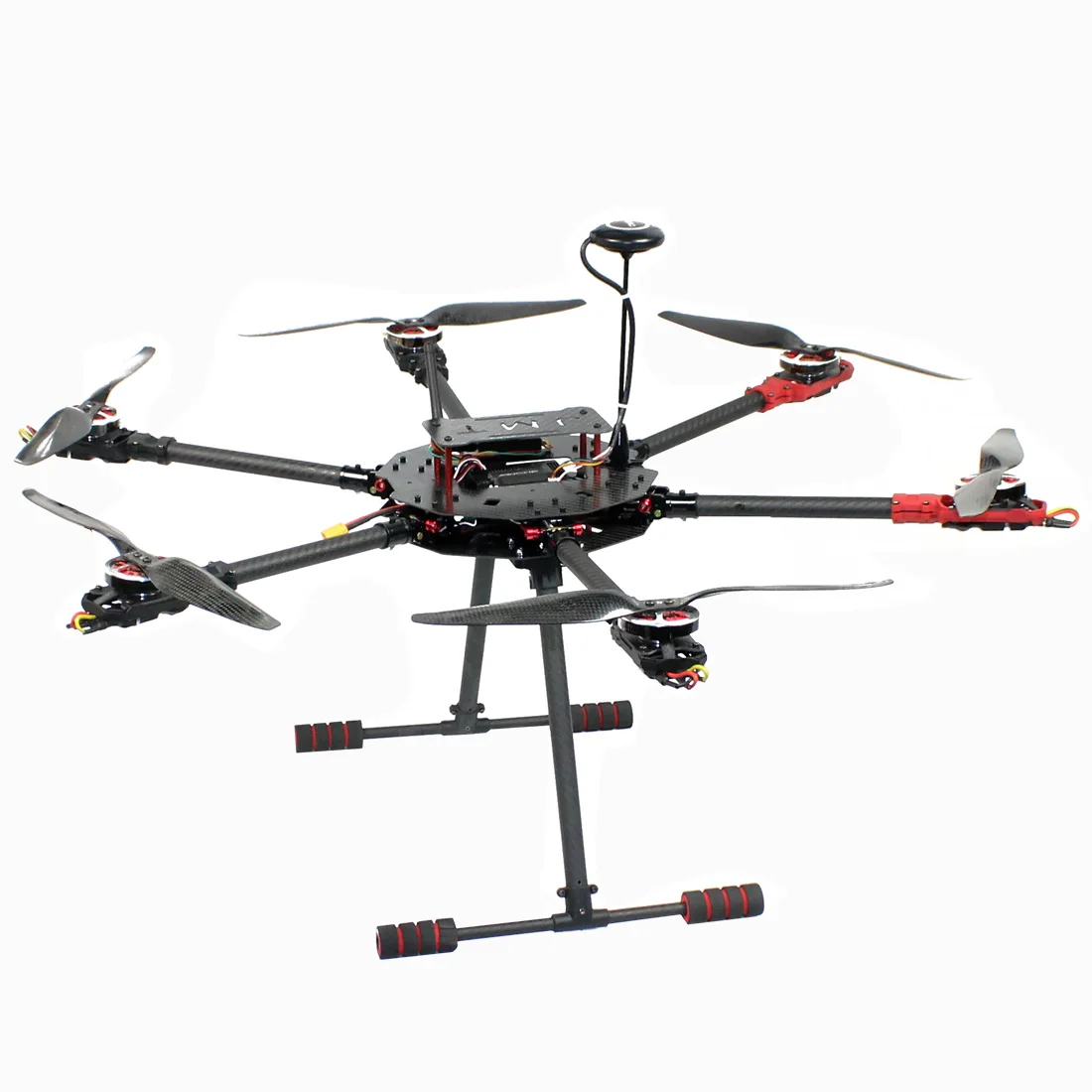

DIY Saker675 675mm Hexacopter Kit 3-4S with GPS7M APM2.8/PIX 2.4.8 Flight Control XRotor 40A Brushless ESC 5010-750KV Motor


Note: This is an unassembled kit.



Packing list:

saker675 Frame Kit x 1

1255 Carbon Fiber Propeller x 6

GPS folding antenna base x 1

APM2.8 or PIX2.4.8 Flight Controller x 1(optional)

R8 receiver x 1 (optional)

5 in 1 integrated power module ESC distributor 5V 12VBEC x 1

XRotor 40A ESC x 6

GPS7M with electronic compass x 1

XT60 male x 1

5010-750KV motor x 6





Precautions:

1. Do not charge the battery when you are away from home, do not charge the battery immediately after flying, do not over-discharge the battery (over-discharge may cause the battery to fail to charge and become useless). After the battery is fully charged, immediately cut off the power, do not over-discharge Recharge.

2. Do not modify any parameters and wiring without knowing the flight control and remote control.

3. Turn on the remote control before powering on the airplane, unplug the power switch after the flight, and then close the remote control to prevent accidents.

4. This product is unassembled parts. If you have any technical and assembly problems, please feel free to contact us. We have a dedicated technical team to answer related questions. If customers need to assemble, please feel free to contact us, we will give a reasonable quotation for additional logistics freight and technical assembly fees.

5. This product is not a toy and is not suitable for children under 14 years of age.

6. If you are a beginner, it is recommended to be assisted by an experienced adult.

7. Novices should pay attention not to take the airplane by hand or let children to prevent it from being scratched.

8. Please turn off the start switch in time when the aircraft falls from a wall or hits other objects during flight. Otherwise, it may cause damage to the flight control, motor, etc. Check whether the aircraft is damaged and the screws are loose.



Functions and features:

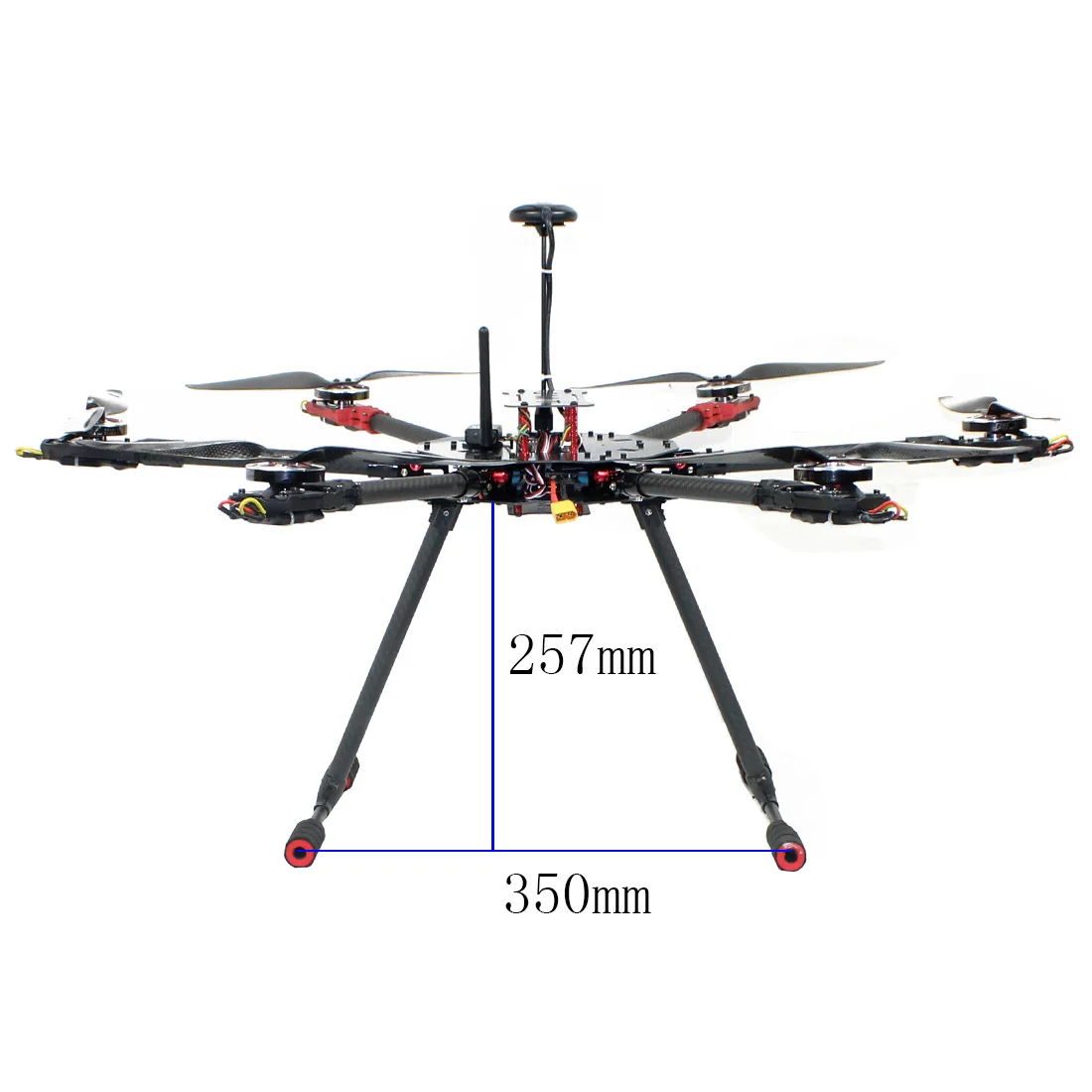

675mm wheelbase carbon fiber frame, foldable arm

APM/PIX flight controller optional

With data transmission, it can plan the route

Support 3-4S battery

The maximum load is 1.5KG below 4S battery


Propeller:

Model: 1255

Material: carbon fiber

5.5mm pitch

Main hole diameter 4mm

Side hole diameter 3mm

Center distance 12mm


ESC:

Current: 40A

Power input: 2-6S lithium battery

BEC output: None

Weight: 26g

Size: (approximately) 68x25x8.7mm


Motor:

Size: 5010

KV: 750 KV

Shaft diameter: 4 mm

Weight: about 105 grams

Applicable voltage: 2-4S


Flight control:

APM2.8 or PIX2.4.8


Receiver version:

R8 receiver or without receiver version
