QWinOut Super_S F3 Flight Control Integrated Betaflight OSD 2S Power Supply + ESC Super_S BS06D 6A 4 in 1 Blheli_S for RC Drone

QWinOut

Regular price $24.34

Shipping calculated at checkout.

QWinOut  Super_S F3 Flight Control Integrated Betaflight OSD 2S Power Supply + ESC Super_S BS06D 6A 4 in 1 Blheli_S for RC Drone

Flight controller

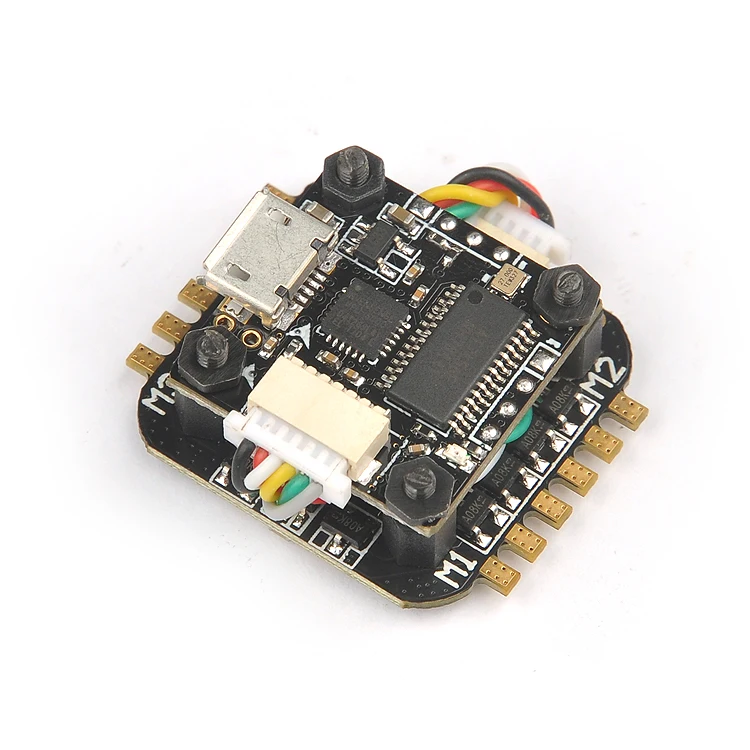

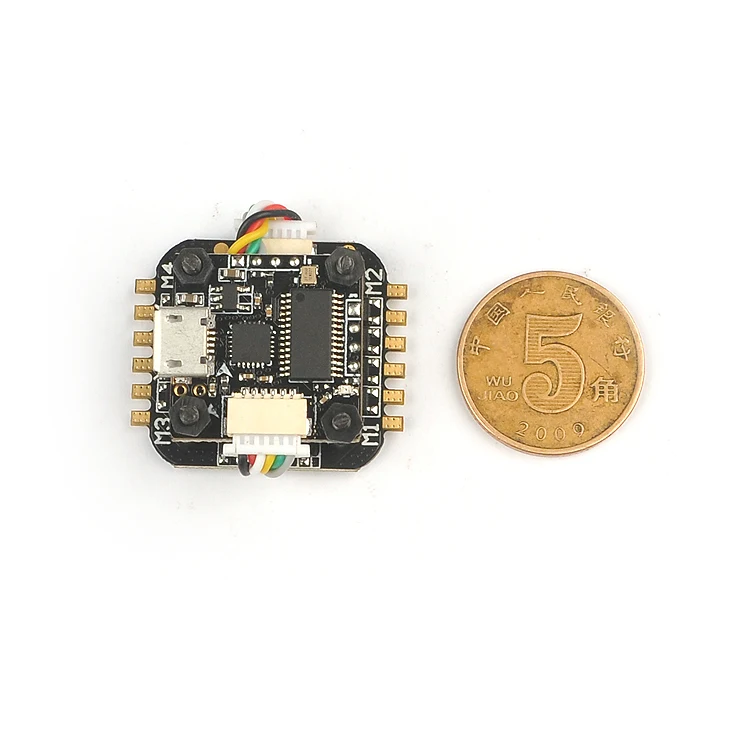

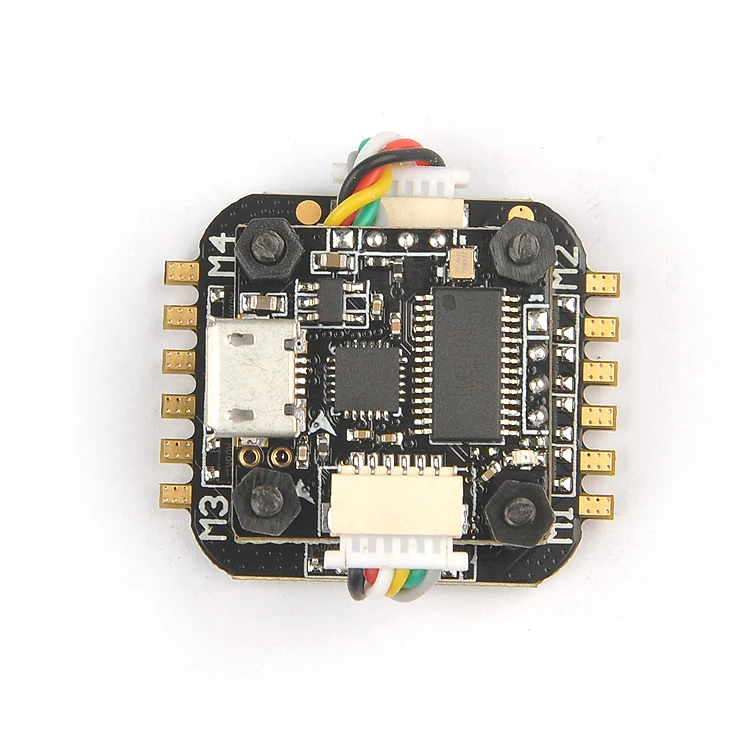

Item name: Super_s F3 flight controller board
Size: 20*20mm
Mounting hole: 16*16mm
Diameter: 2mm
Weight: 1.9g
Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000 ( connected by SPI)
Firmware version: betaflight_3.1.0_OMNIBUS
Built-in ESC: 5V/0.5A
Receiver: PPM, Spektrum 1024/2048, SBUS, IBUS, XBUS, SumD SumH RX etc.
Power supply: 2S lipo battery ( 6.5V-8.4V)
Suitable for 60mm-80mm mini brushless FPV Quadcopter frame
ESC

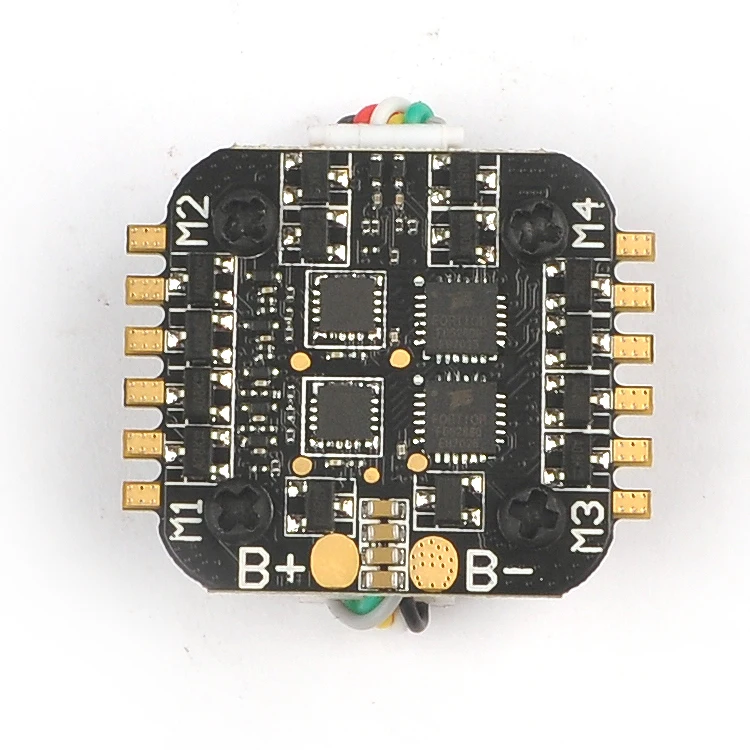

Item name: Super_s 4 In 1 6A BLHeli_S ESC
Size: 25x29mm (includes solder pad)
Mounting holes: 16x16mm, φ2mm
Weight: 3g
Input voltage: 2S lipo
Con. Current: 6A
Peak Current: 10A (5S)
Firmware: BLHELI_S
Processor: SILABS EFM8BB21F16G
BEC: NO
Driver: 3 in 1 MOS
Supports Dshot Oneshot multishot
Features:
-Support programmable LED Sprit (turn off transponder before using)
-Support BLheli/BLHELI_S suite Pass-through ready
-Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
-Default Dshot600
-Built-in voltage detection, alarm
-Built-in Betaflight-OSD
-Buzzer solder pin
-LED_STRIP connector
Package included:
1* Super_S F3 flight control board
1* Super_S BS06D 6A 4in1 ESC
8*M2*5+5 Nylon column
8*M2 Nuts
8*M2 Screw
