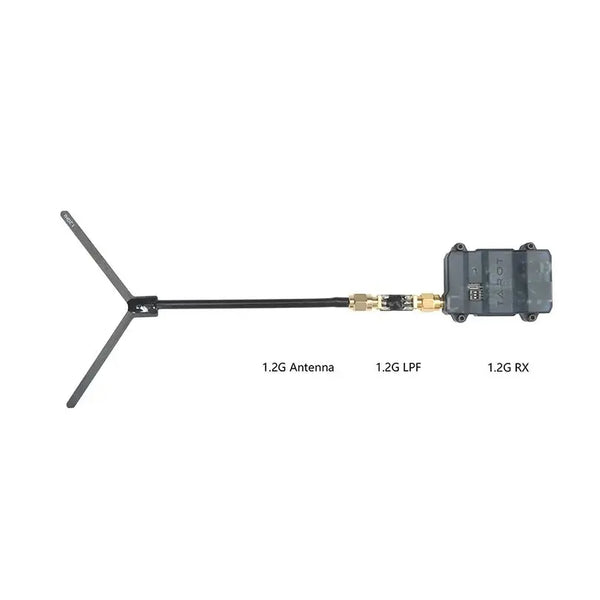

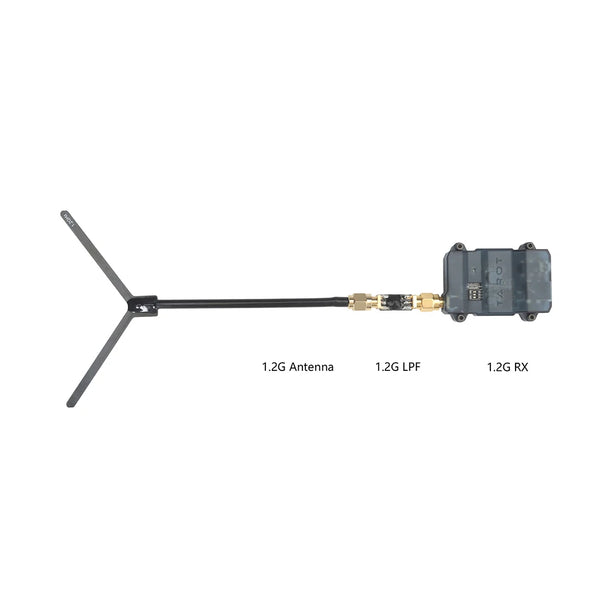

Clearance Tarot-RC FPV Receiver 1.2G Image Transmission Receiving Module + 1.2G Y-Type Antenna 1.2G Filter for FPV RC Drone Parts

RM1641845738473292

Product Description:

Tarot's new Y-shaped antenna is suitable for receiving and transmitting 1.2G audio and video transmission equipment, this Y-shaped omnidirectional structure design antenna can effectively avoid the attenuation of transmitting and receiving signals, and ensure the stable transmission of audio and video.

Specifications:

Transmitting frequency: 1200MHz

Receiving antenna: Y-type

Directionality: omnidirectional/transceiver integrated general-purpose type

Horizontal lobe width: 45°

Vertical lobe width: 45°

Polarization mode: circular polarization

Impedance: 50Ω

Antenna Adapter: Straight SMA/Female Threaded Female

Weight: 6.6g

Package Listing:

1.2G/Y-type antenna ×1

Product Description:

The low-pass filter with extended range of 1.2G video transmission can effectively reduce the interference of device signals below 1.08 GHz and above 1.36 GHz to 1.2 GHz video transmission, and enhance the long-distance transmission and reception effect of video transmission.

Features:

1. Small size, light weight, small insertion loss (0.5db), imported SMD components, durable;

2. Unique shielding design, beautiful and practical;

3. It has good passband ripple coefficient and out-of-band suppression ability;

4. Both ends are gold-plated SMA connectors (one end is SMA female/male thread inner hole; one end is SMA male/female thread inner pin), double-sided circuit board design, high mechanical strength;

5. Under the same conditions, the transmission distance and anti-occlusion of 1.2G video transmission are much better than those of 2.4G and 5.8G video transmission, which is more suitable for video transmission in long-distance and complex environments.

6. Weighs only 5.3g.

Package Listing:

1.2G LPF low-pass filter ×1
