Clearance Tarot T28 Waterproof Folding Arm Base / 6 Degree Tilt TL28A2 for Camera RC Airplanes Multicopter Spare Parts

Tarot

Regular price $38.40

Shipping calculated at checkout.

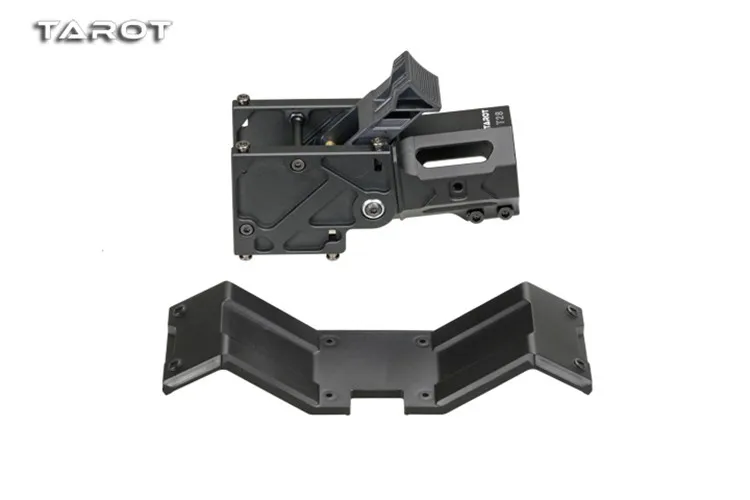

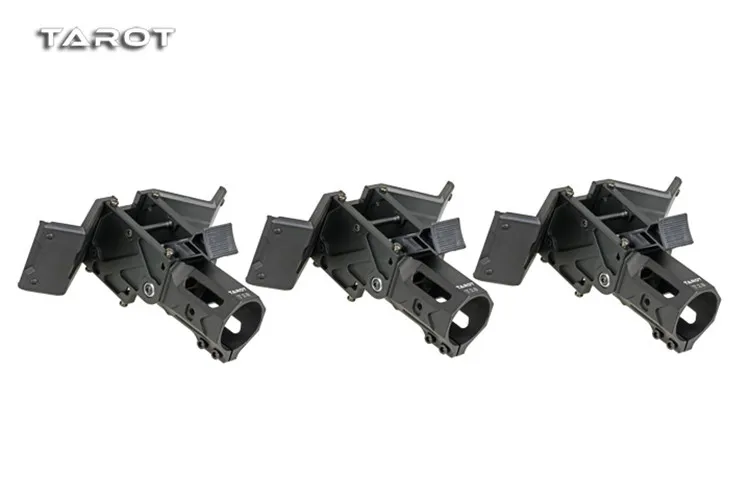

Tarot T28 Waterproof Folding Arm Base / 6 Degree Tilt TL28A2 for Camera RC Airplanes Multicopter Spare Parts

product manual:

    T28 Waterproof Folding Armrest / 6-degree Tilt For 4 axis / 6 axis / 8 axis multi-rotor UAV with diameter of Φ28MM, it can be unlocked by one button and automatically folded when unlocked by one key. Locking mechanism can arm vibration, automatic one-way locking closed function.

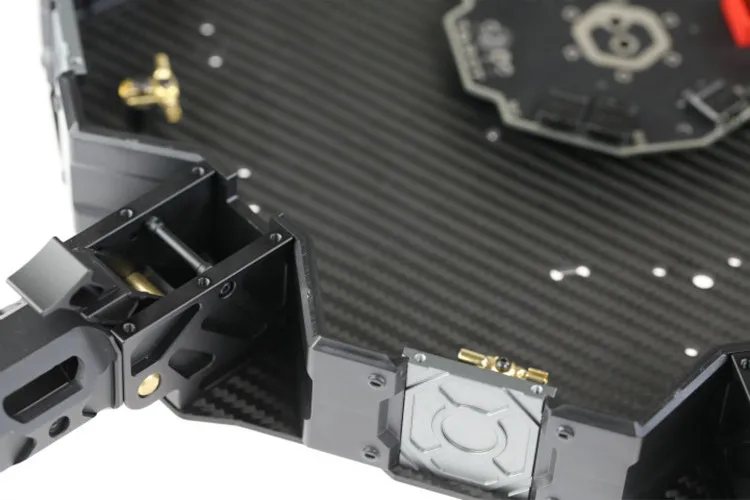

    Unique folding seat waterproof sealing baffle design allows this double-layer carbon plate structure of the UAV, no longer worry about waterproof (edge need to apply waterproof plastic), in line with the needs of industrial UAVs.
    The overall use of 6061-T6 aluminum alloy super-hard aluminum alloy, high-precision multi-axis CNC machining. X4 Ⅱ / X6 Ⅱ / X8 Ⅱ and other models can be directly installed, free of charge above the upper and lower carbon fiber cover CAD drawings, to the original assembly quality.


Related Product ID (not included):
Z25 Folding arm base / dumb black TL25A1
T25 folding arm base / 6 degree tilt TL25A2
Z28 Waterproof Folding Armrest / Matte Black TL28A1
T28 waterproof folding arm base / 6 degree tilt TL28A2
Z30 Waterproof Folding Armrest / Matte Black TL30A1
Z28 / Z30 metal connector board TL28A3

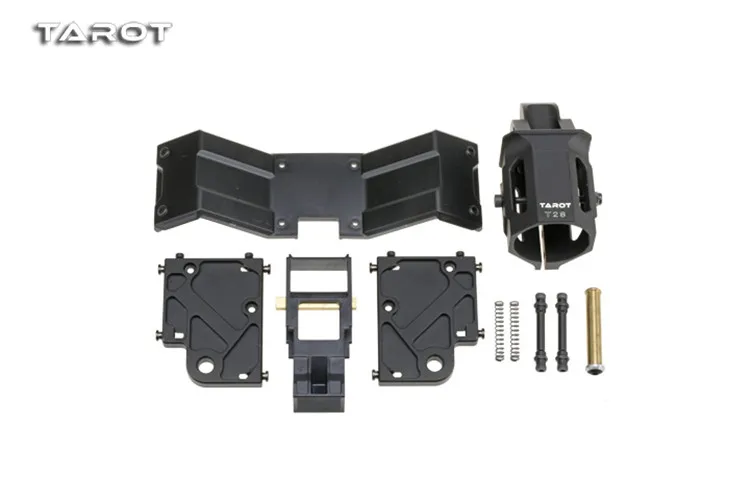

Product Specifications:
Plastic waterproof baffle × 1 (132 × 24 × 43MM) 8.8G
Metal left support plate × 1 (54.5 × 40 × 5.5MM) 15.0G
Metal right support plate × 1 (54.5 × 40 × 5.5MM) 15.0G
M3 × 5MM step inside hexagon screw × 8
M2 × 4MM cup head hexagon screw × 4
Φ4 × 26MM spring × 2
H5 × 27.5MM hexagonal aluminum column × 2
M2.5 × 5MM semi-circular hexagon screw × 4
Unlock slider × 1 (66 × 16 × 26.5MM) 7.0G
Self-locking copper pillar × 1 (Φ6 × 33MM) 6.0G
Φ28MM metal arm tube clamp × 1 (68 × 35 × 38MM) 41.0G
Positioning pin × 1 (Φ6 × 36.5MM) 8.1G
M3 × 6MM round head hexagon screw × 1

M3 metal gasket × 1
