Tarot TL190H2 190mm Carbon Fiber FPV Racing Frame Kit w/ 4mm Arm for DIY RC Camera Drone Accessory Mini Quadcopter


Regular price $47.08

Shipping calculated at checkout.

Tarot TL190H2 190mm Carbon Fiber FPV Racing Frame Kit w/ 4mm Arm for DIY RC Camera Drone Accessories Mini Quadcopter

Package Included:
1 X TL190H2 Frame Kit
1 X Battery Magic stick
1 X Battery Ties
1 X User manual






Pictures as reference, Product do not include the electronic parts.


Brand Name: Tarot
Model: TL190H2

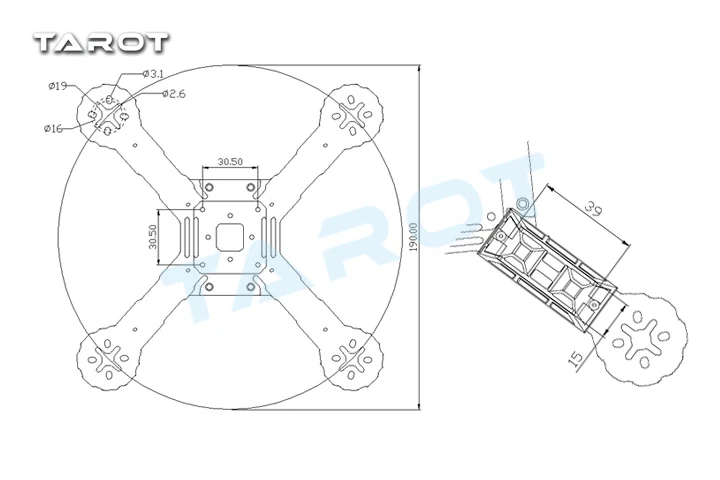

Wheelbase: 190mm
Material: Carbon Fiber
Empty Tack Height : 90mm
Empty Frame Length: 170mm
Empty Rack Width: 170mm

Recommend Parts:(Not included)
Flight Control: F3 Flight Control Board
Motor: 2205 Motor
ESC:  Over 20A (Attention the size of the esc's protective cover)
Propeller: 5 Inch
Camera: Runcam Swift
FPV Transmitter: 5.8G 200mW AV Transmitter
Battery: 1300mAh 4S 14.8V 75C Lipo Battery

The following parts are suitable for it: (Not included)
Flight Control Board: Racing F3 6DOF/10DOF Flight Control
                               F3 Racing Flight Control AIO Integrated with OSD PDB 5V 12V BEC

Brushless Motor:      EMAX MT2205 II KV2300 Racing Edition CW/CCW Motor
Brushless ESC:       Racerstar BLheli_S 30A 2-4S ESC
                              EMAX BLHeli for lightning 30A 3-4S  ESC

Propeller:                10 Pairs Kingkong 5045 5 Inch Bullnose PC Fiberglass Propellers
                              2 Pairs DAL 5045 V2 5 Inch CW CCW Propeller

Camera:                 Runcam Swift 600TVL DC 5 to 17V FPV IR Sensitive PAL Camera
                              Runcam Swift NTSC 600TVL DC 5-17V FPV Camera IR Senstive IR Block

FPV Transmiter:      Skyzone Upgrade TS5823S 40CH 5.8G 200MW AV Transmitter Module RP-SMA Female
                              Eachine TS5840 Upgraded 40CH 5.8G 200mW Wireless AV Transmitter

Battery:                  for infinity 4S 14.8V 1500mAh 70C Graphene LiPo Battery

SUBS/PPM Receiver:Tarot TL150F1 2.4G 8CH Receiver
                                Tarot  TL150F2  2.4G 16CH FASST/SBUS Mode Receiver
