2X IFlight Albatross V2 SMA 5.8GHz 2.4dBi Antenna LHCP RP SMA / RHCP SMA 60MM / 100MM / 150MM for FPV Racing Drone part

Description

Introducing the new and improved Albatross V2 antenna! With upgraded welding technology and a unique rugged design, this antenna is now lighter, sturdier, and more reliable than ever. Upgrade your equipment today with the Albatross V2 antenna.

Use RP-SMA LHCP (Left Hand Polarization) for DJI Digital FPV! Default antennas are LHCP and Goggle Antennas are LHCP, both sides need to match!

Feature

A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.

Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.

Achieves higher consistency in antenna gain, thereby improving device performance and stability.

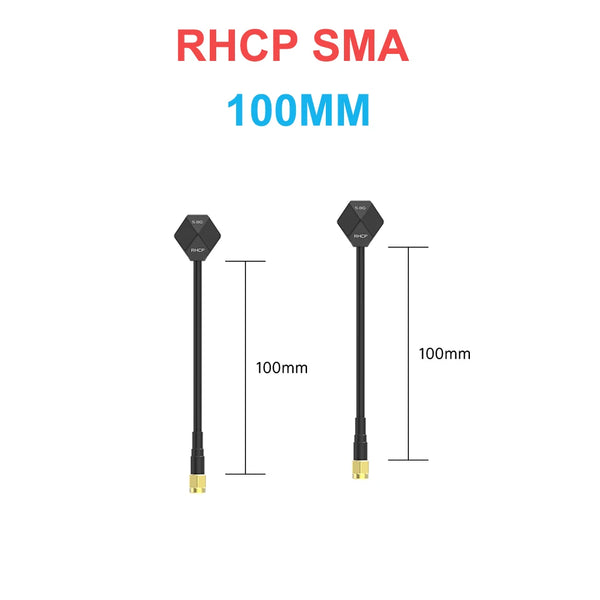

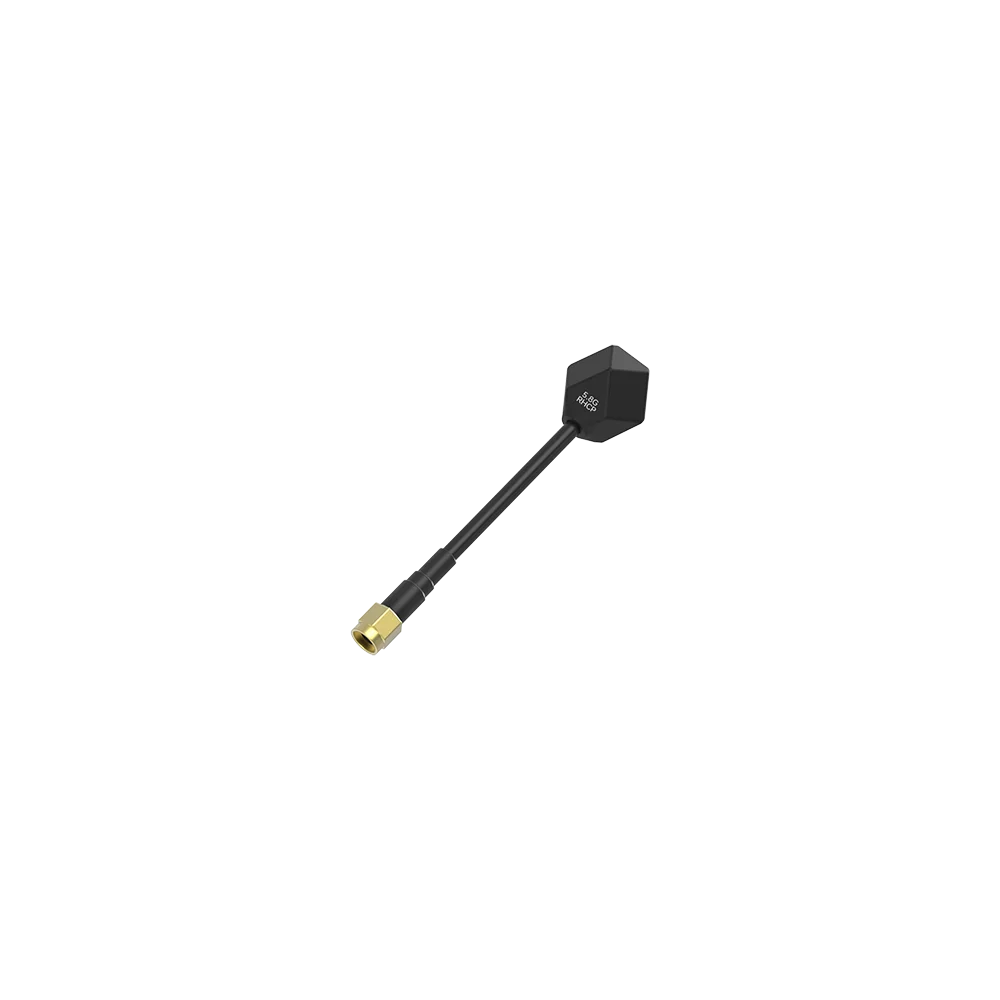

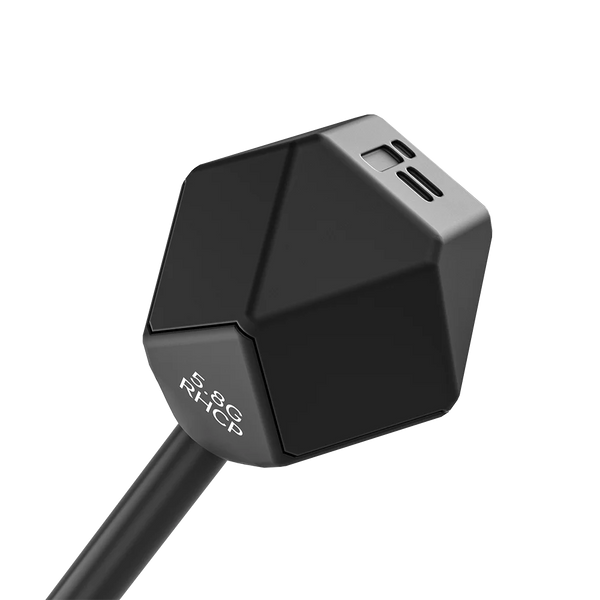

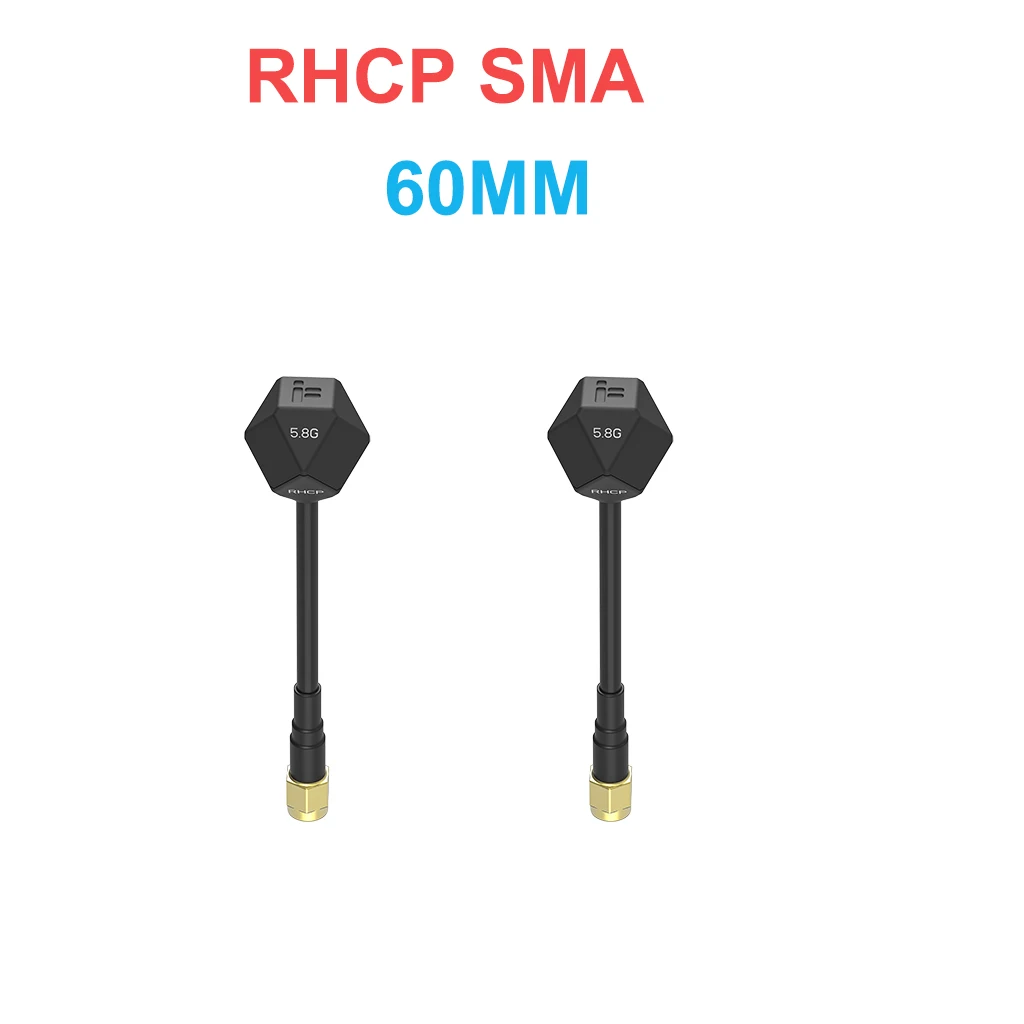

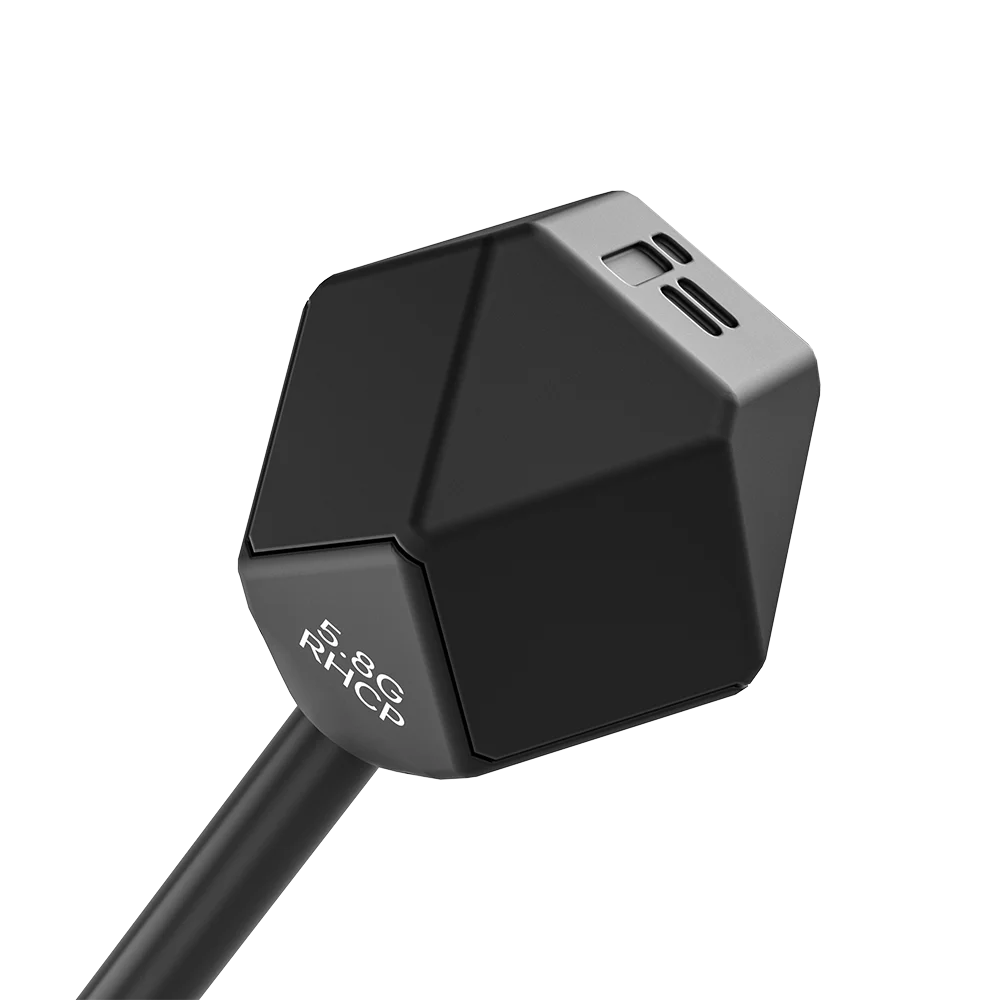

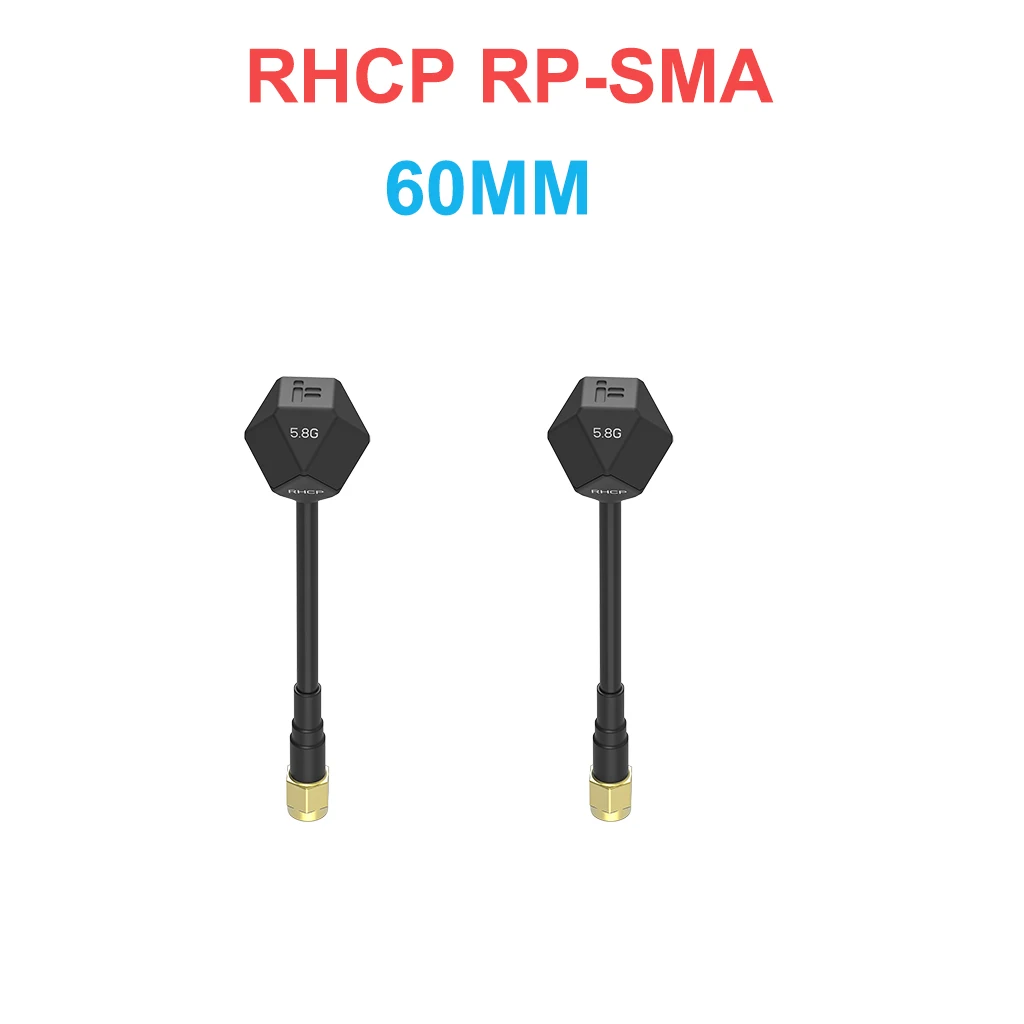

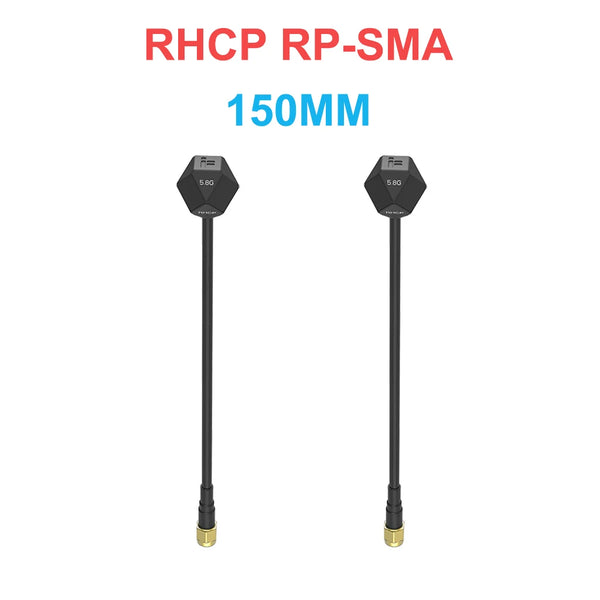

RHCP Specifications

Model: Albatross 5.8GHz RHCP SMA/RP-SMA FPV Antenna

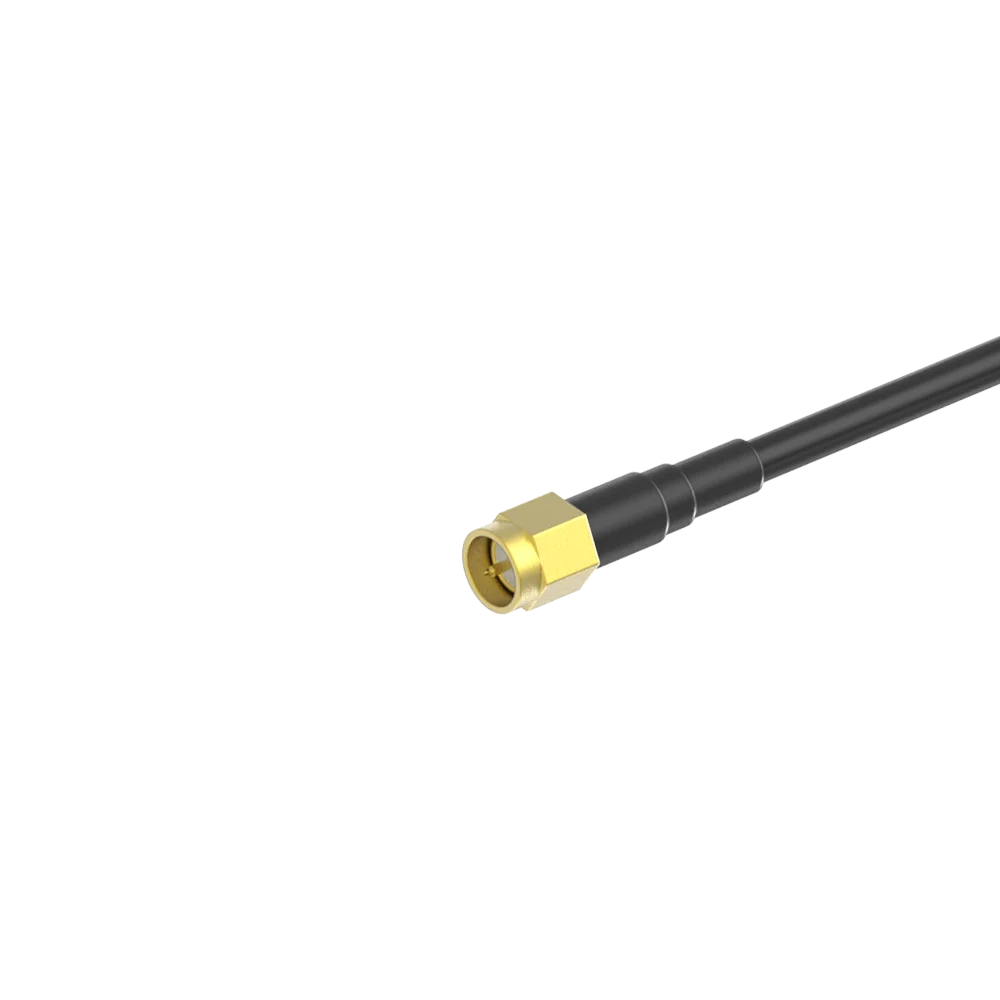

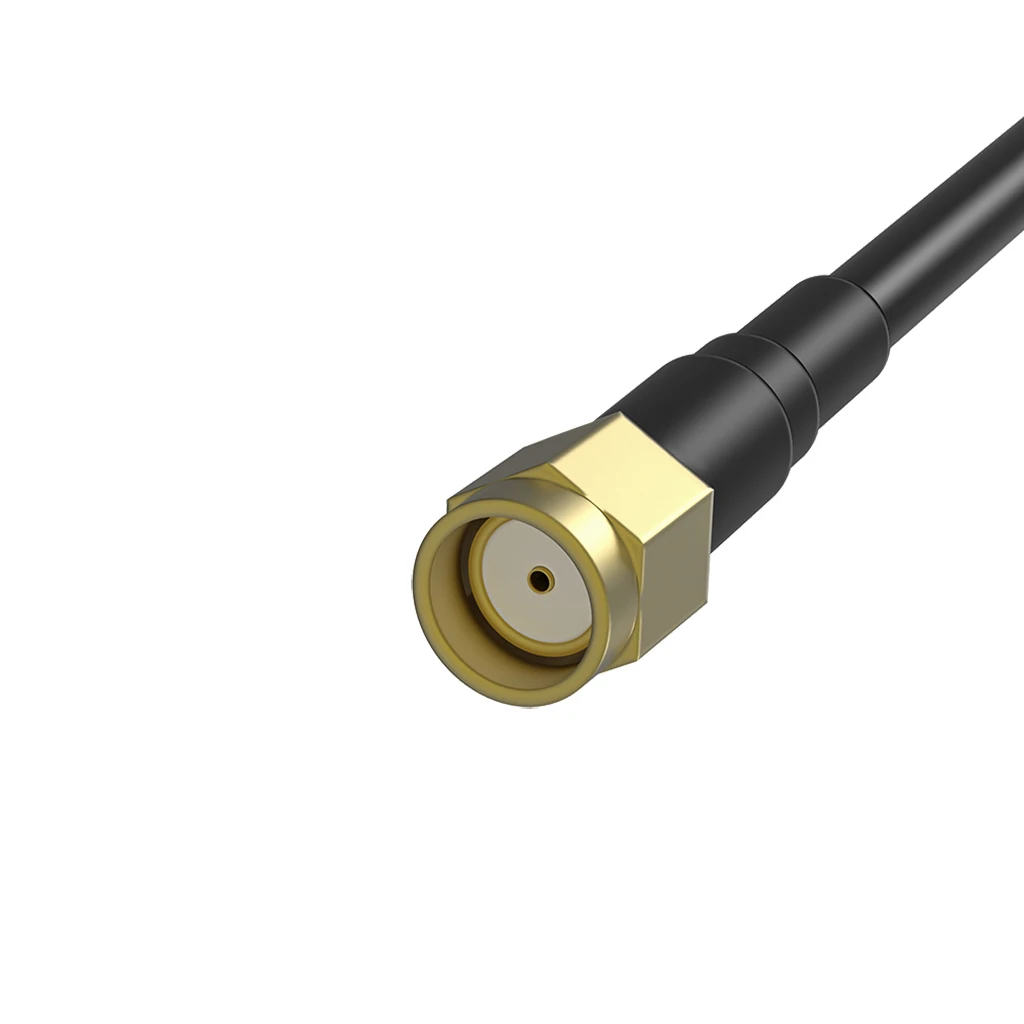

Interface: RHCP SMA, RHCP RP-SMA

Frequency range: 5.3GHz-6GHz

Max Gain: 2.65dBi (5695MHz)

MIN Gain: 2.06dBi (5362MHz)

AVG Gain: 2.4dBi

MAX VSWR: 1.76（5917MHz）

MIN VSWR: 1.46（5621MHz）

AVG VSWR: 1.75

MAX radiation efficiency: 86%（5436MHz）

MIN radiation efficiency: 76%（5917MHz）

AVG radiation efficiency: 83%

Polarization: RHCP

Cross polarization suppression: -25dB

Axial Ratio：≤3

Cable: RG141

Weight: 11.5g

Size: Total length: 175mm, cable length:150mm

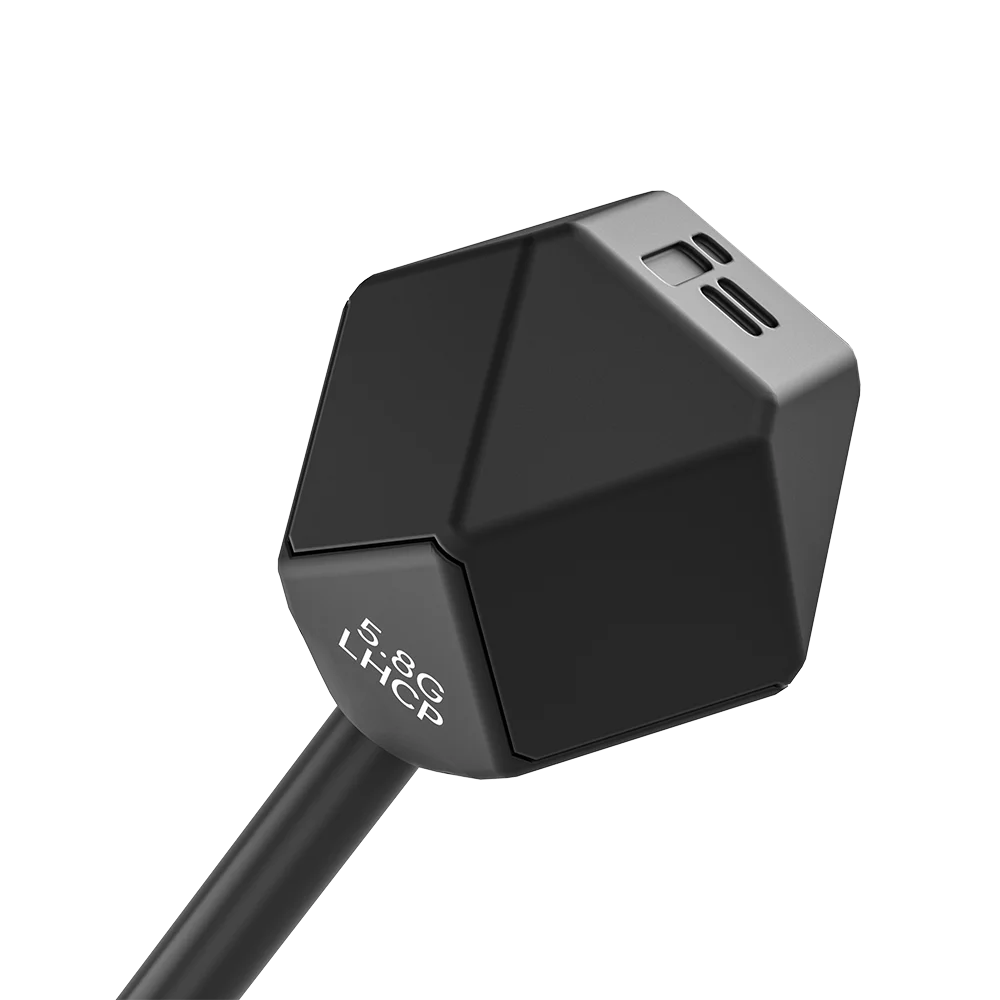

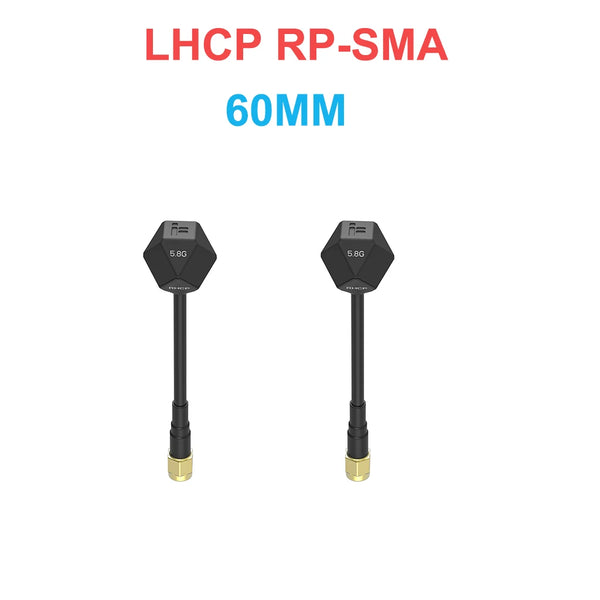

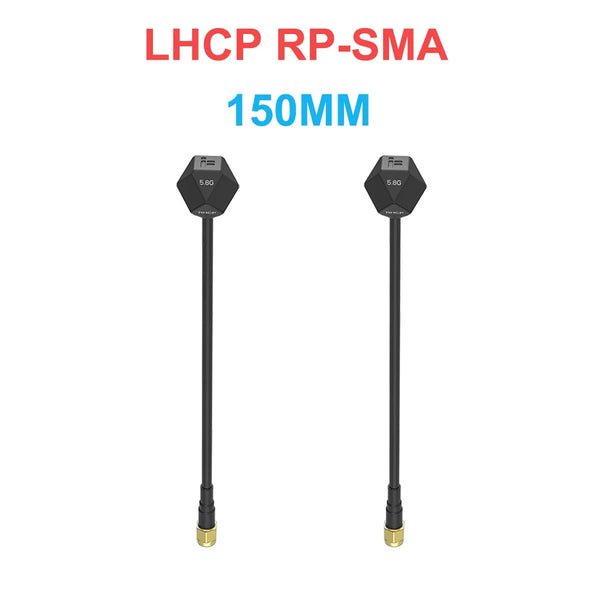

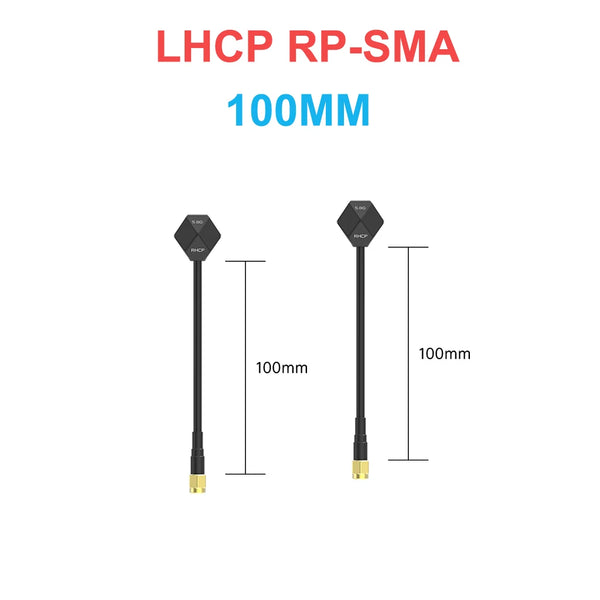

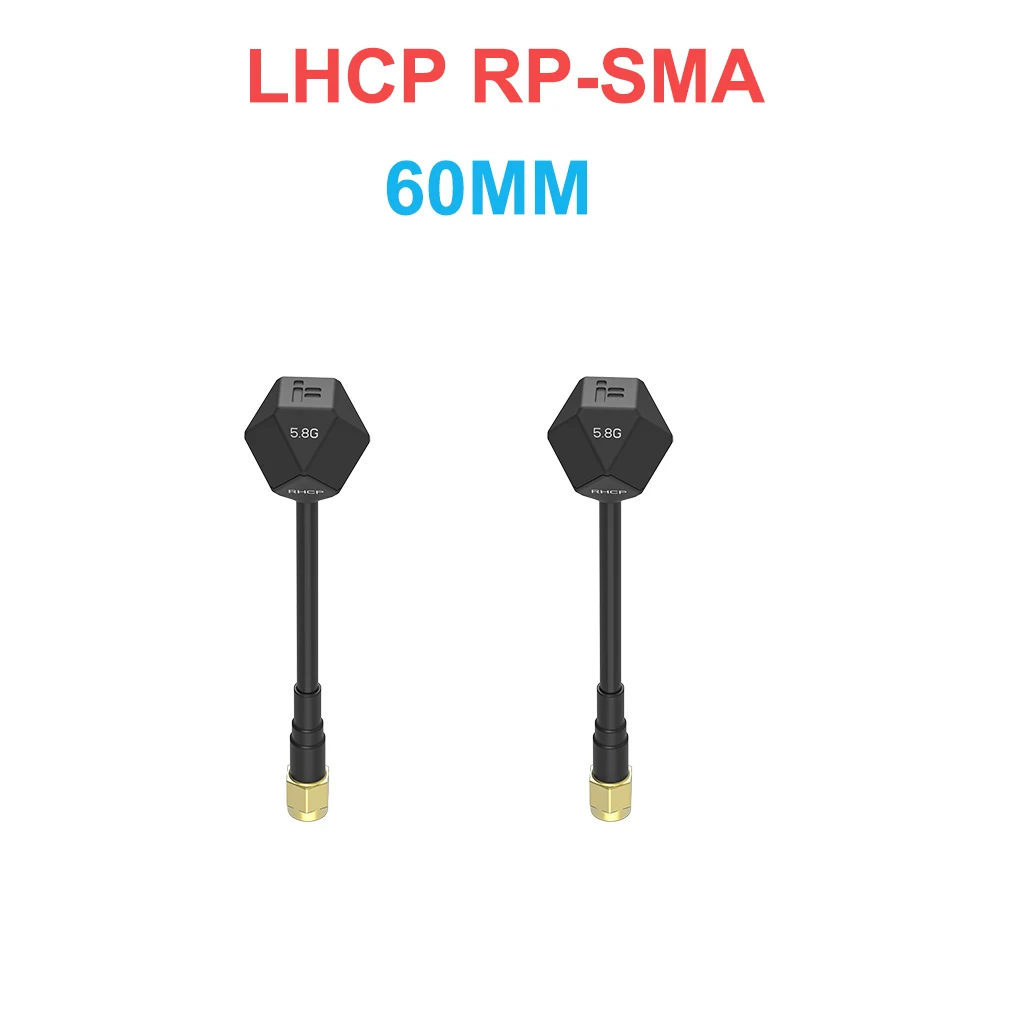

LHCP Specifications

Model: Albatross 5.8GHz LHCP RP-SMA FPV Antenna

Interface: LHCP

Frequency range: 5.3GHz-6GHz

Max Gain: 2.72dBi (5621MHz)

MIN Gain: 2.12dBi (5436MHz)

AVG Gain: 2.42dBi

MAX VSWR: 1.72（5326MHz）

MIN VSWR: 1.35（5917MHz）

AVG VSWR: 1.62

MAX radiation efficiency: 84.25%（5917MHz）

MIN radiation efficiency: 73.5%（5326MHz）

AVG radiation efficiency: 80.3%

Polarization: LHCP

Cross polarization suppression: -26.7dB

Axial Ratio：≤3

Cable: RG141

Weight: 11.5g

Size: Total length: 175mm, cable length:150mm

Package List

2 x Albatross V2 5.8GHz 150mm Antenna
