Product Specifications

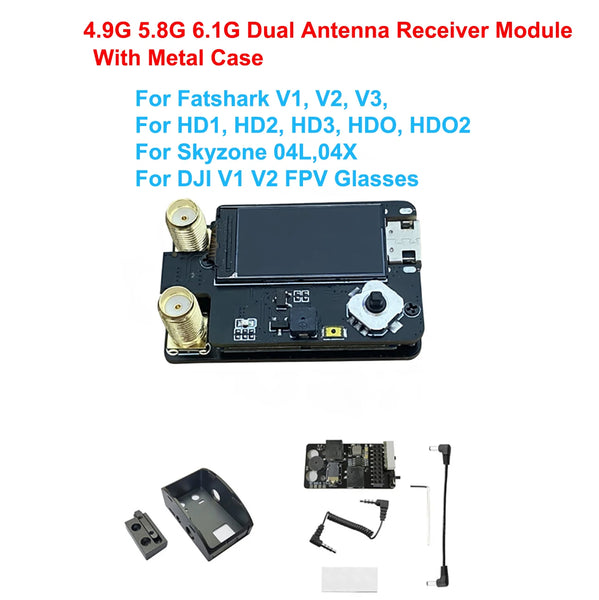

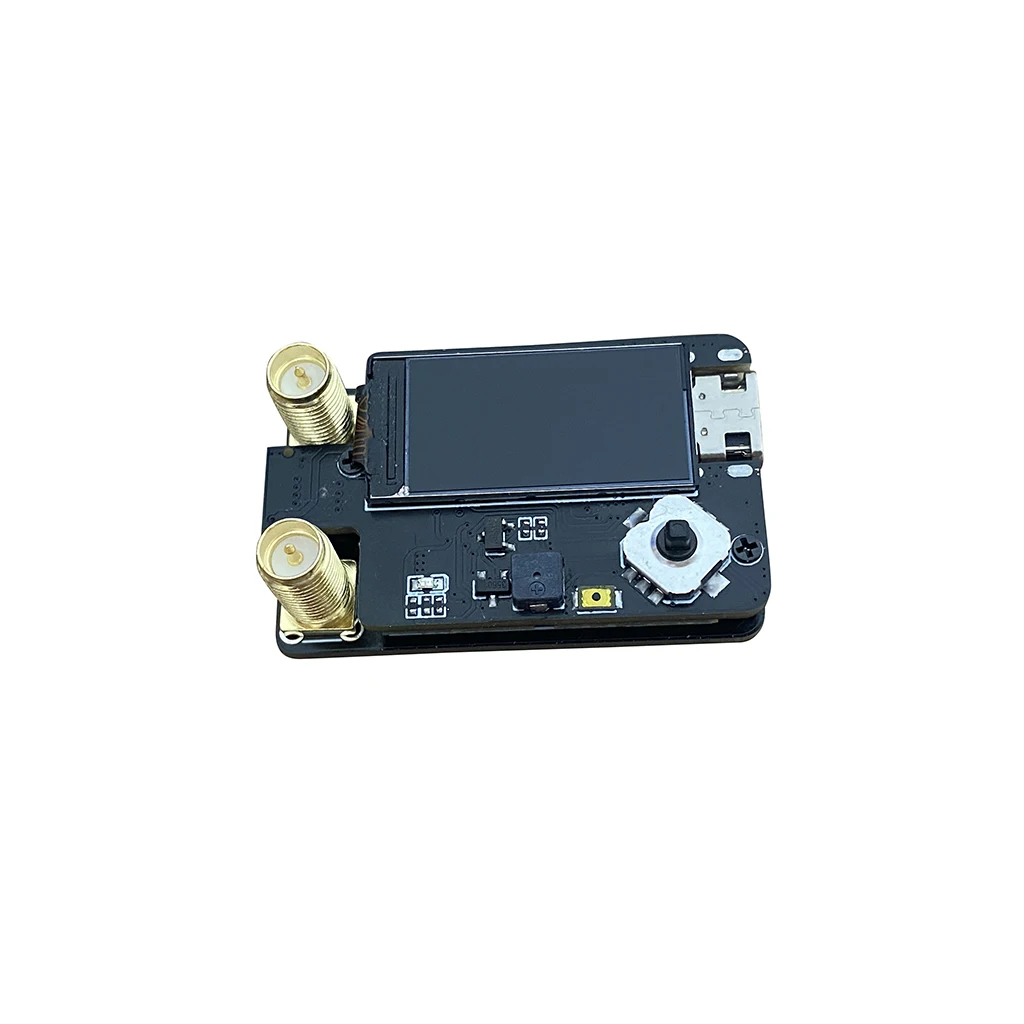

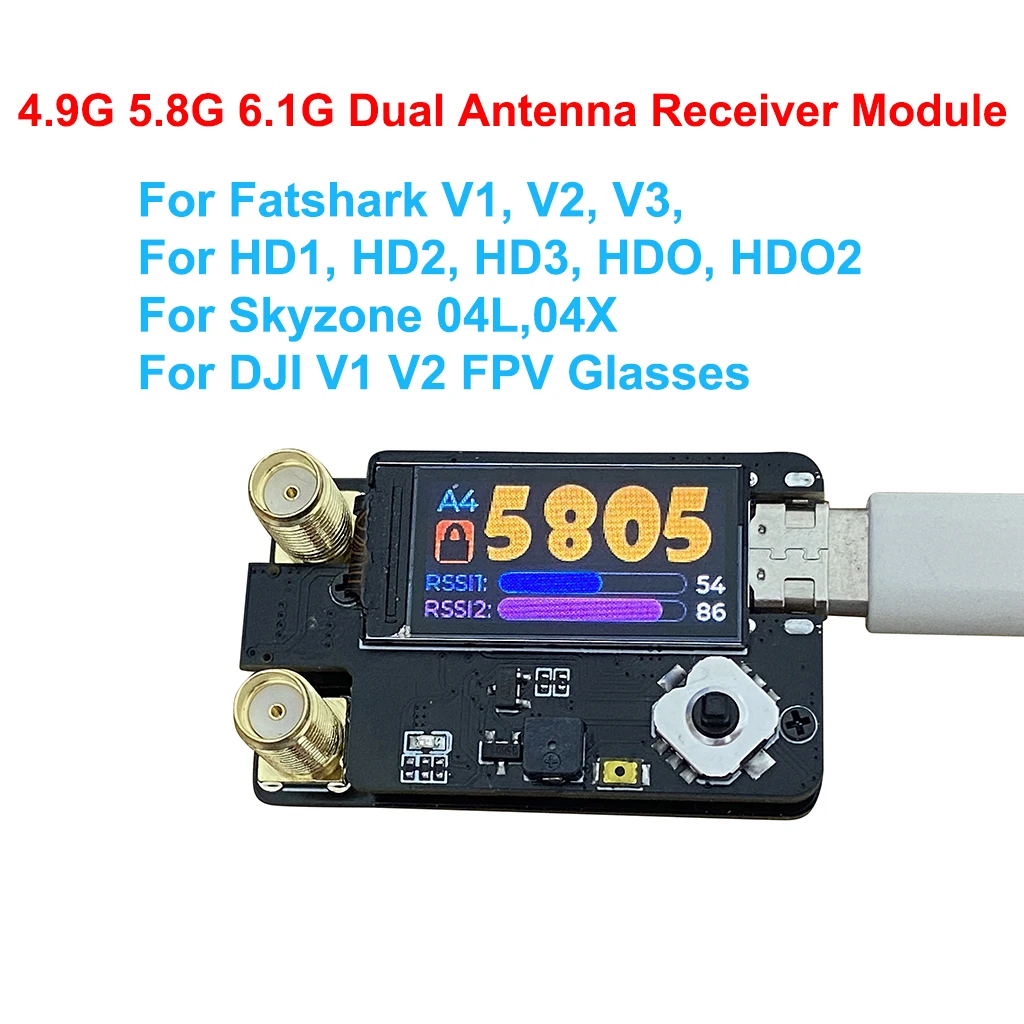

●Adaptation: Fatshark Dominator V1, V2, V3,
HD1, HD2, HD3, HDO, HDO2,

Skyzone 04L,04X,
for DJI V1 V2 FPV Glasses(Need to purchase separately (5.8G RX PORT module)

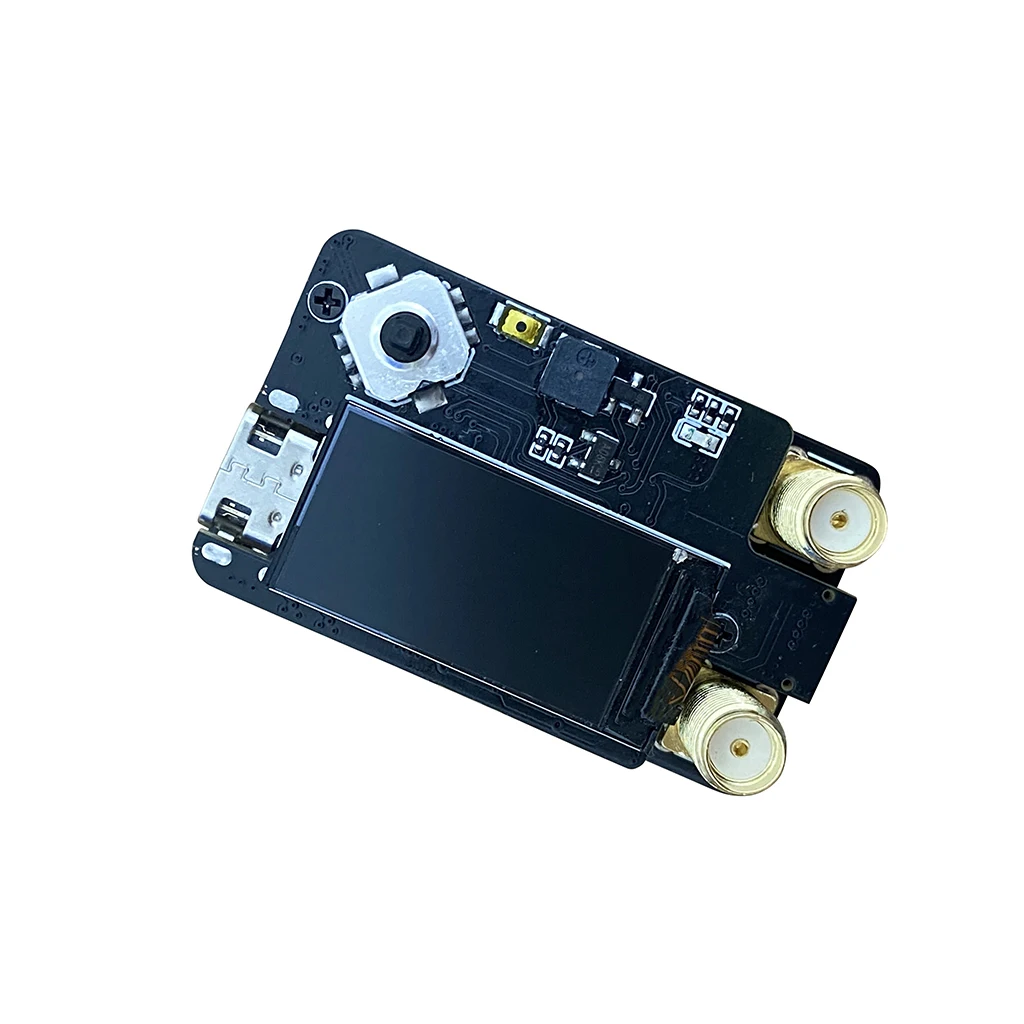

Hardware: ESP32 microcontroller + 0.96" TFTLCD + 5-way

Pushbutton + RF homologation-98dbm receiver module + buzzer

●Interface: LVGL based bilingual interface

Switch between 5.3G-5.9G or 4.9G-6.1G via the boot animation slider in the Settings interface

●Frequency: 5.3-5.9G 48 frequencies (A,B,E,F,R,L)

{5865,5845,5825,5805,5785,5765,5745,5725}, //A CH1-8

{5733,5752,5771,5790,5809,5828,5847,5866}, //B CH1-8

{5705,5685,5665,5645,5885,5905,5925,5945}, //E CH1-8

{5740,5760,5780,5800,5820,5840,5860,5880}, //F CH1-8

{5658,5695,5732,5769,5806,5843,5880,5917}, //R CH1-8

{5362,5399,5436,5473,5510,5547,5584,5621} //L CH1-8

●Frequency: 4.9G-6.1G 24 frequencies (U,H,V,)

{4990,5020,5050,5080,5110,5140,5170,5200}, //V CH1-8

{4867,4884,4921,4958,4995,5032,5069,5099}, //U CH1-8

{5960,5980,6000,6020,6040,6060,6080,6100}, //H CH1-8

Power supply: 5V@450mA

Weight: 22.5g

Dimensions:L42.4mm*W25.8mm*H20.5mm

1. On the main interface, long press the OK button to lock/unlock the manual channel, and short press to enter the menu; when unlocked, press up, down, left, and right to adjust the frequency

2. The menu interface is divided into three parts: receiver, settings, and about.

Use the up and down keys to switch menu options, the OK key to enter the submenu, and the left key to return to the main interface

3. The receiver menu has three sub-contents.

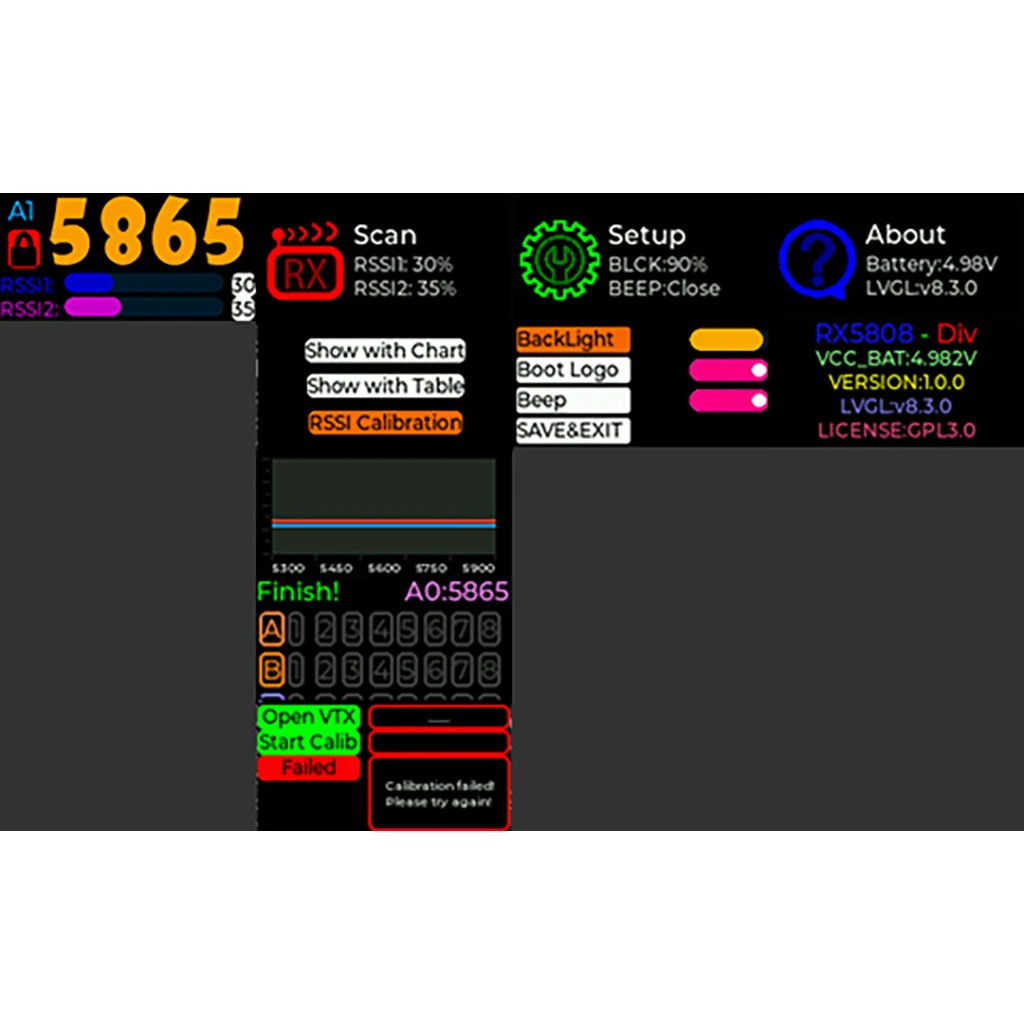

The spectrum scan displays the signal strength of the frequency 5.3G-5.9G or 4.9G-6.1G.

The spectrum scan display will display the channel signal strength in different color charts.

Channel scanning is used for automatic frequency search. After the scan is completed, the frequency switches to the channel with the best current signal strength and is displayed in the upper right corner.

Signal calibration is used to calibrate RSSI. Failure to turn on the image transmission will cause the calibration to fail, and the result will be saved if successful.

4. The settings interface can set the display backlight intensity, fan speed, startup animation, whether the buzzer is turned on, OSD format, system language, and output signal source.

5.Firmware can be upgraded through TYPE-C USB interface

Package Included:

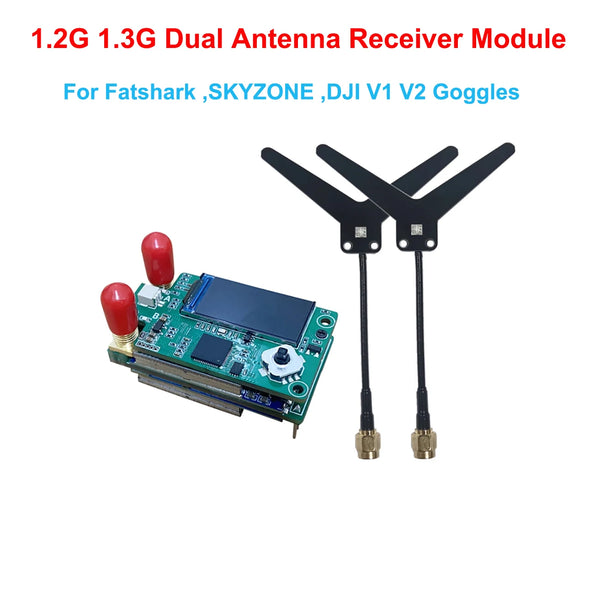

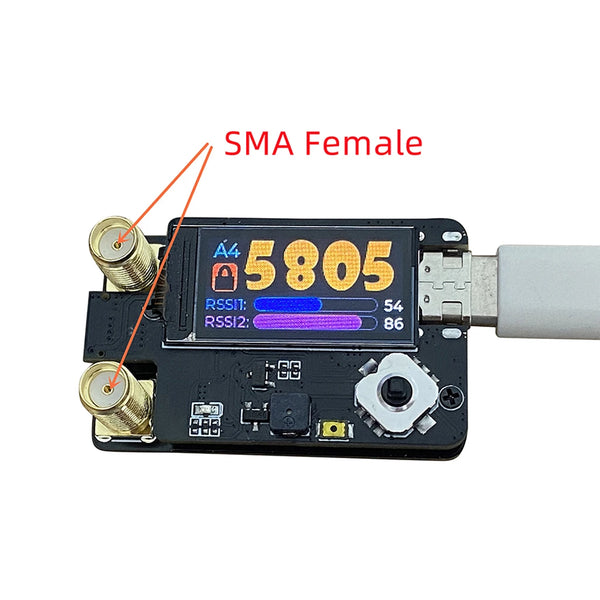

1x RX5808 5.8G PLUS Dual Antenna Receiver Module（SMA Female Connector）

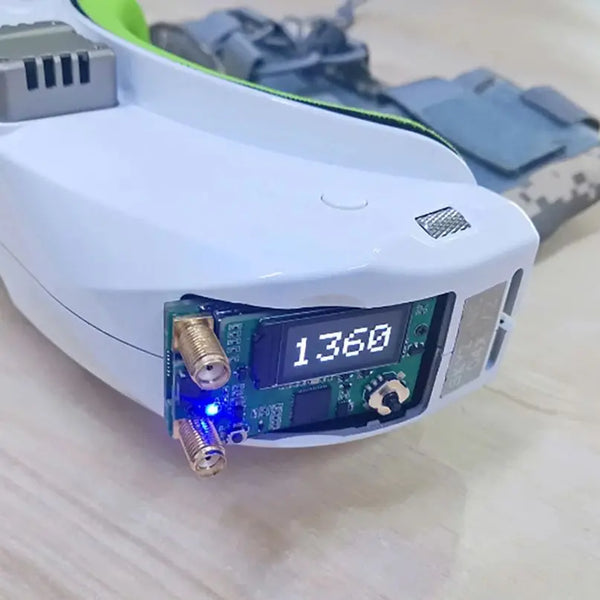

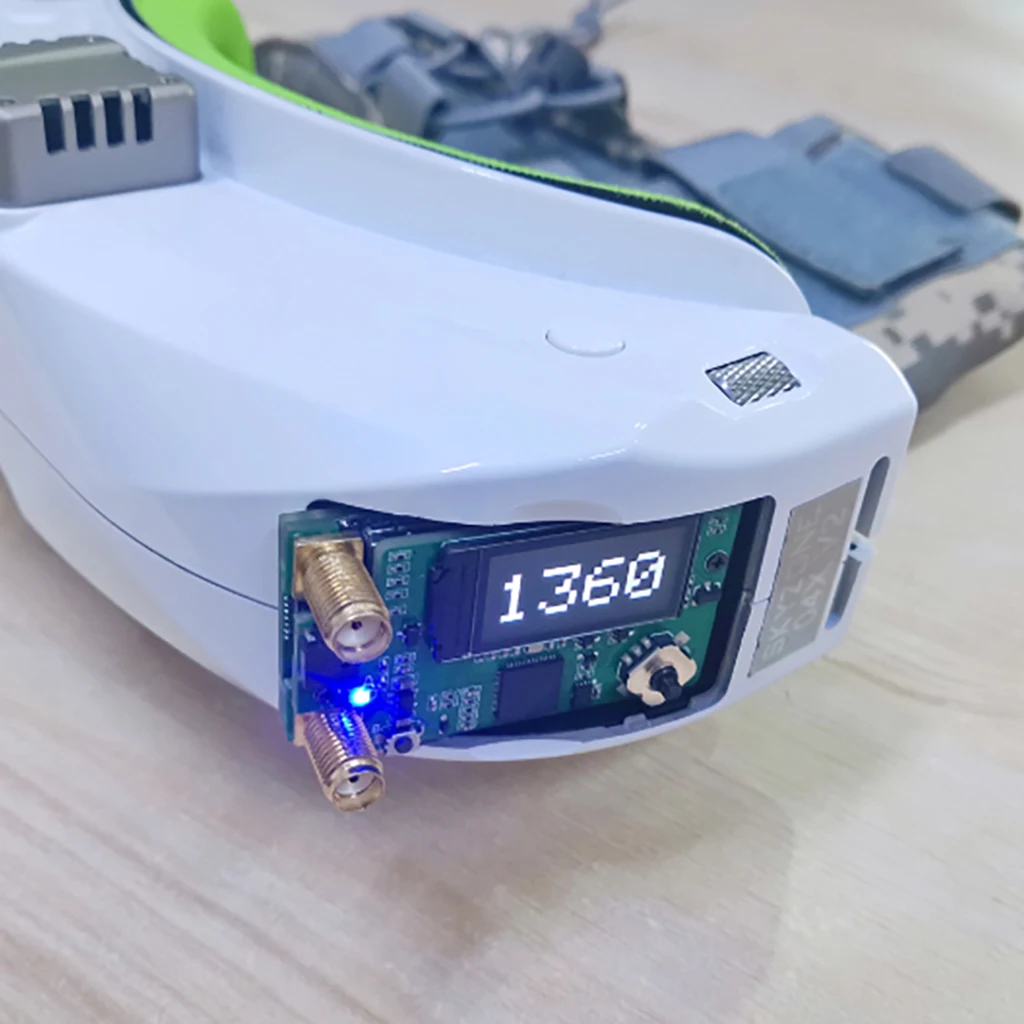

1.2/1.3Ghz Receiver VRX Video Receiver 9CH Wide Band (1080MHz to 1360MHz) Compatible With Fatshark Goggles for SKYZONE Goggles for DJI Goggles V1 V2

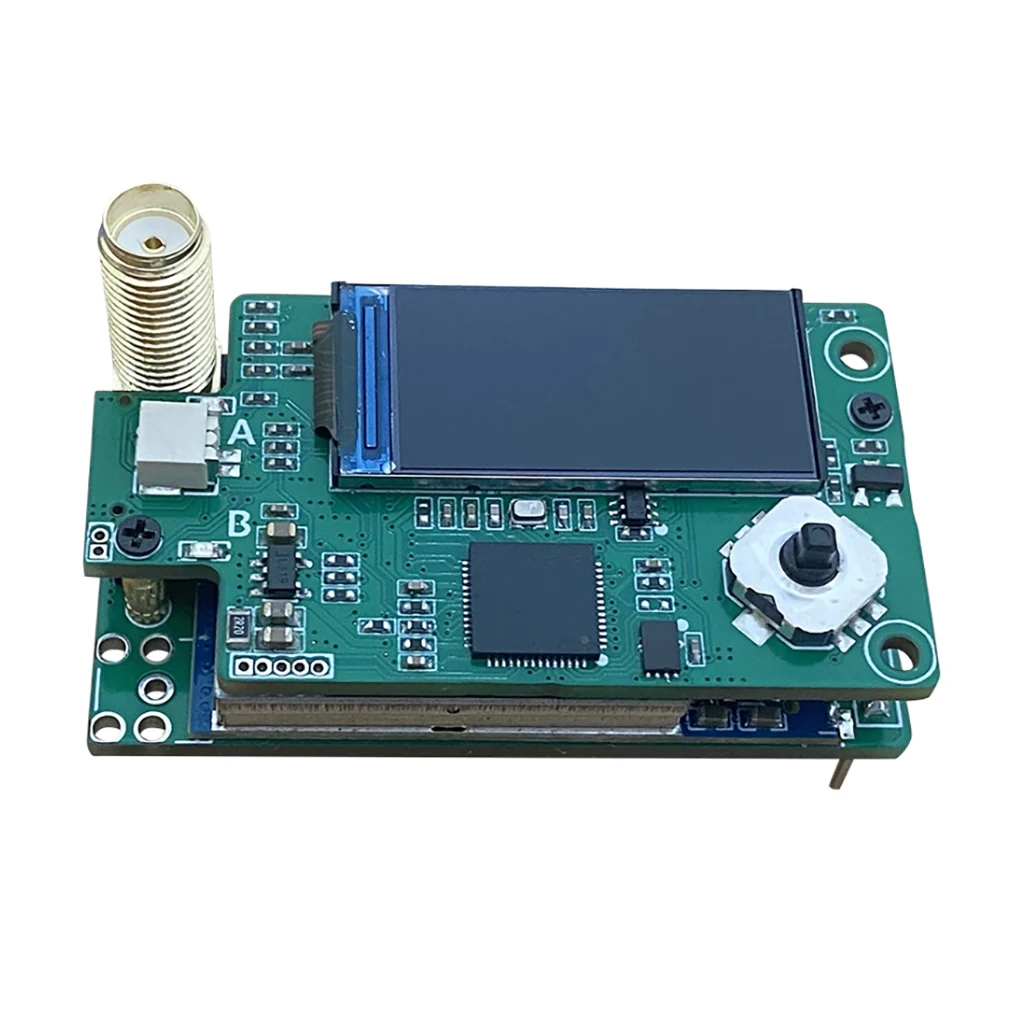

Specifications:

1. 9CH (1080(4),1120(5),1160(6),1200(7),1240(8),1280(9),1320(H),1360(C),1258(D)MHz)

2. Button control and 0.96 TFT LCD display

3. 5V 1A DC IN

4. RF Connector: SMA

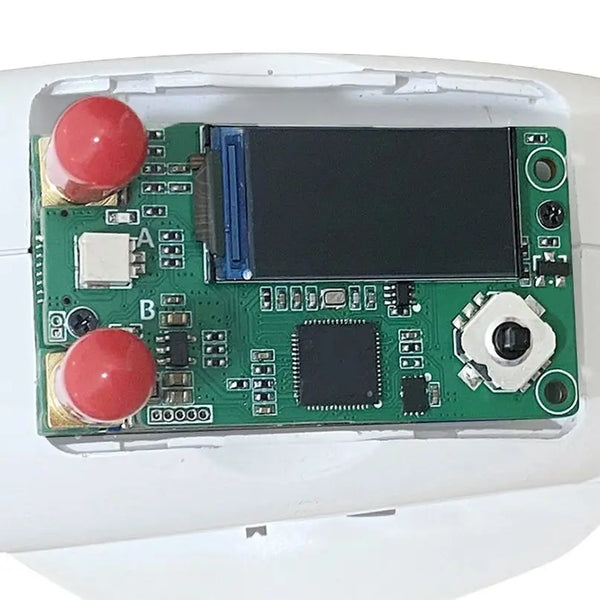

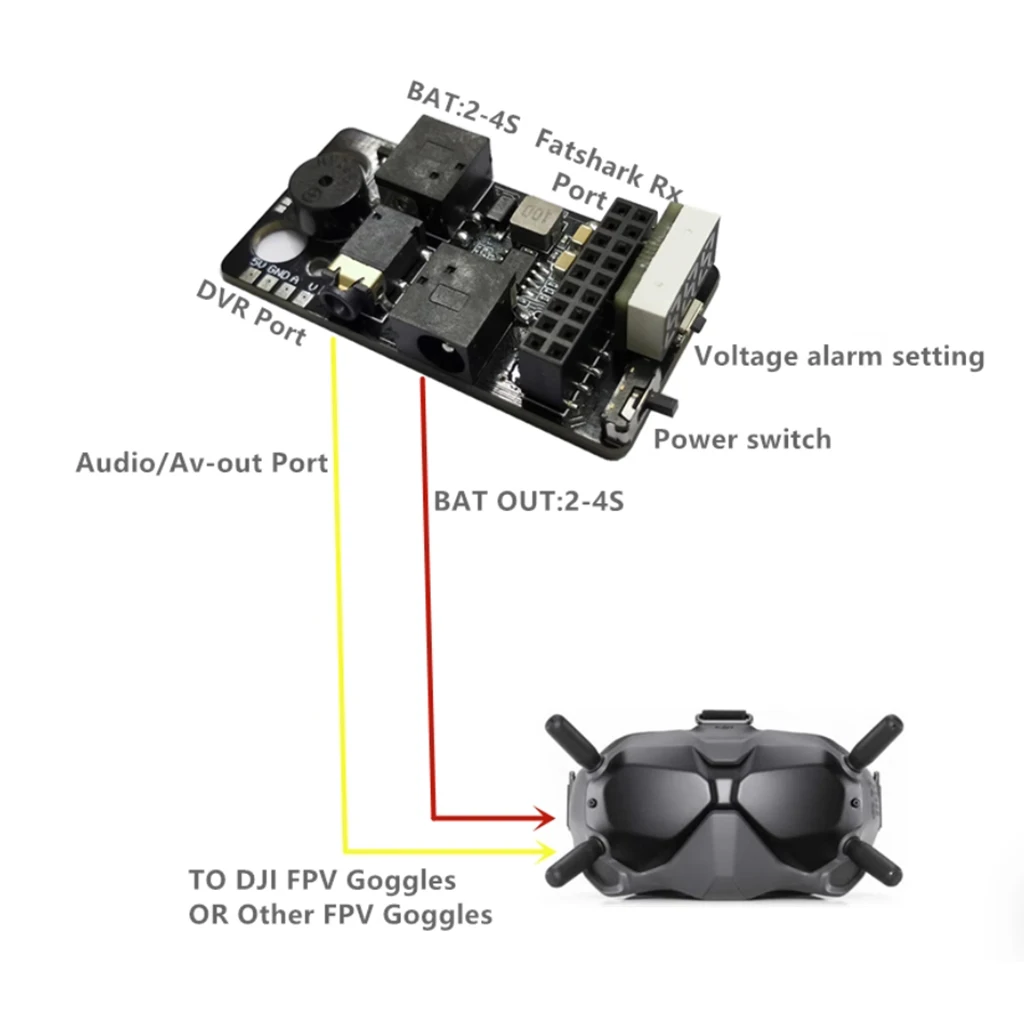

5. Compatible With Fatshark Goggles ,SKYZONE Goggles,DJI GogglesV1 V2(Need to be used in conjunction with 5.8G RX PORT module)

6. Weight: 27.7g ( w/o antanna)

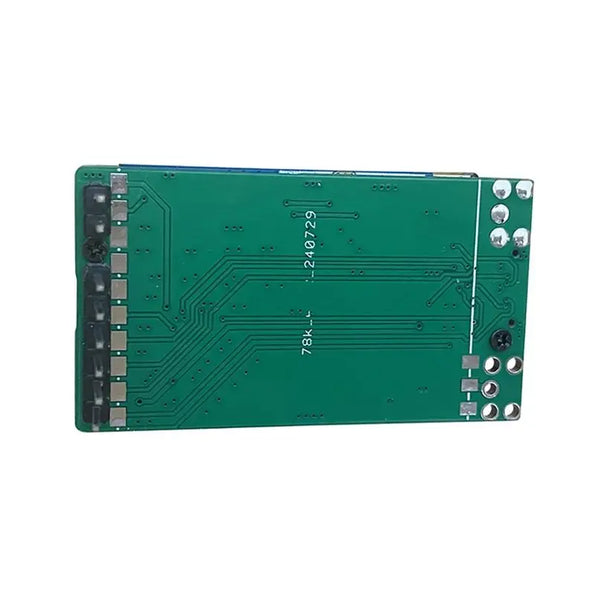

7. Size: board 47*26mm

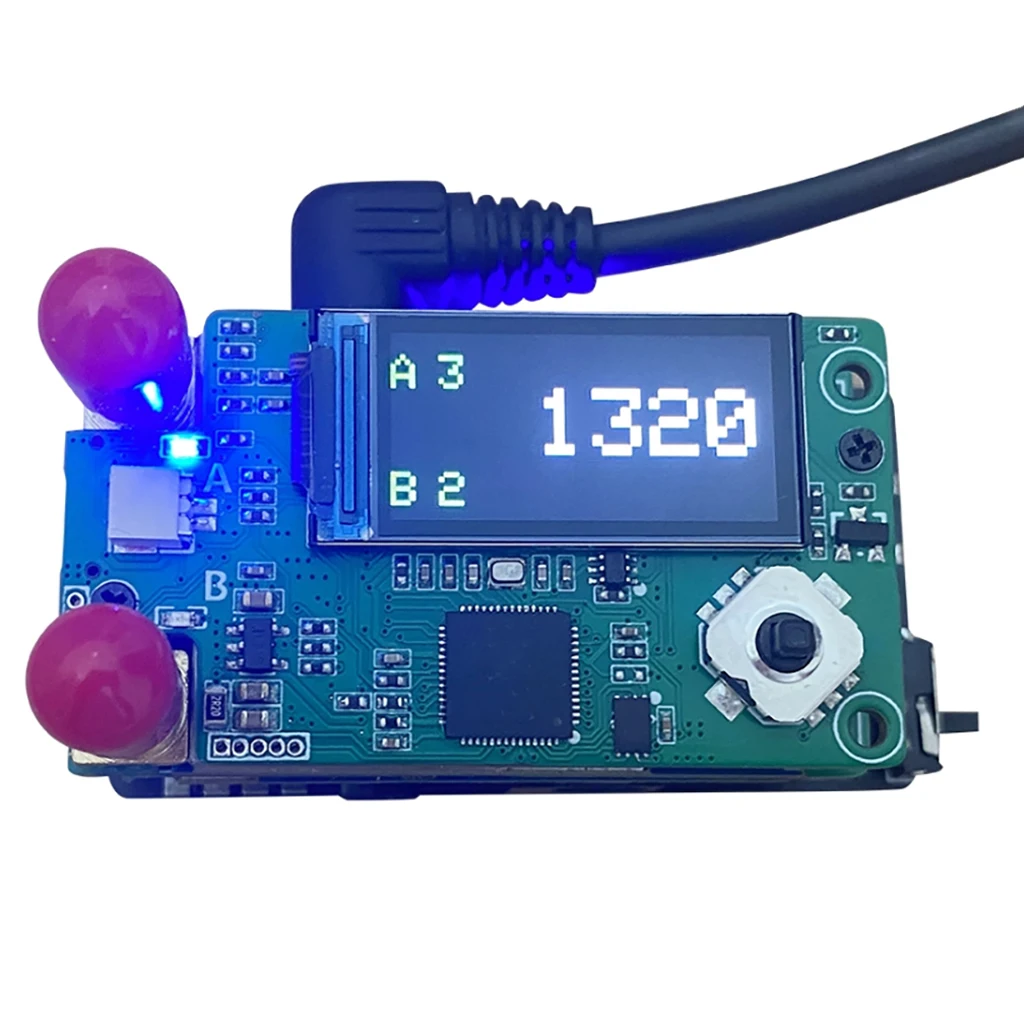

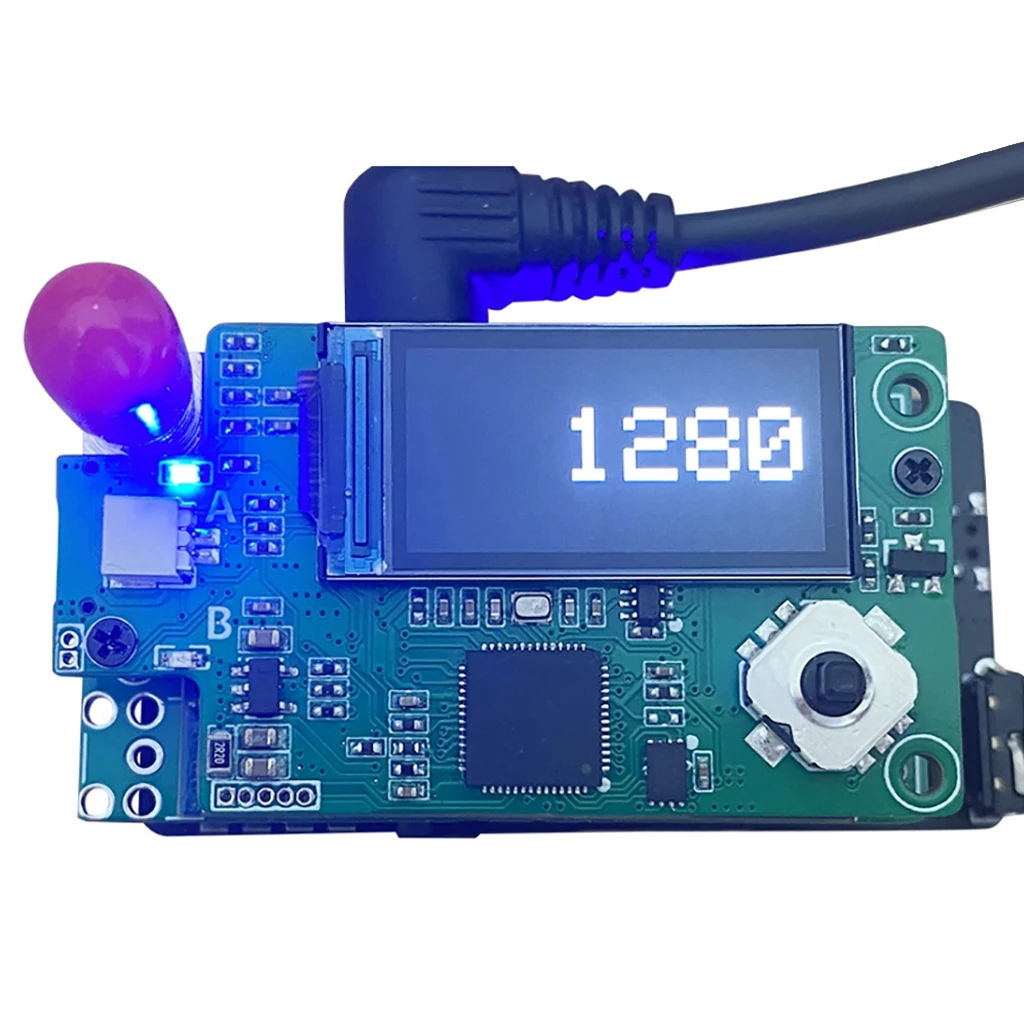

Settings

manual mode, increase the frequency up and decrease it down

Press down vertically to enter the menu

1. Automatic search, press down vertically to enter submenu - Auto1, Auto 2 (dial up or down to switch modes, press down vertically to confirm), go left or right to return to the previous menu

2. RSSI, press down vertically to enter the submenu - RSSI calibration, RSSI output - off, dial up or down to switch If RSSI calibration is selected, press down vertically to enter the RSSI calibration submenu, and press down vertically to start calibration. 2. If RSSI output - off is selected, press down vertically to enter RSSI output or turn off RSSI submenu, switch up and down, and press down vertically to confirm. Return to the previous menu by turning left or right.

3. Receiver mode setting, automatic, switch between receiver A and receiver B by dialing up or down Return to the previous menu by turning left or right.

4. Save and exit, press down vertically to return to the frequency and RSSI display interface. After pressing save and exit, the changed settings will take effect. Power off will save the last manually or automatically adjusted frequency.

Packing Included:

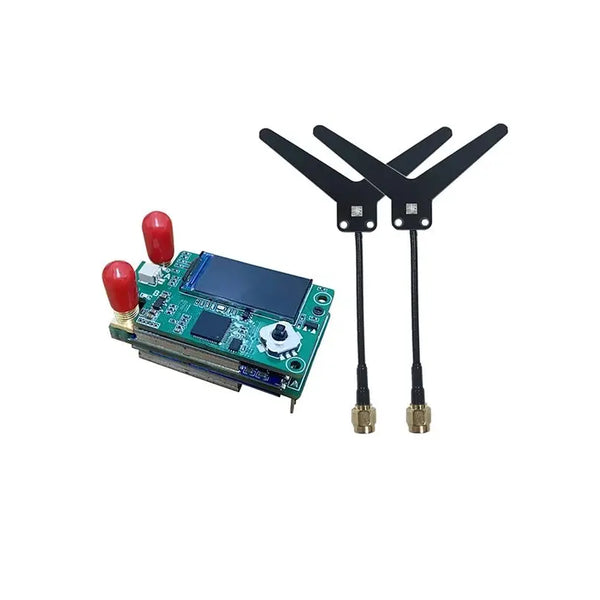

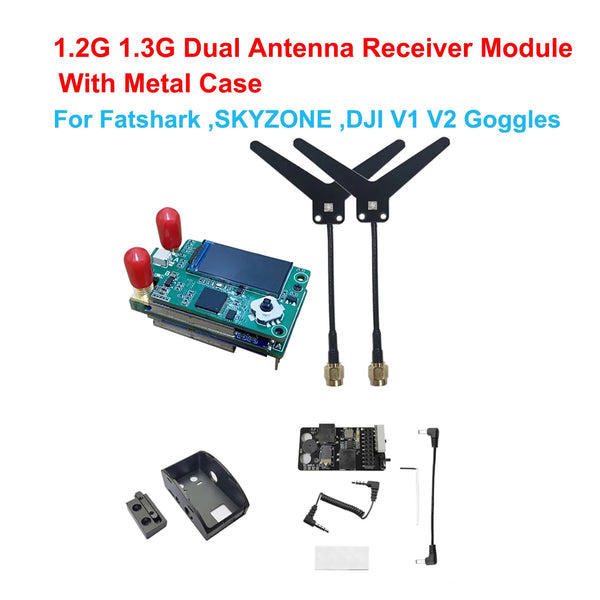

1x 1.2/1.3G Dual antenna Video Receiver

2x SMA antenna
