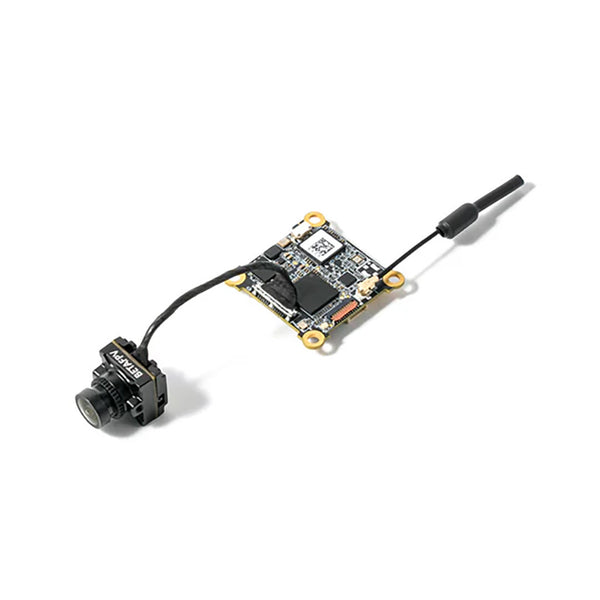

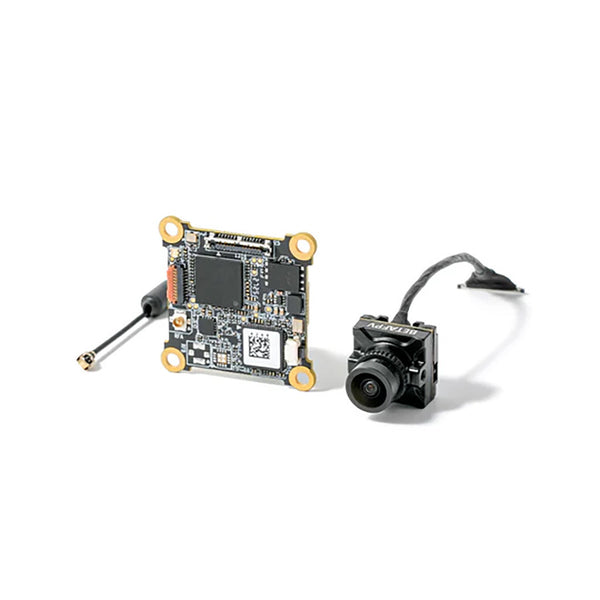

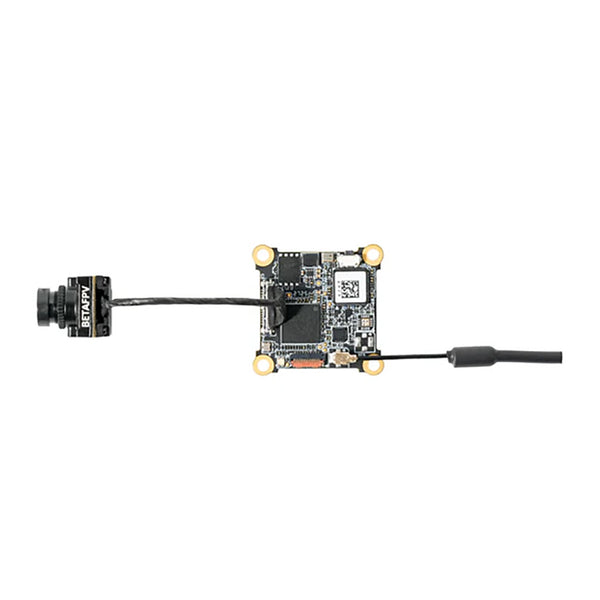

(BETAFPV）P1 Air Unit HD VTX Supported FC Betaflight FC & BETAFPV FC

 ArtLynk Protocol: A low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX.

 Lightweight & Affordable HD: Weighs just 6.8g, offering a compact and affordable HD VTX solution.

 Reliable Video Transmission: Delivers smooth video with ~60ms latency and over 5km range.

 Wide Angle 1080p Clarity: 1/2.9” CMOS sensor and 170° FOV for a crisp, immersive live view.

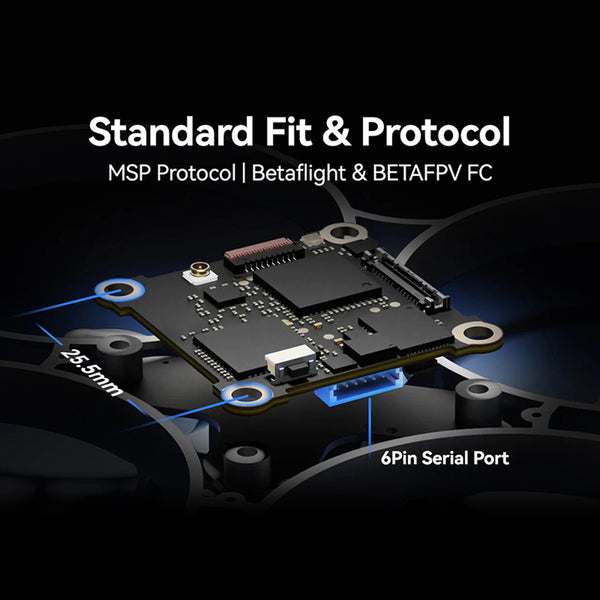

 Plug and Play Compatibility: Standard 6 pin port works seamlessly with Betaflight and BETAFPV flight controllers.

============

Specifications

Air Unit

Weight:

Air Unit (Camera excluded): Approx. 3.61g

Air Unit (Camera included): Approx. 6.5g

Antenna: Approx. 0.44g

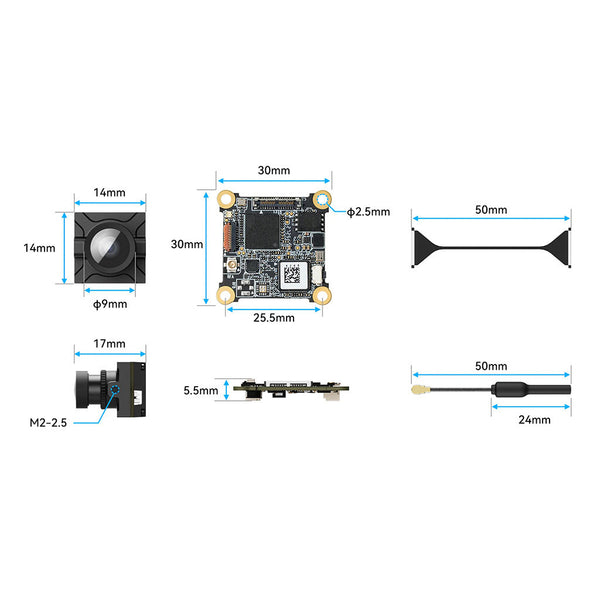

Mounting Hole Size 25.5*25.5mm

Mounting Hole Diameter ø2.5mm

Dimensions (L*W*H) Air Unit: 30*30*5.5mm

Camera: 14*14*17mm

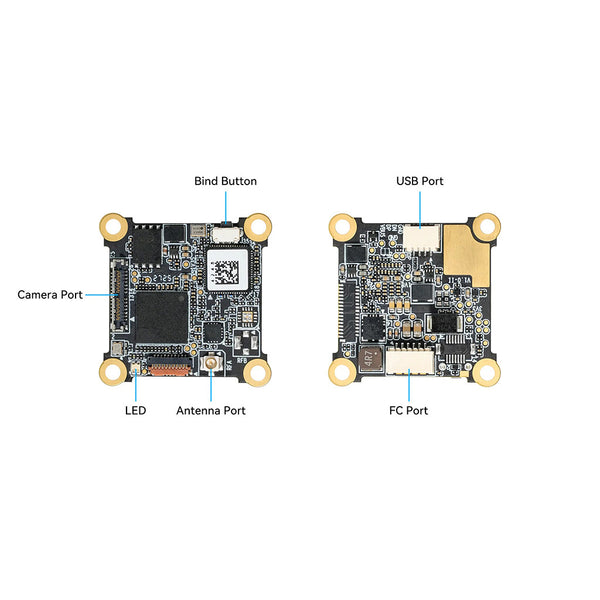

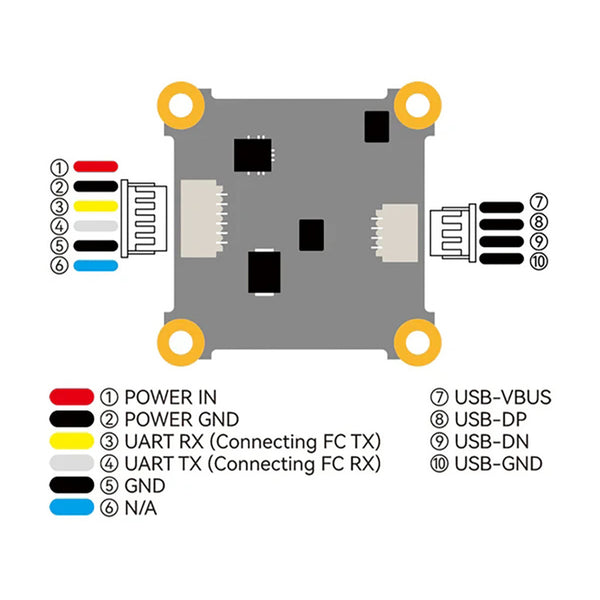

Ports SH 1.0 6-pin (FC)

SH 1.0 4-pin (USB)

VTX

Frequency 5.1-5.9 GHz

Effective lsotropic Radiated Power (EIRP)

＜200mW (FCC/SRRC)

<25mW (CE)

Video Transmission Range >5km

Video Transmission Latency Approx. 60ms

Live View Quality 1080p@60fps

Bandwidth 10MHz

Antenna Single antenna

Channels 3

Camera

Mounting Width 14mm

Mounting Hole M2

Image Sensor 1/2.9'' CMOS

Lens Field of View (FOV): 170°

Video Format MP4

Max Video Transmission Bitrate 20Mbps

OSD Canvas mode

Firmware

Input Voltage 5V

Operating Temperature -10℃ to 40℃

Compatibility

Supported FC Betaflight FC & BETAFPV FC
