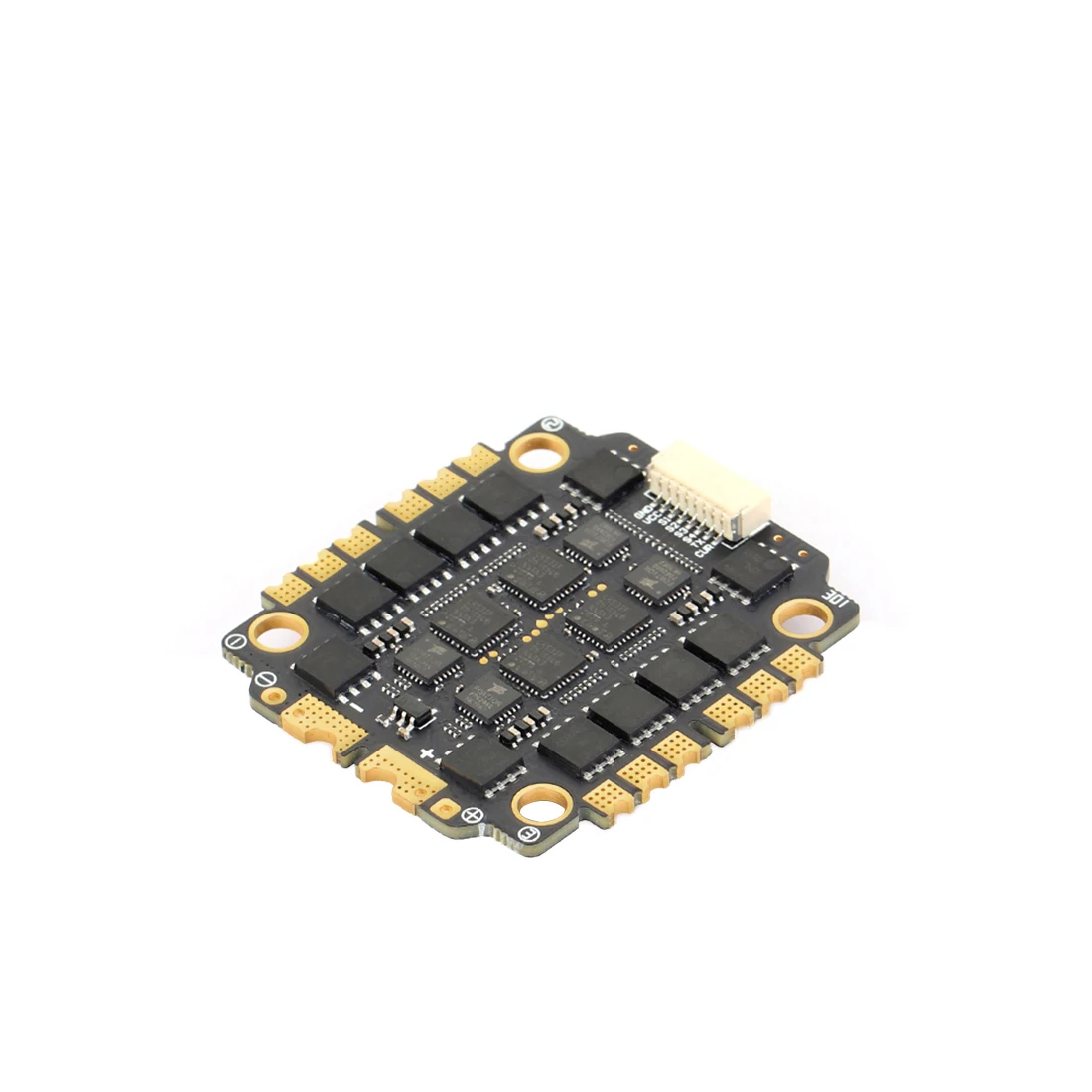

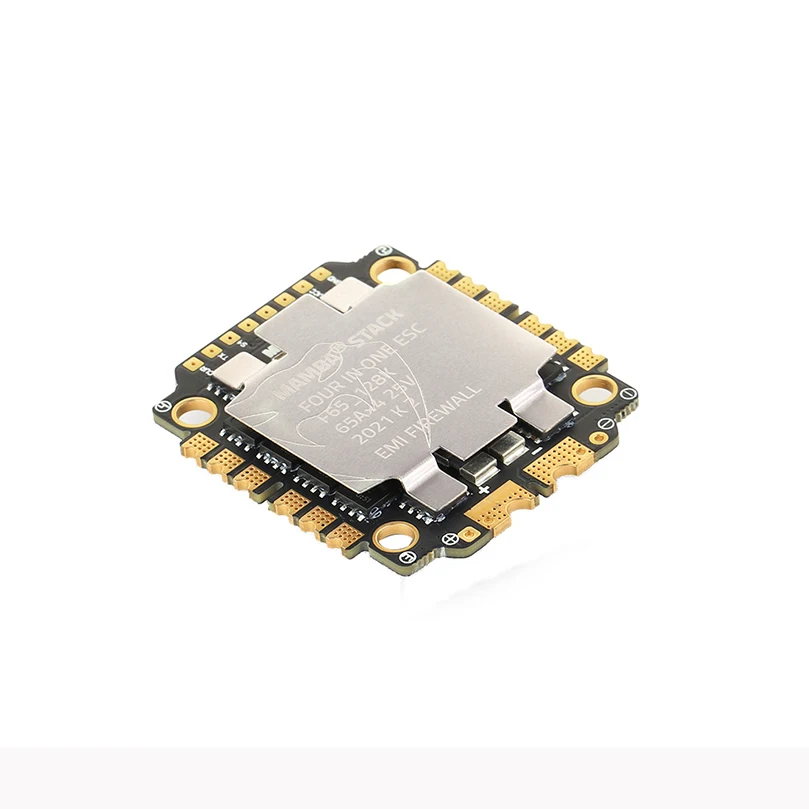

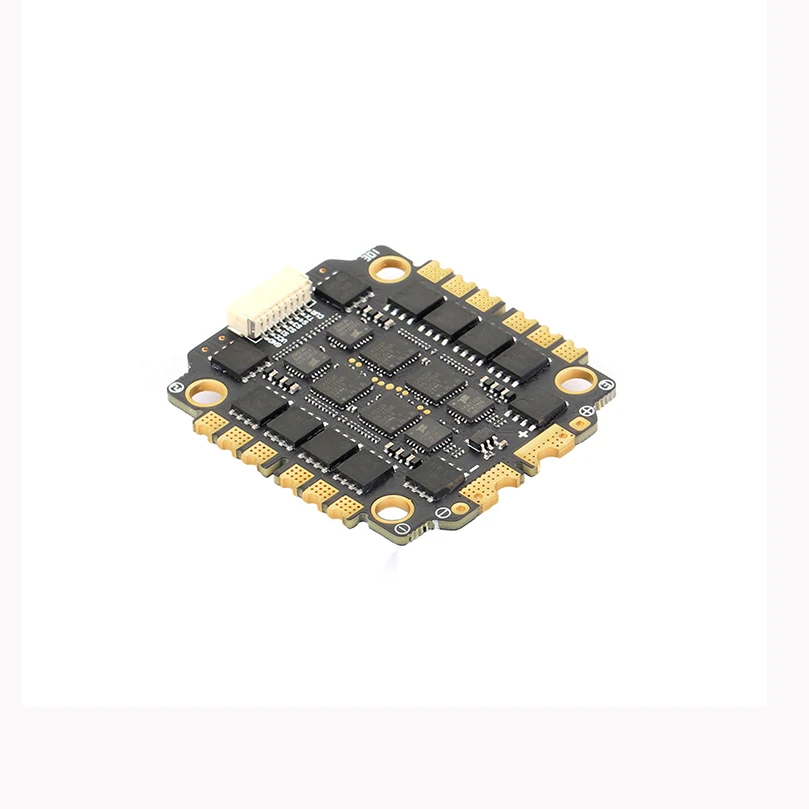

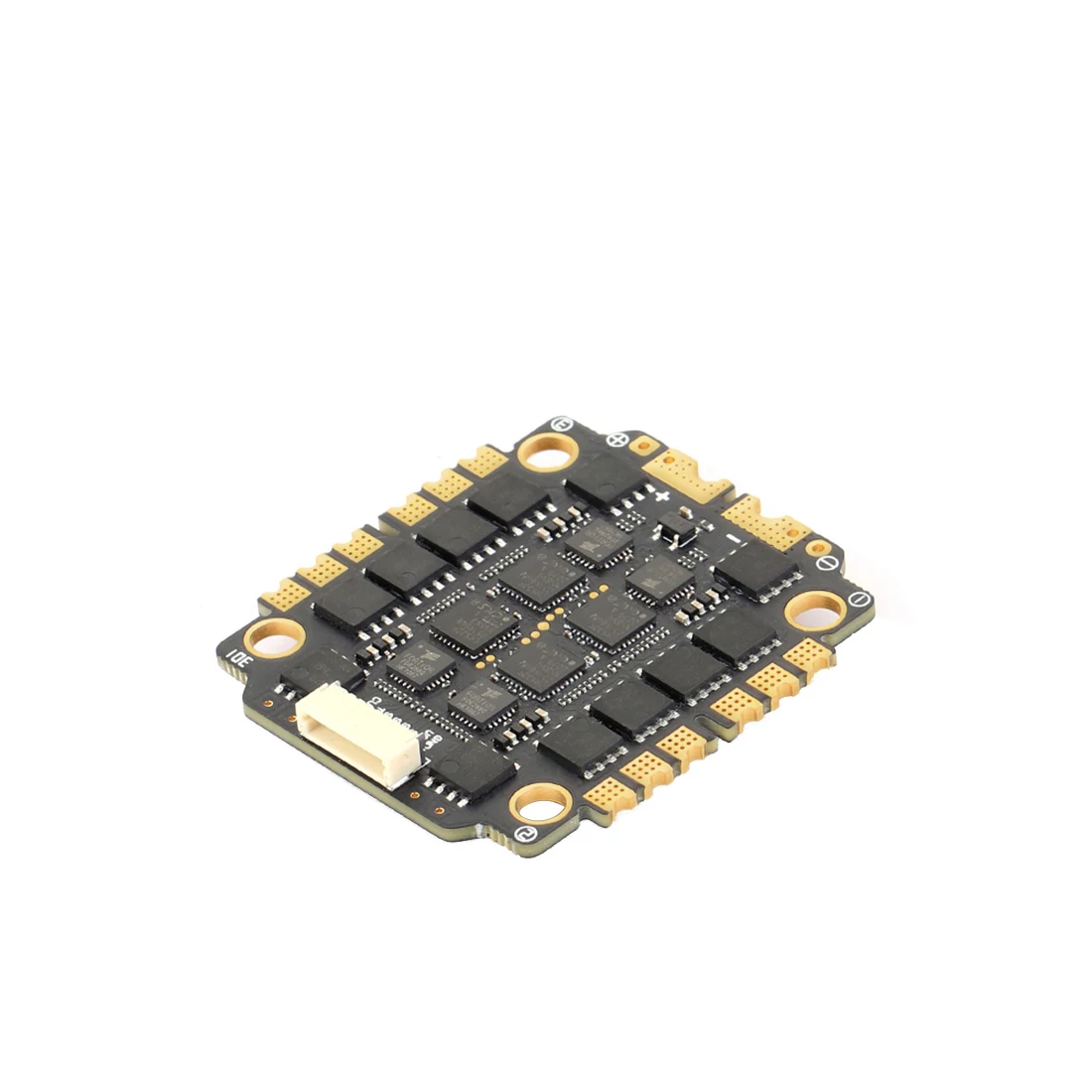

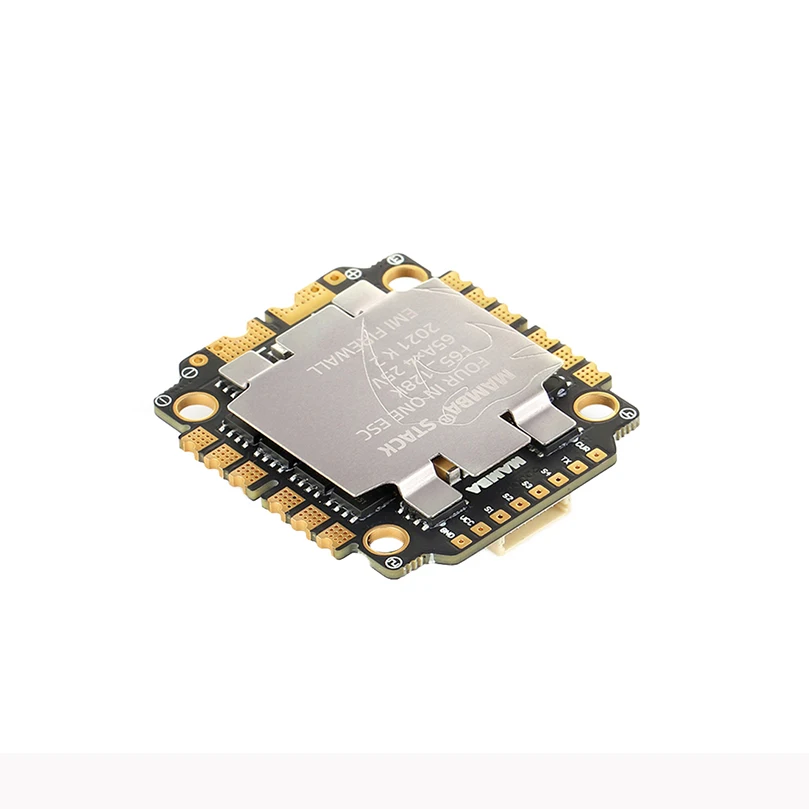

DIATONE MAMBA F65_128K BL32 4IN1 ESC 65A 6S Dshot1200 Electronic Speed Controller

INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)

CONTINUE CURRENT:65A×4

BURST CURRENT:75A (10S)

BEC: No

Target：BLHeli_32 MAMBA F65_128K

SOFT: Dshot300/600/1200

PWM:24~128K

TVS Protection: Yes

MOUNTING: 30.5mm/M3

Supply :

8pin sh1.0 ×2

AMASS Original XT60

High Frequency 470uF/35V

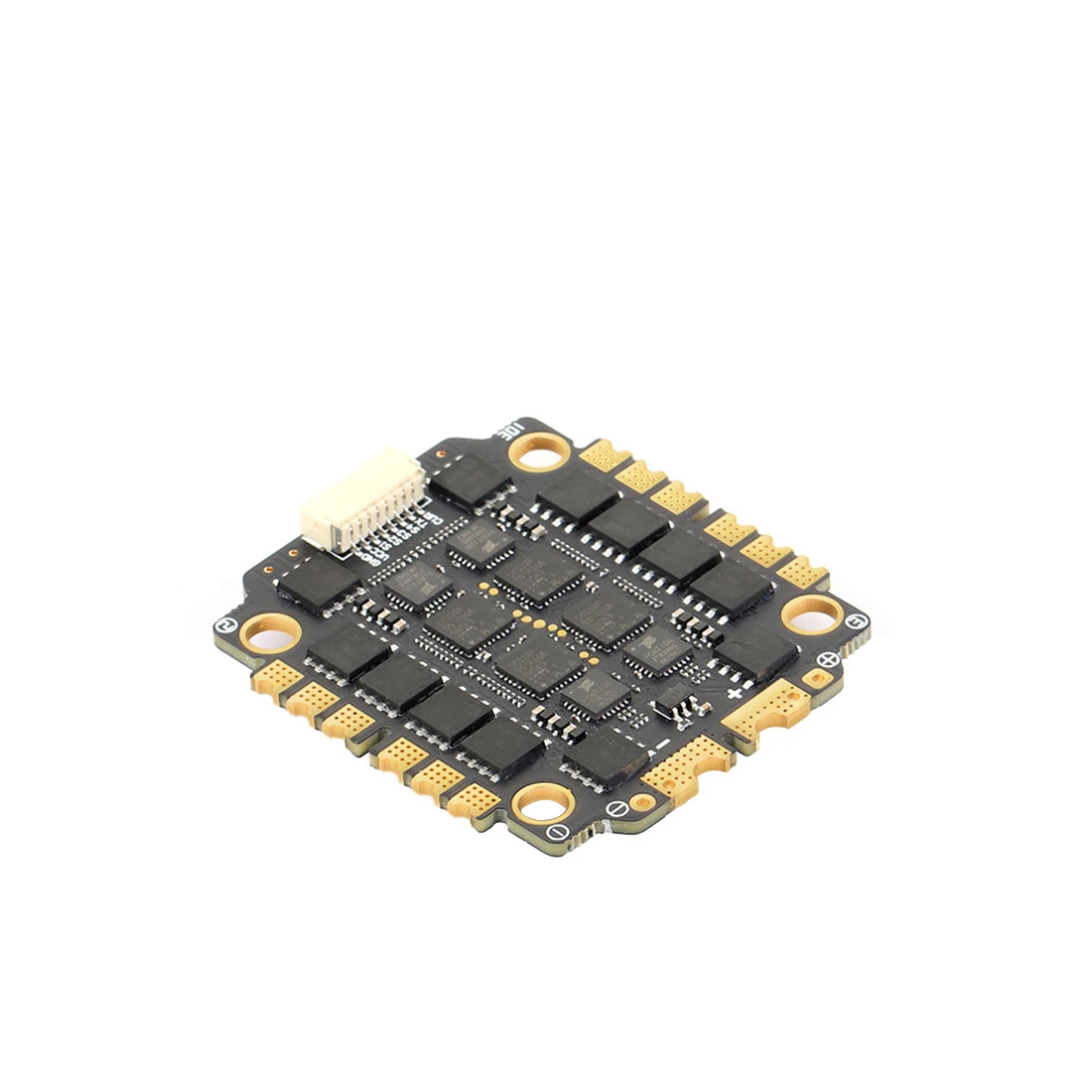

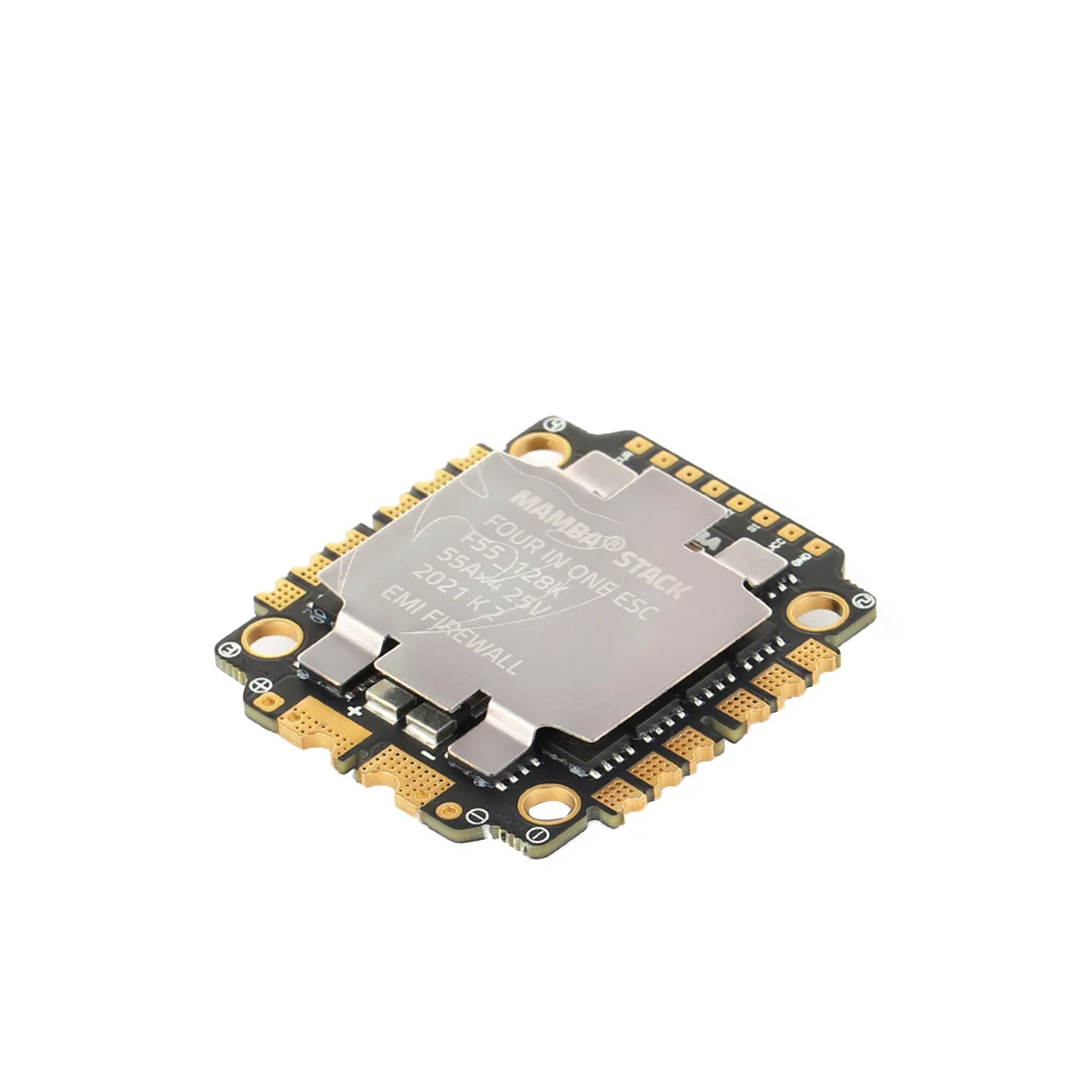

DIATONE MAMBA F55_128K BLHELI32 55A 4in1 3-6S Brushless ESC 30X30mm

ESC Specification:

INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
CONTINUE CURRENT:55A×4
BURST CURRENT:65A (10S)
BEC: No
Target:BLHeli_32 MAMBA F55_128K
SOFT: Dshot300/600/1200
PWM:24~128K
TVS Protection:Yes
MOUNTING: 30.5mm/M3
Supply :
8pin sh1.0 ×2
AMASS Original XT60
High-Frequency 470uF/35V

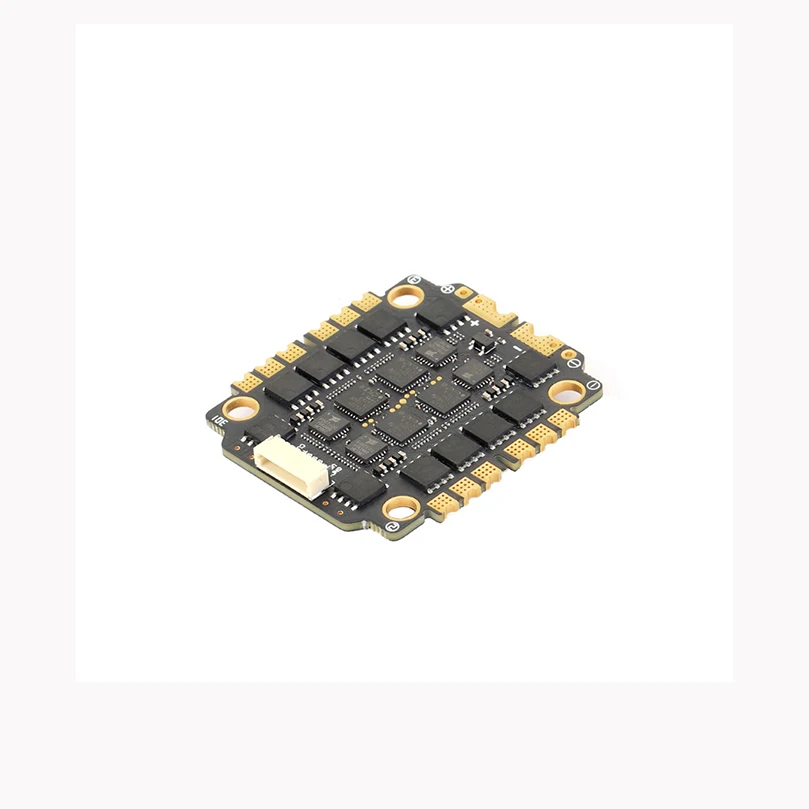

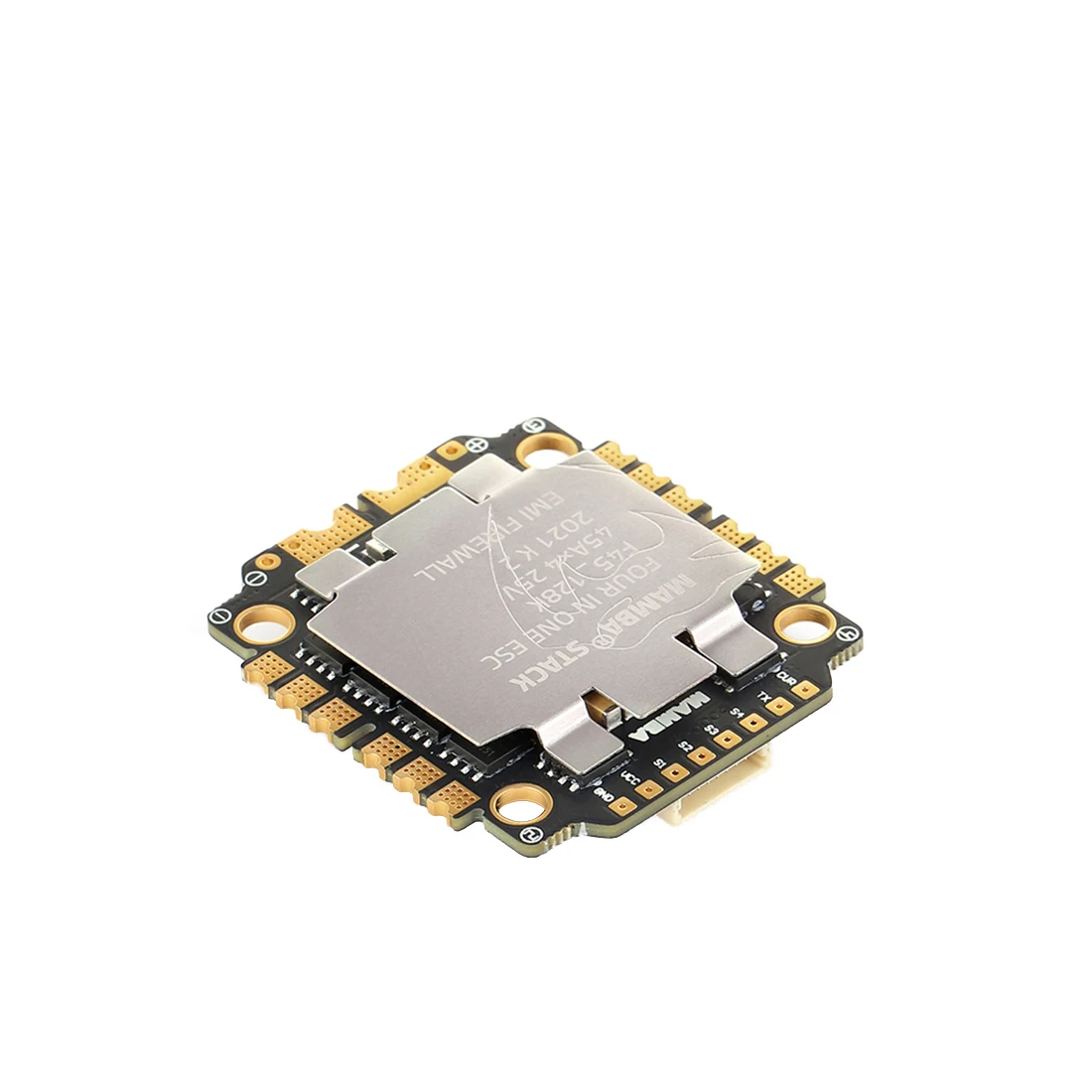

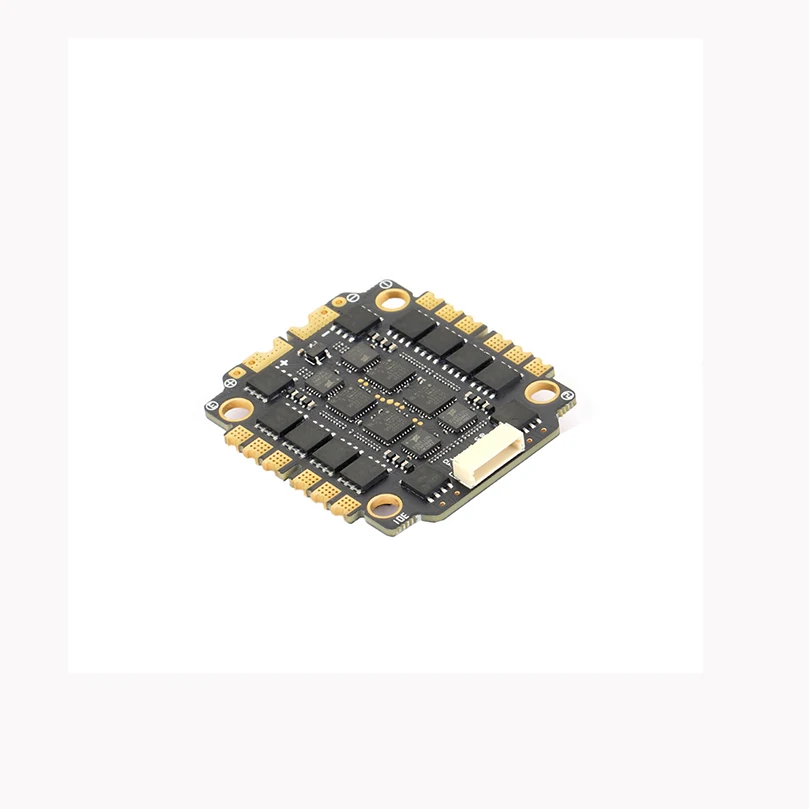

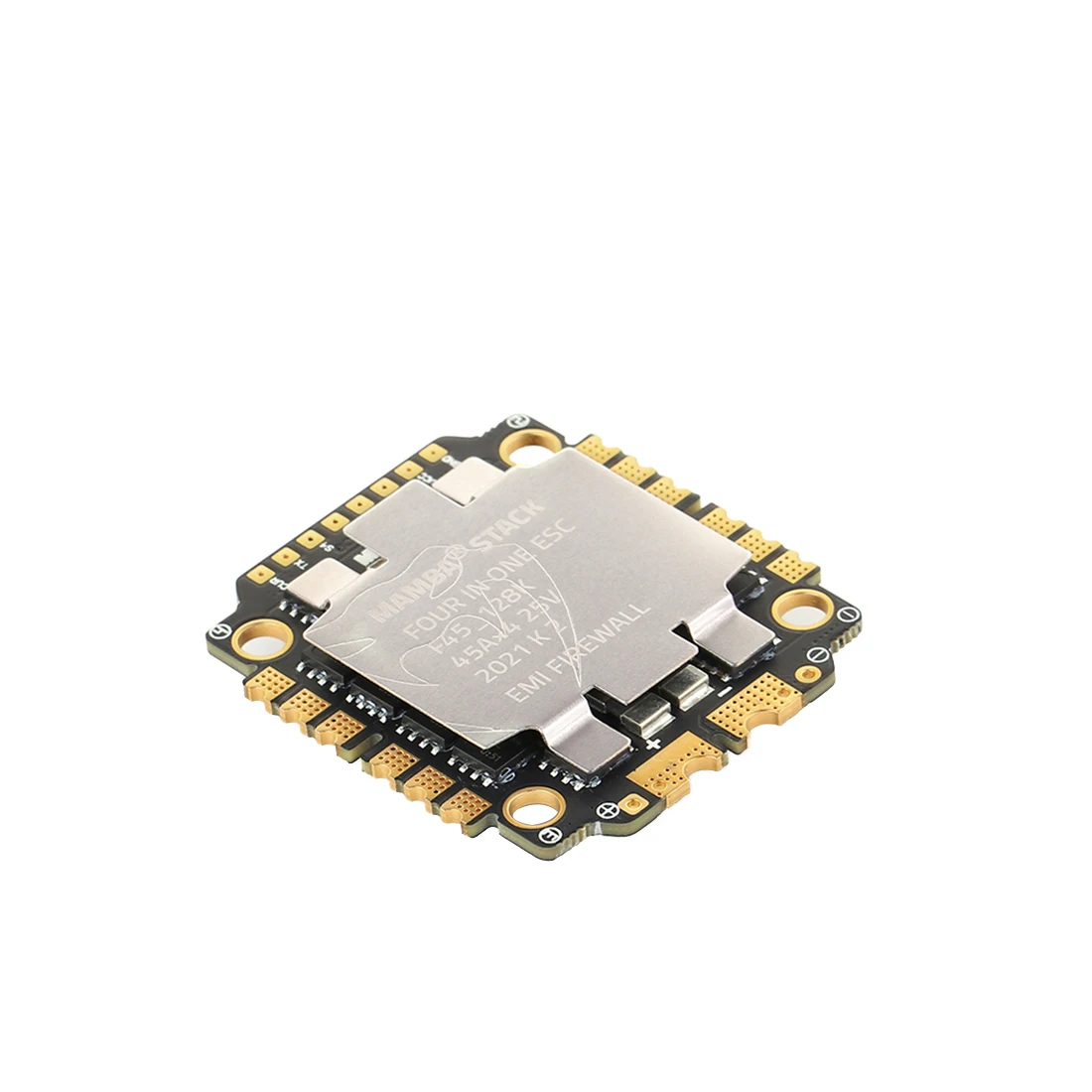

DIATONE MAMBA F45_128K BLHELI32 45A 4in1 3-6S Brushless ESC 30X30mm

ESC Specification:

INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
CONTINUE CURRENT:45A×4
BURST CURRENT:55A (10S)
BEC: No
Target:BLHeli_32 MAMBA F45_128K
SOFT: Dshot300/600/1200
PWM:24~128K
TVS Protection:Yes
MOUNTING:30.5mm/M3

Supply :
8pin sh1.0 ×2
AMASS Original XT60
High-Frequency 470uF/35V

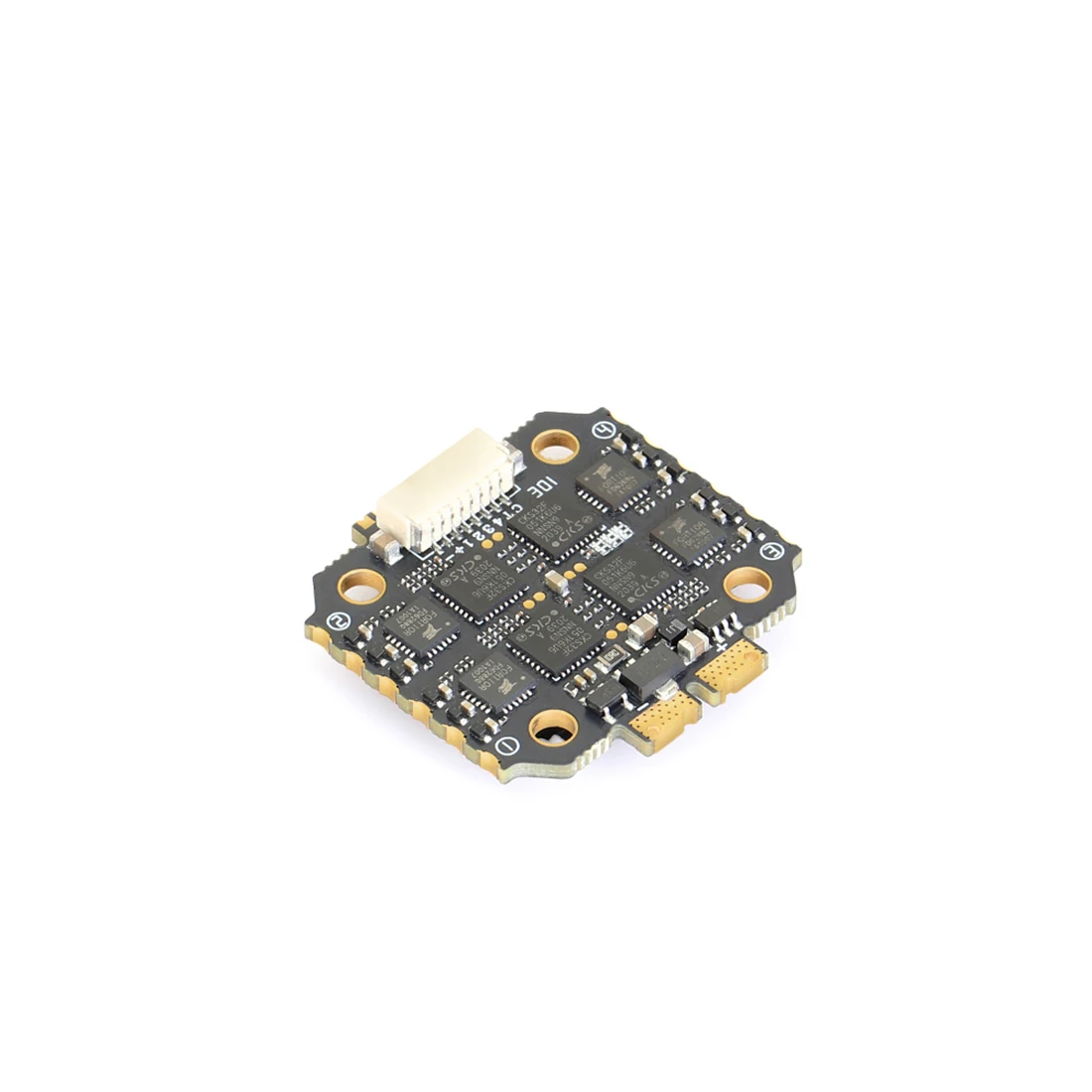

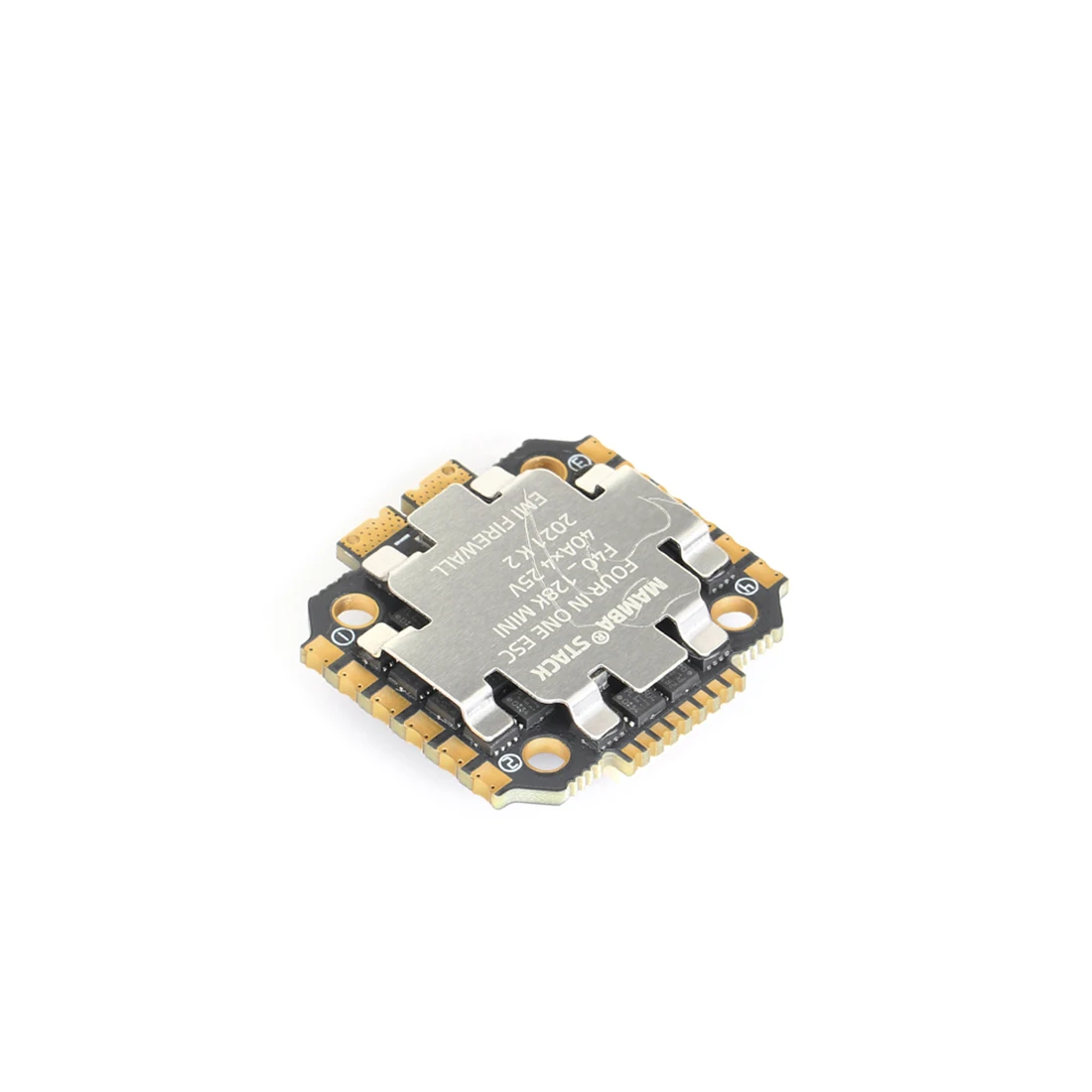

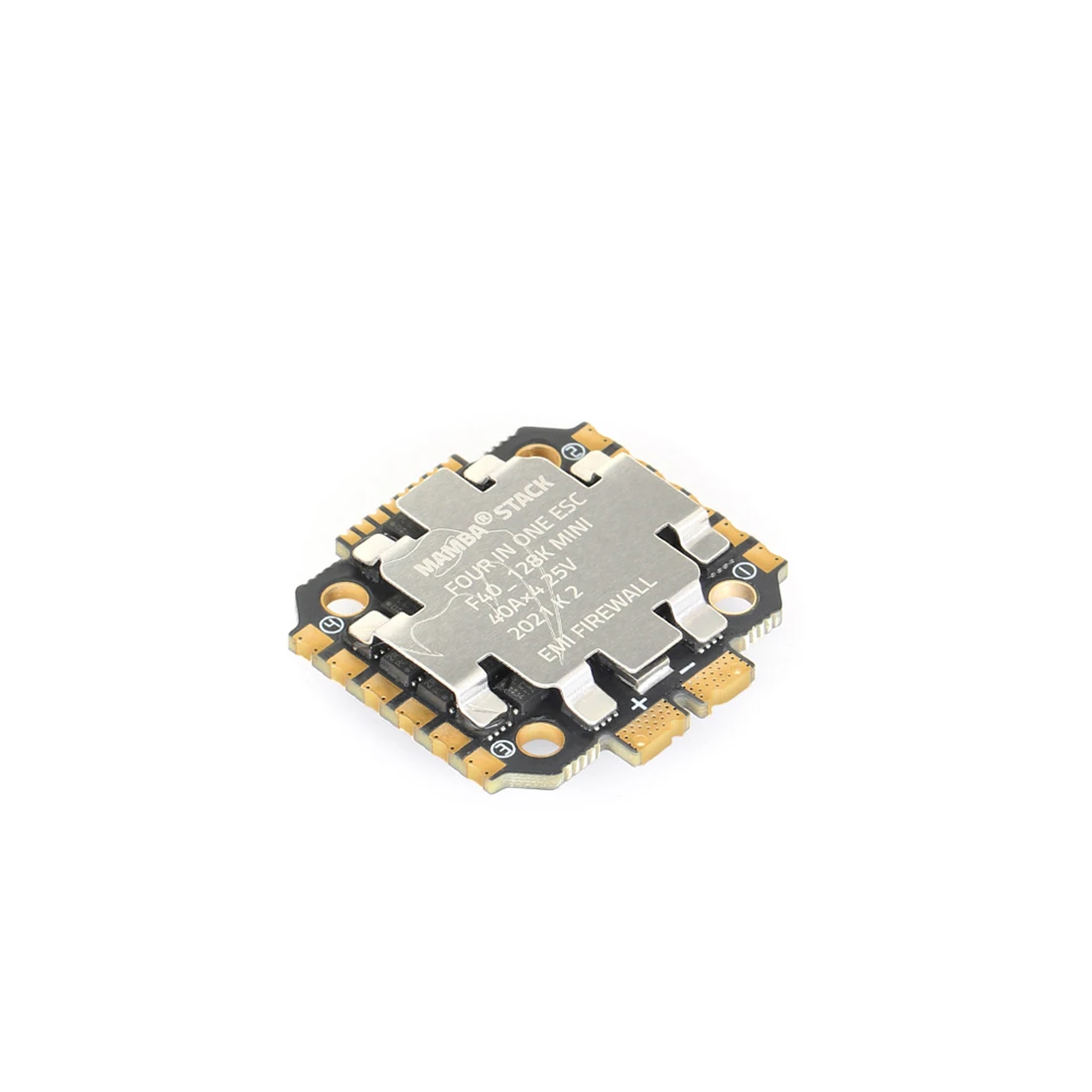

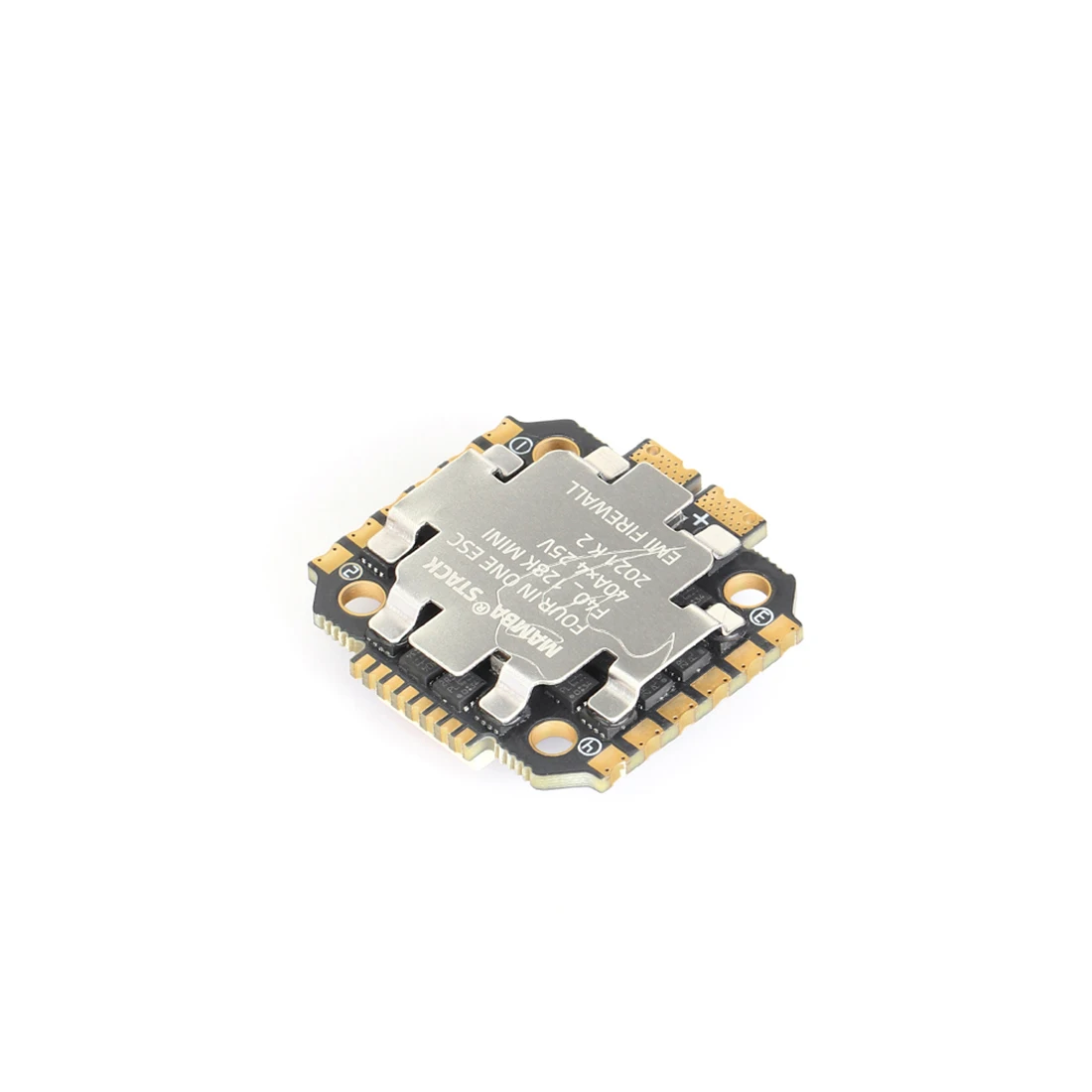

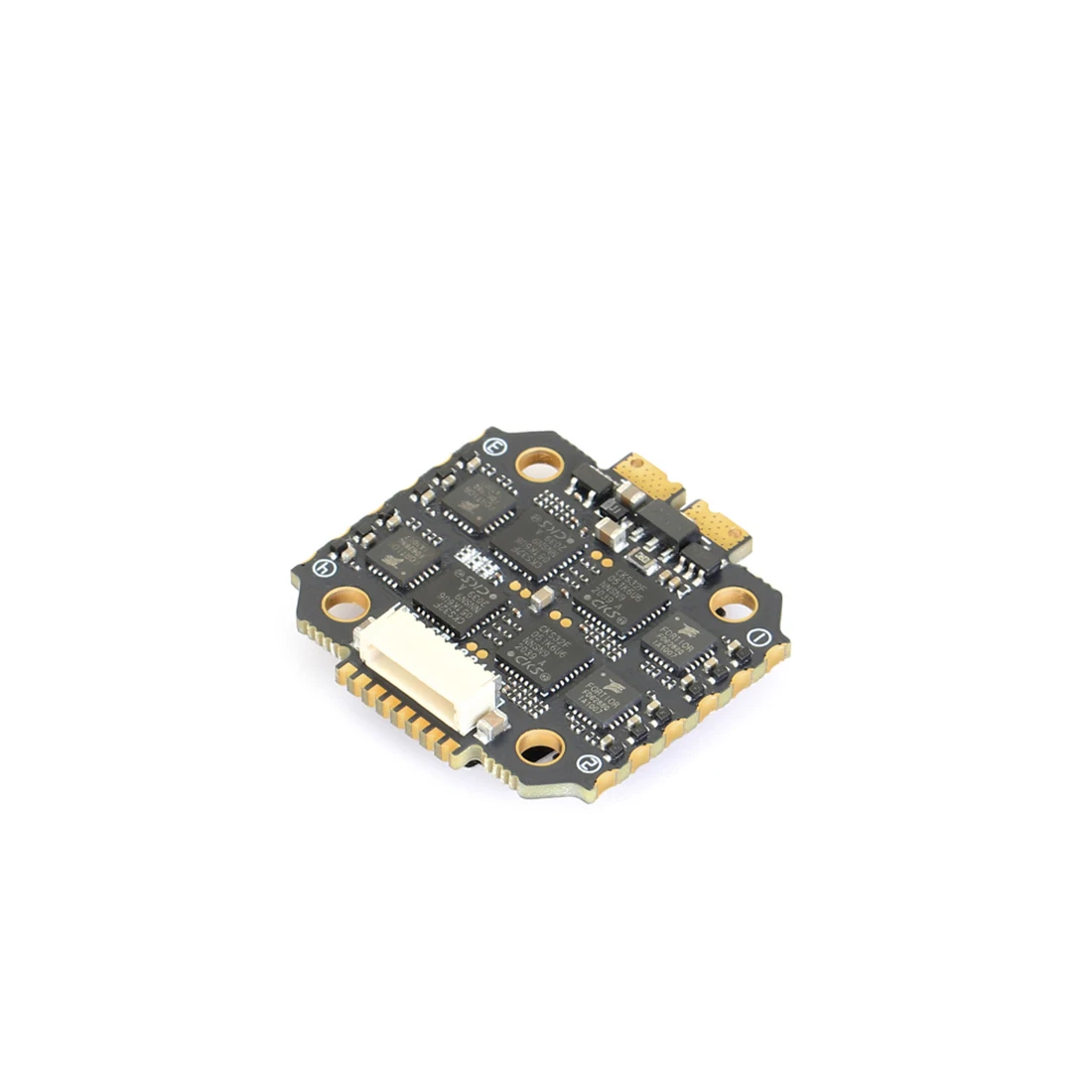

DIATONE MAMBA F40_128K BLHELI32 MINI 40A 4in1 2-6S Brushless ESC 20X20mm

ESC Specification:

INPUT VOLTAGE: 2~6S Lipo (8.4V~25.2V)
CONTINUE CURRENT:40A×4
BURST CURRENT:45A (10S)
BEC: No
Target:BLHeli_32 MAMBA F40_128K_MINI
SOFT: Dshot300/600/1200
PWM:24~128K
TVS Protection: Yes
MOUNTING: 20mm/M2-M3

Recommend For : 3inch / 4inch / Ultralight 5inch

Supply : 8pin sh1.0 ×2
AMASS Original XT60
High-Frequency 470uF/35V
