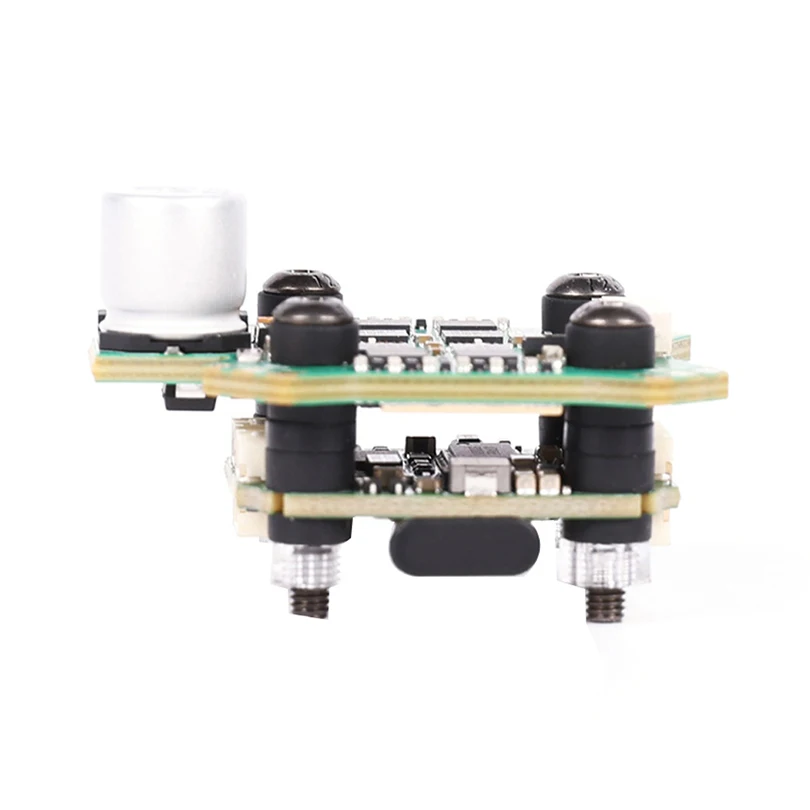

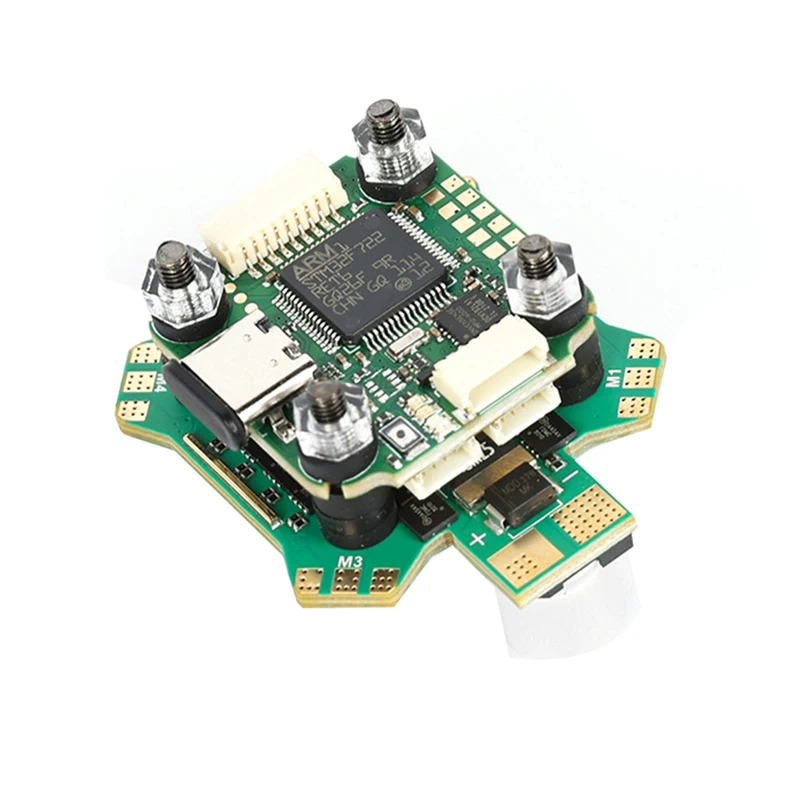

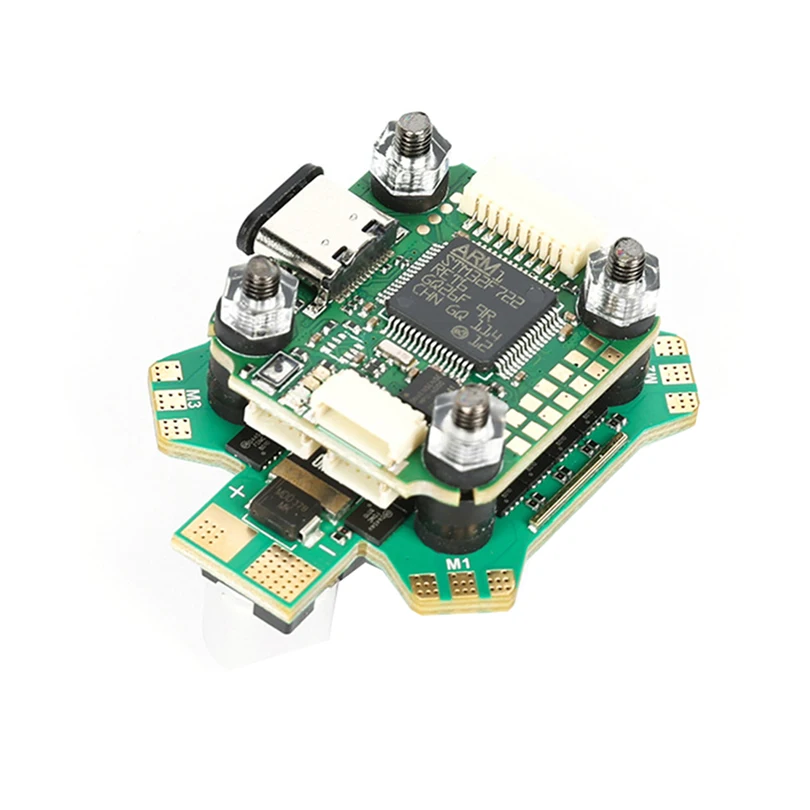

20X20mm IFlight BLITZ Mini F7 Stack MPU6000 F722 Flight Controller E55S BLHELIS / E55 BLHELI32 55A 4in1 ESC 2-6S for FPV Drone

BLITZ Mini F7 Flight Controller

Top Features:

- BlackBox: 16MB

- DJI Air Unit Plug-and-Play. No need to solder tiny wires.

- BAT, +5V, 3.3, Start indicator

- With LC filter.

Specs:

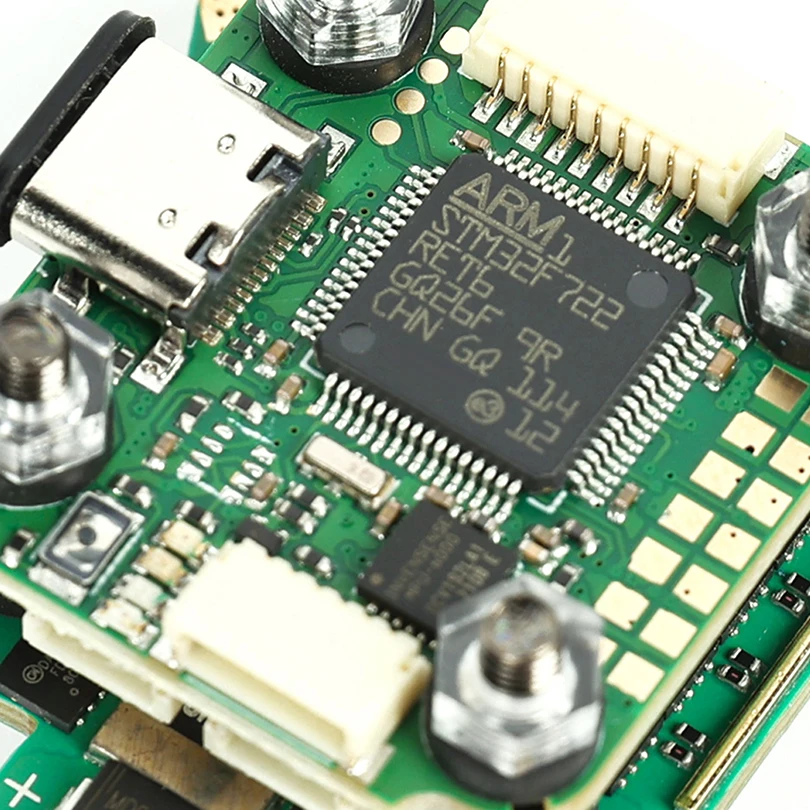

- MCU:STM32 F722

- Gyro:MPU6000

- Baro: BMP280

- Betaflight OSD:IFLIGHT OSD (AT7456E)

- Blackbox:16MB

- 5 X Uarts

- UART1 for VTX HD/Analog

- UART2 for  Receiver

- UART3,UART4 for GPS or 0ther sensors that require a serial port

- UART6 for ESC Telemetry

- 4×Dshot/PWMoutputs

- 1×I2C

-1 xSH1.0 9pin connector for HD VTX/Analog VTX&CAM (5V/BAT/G/VO/T1/R1 /5V/G/VI)

- 1 xSH1.0 8pin connector for ESC(R6/CUR/M4/M3/M2/M1/BAT/G)

- 1xSH1.0 6pin connector for Any Receiver or DJI(3V3/R2i/5V /G/R2/T2)

- 1xSH1.0 4Pin  connector GPS (T4/R4/G/5V)

- 1xSH1.0 4Pin connector LED&Beeper (BUZ/LED/G/5V)

- Smartaudio&IRCTramp  VTX protocol supported

- WS2812ledStrip:Yes

- Bepper:Yes

- Firmware: IFRC-BASEF4 4.X.X

- Mounting:20*20mm/φ4

- Dimensions:30.5*27mm

- Weight:5.0g

Package included:

1pc x BLITZ Mini F7 Flight Controller

1set x Wire harness

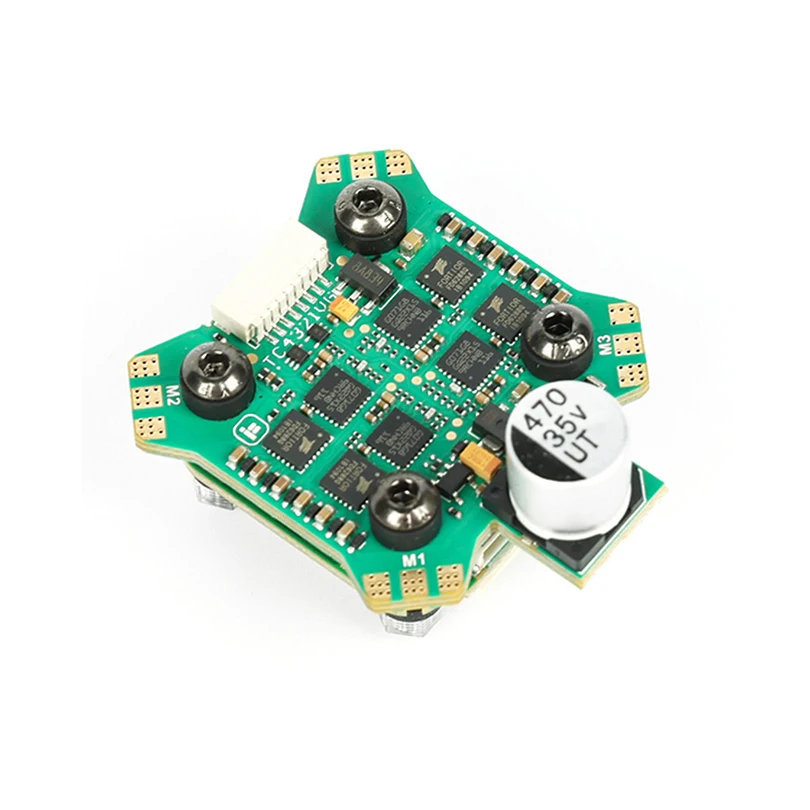

BLITZ Mini E55 4-IN-1 2-6S ESC

Specification:

- Dimension: 35*42mm

- Mounting Holes: 20*20mm/Φ4mm

- Weight: 11.3g

- Supports 2-6S lipo input

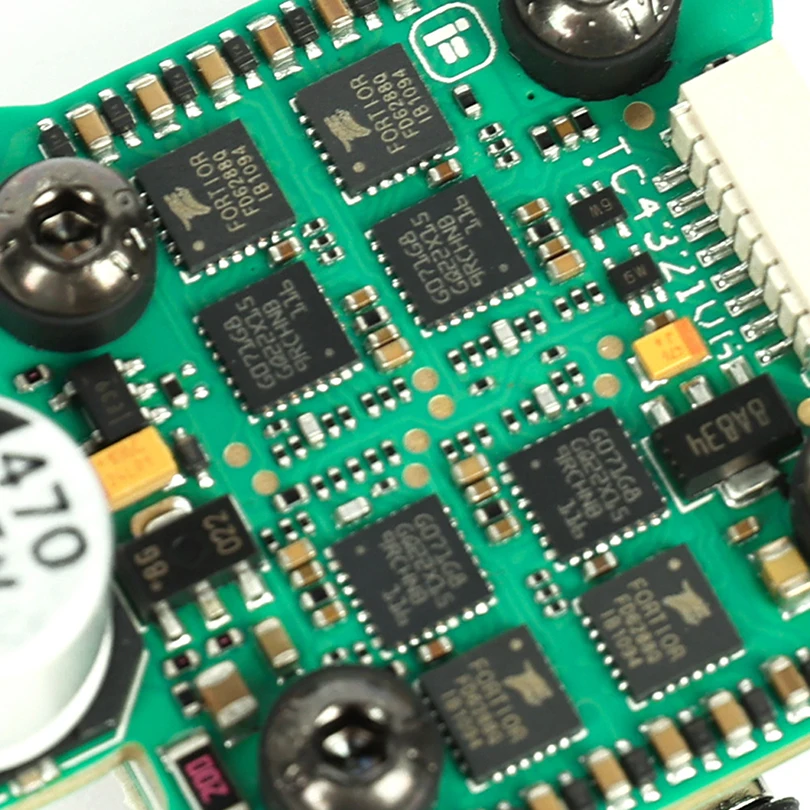

- MCU:G071

- Constant: 55 Amps

- Burst: 60 Amps

- Current sensor: Yes

- BEC: No

- Current rate: 100

- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

- Firmware: BLHeli 32

- Target:   IFLIGHT_BLITZ_G1

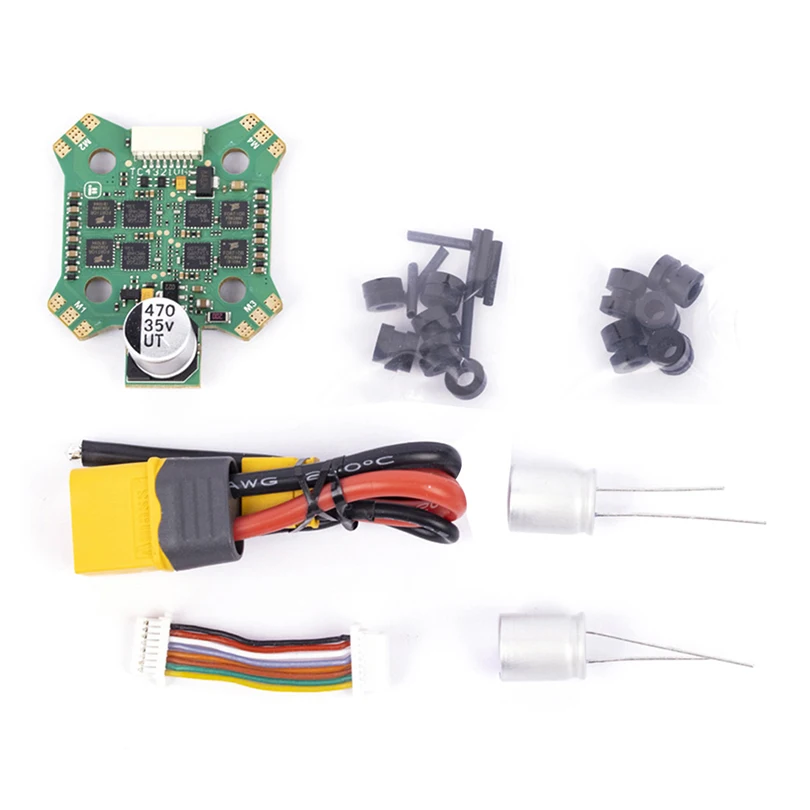

Package Included:

- BLITZ Mini E55 4-IN-1 2-6S ESC * 1pc

- Power cables & ESC signal wires * 1set
