DarwinFPV ExpressLRS ELRS AIO F4 Flight Controller FPV 2.4G Flight Controller BWhoop Betaflight 15A OSD BEC 1-3S 4In1 ESC

Darwin ELRS2.0 F411 15A Bluejay AIO DarwinFPV-ELRS AIO- F415 Flight control FPV 4-in-4 ESC + ELRS2.0 high-frequency head  for RC Drone Accessories

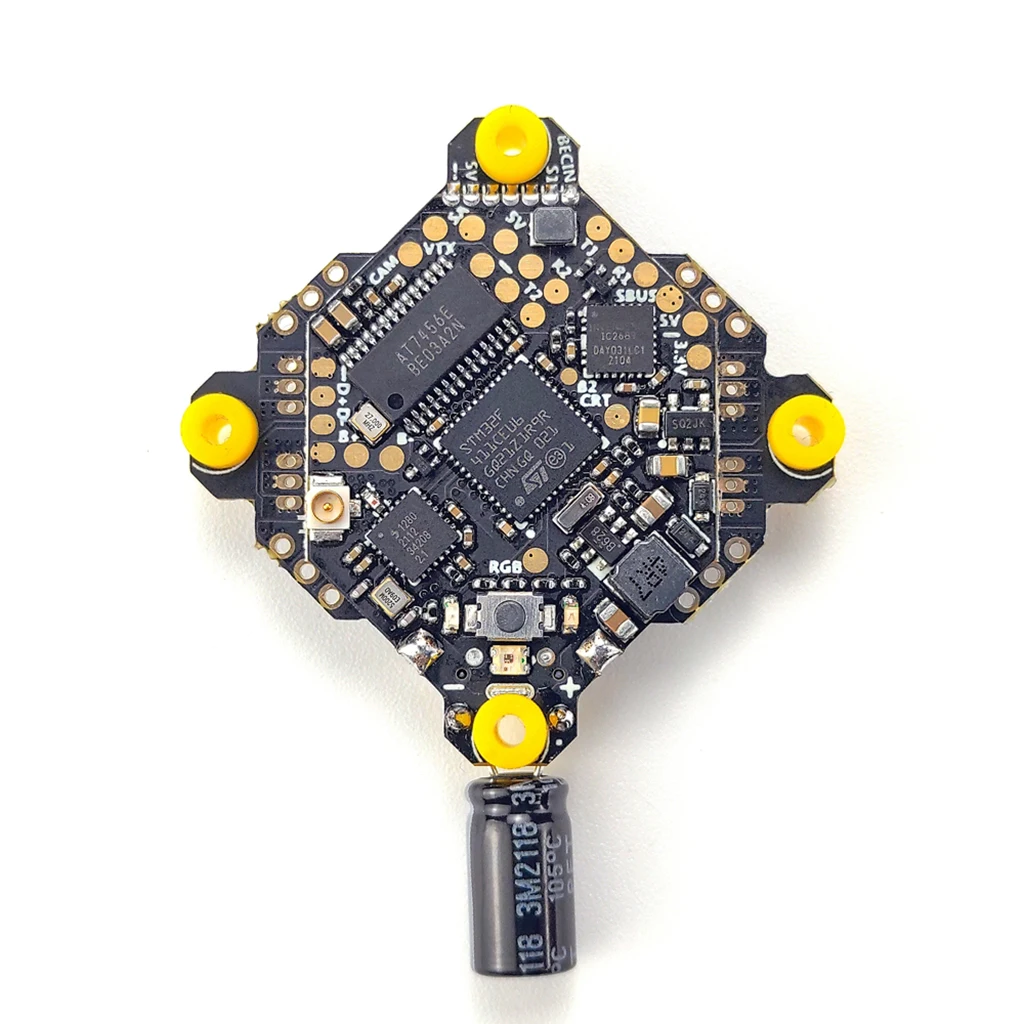

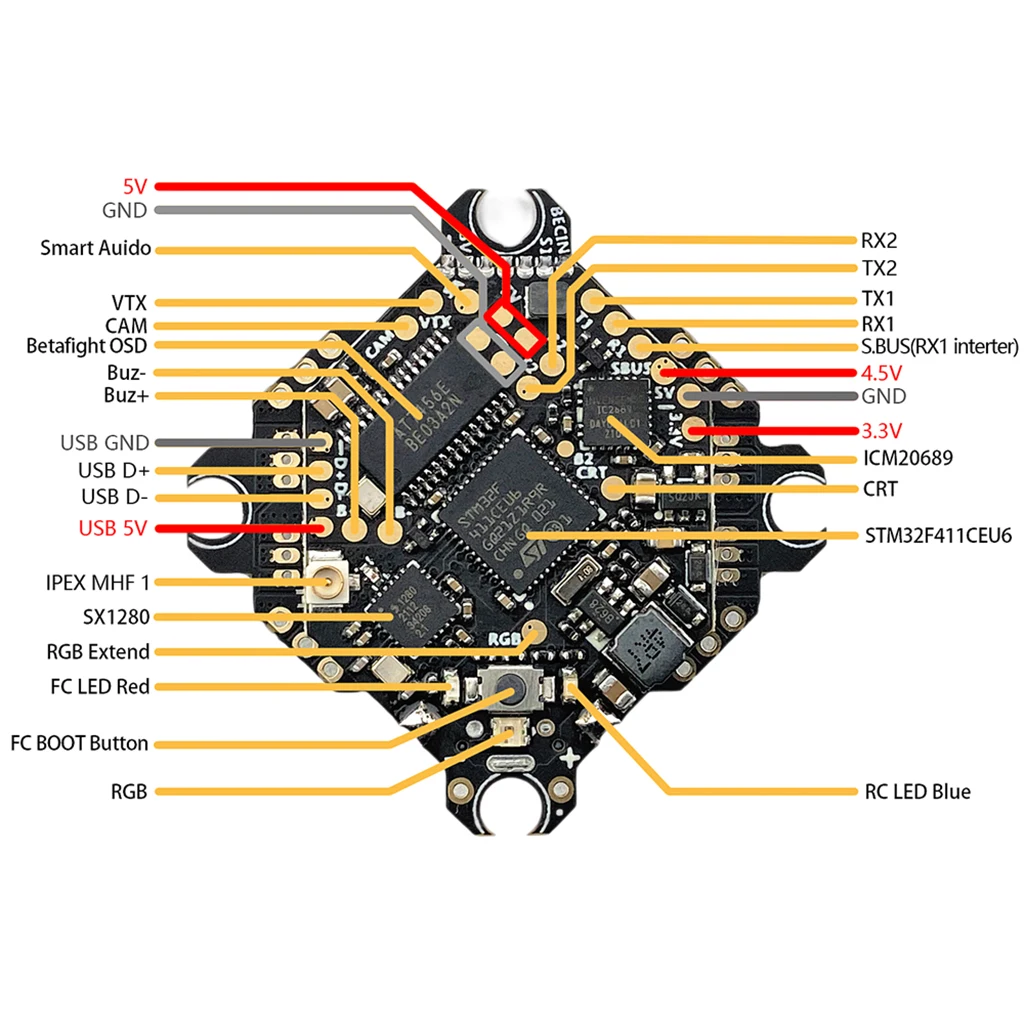

FC MCU: STM32F411CEU6(100MHz)

IMU: ICM-20689(SPI)

OSD: Betaflight OSD AT7456E

RF: SX1280(2.4GHz)

BEC output: 5V/2A  & 3.3V/0.2A

Firmware target:betaflight_4.3.0_BETAFPVF4SX1280

2x Uarts(1,2)

1x SBUS(RX1 inverter)

1x Softserial_TX option

1x External USB solder pad

1x CRT(Current)

1x BUZZ

1x RGB

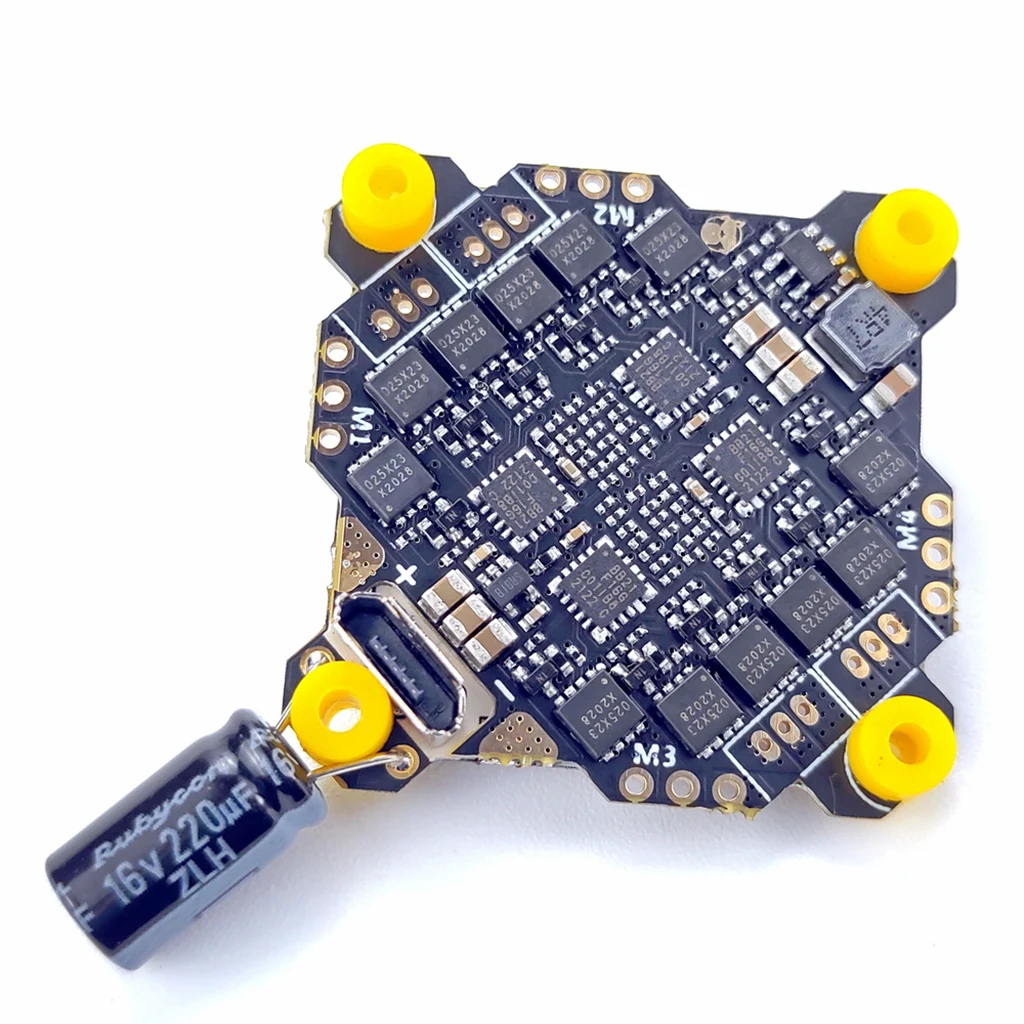

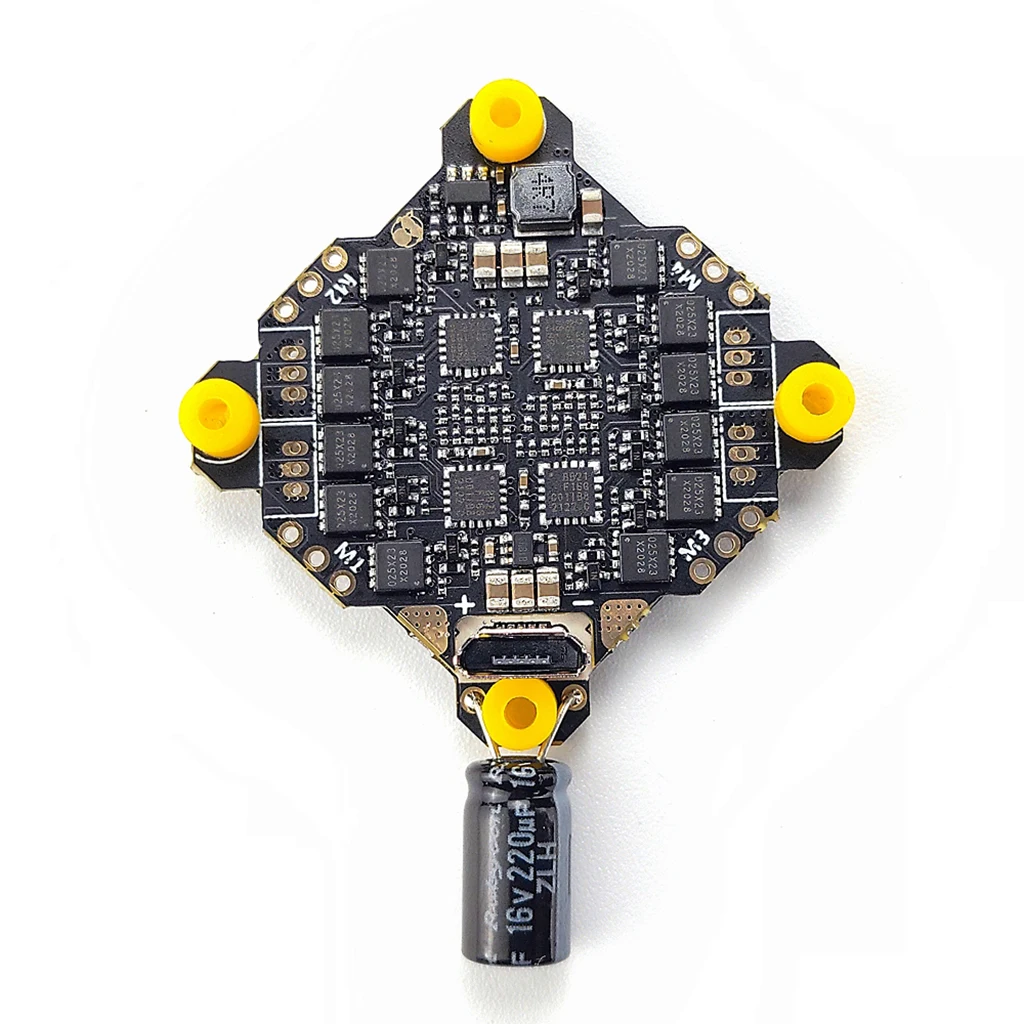

ESC MCU: EFM8BB21F16G

Input Voltage: 1-3S LiPo

Continuous current: 15A

MAX current (5seconds): 17A

ESC Traget: Bluejay_S_H_50_48_v0.14

Size: 37x36x10.8mm

Installing Hole:25.5x25.5mm(M2)

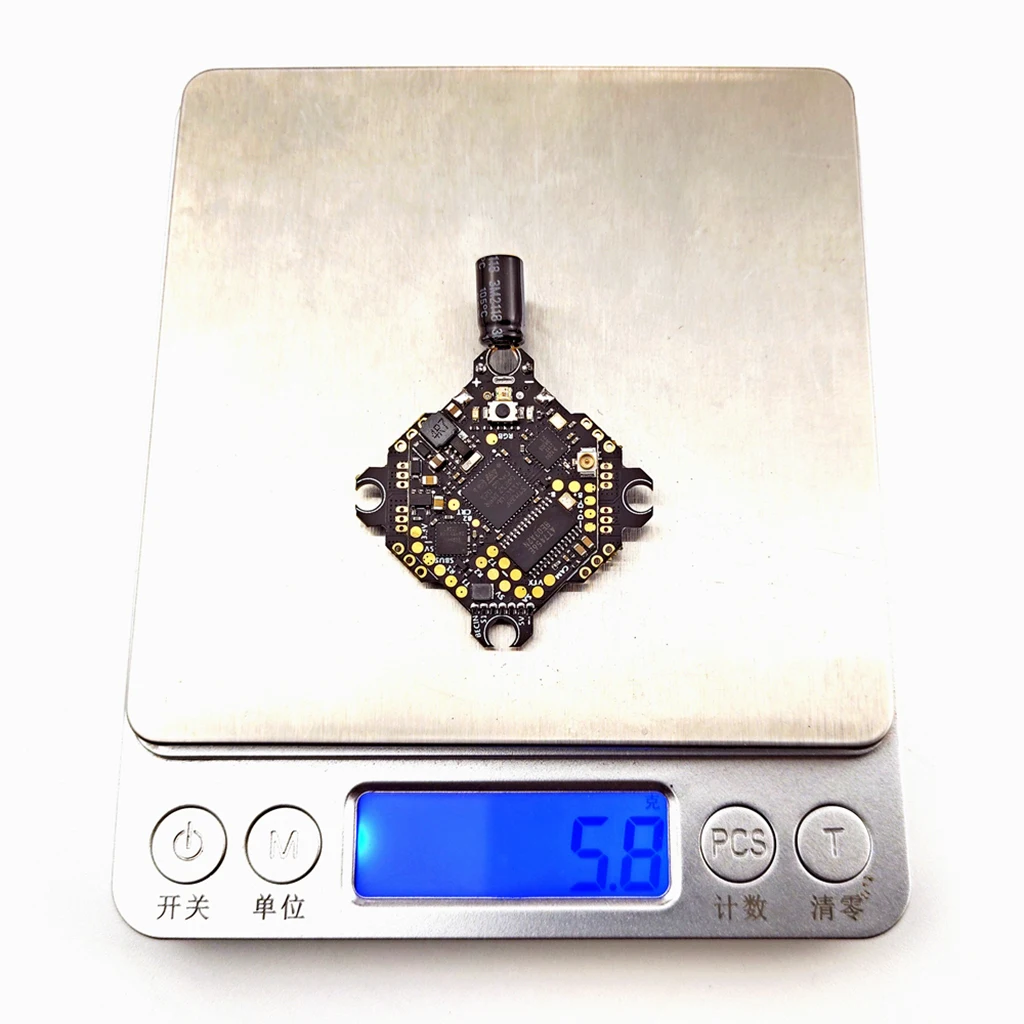

Weight:5.0g

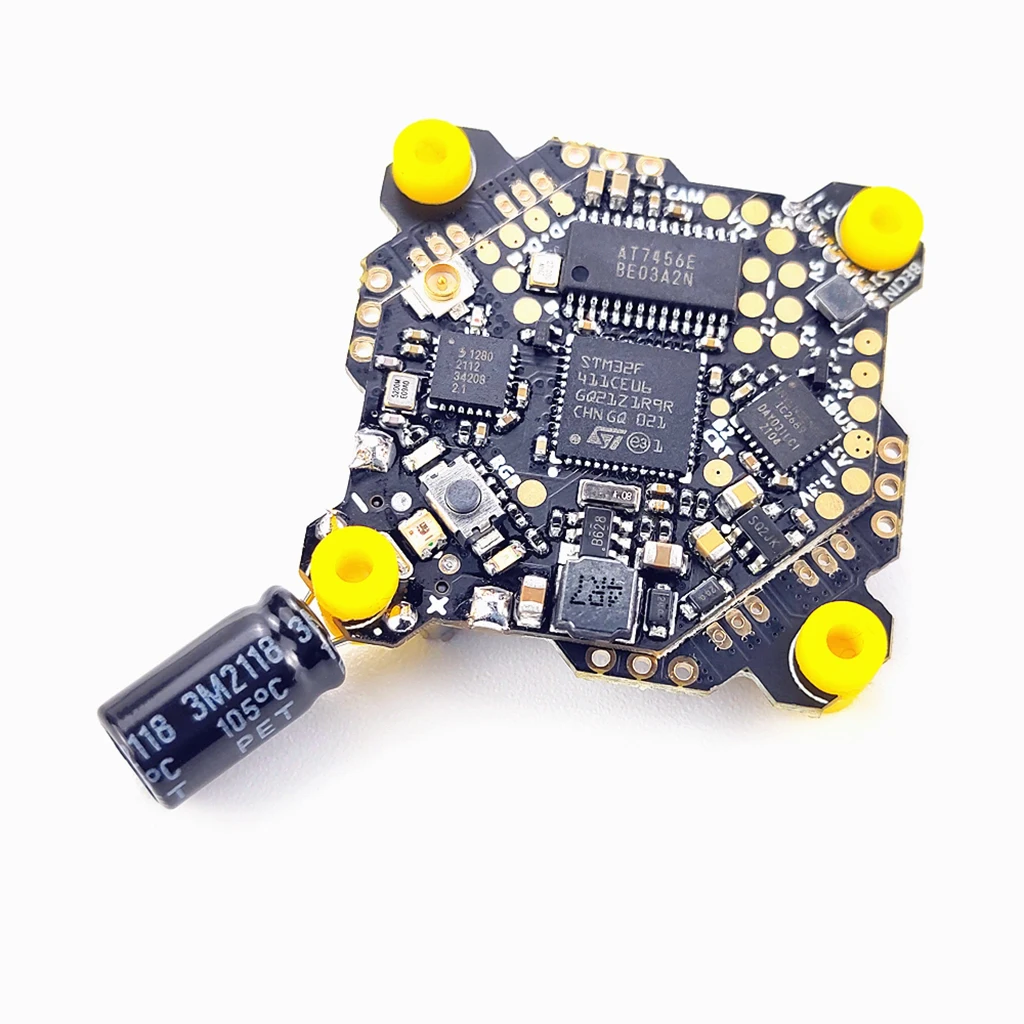

This is the updated version for Darwin AIO. We integrated the ELRS receiver on the FC to make it easier to apply to the mini Drone. ESC adopts Bluejay firmware and is compatible with 1-3S Lipo input, and the maximum current reaches 17A.FC provides 2 sets of Uarts interfaces and at the same time provides various external devices interfaces such as SBUS, Softserial, CTR, BUZZ, RGB and so on , which perfectly solves the problem of insufficient quantity of F411 Uarts.

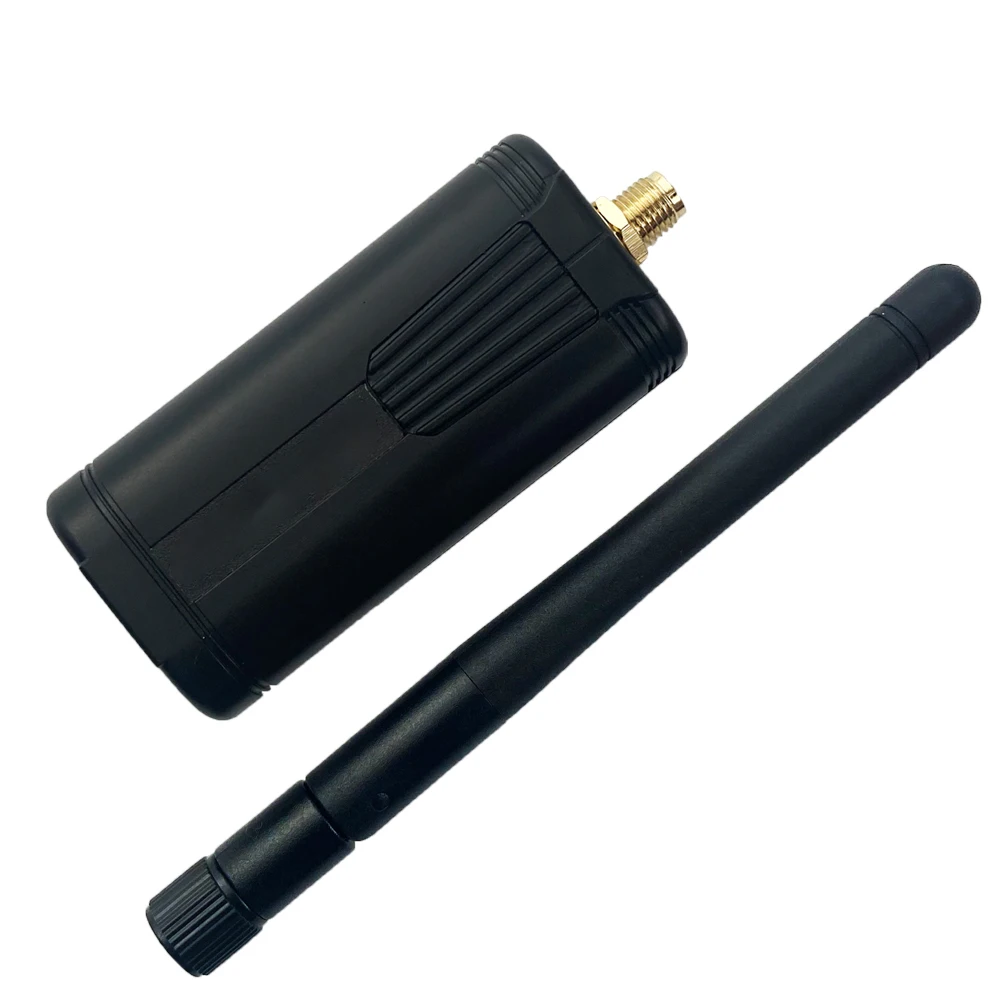

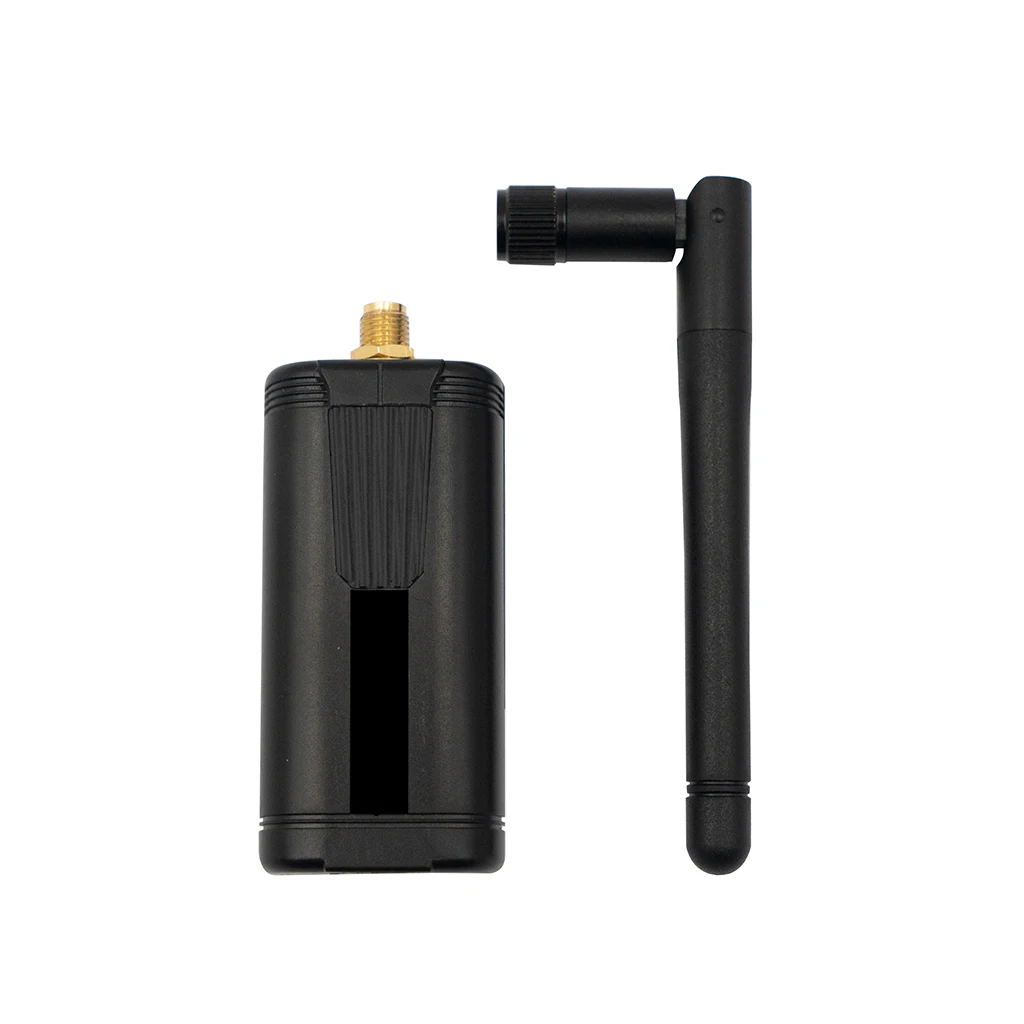

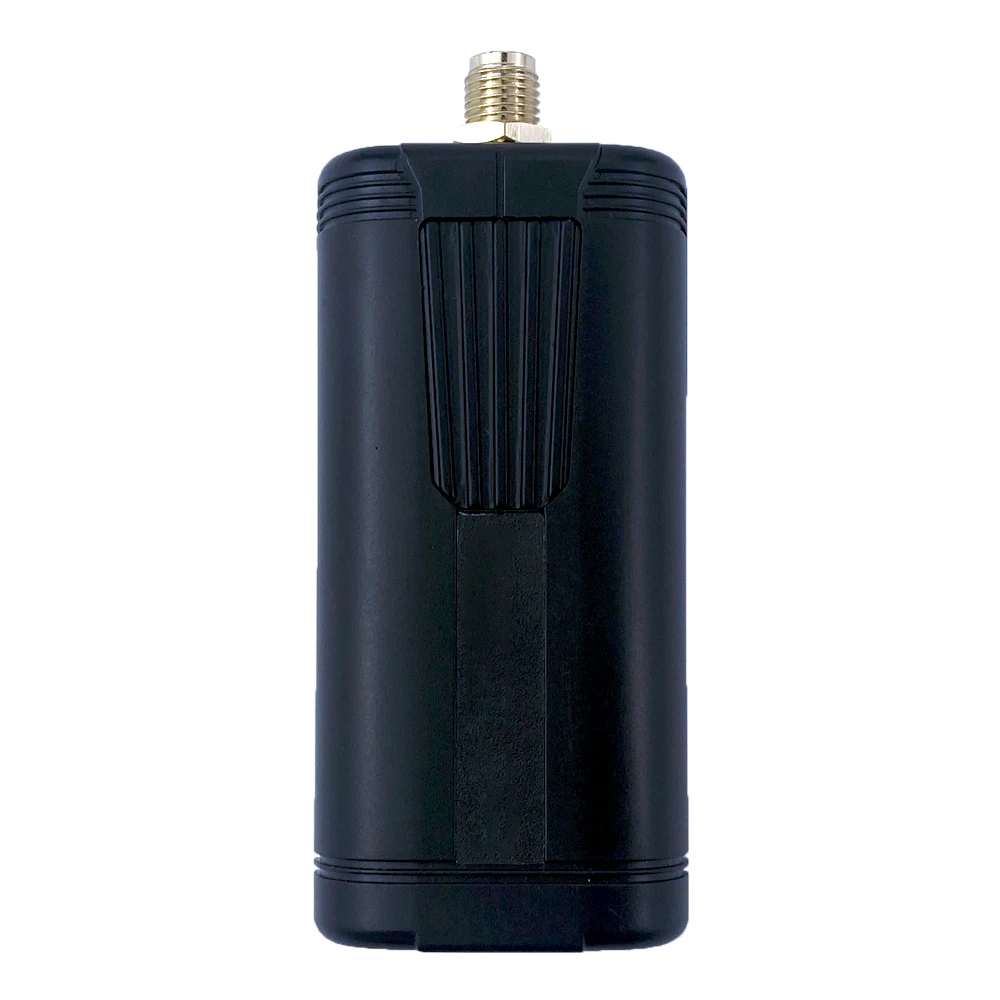

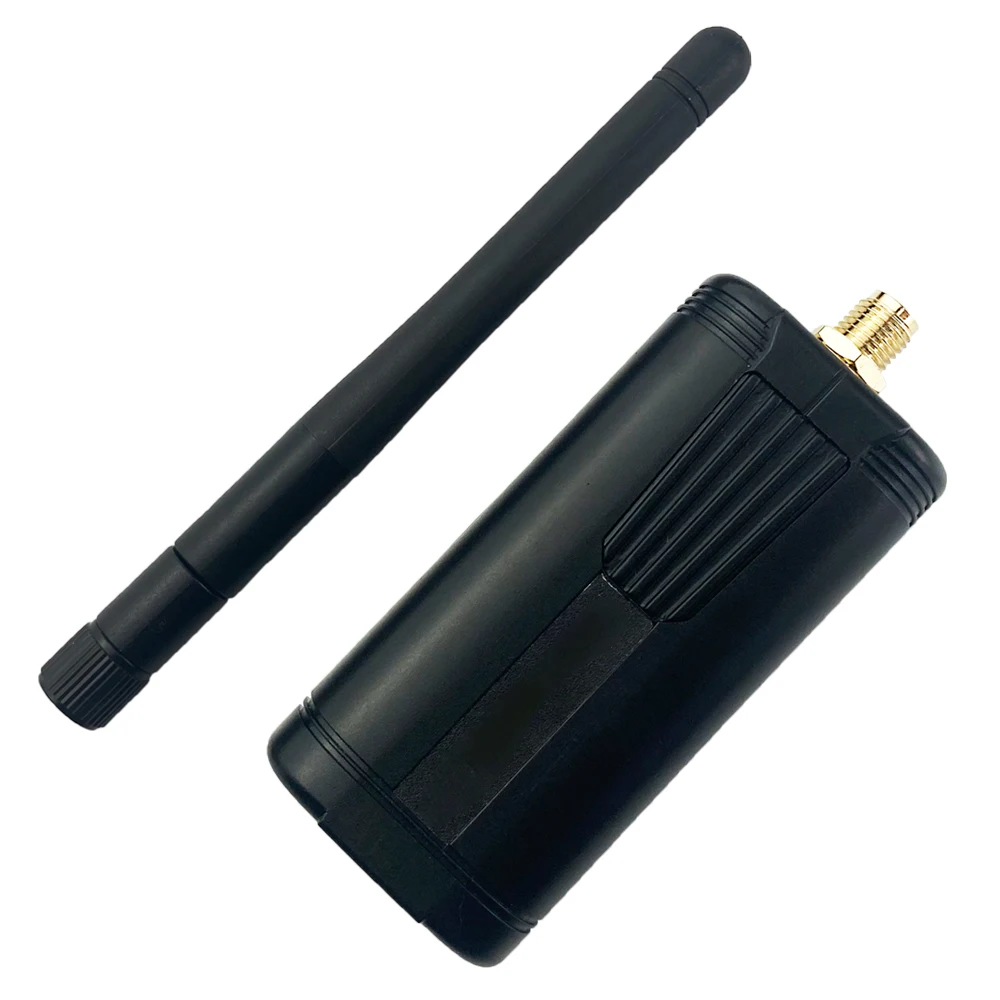

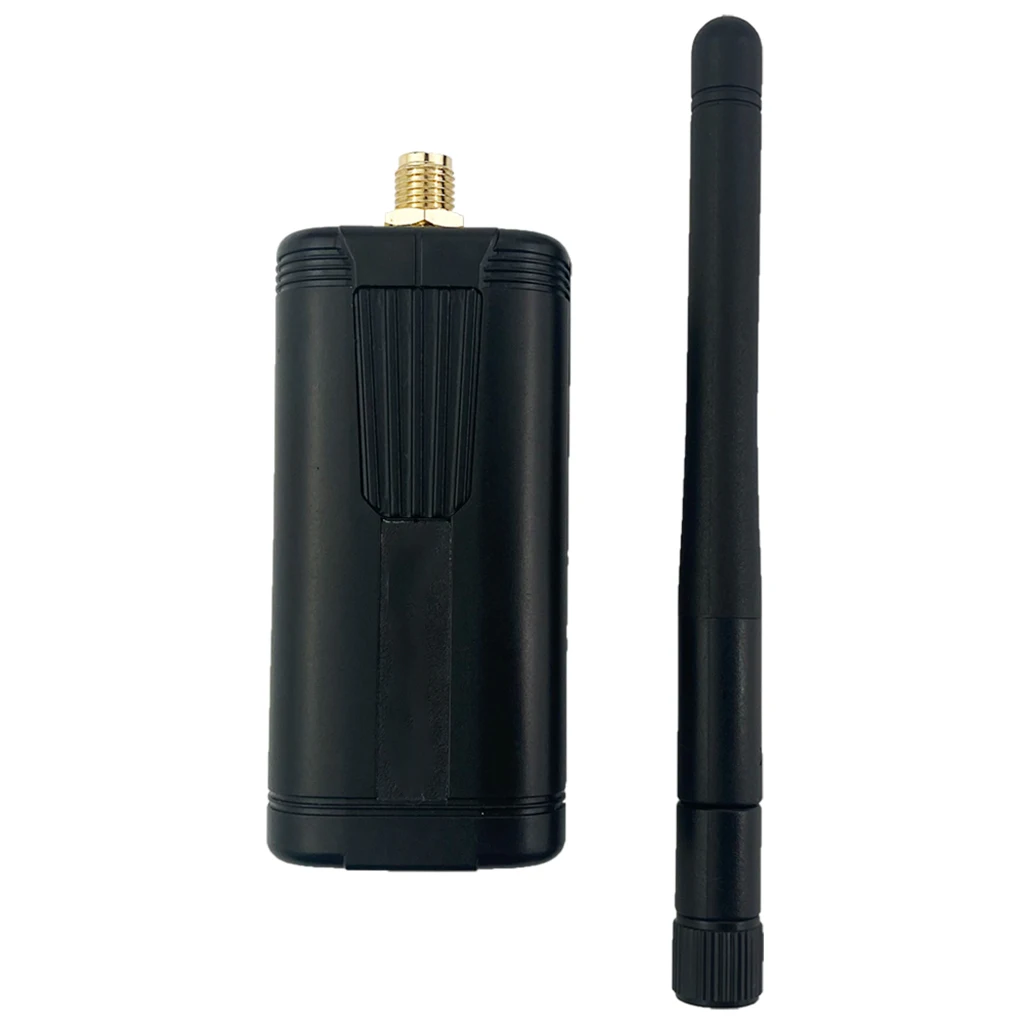

Darwin Vantac ELRS Lite Tuner

ExpressLRS is an open source radio link for radio control applications, the Darwin Vantac ELRS Lite tuner is based on the ExpressLRS open source project

ExpressLRS is based on the excellent Semtech SX127x/SX1280 LoRa hardware combined with an STM32 processor. Using LoRa modulation along with reduced packet size, it achieves the best range and latency. It achieves this using a highly optimized over-the-air packet structure while providing range and latency advantages. It supports 900 MHz and 2.4 GHz links, each with their own advantages. 900 MHz supports a maximum packet rate of 200 Hz with higher penetration. OpenTX systems currently support an astonishing 500Hz in the 2.4 GHz band.

2.4G transmitter module, ExpressLRS 2.4G aims to achieve comprehensive performance in terms of speed, latency and range. In addition, a convenient feature of this module is the built-in WiFi module, which enables wireless connection to upgrade firmware. Darwin Vantac ELRS Lite tuners are compatible with remotes with lite-style module bays.

tuner parameters

Packet refresh rate: 50 Hz/150 Hz/250Hz/500 Hz

RF output power: 10mW/25mW/50mW/100mW/250mW/500mW

Frequency band: 2.4GHz ISM

Input voltage: 5V~12V

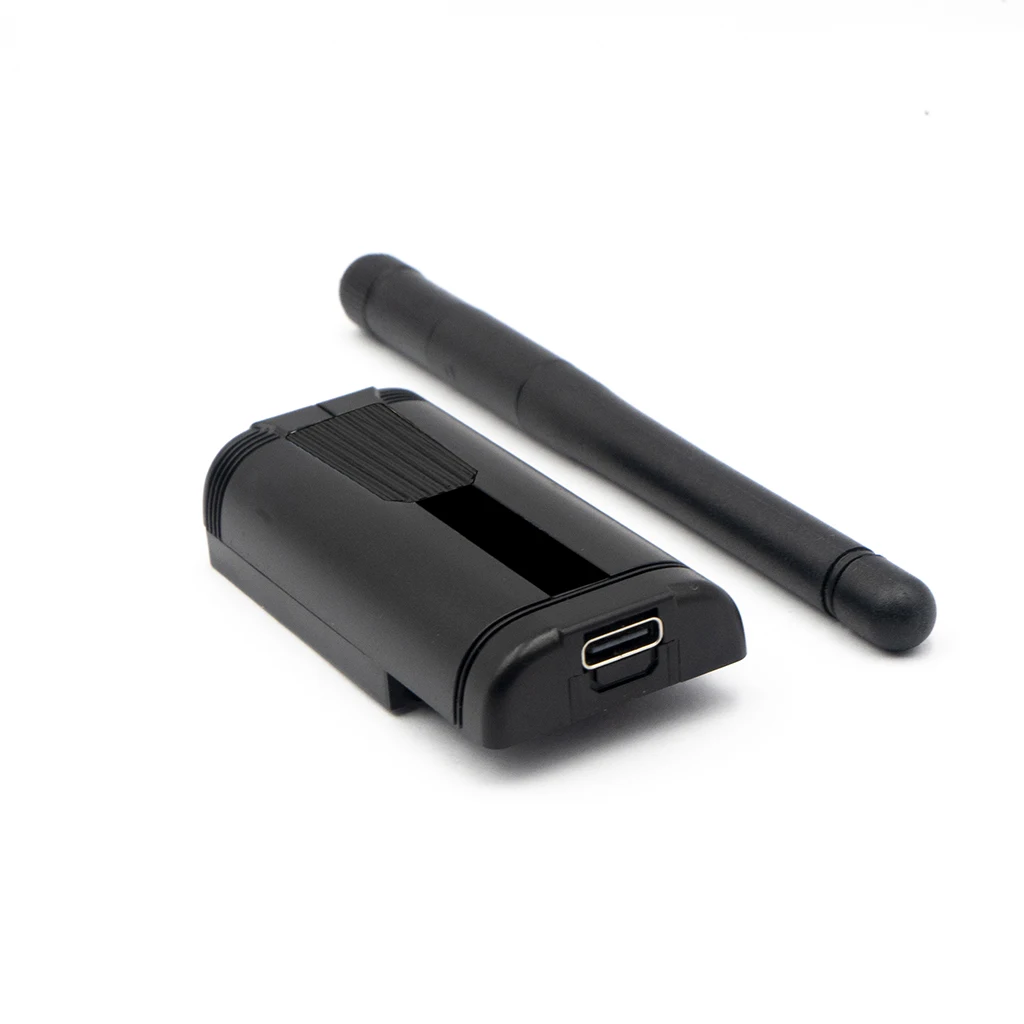

USB port: Type-C tuner parameters

Packet refresh rate: 50 Hz/150 Hz/250Hz/500 Hz

RF output power: 10mW/25mW/50mW/100mW/250mW/500mW

Frequency band: 2.4GHz ISM

Input voltage: 5V~12V

USB port: Type-C

The Darwin ELRS 2.4G Lite tuner uses a lite-style tuner bracket; compatible with the following remotes: Jumper T-lite, Betafpv LiteRadio 3, TBS Tango 2, Frsky Taranis X9 Lite, Frsky Taranis X-Lite
