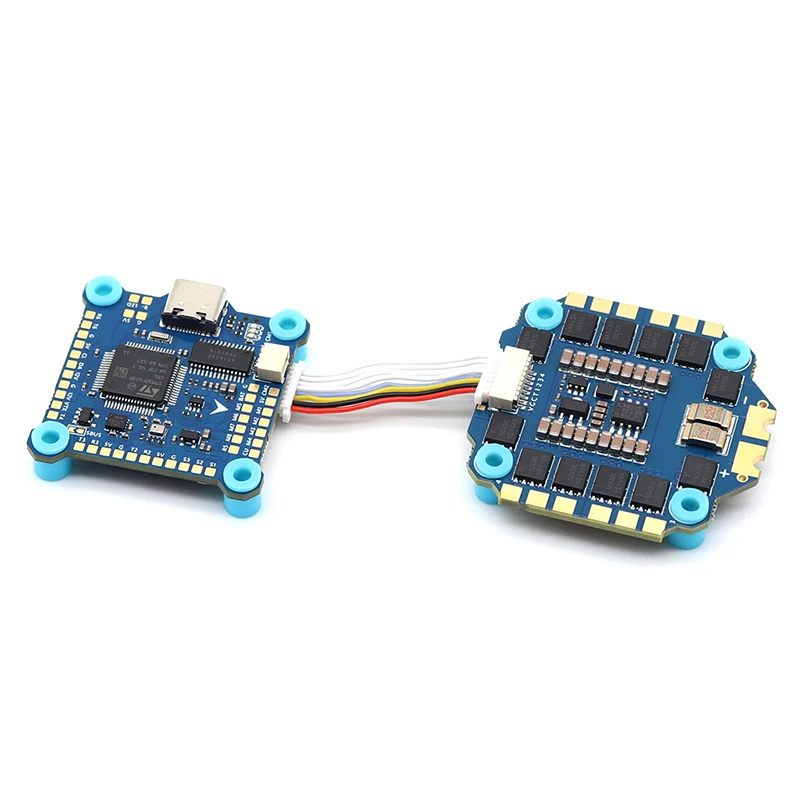

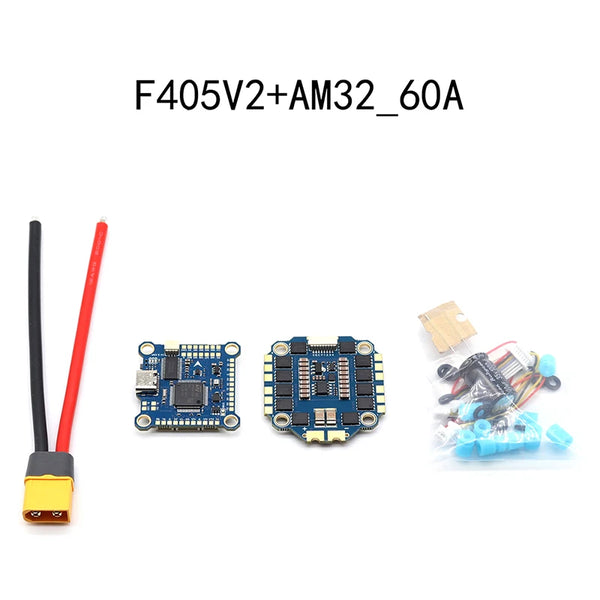

F405 Flight Stack 8S F405 V2 Flight Control AM32 8S 60A ESC 30.5x30.5mm For FPV Racing Drone

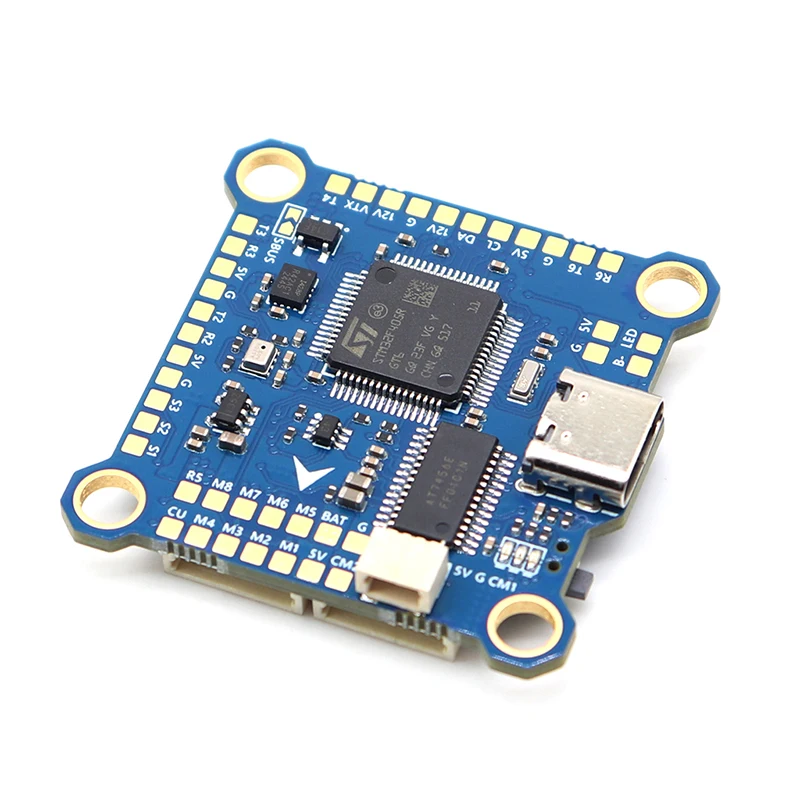

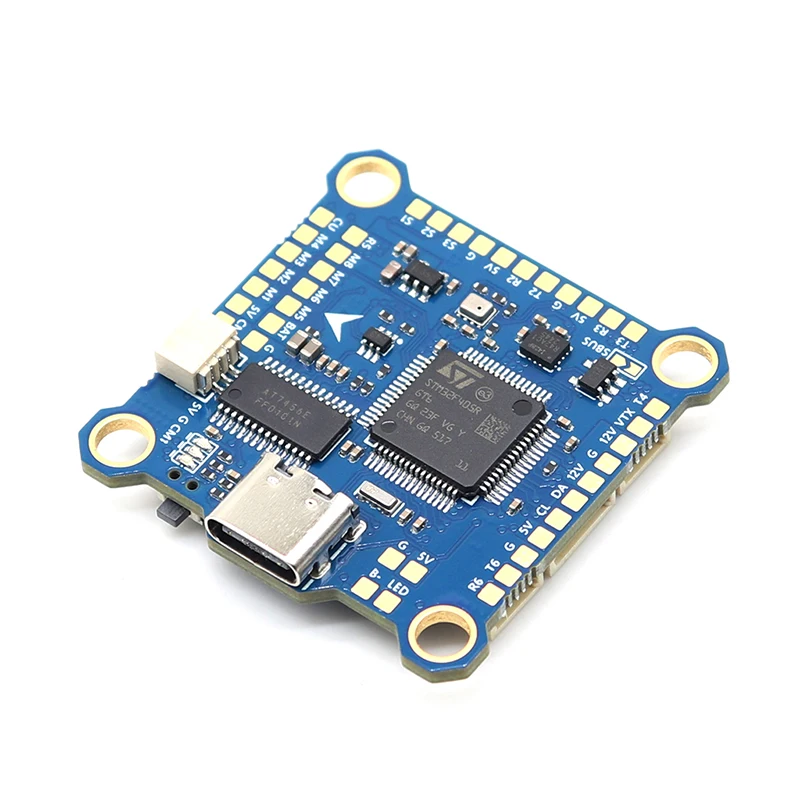

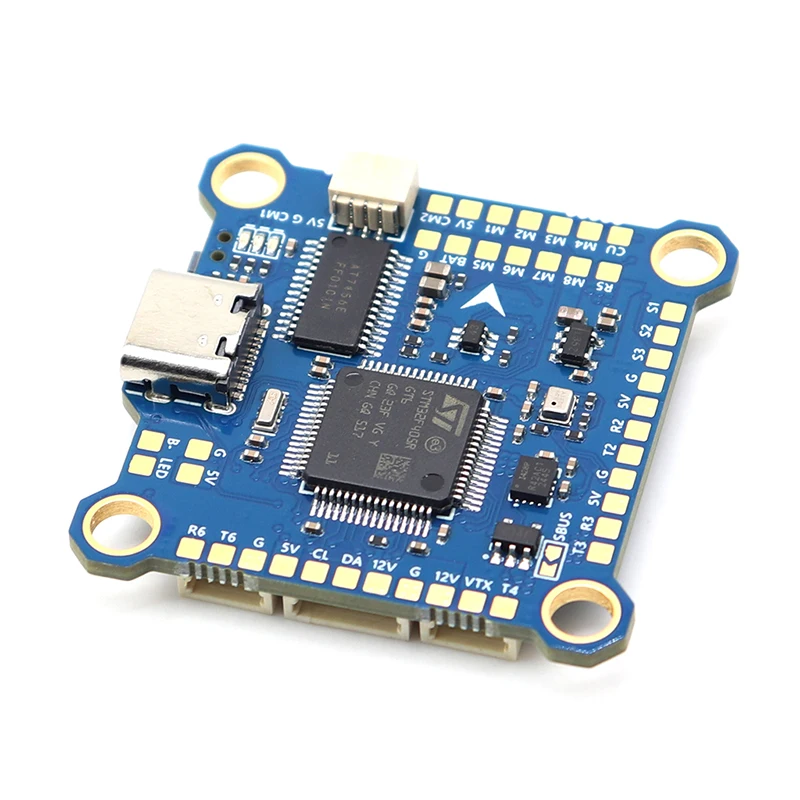

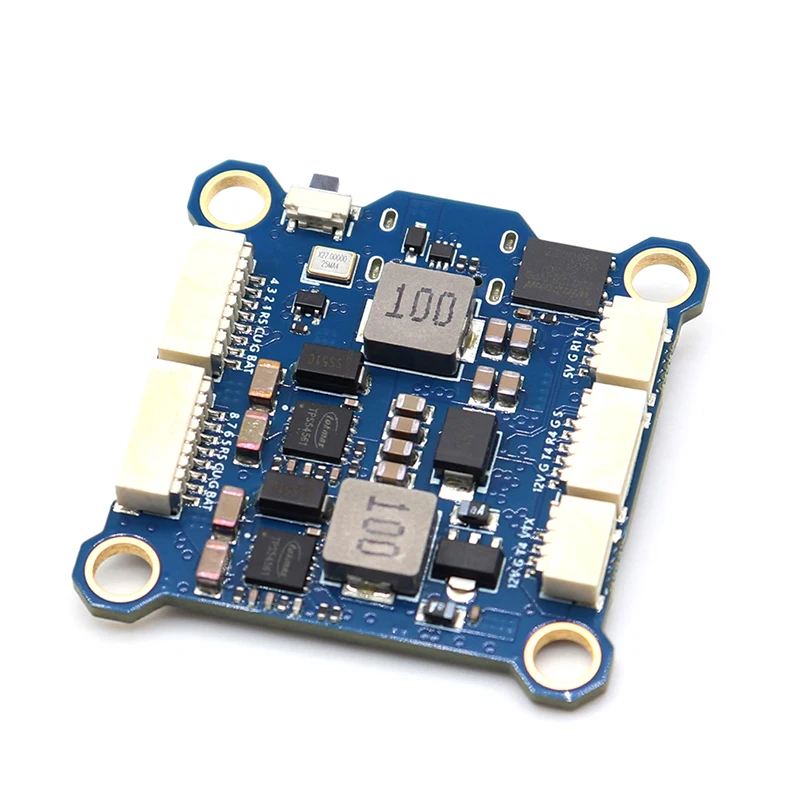

F405 V2 Flight Control Specifications:

Master chip: STM32F405RGT6

Gyroscope: ICM42688

Battery: 3-8S Lipo

BEC: 5V 3A / 12V 3A

USB: Type-C

Barometer: SPL06

OSD chip: AT7456E

BLack box: 16M

Bluetooth: Not Supported

RSSI: Support,marked as RSSI

Support flight control firmware: Beataflight/INAV/Ardupilot

DJI/Vista: Support/6pin

VTX/Camera：Support/4pin/3Pin

Firmware Name: PAURC F405 V2

Installation hole position: 30.5x30.5mm/M4

Size: 37mm x37mx8m

Weight: Bare board 8g

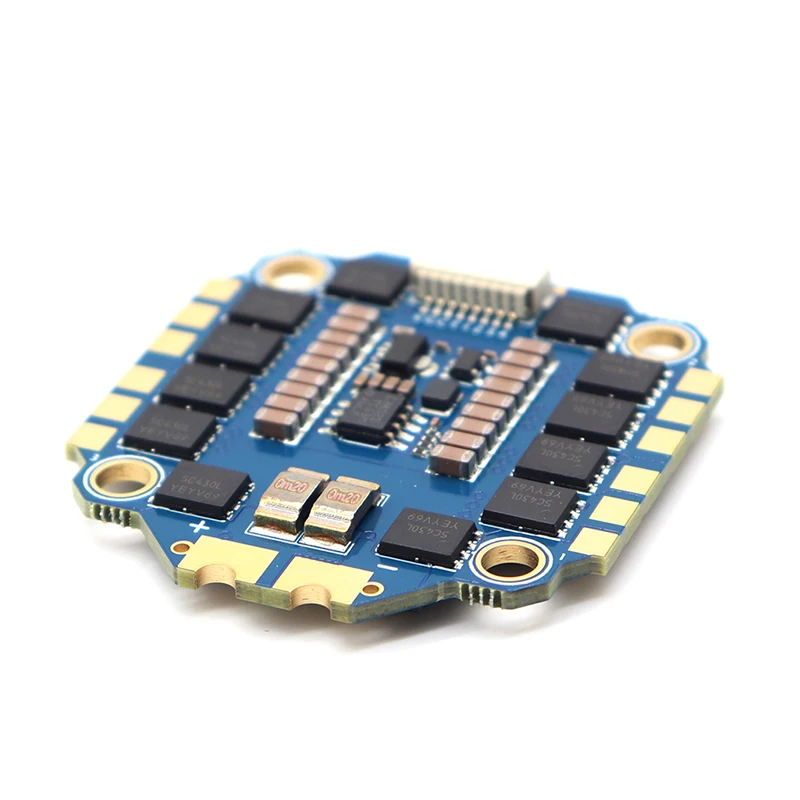

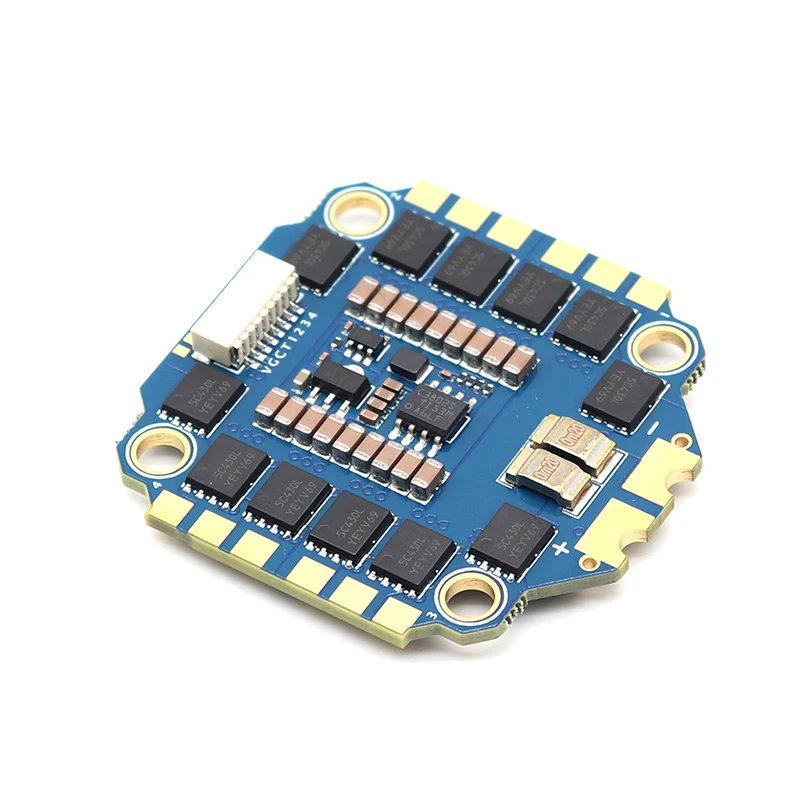

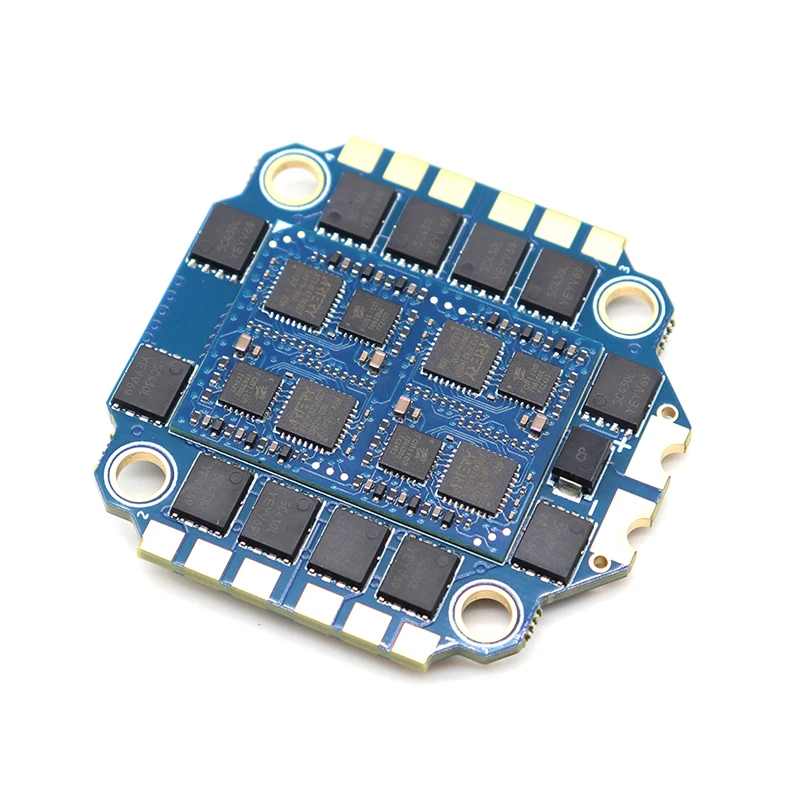

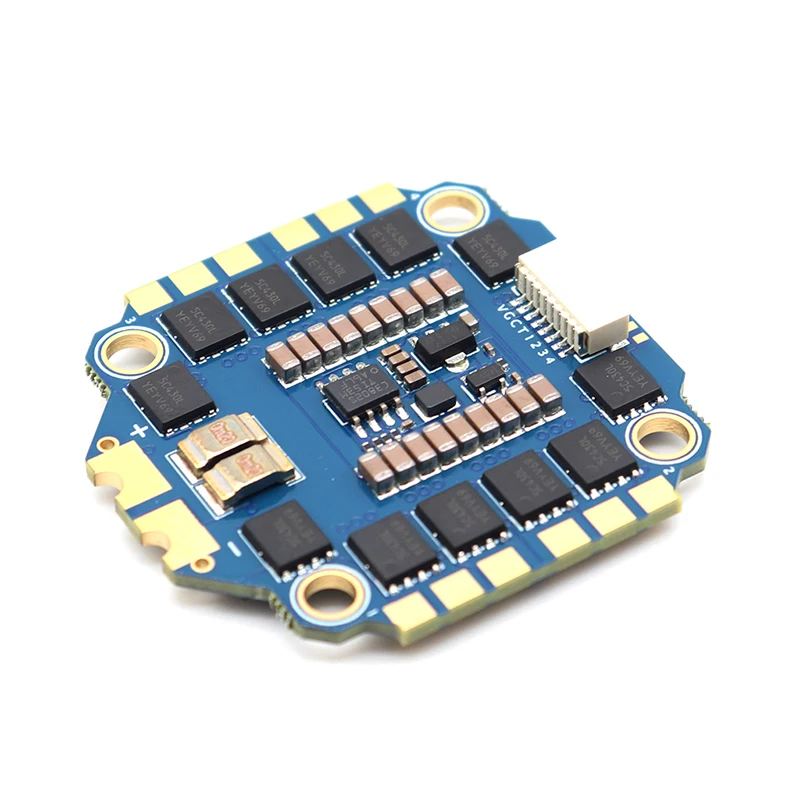

60A AM32 4IN1 ESC Specifications:

MCU: AT32F421K8U7

Specifi cations: 60A

Program: AM32_2.18

MOS: ONSEMI_NTMFS5C430NLT1G

Continlous crent: 60AX4

Transient curent: 70A-10S

TVS protection diode: have

Electrolytic capacitor: 1000uF Low ESR Capacitor

Motor protocol: Dshot(All),PwM, Oneshot,Multishot, etc

Battery imput: 3-8S Lipo

Ameter: support

Power Output: VBAT

Installation hole position: 30.5x30.5mm/M4

Size: Length 45x43x7mm

Weight: Bare board 16g
