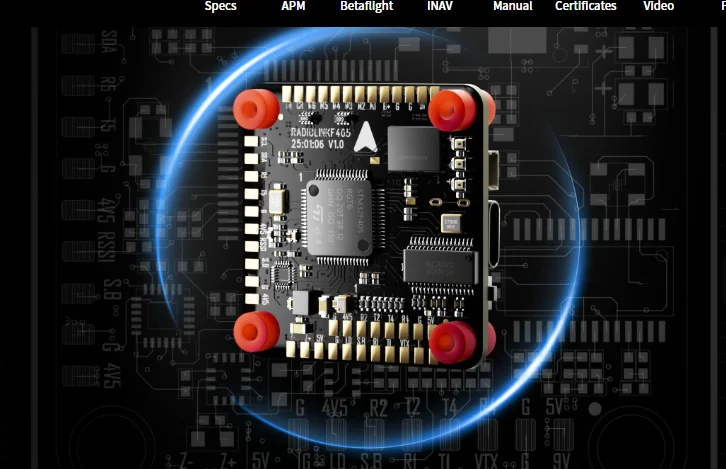

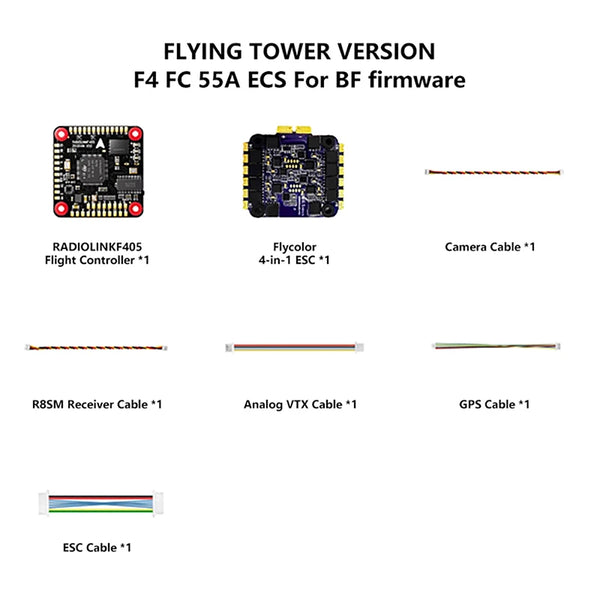

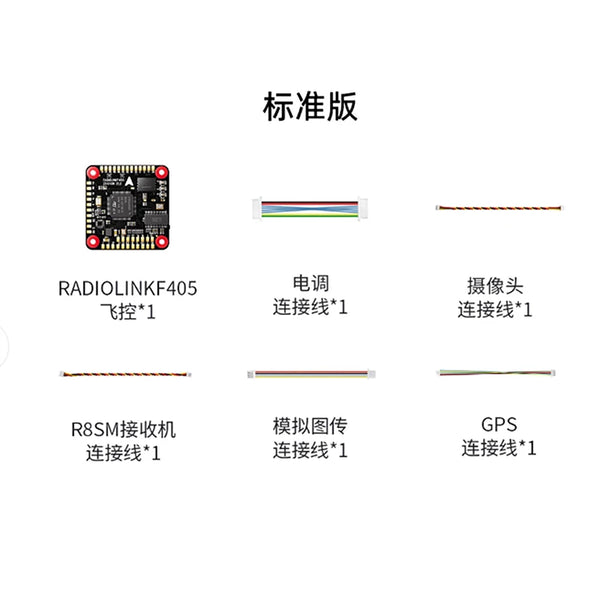

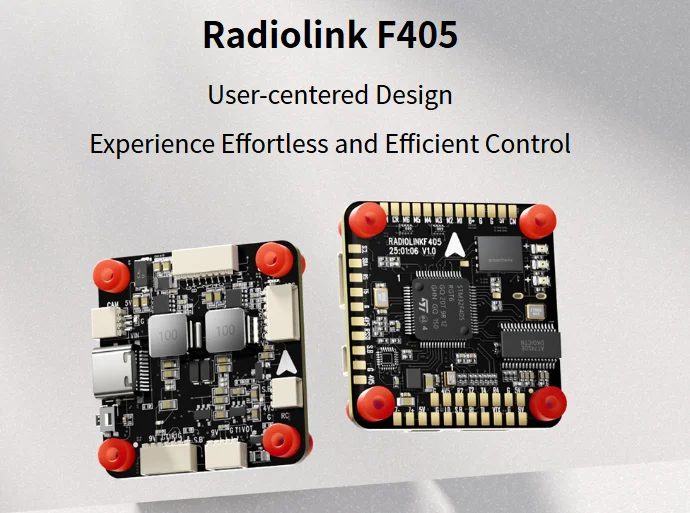

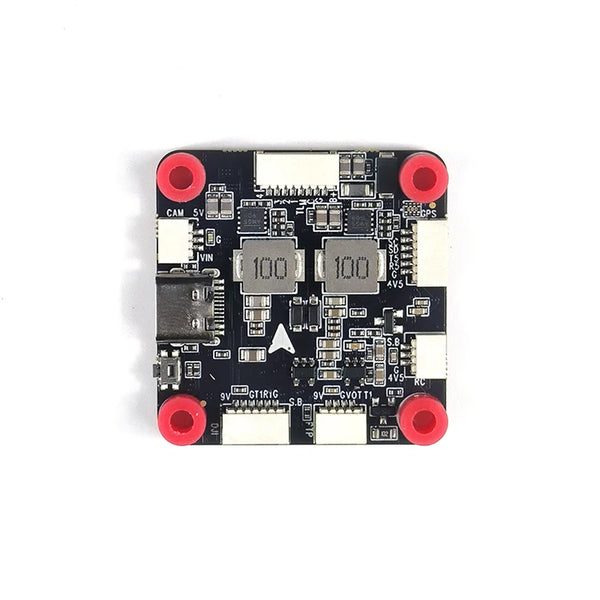

Radiolink F405 Flight Stack F405 Flight Control 55A ESC 3-6S Lipo 30.5x30.5mm BMI270 Gyro For Remote Control FPV Racing Drone

Parameter Details

Mounting Hole Spacing 30.5*30.5mm

Weight 9.5g for single F405 flight controller

Main Processor STM32F405RGT6

Gyroscope BMI270

Barometer SPL06

Black Box Storage 128MB, capable of storing flight log information

OSD Chip AT7456E

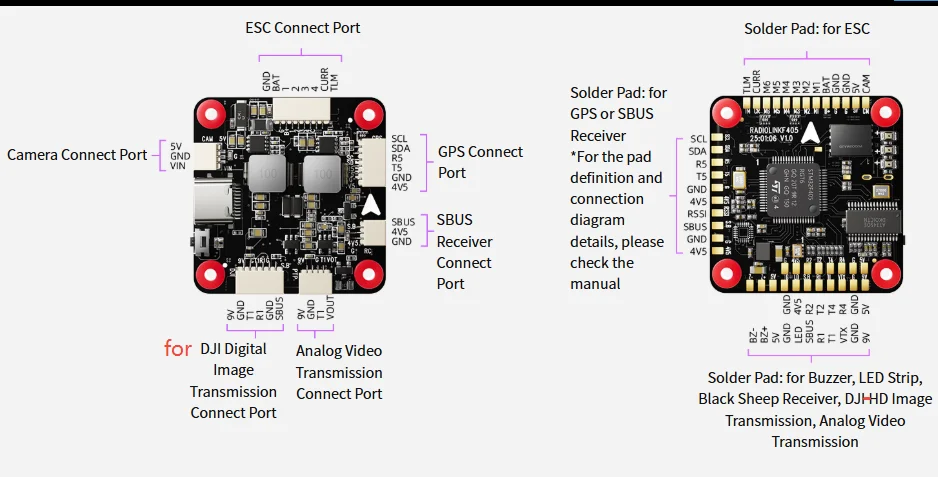

Motor Channels M1 - M6

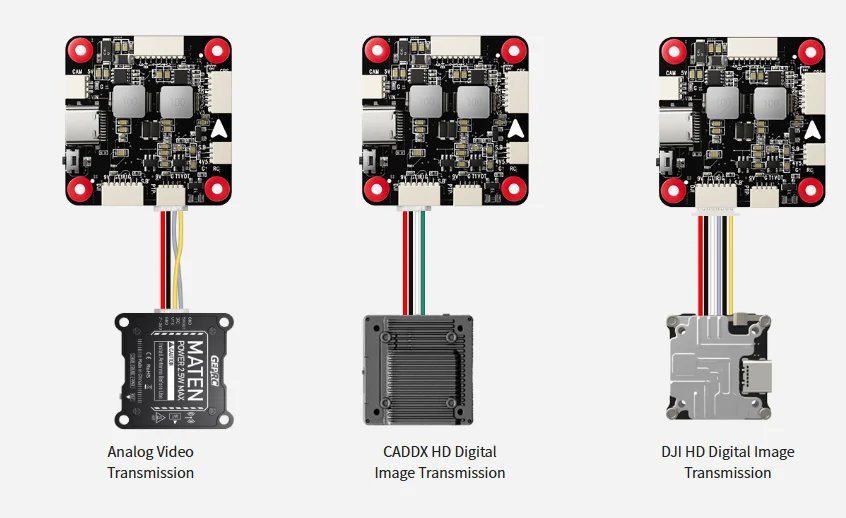

For DJI Air Unit Direct Plug Supported

Analog VTX Direct Plug Supported

Voltage Measurement Scaling 110

Number of UARTs 5 sets of UARTs

ESC Telemetry Input Supported (UART3 RX)

I2C Supported

LED Pads Supported

Buzzer Pads Supported

RSSI Signal Output Supported

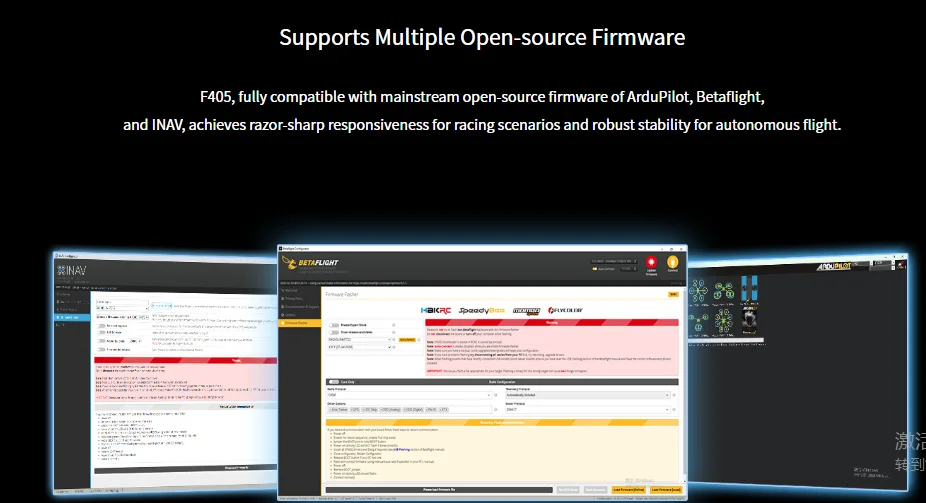

Firmware Types Ardupilot, Betaflight, INAV firmware

Firmware Name RADIOLINKF405

USB Interface 1 (Type-C)

Remote Control Signal (RC In) SBUS/CRSF

Video Transmitter OSD Supported, built-in VTX OSD module

Supported ESC Protocols PWM/Bidirectional DShot/OneShot

Power Input 2S-6S


BEC 3.3V/300mA; 5V/3A; 9V/3A

12V BEC Switch Supported (USER1 setting)

Supported Aircraft Types 2-6 axis multi-rotor, fixed-wing, helicopter, flying wing, car, ship, robot, lawn mower, bait boat, and various user-made multi-rotors, etc.

Operating Temperature -30~85°C
