Walksnail-Avatar HD Kit V2 1080P HD 160° FOV Camera 8G (Without Gyroflow)/32G(With Gyroflow) Built-in Storage VTX for FPV Drone

Walksnail

Regular price $139.00

Shipping calculated at checkout.

Bullet Point for Camera

2K pixel, 120fps, 4:3 native sensor

Support Gyroflow

1080P HD FPV

F/2.0 Large Aperture

160° wide-angle FOV
Bullet Point for VTX

Add another 20*20mm mounting holes

Add 8/32g built-in storage option

Updated the design of PCB board and outer shell

A spare pad is added to provide two power connection modes

Optimized antenna base design and frequency button position for greater convenience

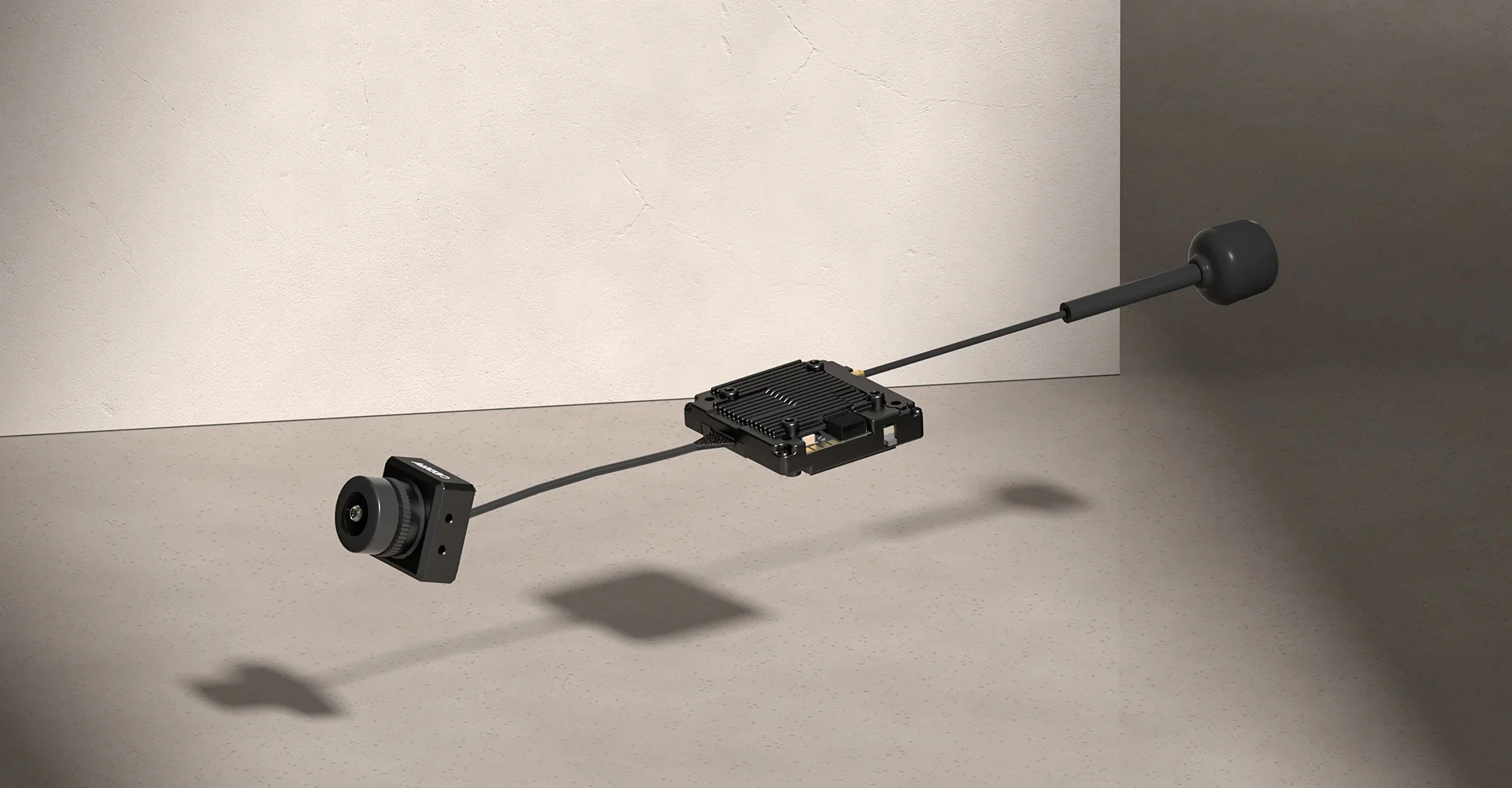

Avatar-HD kit V2

Features

1080P 120fps compatibility

22ms low latency

Ranging Mode

4KM range

Light weight design

FOV160°

Built-in 8G/32G storage,

Support Gyroflow

GPS anti-jamming

6V-25.2V

The only native 4:3 high-definition sensor in the FPV industry
Bullet Point for Avatar-HD kit V2

The Avatar-HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency.

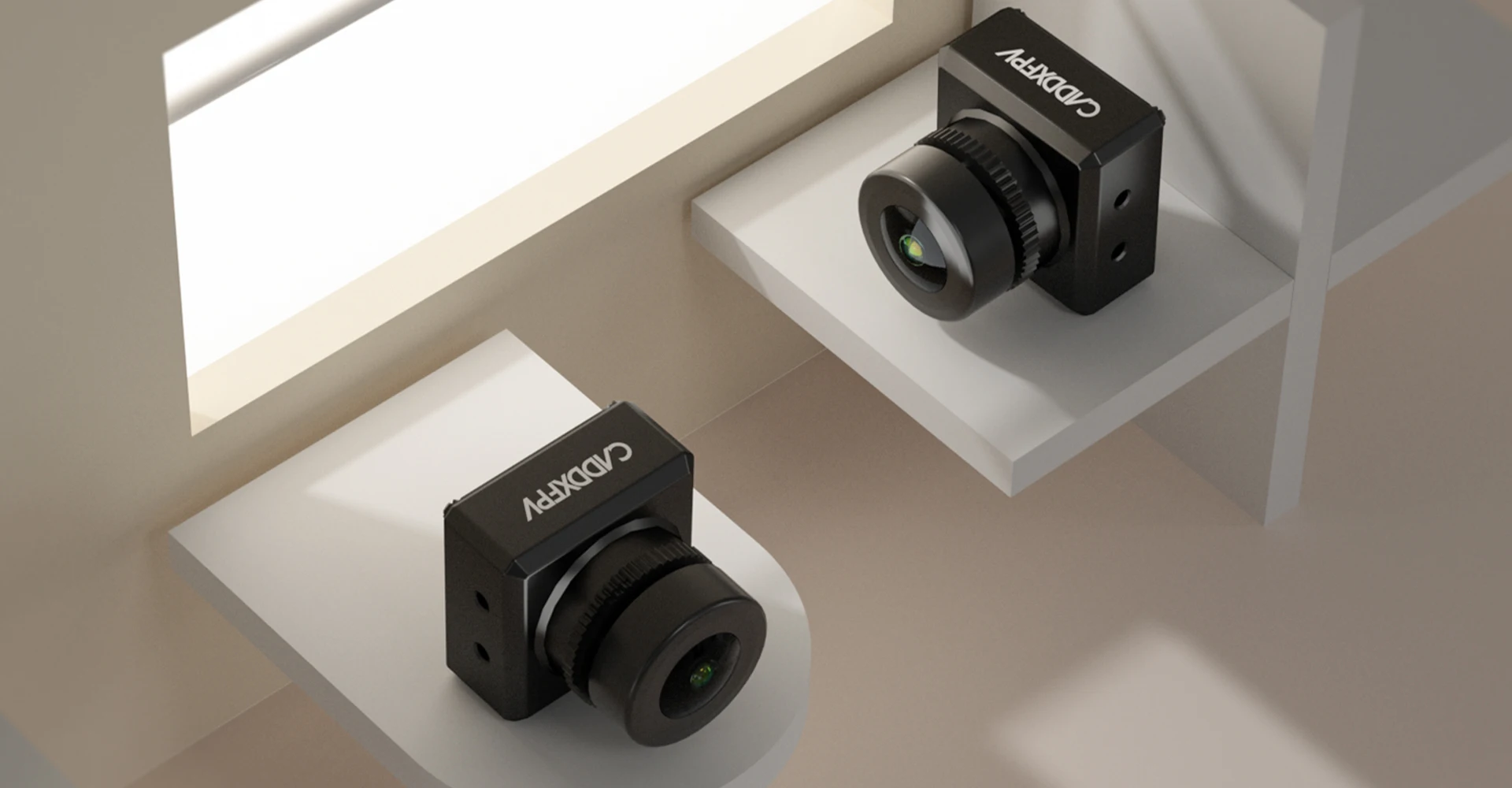

Camera V2 with 2K pixels, 4:3 native sensor for better image quality and native 4:3 mode image ratio allows you to capture more of the surrounding scenery while flying the drone, resulting in more comprehensive and visually appealing images.Meanwhile, it's better fit for regular FPV race as well.
The camera ( 32G VTX KIT) supports Gyroflow, take you a smooth and stable video quality.

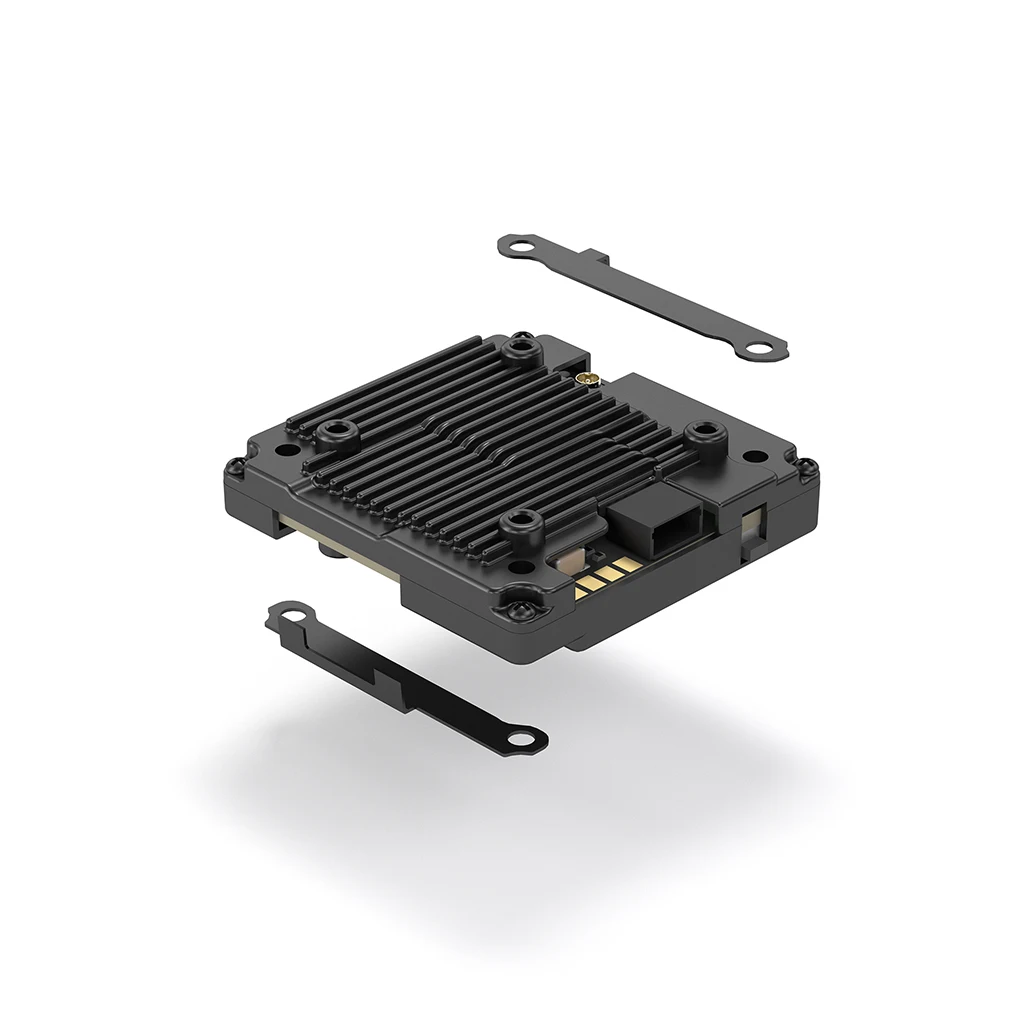

In addition to the original 25mm x 25mm mounting holes, the kit now added 20mm x 20mm holes for greater compatibility with a wider range of FPV drone models.

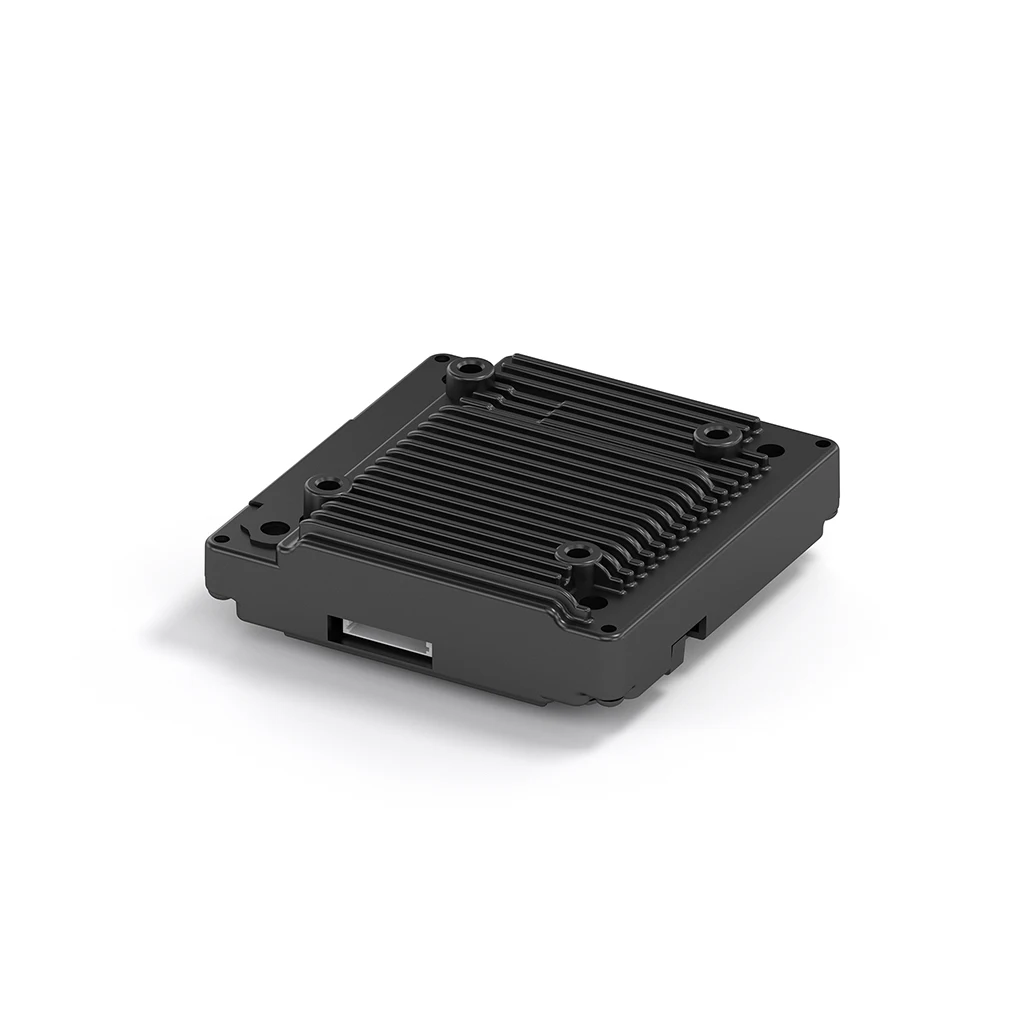

Updated the design of PCB board and shell, improved the quality of VTX, more durable.

Optimized the installation place of the antenna, so as to better protect the VTX.

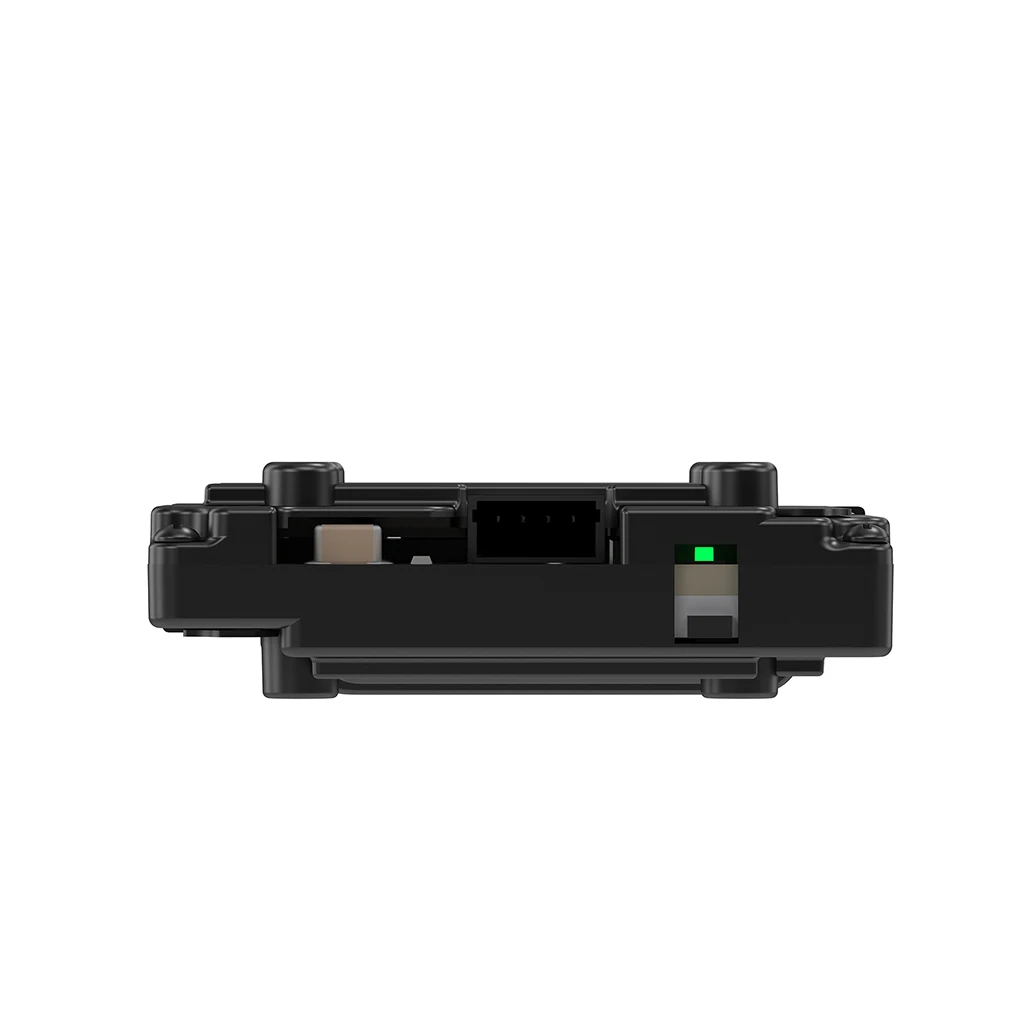

The position of the frequency binding button has been changed to make the frequency binding operation more convenient.

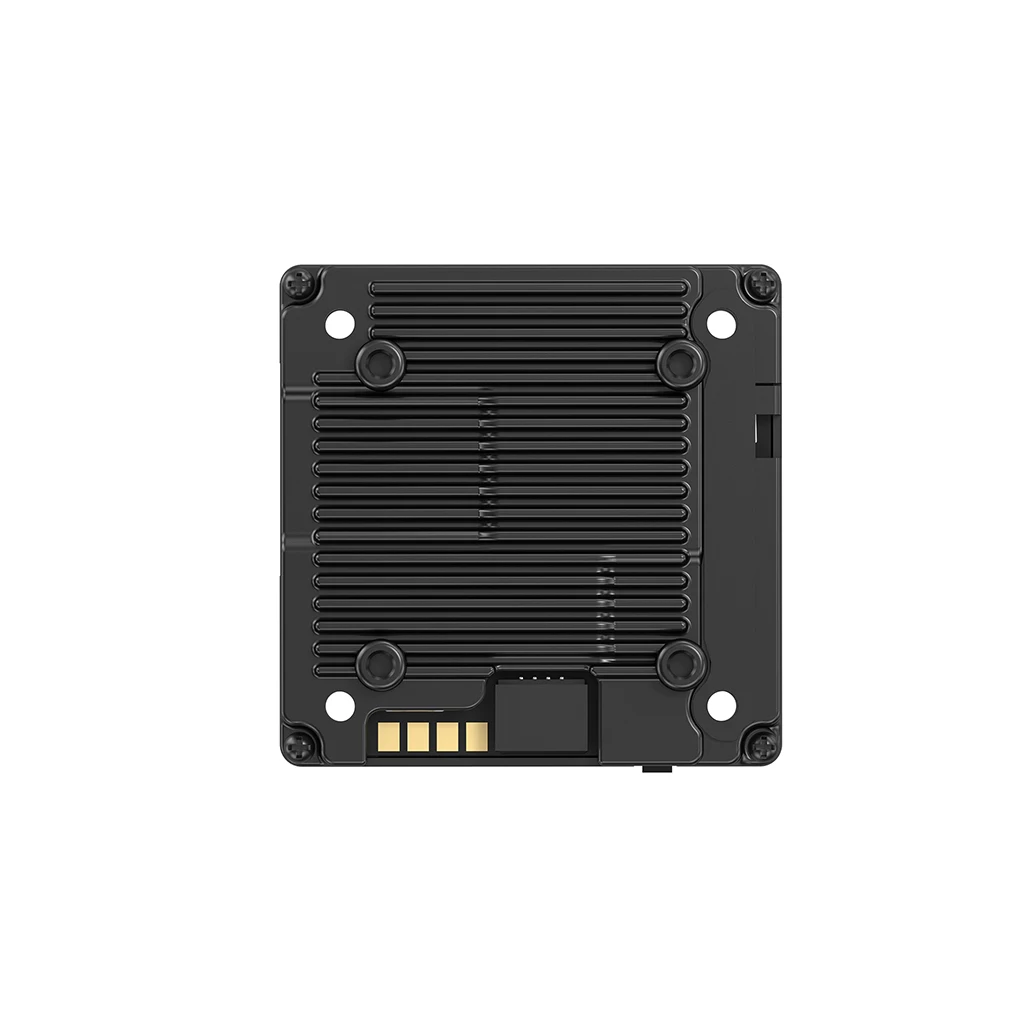

A spare pad is added to provide two power connection modes.
New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to25.2V, our VTX delivers unmatched stability and resistance to GPS interference. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.
The Avatar-VTX comes with 8g/32g built-in storage it can record 1080p or 720p HD flight videos without interference.32G built-in storage, recording video time increased by 4 times.
Supports both high frame rate and standard frame rate, it has an average latency of 22ms with the high frame rate.

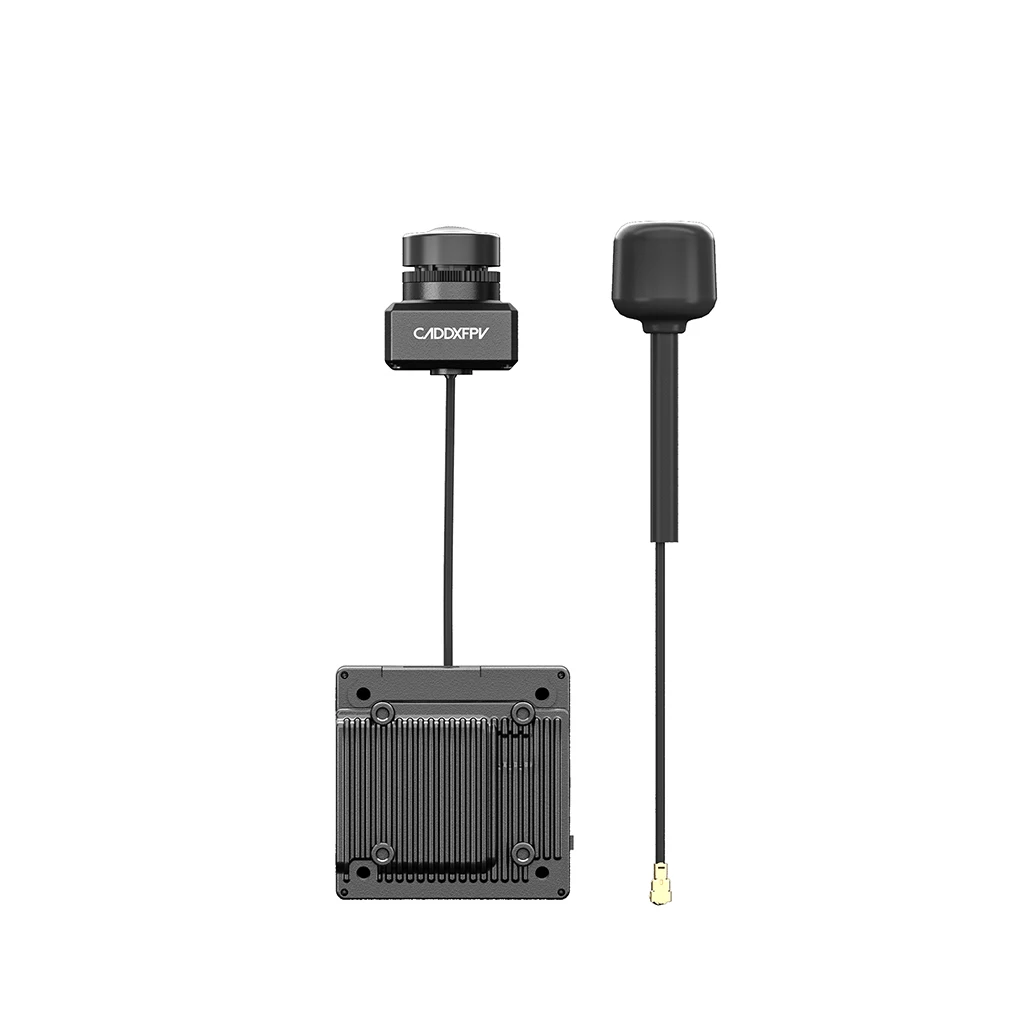

The compact and convenient single-antenna design makes it easier to assemble your FPV drone. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.
HD 1080p OLED Dual Micro Displays
The Avatar-goggles are designed to be lightweight, mini, small and have a 46° field of view, making them more comfortable for pilots while giving them a more immersive FPV experience.

The goggles have the feature of adjusting the focus without the need to install, corrective lenses.
HDMI-Compatible Output
Turn on the ranging mode to display the distance between the drone and goggles in real time,in case the drone is lost due to long distance flight.

Q: Do we support 1080P 120FPS?

A: Our VTX products all support 1080P/120FPS, and can reach 1080P/120FPS through firmware upgrade is around the corner.

Specification
Camera
Model	Avatar-V2 camera
Image Sensor	1/3.2-Inch 4Mp 4:3sensor
Resolution	1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility;
Ratio	4:3 native /16:9
Lens	2.1mm
FOV	160°
Aperture	F2.0
Shutter	Rolling shutter
Min.Illumination	0.001Lux
Weight	7.2g
Dimensions	191922mm
Coaxial Cable	140mm
Gyroflow	Only 32G VTX Supported
VTX
Model	Avatar-V2 module
Communication Frequency	5.725-5.850GHz
Transmitter Power (EIRP)	FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm
1/O Interface	JST1.04(Power in)JST0.86(USB)
Mounting Holes	25.525.5mm; 2020mm
Dimensions	33.533.510.5mm
Storage	8G/32G
Recording	1080p/720p
Weight	17.6g
Operating Temperature	-20-40℃
Channels	8
Wide Power Input	6V-25.2V
Supported FC System	Betaflight; Inav; Fettec; ArduPilot; Kiss
OSD	Canvas mode
Latency	Average delay 22ms
Antenna	1(IPEX)
Avatar-V2 antenna
Polarization	LHCP
Bandwidth	5600MHz-6000MHz
Gain	1.9dBi
VSWR	≤1.5
Input Impedance	50Ω
Interface	IPEX-1
Size	R15 X 45mm （without cable）
Weight	2g
Packing List
USB transfer extension cable	X1
4 Pin silicone cable	X1
M2*4mm screws	X8
M2*5mm screws	X4
M2*6mm screws	X4
M2*14mm screws	X4
M250.5mm gasket	X4
