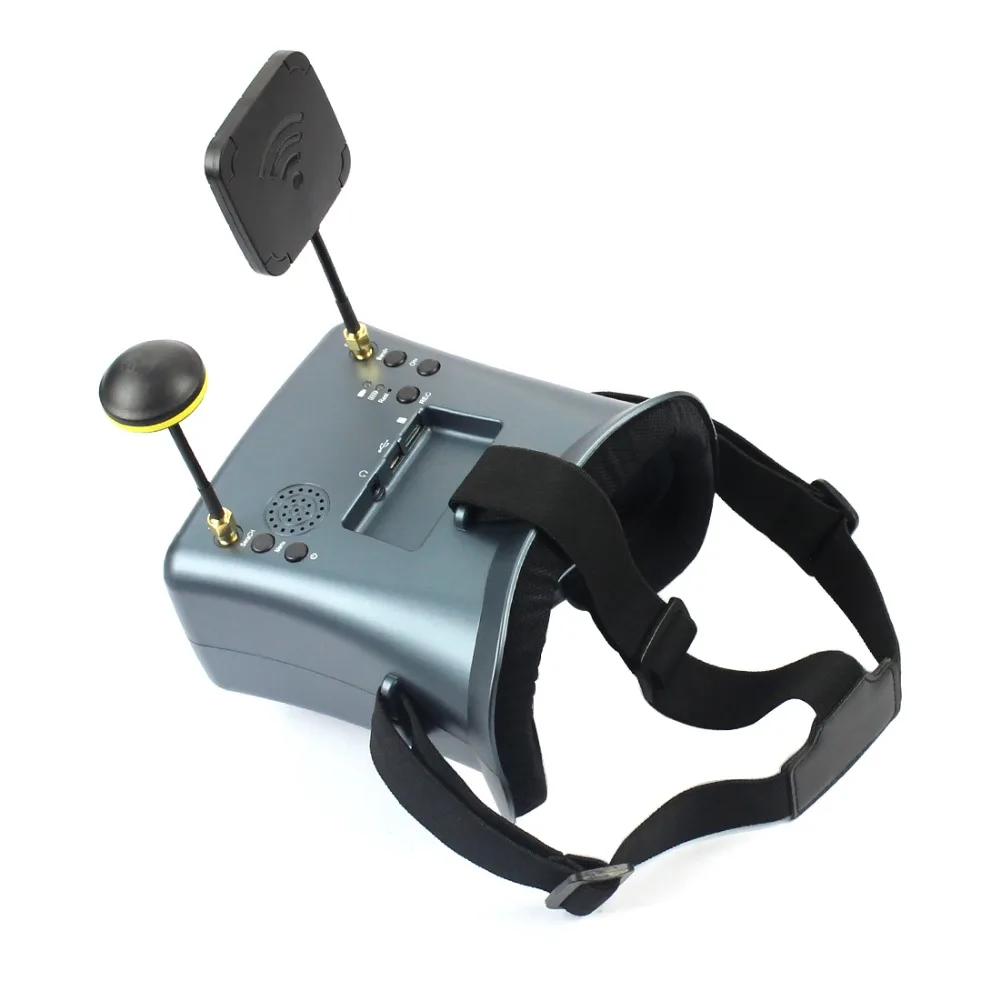

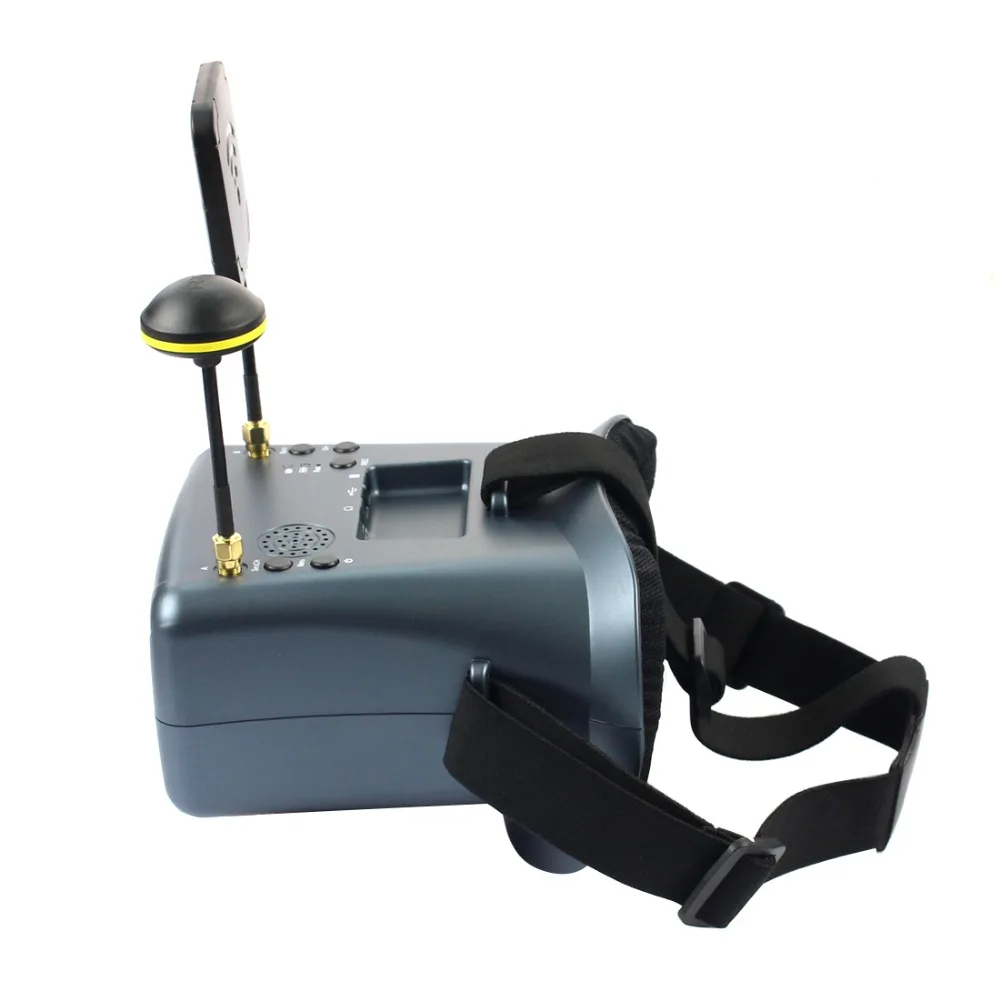

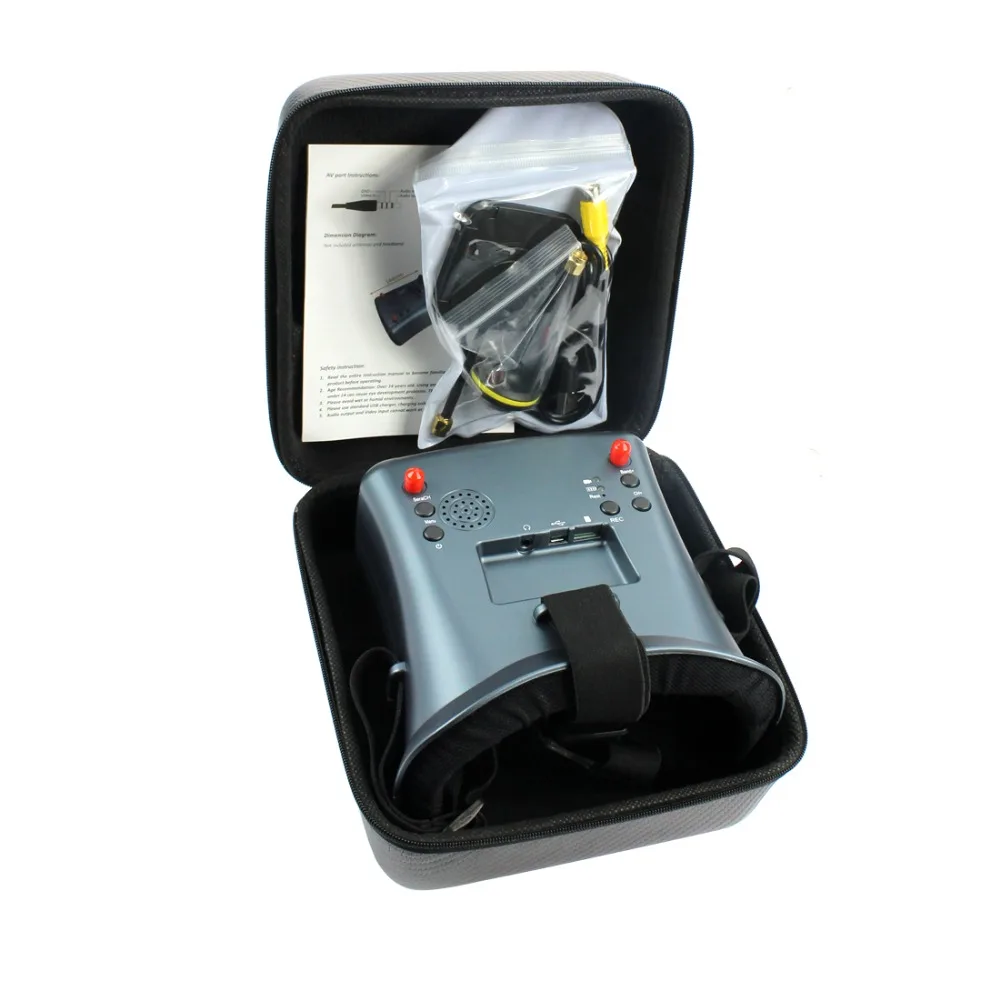

QWinOut 5.8G 40CH FPV Goggles 800*480 LS-008D 4.3inch Built-in Battery for RC Racer DIY Quadcopter Drone FPV Transmission Accessory

QWinOut

Regular price $61.00

Shipping calculated at checkout.

Note:  EU plug / UK plug 3 options, choose the one you want, if any request, please leave message or contact me directly.



Feature:

● With DVR, you can record videos anytime and anywhere;

● Low power consumption;

● Double antenna reception to make the signal more stable;

●Auto-Searching, support a key search frequency;

● 4.3 Inch 800*480 dot high brightness LCD screen;

● Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;

● Built-in 3.7V/2000mAh high-capacity Li-ion polymer Battery;

● Universal USB charging interface;

● Real-time video return, Very low time-delay;

● Bilingual menu in support of Chinese and English;

● Support external video signal input;

● Support Audio signal output (You can connect headphones)



Specification:

Model



Name

5.8G FPV Goggles

LCD Screen

Screen size:    4.3 Inch

Resolution:    800*480

Display Ratio:  16:9

View Angle:    6 o'clock

Brightness:    300cd/m⊃2; with high brightness backlight LED

Video delay

Video time-delay less than 20ms

Lens

2.8X Fresnel Lens, 92% transparent rate no distort of light

Interface

Antenna

2 X RP-SMA male

USB

To charge the battery

AV Jack

External video signals input or internal Audio signal output

Card slot

TF-Card, Support up to 32G(C10 recommend)

DVR

REC size:    VGA / D1 / HD               Selectable

REC sound:  ON / OFF                   Selectable

REC time:   OFF / 3min / 5min / 10min     Selectable

Frame rate:  30 Frames

Compress format:  MJPEG

Record file format:  AVI

Languages

English and Chinese

Power Supply

Power adapter:  DC5V/2A (USB interface)

Battery:  3.7V/2000mAh,

DVR module ON: Each full charge revive around 2.5hr working time

DVR module OFF: Each full charge revive around 3.5hr working time

Power Consumption:

* Normal mode: The device operating current of 400mA at 3.7V;

* Record Mode : The device operating current of 620mA at 3.7V;

* Built-in battery maximum charge current of 500mA;

Wireless

Frequency Table(MHz)



CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

Band A

5865

5845

5825

5805

5785

5765

5745

5725

Band B

5733

5752

5771

5790

5809

5828

5847

5866

Band E

5705

5685

5665

5645

5885

5905

5925

5945

Band F

5740

5760

5780

5800

5820

5840

5860

5880

Band R

5658

5695

5732

5769

5806

5843

5880

5917

Body

Dimension:  155mm * 144mm * 113mm

Weight:     300g(with headband, not included antennas)

* Note: Cannot record video input from AV port. *


Description:



Key 1: Short press into MENU mode; Long press (More than 2 sec) for Power ON/OFF.

Key 2: Short press for Auto-Searching; Long press (More than 1.5 sec) into AV mode.

Key 3: Short press to start or stop Recording.

Key 4: Short press for Band+ (Change bands A-B-E-F-R circularly).

Key 5: Short press for Channel+ (Change channels 1-2-3-4-5-6-7-8 circularly).

Antenna port A: RP-SMA male.

 Antenna port B: RP-SMA male.

AV Jack: In RF receiving mode can output Audio signal; In AV mode can enter the video signal.

Micro-USB Charging port: Supports DC5V only.

Card slot: Used for inserting memory card.

RESET: Power Reset.

Charging indicator: When is charging, the red light is on; When is full, the green light is on.

REC indicator: Show the different working states of the DVR module.



Menu Instructions:

 In the normal mode, press Key 1 to enter the MENU mode.

 In MENU mode:

Key 1: Scroll options bar.

Key 2: Auto-Searching.

Key 3: Invalid.

Key 4: Enter / Value +.

Key 5: Enter / Value -.



Playback Instructions:

 In the menu mode, select the "DVR" option bar to enter the DVR mode.



In DVR mode:

Key 1: Return / Quit Playback mode.

Key 2: Delete current file.

Key 3: Play / Pause.

Key 4: Forward selection of video / Fast Forward (When video is playing).

Key 5: Backward selection of video / Fast Rewind (When video is playing).





AV port Instructions:





Dimension Diagram:

Not included antennas and headband.





Safety instruction:

1. Read the entire instruction manual to become familiar with the features of the product before operating.

2. Age Recommendation: Over 14 years old. Using any near eye displays on children under 14 can cause eye development problems. This is not a toy.

3. Please avoid wet or humid environments.

4. Please use standard USB charger, charging voltage can only be 5V.

5. Audio output and Video input cannot work at the same time.
