Clearance DarwinFPV BabyApe Pro-V2 3inch FPV Plane 142mm Wheelbase with Brushless Motor F4 AIO Flight Controller VTX Propeller Quadcopter

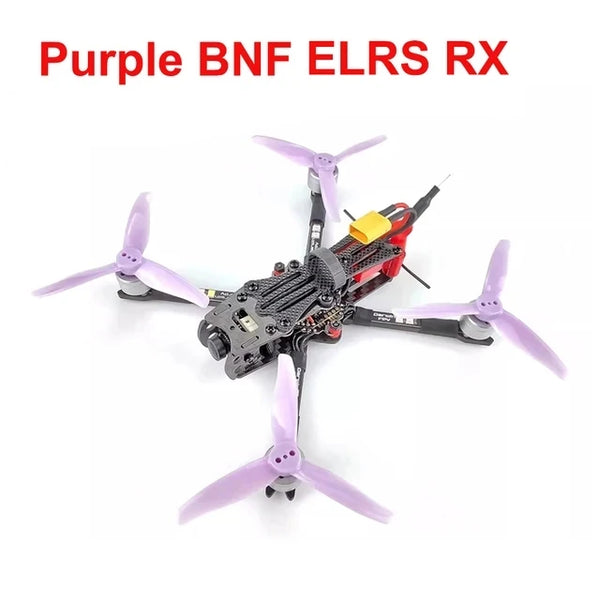

BabyApe Pro V2 FPV Plane 142mm 3inch Quadcopter

There is PNP, BNF and RTF FPV version, pls choose which one you like, thank you!

Wheelbase: 142mm

Frame arm thickness: 3.0mm（V2）

Other thickness:1.5mm

Frame kit material: 3K carbon fiber

11044300KV 2-3S Brushless Motor

KV: 4300KV

Lipo cell: 2-3S

Weight: 6.0g

AIO 4IN1 15A BLHeli_S ESC

Input voltage: 1-3SLiPo

Continuous current: 15A

Pe ak current:17A (10S)

BEC output: no

Main control chip:EFM8BB21

Firmware upgrade: Supports Dshot600/Oneshot125

MOS: 3*3

F411 AIOFlight Controller

Main control chip: STM32F411

Sensor: MPU6500

Integrated OSD

PPM/DSM/IBUS/UAR share: UART1-RX

Mounting holes distance: 25.5*25.5mm

Supports Betaflight firmware

Baby APE Darwin700TVL Camera

Resolution:700TVL

Lens: 1.8mm

Input: 3.5-5V

TV System: PAL/NTSC

Baby APE Pro CADDX ANT

Resolution:1200TVL

mage Sensor: 1/3" CMos Sensor

Input: DC 3.7-18V

TV System: PAL/NTSC

5.8G 40CH 0mW/25mw/200mw switchable VTX

Supports TBS SmartAudio

Transmitting power: 0mW/25mW/100mW/200mW switchable

Channel: 40CH

Full video format: NTSC/PAL

Input voltage: 7V~24V

Power dissipation: +12V/600MW

Size: 25×20×6m

Weight: ≤3.2g (except antenna)

With copper pipe mini antenna (ipex antenna)

30163-blade propeller

Material: PC

Mounting hole: 1.5mm

Center thickness: 5.5mm

Quantity: 2 pairs

Weight: 1.18g a pair

Lipo Battery

Recommend 2-3S 300-450mah ( Not included )
