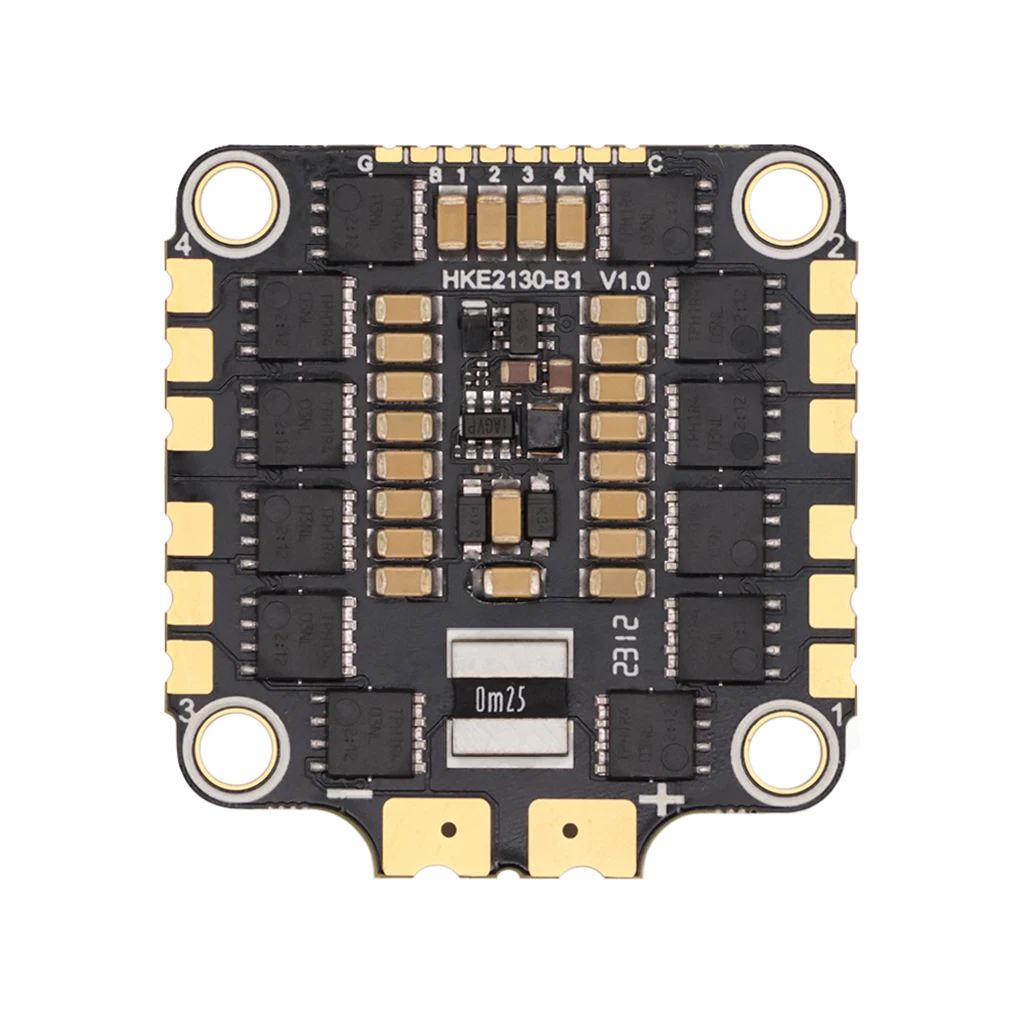

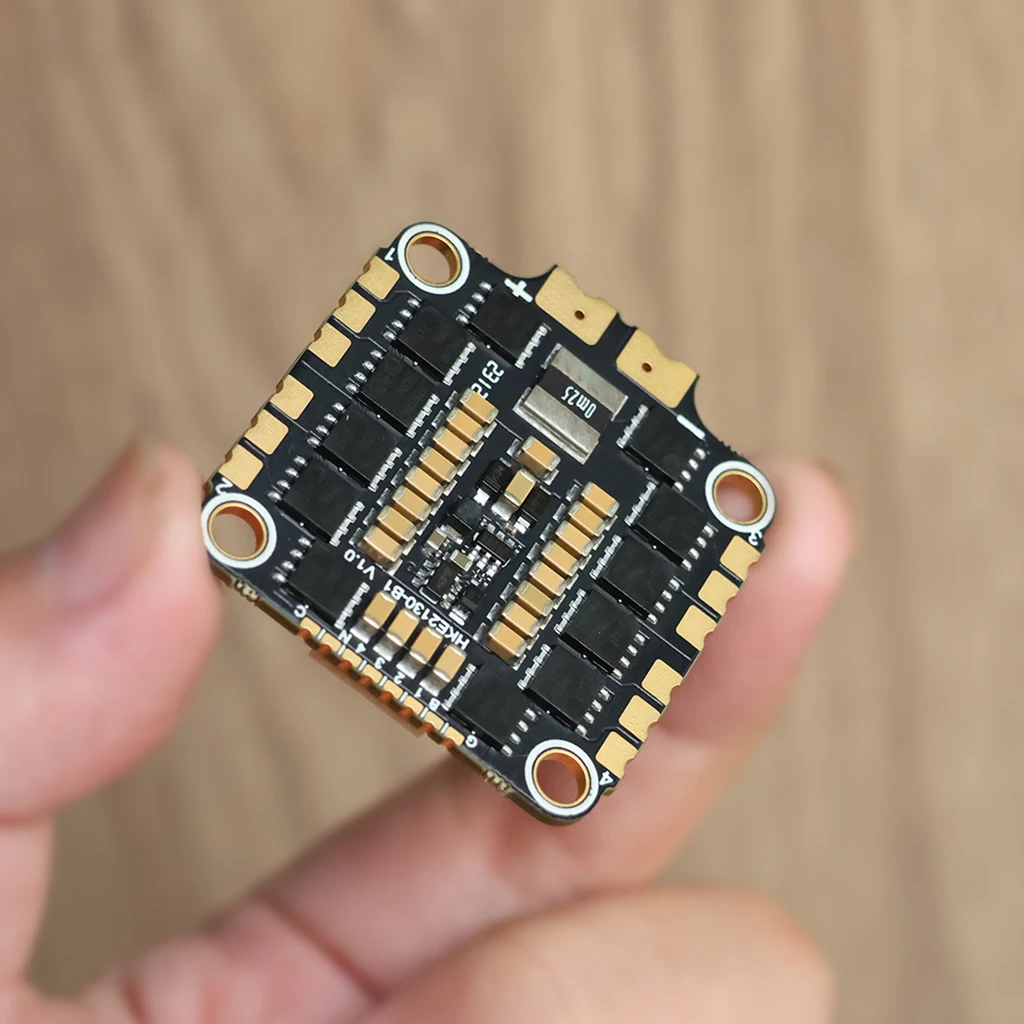

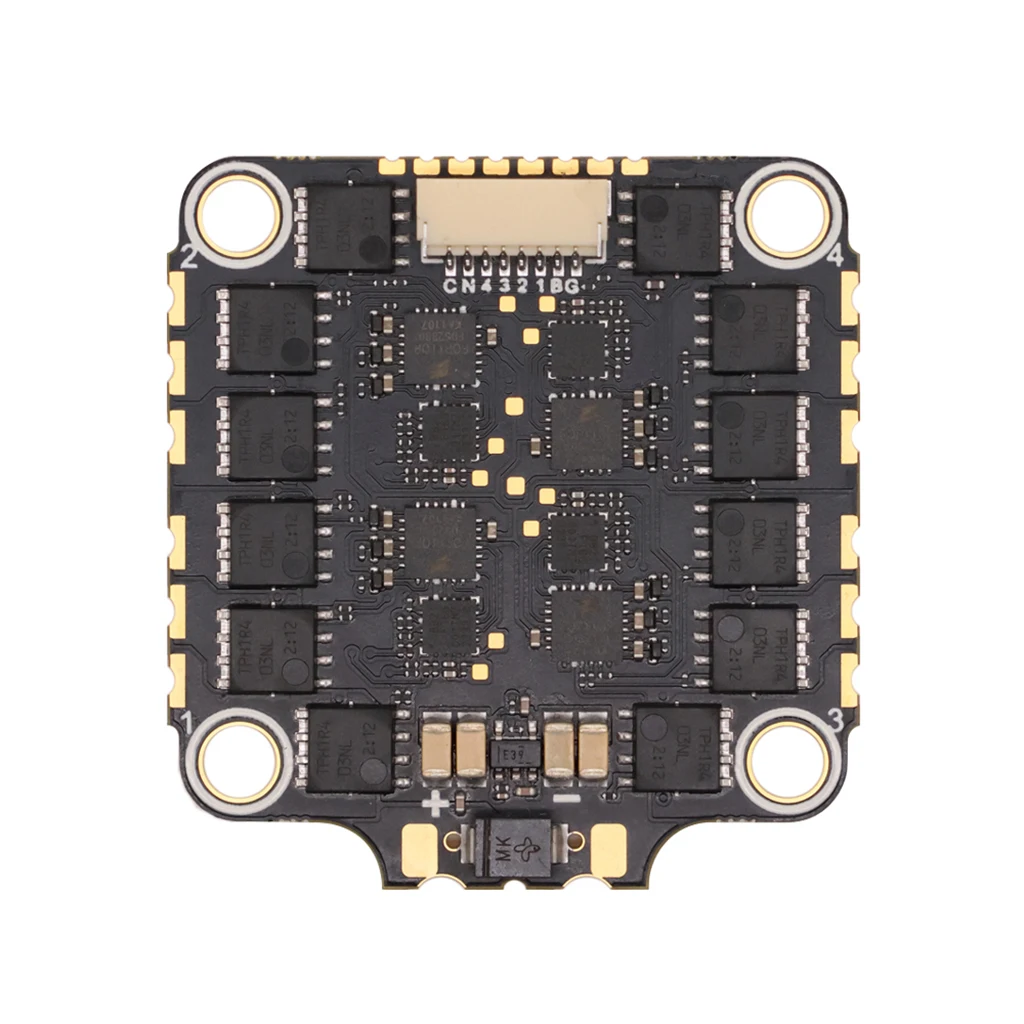

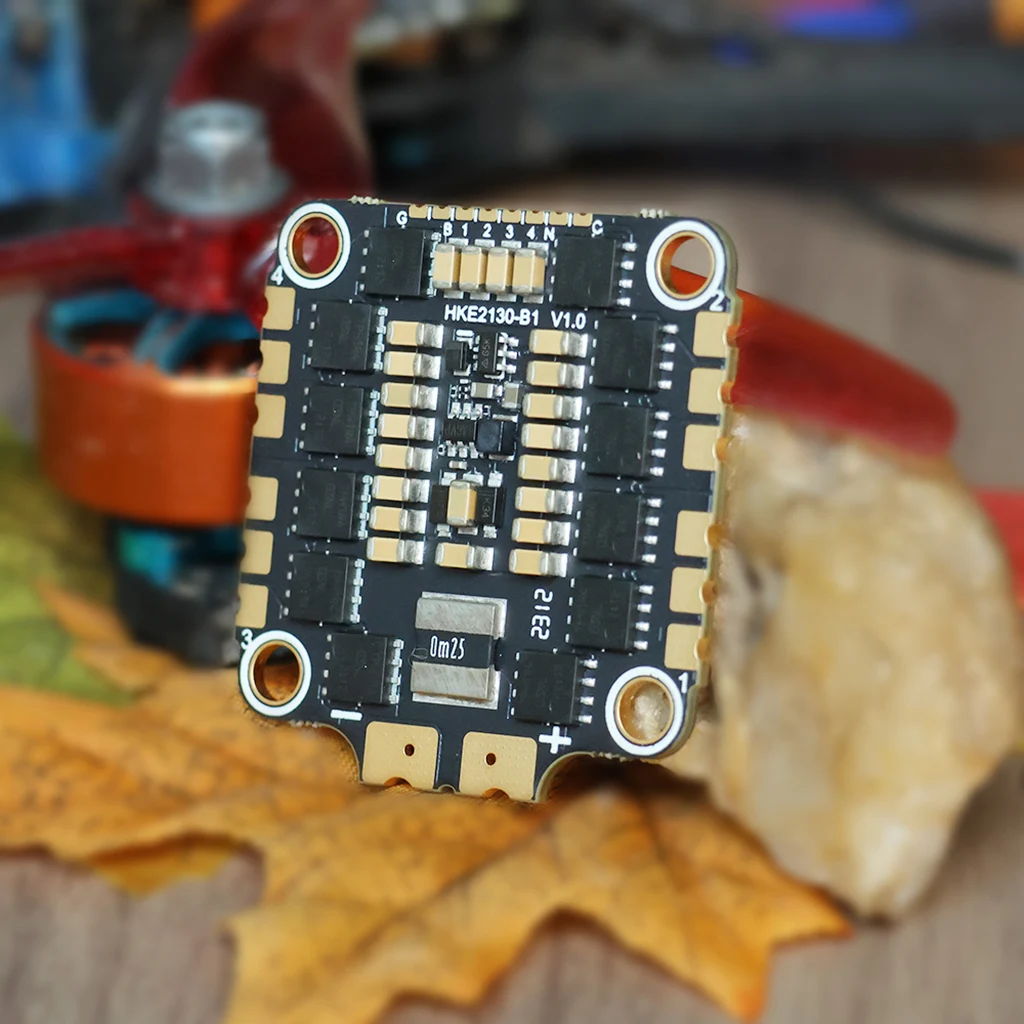

HAKRC 2130 4-in-1 ESC Datasheet

Features:

1. PCB adopts high-end 6-layer 2oZ thickened copper skin, which has stronger overcurrent capability and good heat dissipation.

2. MOS adopts imported 40V high current resistance MOS, long life with strong load capacity.

3. Adopt industrial grade LDO, high temperature resistance.

4. Using high-quality Japanese Murata capacitors, strong filtering performance

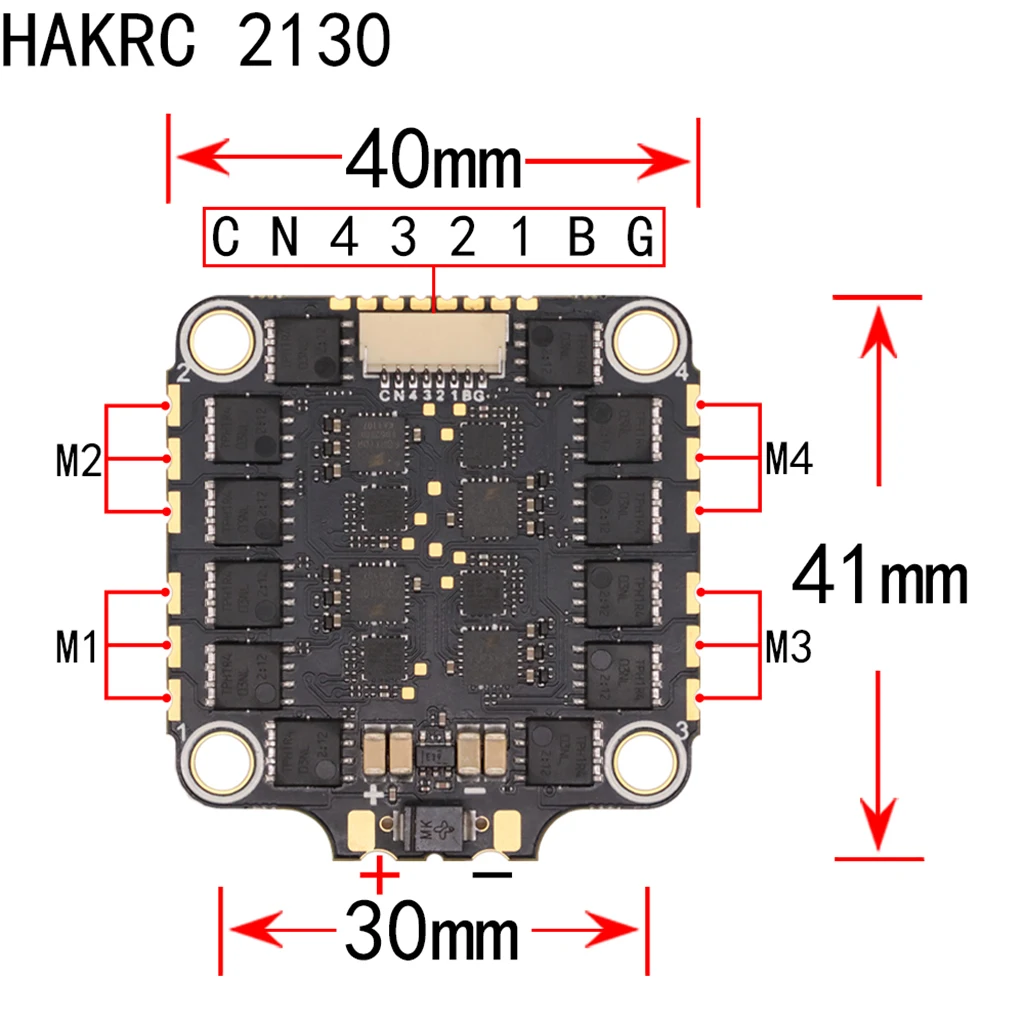

Size: 40*41mm (30.5mm-30.5mm mounting hole)

Packing size: ø64*64*35mm

Product net weight: 12.5g

Package weight: 51.5g

ESC parameters:

ESC firmware: BLHeli-S 16.7

Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Input voltage: 2S-8S Lipo

Galvanometer ratio: 160

Continuous current: 50A

Peak current: 60A

High quality hardware:

Japan imported MOS, three-in-one IC driver FD6288Q driver, imported high-quality Murata capacitor application high-end resin plug hole PCB production process, pads are metallized edging, so that you can avoid pads falling off when using; 2 ounces copper thickness, 6-layer plate, greatly reduce heat generation, higher efficiency.

Hardware: PWM, Damped Light

Hardware PWM drives the motor, less noise, smoother throttle response. Damped Light technology, regenerative braking function, make the motor deceleration more sensitive and effective, and the control more accurate; Active freewheeling technology allows the battery to recycle power

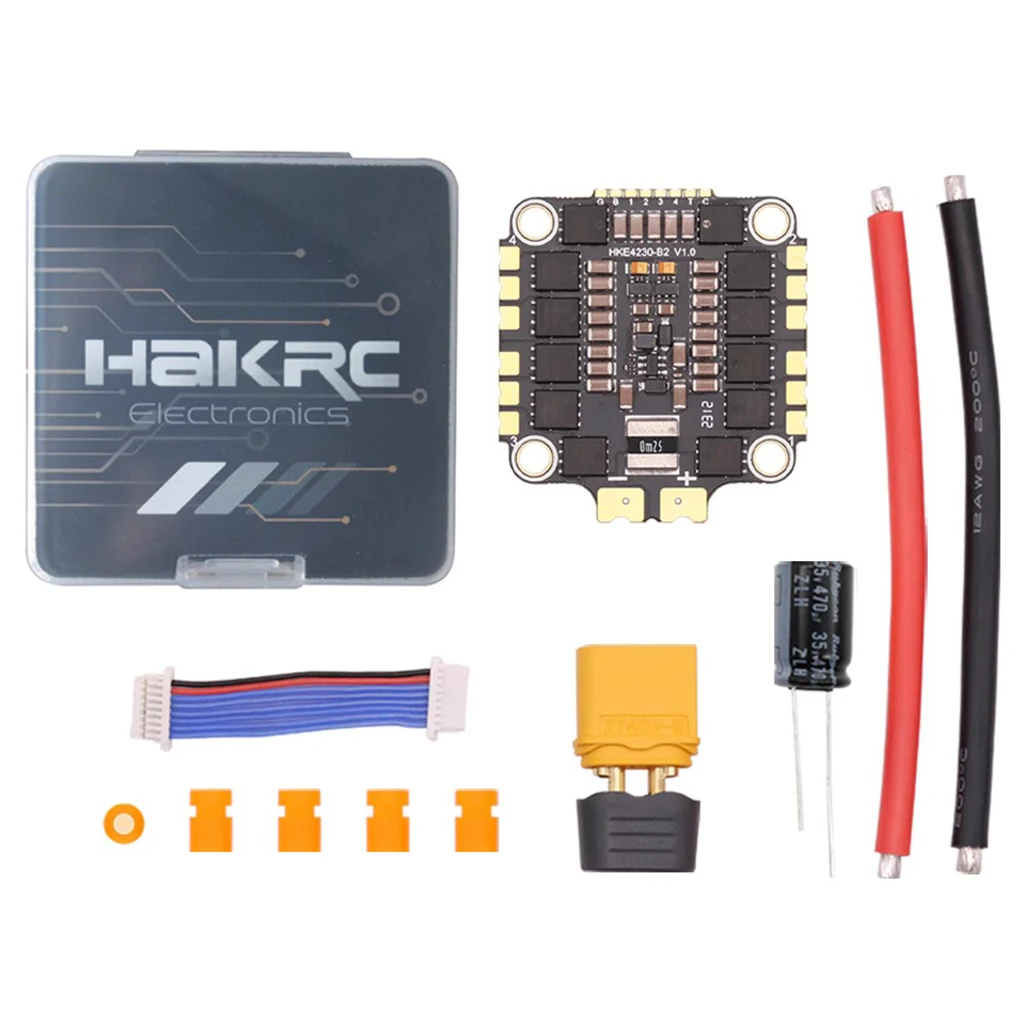

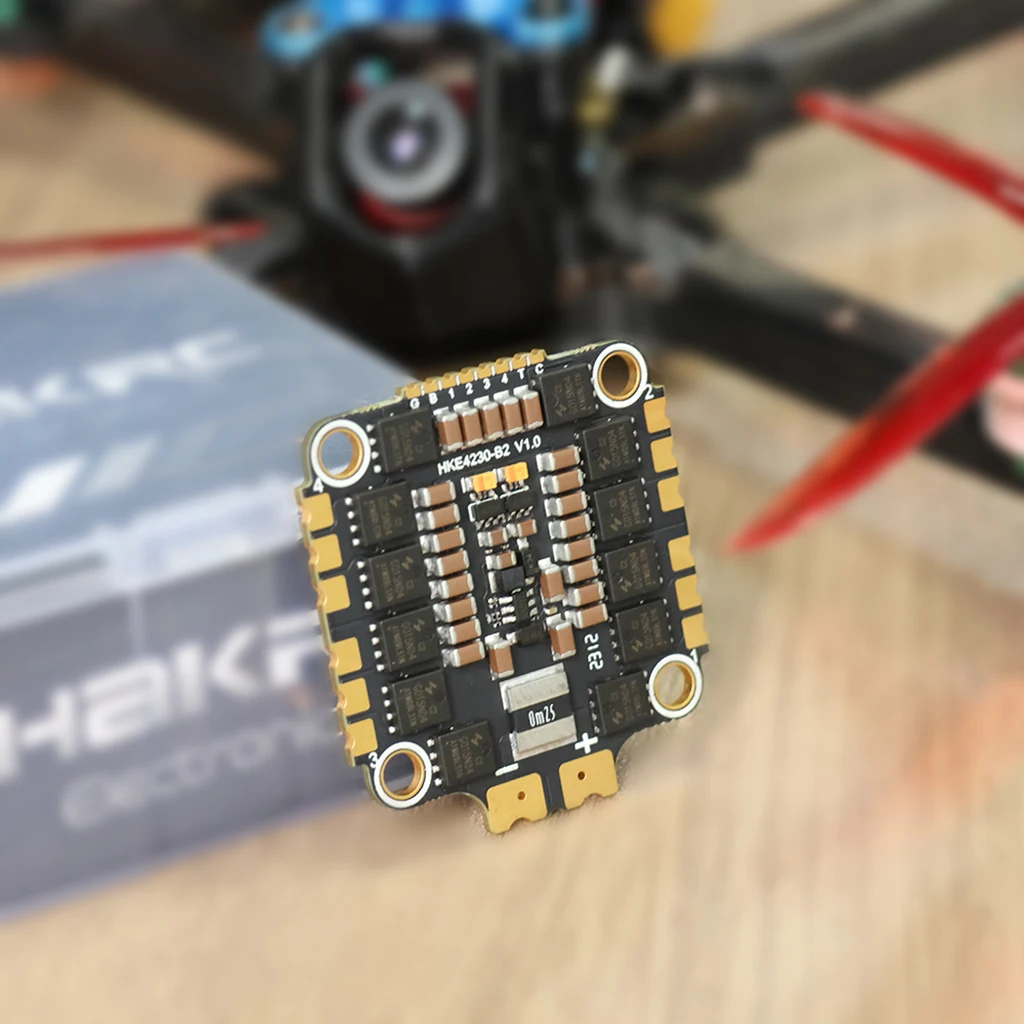

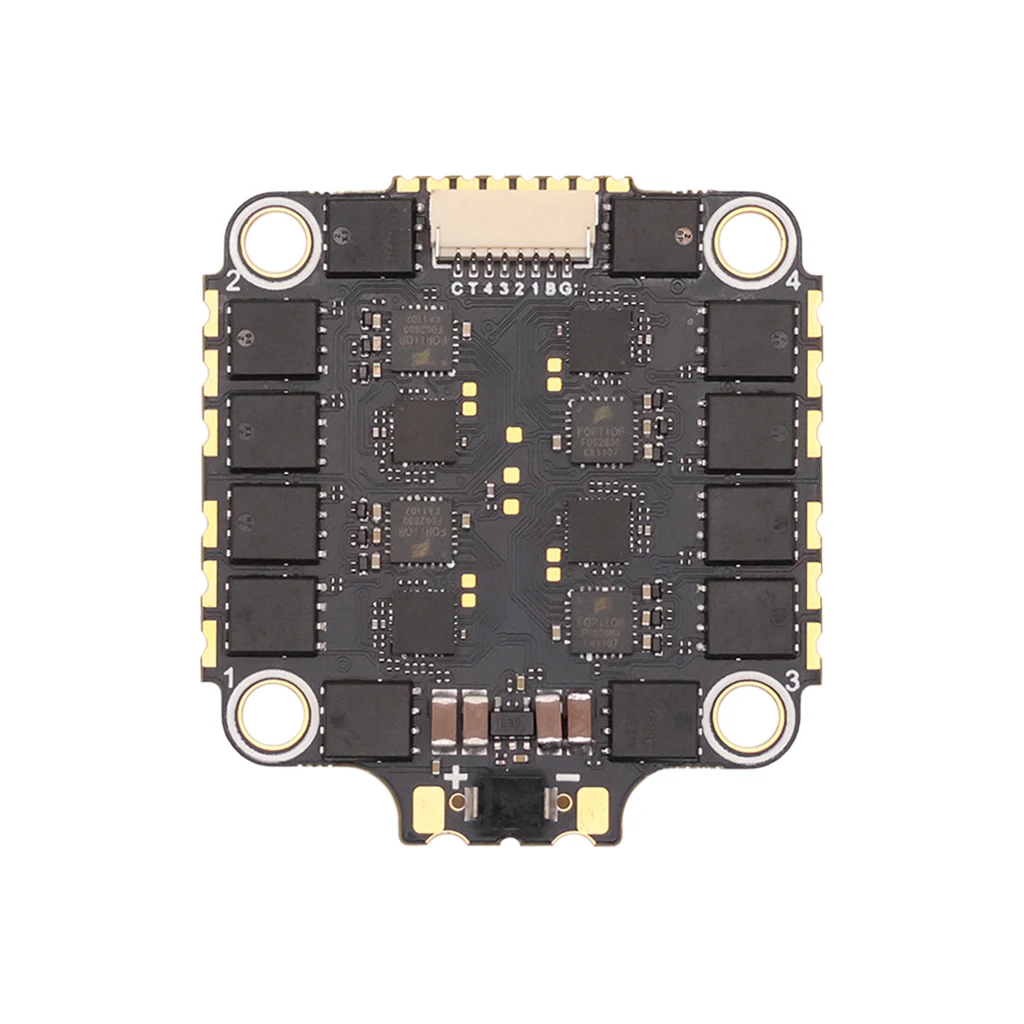

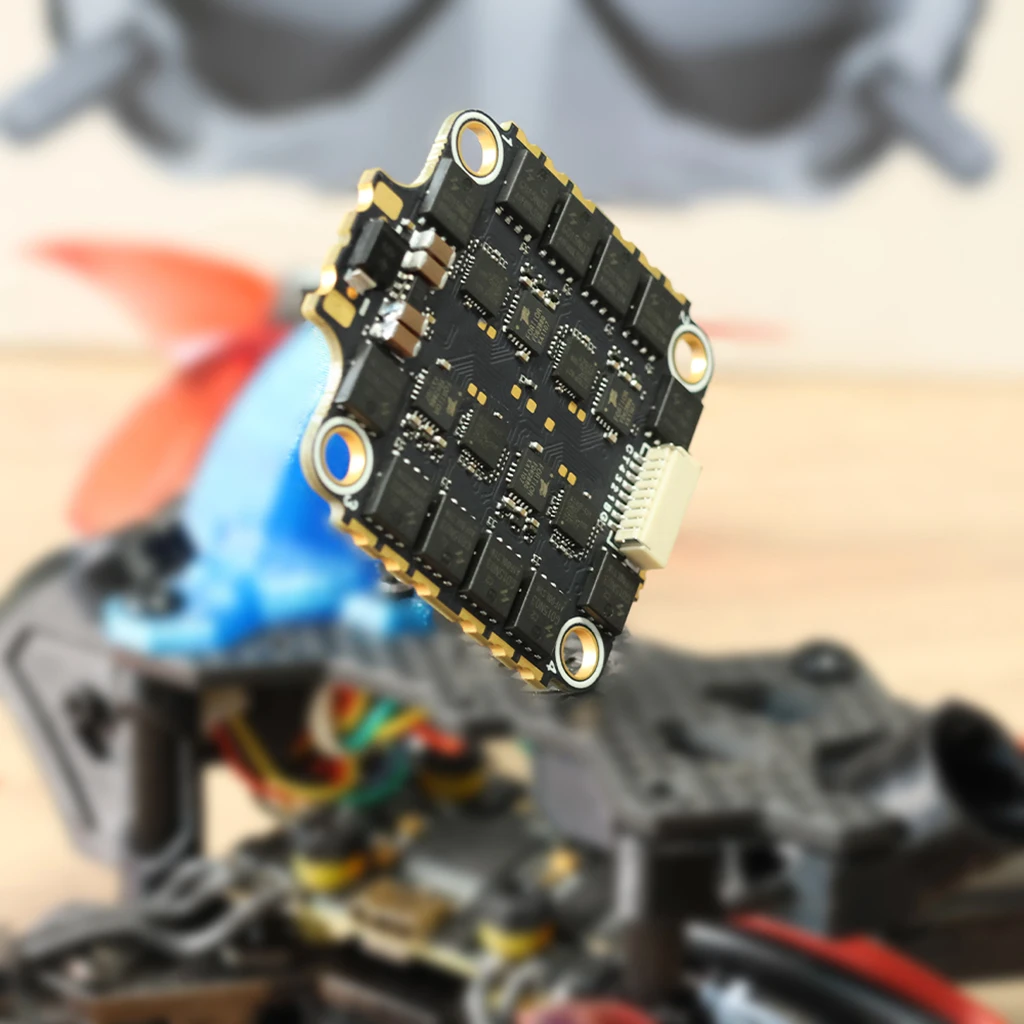

4230 65A 4IN1 ESC

Product Features:

1. PCB adopts high-end 6-layer 2oZ thickened copper skin, which has stronger overcurrent capability and good heat dissipation.

2. MOS adopts imported 40V high current resistance MOS, long life with strong load capacity.

3. Adopt industrial grade LDO, high temperature resistance.

4. Using high-quality Japanese Murata capacitors, strong filtering performance

Small size, full function, can monitor motor speed and temperature in real time.

Size: 40*43mm (30mm-30mm mounting hole)

Packing size: ø64*64*35mm

Product net weight: 14g

Package weight: 53g

ESC parameters:

ESC firmware: HAKRC_AT4G_Multi_32.9 Hex

Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Input voltage: 2S-8S Lipo

Galvanometer ratio: 160

Continuous current: 65A

Peak current: 75A
