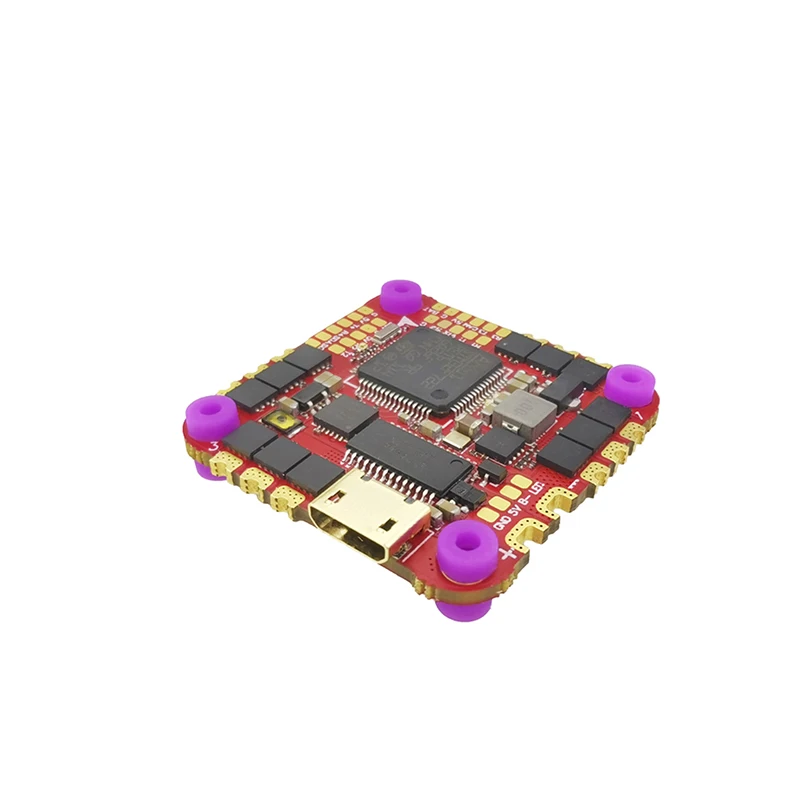

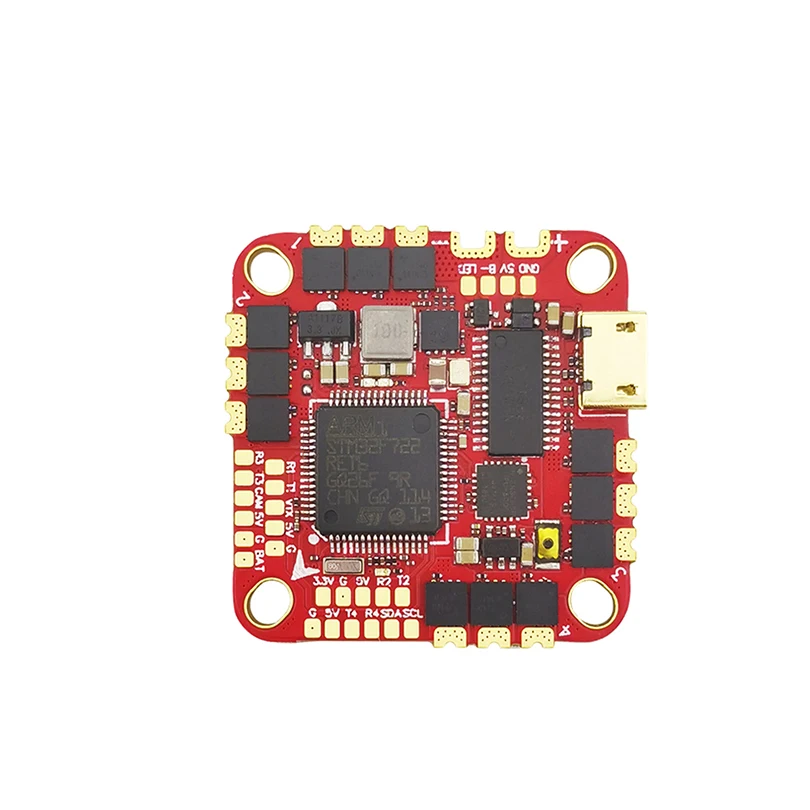

HAKRC F7226 AIO Flight Controller Built-in 40A ESC STM32F722RET6 MPU6000 AT7456E OSD Barometer 5V/3A BEC Dual USB FPV Drone

HAKRC

Regular price $76.38

Shipping calculated at checkout.

Features:

1. The PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger over-current capability and good heat dissipation.

2. MOS adopts imported 40V high current resistance MOS, long life and strong load capacity.

3. Using industrial grade LDO, high temperature resistance.

4. Using high-quality Japanese Murata capacitors, strong filtering performance


Flight control parameters:

CPU: STM32F722RET6

IMU: MPU6000

OSD: AT7456E

Barometer: integrated

BEC: 5V/3A

Uart: 5

LED: Support WS2812 and other programmable

Sensor: Built-in current sensor

Flight control firmware version: HAKRC F722D

Receiver: CRSF / Frsky/ Futaba/ Flysky/

TBS Crossfire/ DSMX: DSM2 receiver

Size: 32* 32mm (25.5mm-26.5mm mounting hole)

Packing size: ø63*32mm

Product net weight: 7g

Package weight: 25g

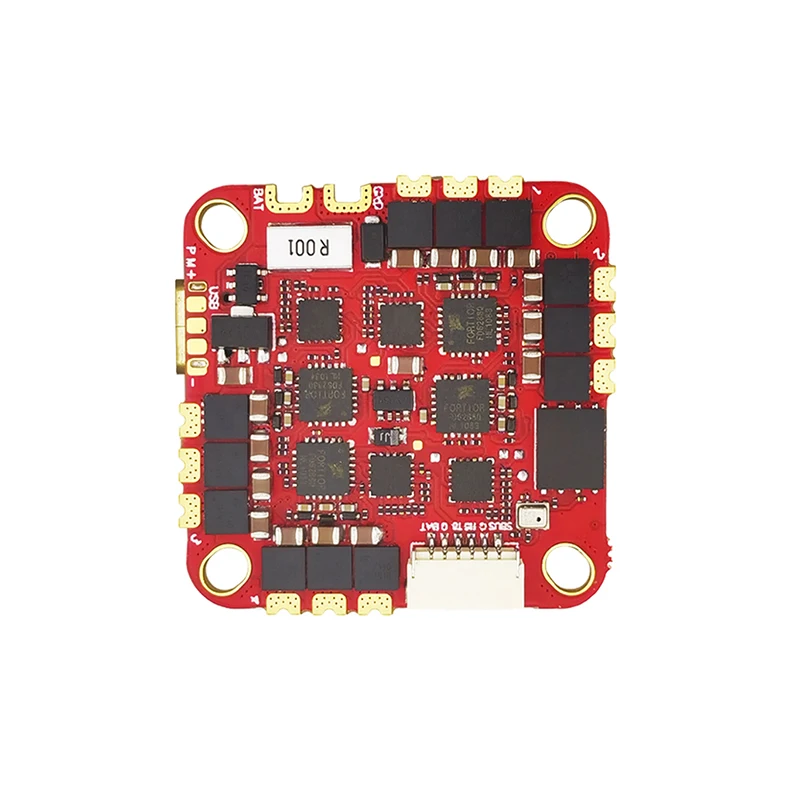

ESC parameters:

Firmware support: BLHELI_ S

Protocol support: PWM, Oneshot125, Oneshot42,

Multishot, Dshot150, Dshot300, Dshot600

Input voltage: 2S-6S Lipo

Continuous current: 40A

Peak current: 50A

Current meter proportional value: 450

Firmware version: BLHELI _S (G- H-30)

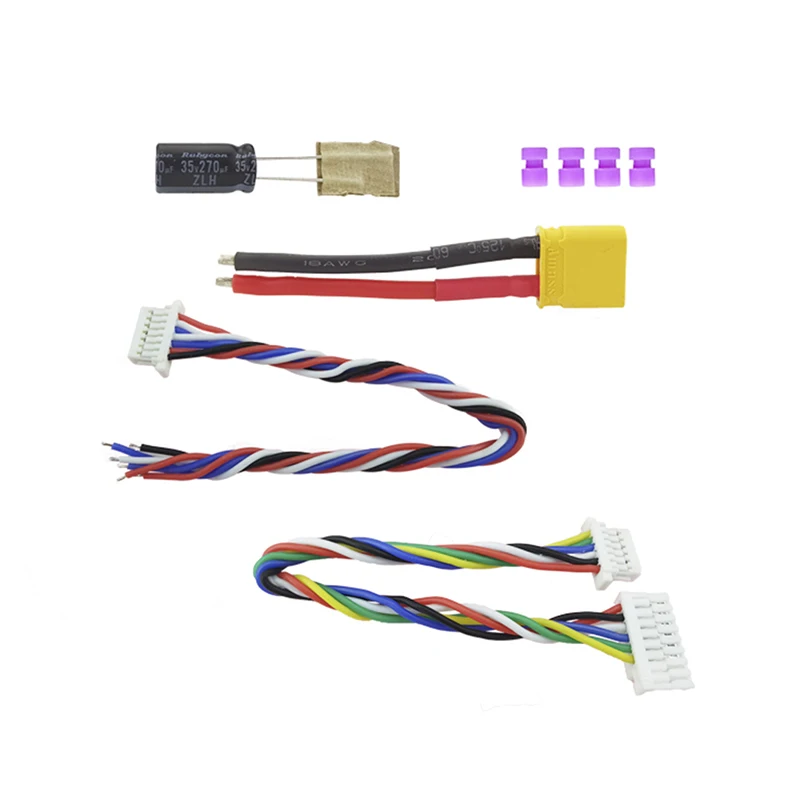

Packing list:

Yellow shock-absorbing ball x4, XT30 power cord *1,

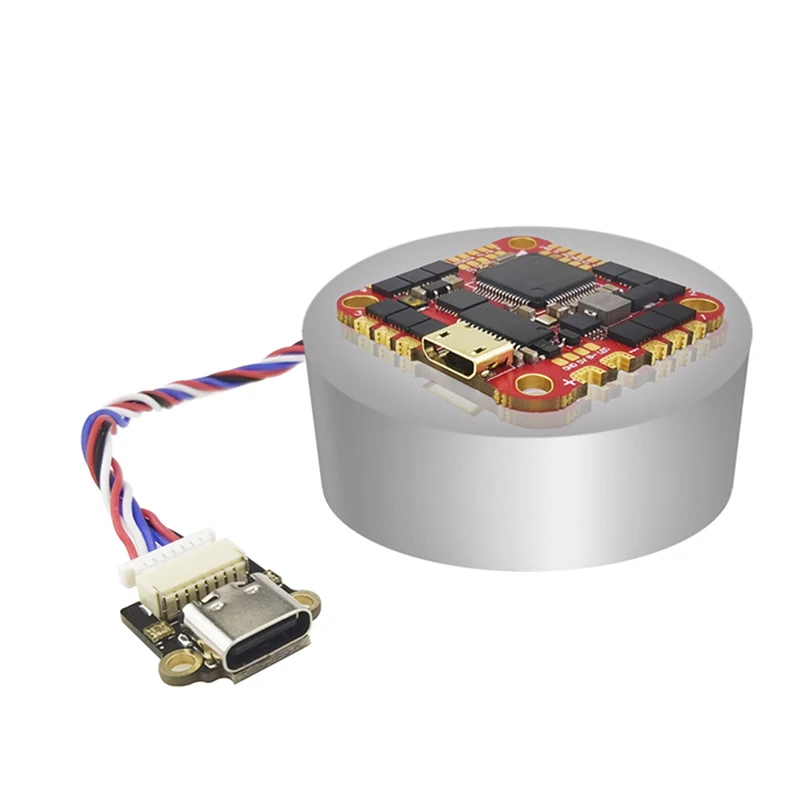

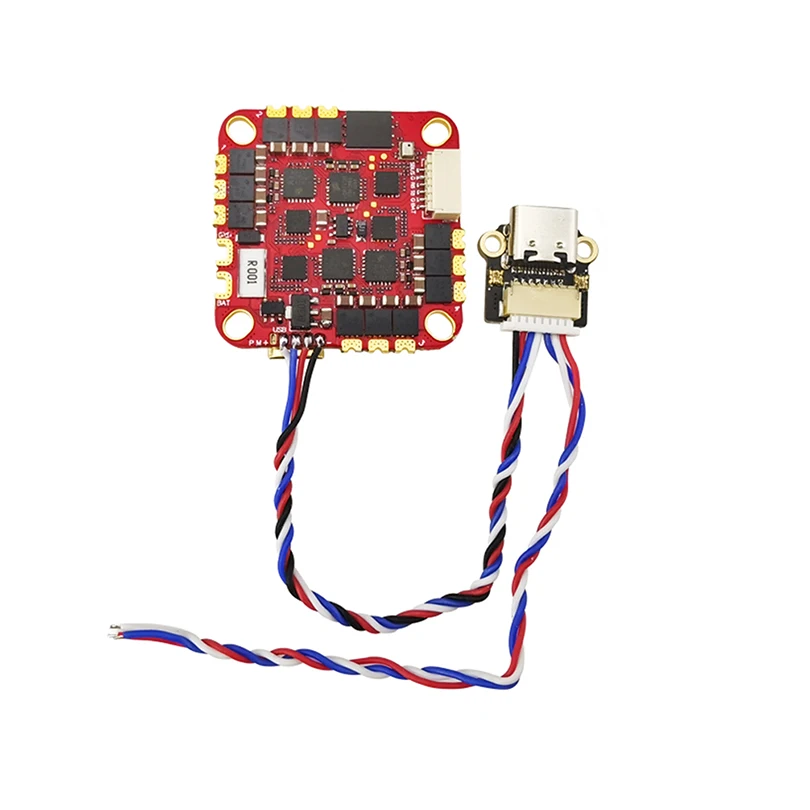

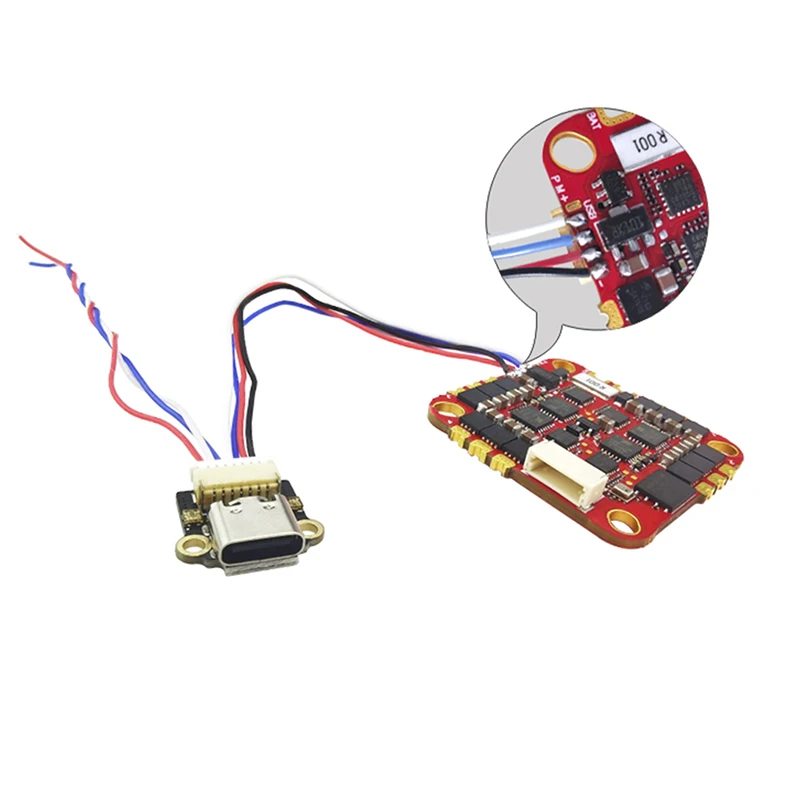

Type-C USB small board x 180mm long SH1.0/7P single-head cable * 1,

270uf/35V capacitor * 1
